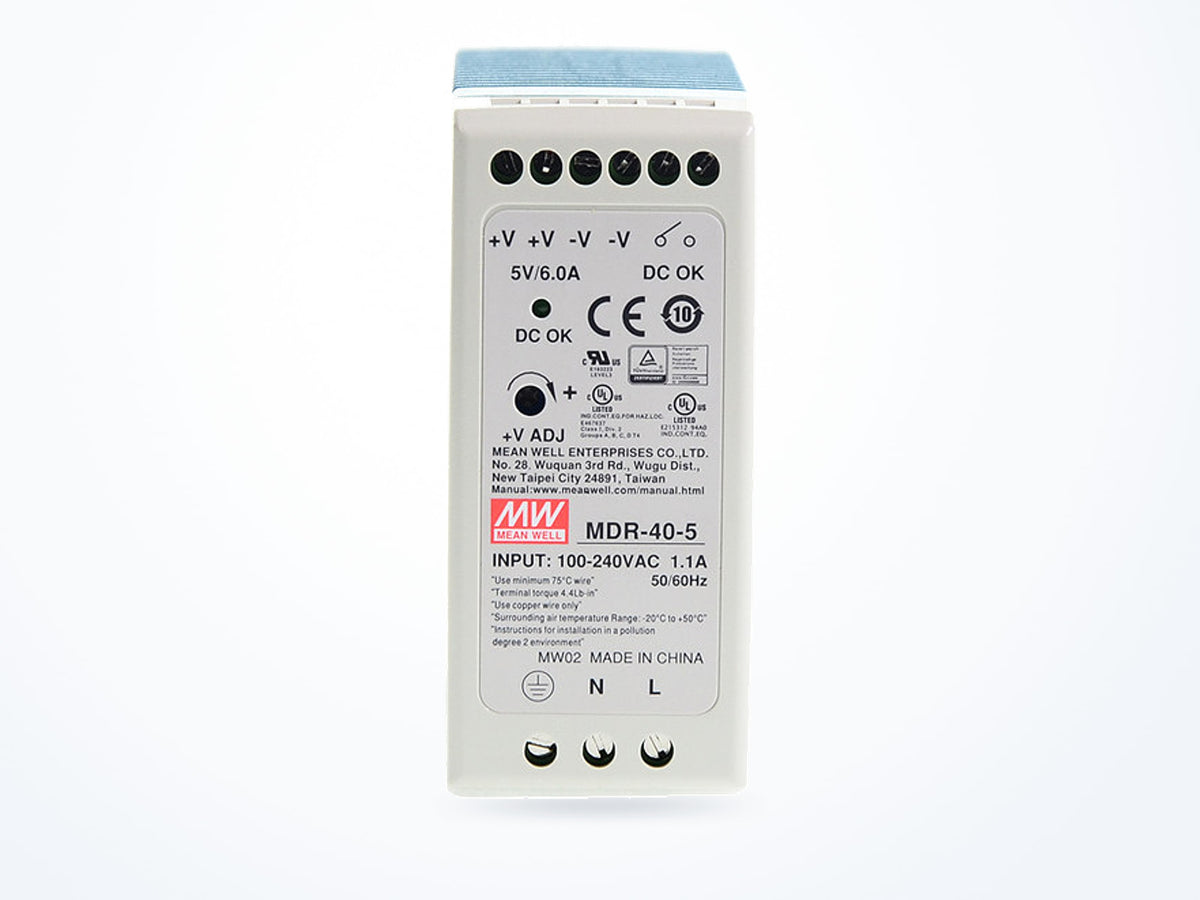

MEAN WELL MDR-40-5 30W 5V 6A DIN Rail

Part numberMDR-40-5
Output voltage 5 V
Rated current 6 A
Rated power 30 W
$29.69Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MDR-40 model selection table MDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 6 A
Rated power 30 W
AC input range 85–264 VAC
Typical efficiency 78 %
Mechanical
Operating temperature -20 to 70 °C
Dimensions (L × W × H) 40 × 90 × 100 mm

Is this model right for you?

Within the MDR-40 series, the MDR-40-5 differs from siblings by output voltage, output current, rated power, efficiency, ripple and noise, and output adjustment range. MDR-40-5: 5 V, 6 A, 30 W, 78%, 80mVp-p, 5~6V. MDR-40-12: 12 V, 3.33 A, 40 W, 85%, 120mVp-p, 12~15V. MDR-40-24: 24 V, 1.7 A, 40.8 W, 88%, 150mVp-p, 24~30V. MDR-40-48: 48 V, 0.83 A, 39.8 W, 88%, 200mVp-p, 48~56V.

Product overview

The MDR-40-5 provides a 5 V output with 6 A output current and 30 W rated power. The output adjustment range is 5~6V, and typical efficiency is 78%. The input voltage range is 85 ~ 264VAC 120 ~ 370VDC with a frequency range of 47 ~ 63Hz. Ripple and noise is 80mVp-p. Dimensions are 40 × 90 × 100 mm and net weight is 300 g.

Where this model fits

The MDR-40-5 is used in Industrial Automation, Motor Drives, and Building & Home Automation. Its 5 V output and 6 A output current suit low-voltage control rails. The operating temperature range is -20 to 70 °C and humidity range is 20 to 90%. Dimensions are 40 × 90 × 100 mm and net weight is 300 g.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 5 V
Rated current 6 A
Rated power 30 W
Voltage adjustment range 5–6 V
Ripple & noise 80 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 78 %
Environmental
Operating temperature -20 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 40 × 90 × 100 mm
Net weight 300.0 g
Safety & compliance
Safety standards UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 ,IS13252(Part1)/IEC60950-1(except 48V)approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MDR-40-5
Brand MEAN WELL
Category AC/DC DIN Rail
Series MDR-40

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC immunity Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, EAC TP TC 020

Standards certified against

  • AS/NZS 60950.1
  • CNS14336-1
  • EN62368-1
  • IEC60950-1
  • IS13252
  • UL62368-1
Read the datasheet's exact wording

UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 ,IS13252(Part1)/IEC60950-1(except 48V)approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MDR-40-5
Minimum order quantity 1
Country of origin China
Typical packed weight 474 g
Unit weight 300 g

Downloads

MDR-40 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MDR-40-5 5 V6 A30 W$29.69
Ships in 3–5 business days
MDR-40-4848 V0.83 A39.8 W$27.79
Ships in 3–5 business days

MDR-40-5 lists 5 V output and 6 A output current; MDR-40-12 lists 12 V output and 3.33 A output current.

MDR-40-5 lists 30 W rated power and 78% typical efficiency; MDR-40-24 lists 40.8 W rated power and 88% typical efficiency.

MDR-40-5 lists 80mVp-p ripple and noise; MDR-40-48 lists 200mVp-p ripple and noise.

MDR-40-5 lists a 5~6V output adjustment range; MDR-40-24 lists a 24~30V output adjustment range.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for MDR-40-5

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting MDR-40-5 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
