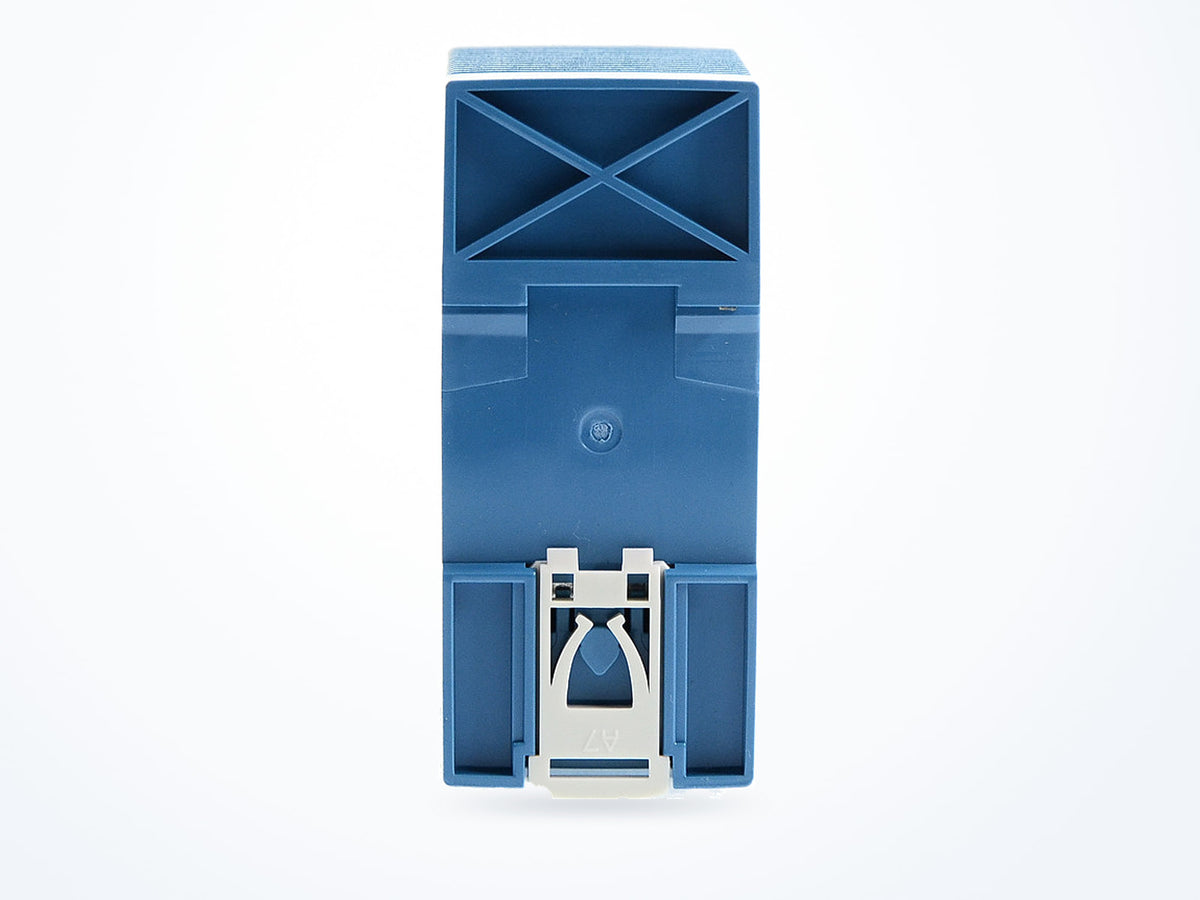

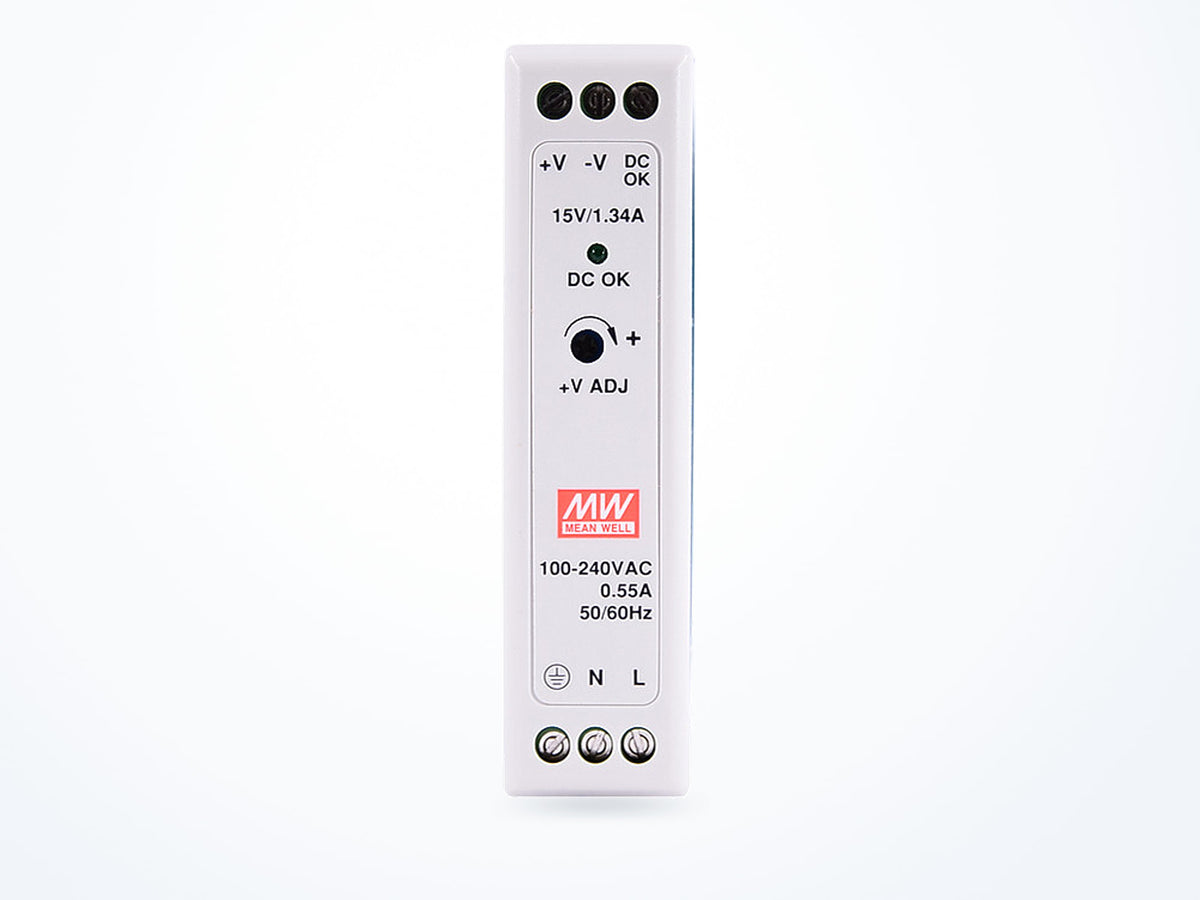

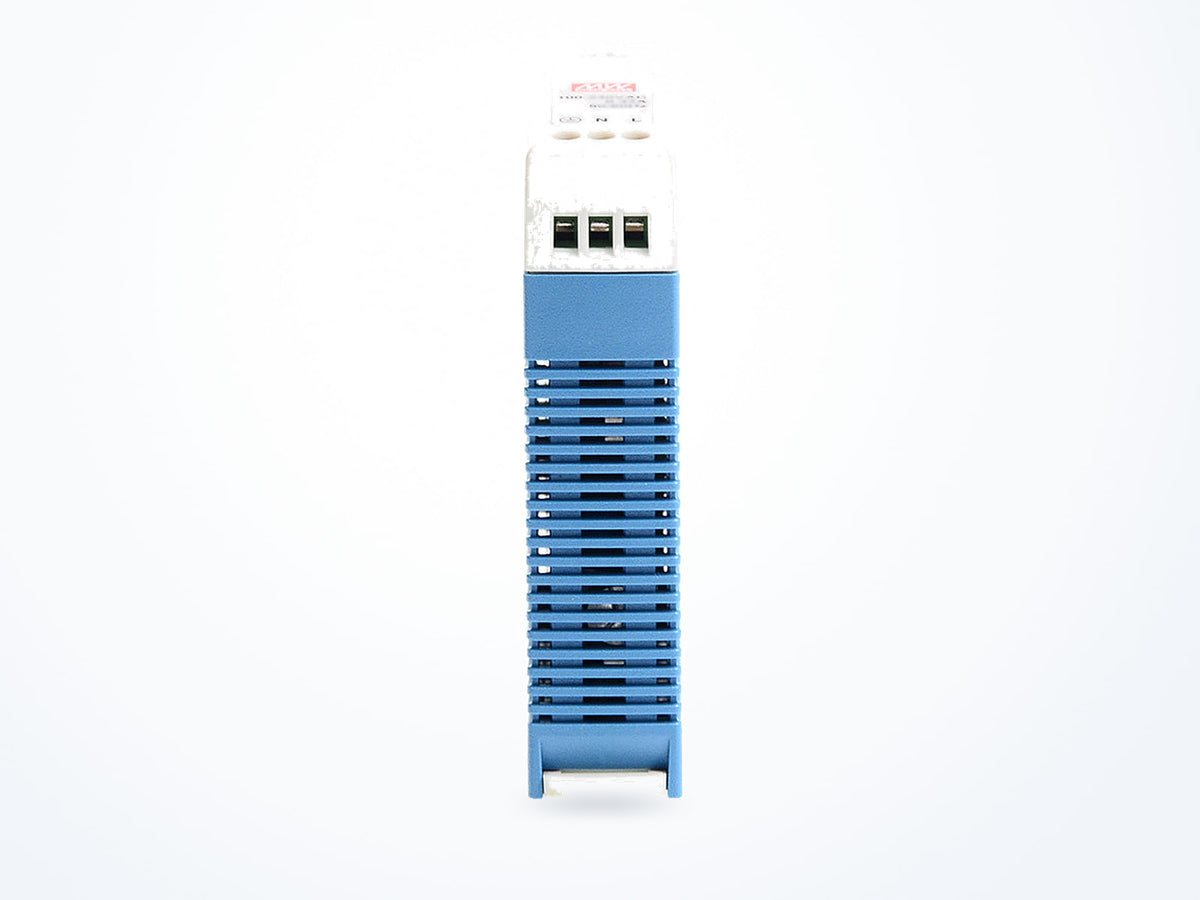

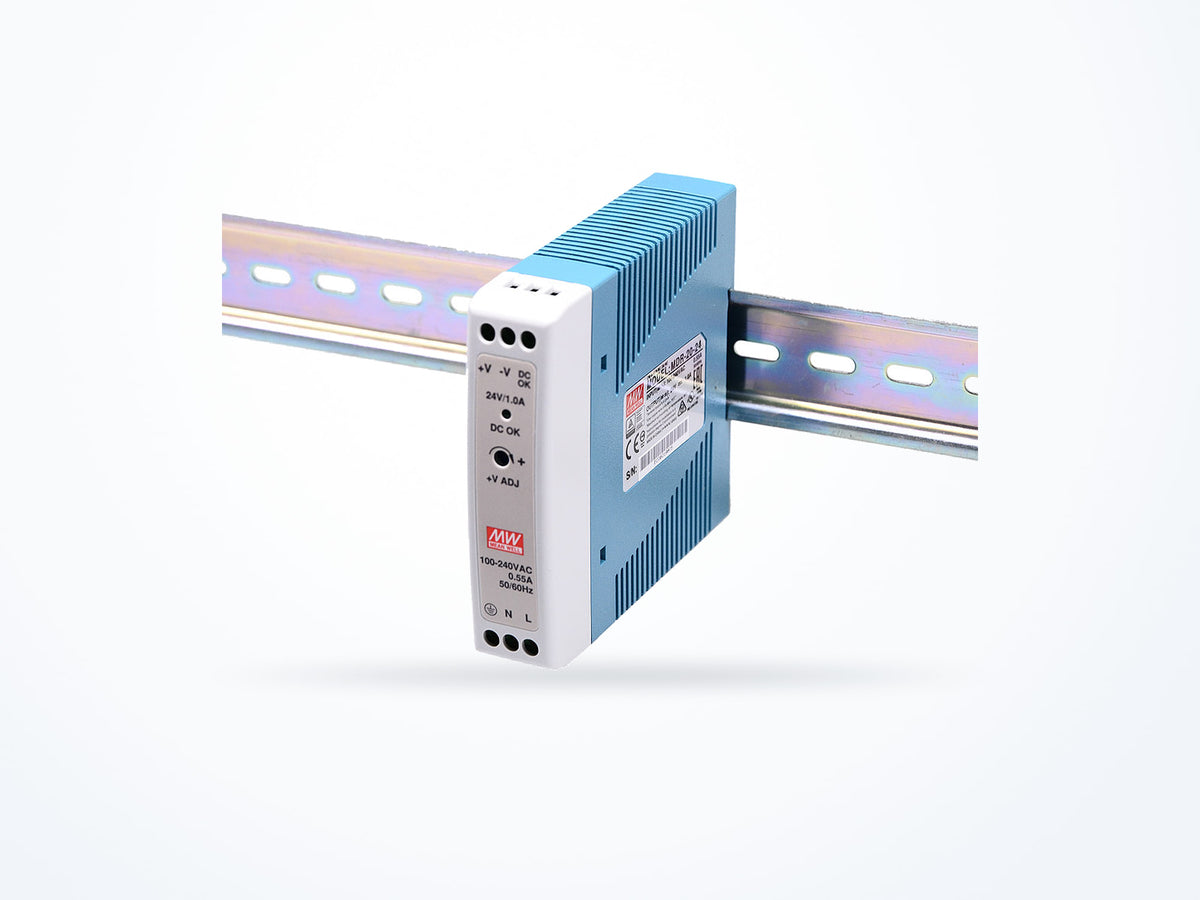

MEAN WELL MDR-20-15 20W 15V 1.34A DIN Rail

Part numberMDR-20-15
Output voltage 15 V
Rated current 1.34 A
Rated power 20 W
$20.84Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MDR-20 model selection table MDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 1.34 A
Rated power 20 W
AC input range 85–264 VAC
Typical efficiency 81 %
Mechanical
Operating temperature -20 to 70 °C
Dimensions (L × W × H) 22.5 × 90 × 100 mm

Is this model right for you?

Within the MDR-20 series, the MDR-20-15 lists a 15 V output and 1.34 A output current. The MDR-20-5 lists 5 V and 3 A, the MDR-20-12 lists 12 V and 1.67 A, and the MDR-20-24 lists 24 V and 1 A. Output adjustment ranges also differ: MDR-20-15 lists 13.5 ~ 16.5V, MDR-20-5 lists 4.75 ~ 5.5V, MDR-20-12 lists 10.8 ~ 13.2V, and MDR-20-24 lists 21.6 ~ 26.4V.

Product overview

The MDR-20-15 provides a 15 V output with 1.34 A output current and 20 W rated power. Its input voltage range is 85 ~ 264VAC 120 ~ 370VDC at 47 ~ 63Hz. The output adjustment range is 13.5 ~ 16.5V, ripple and noise is 120mVp-p, and typical efficiency is 81%. Dimensions are 22.5 × 90 × 100 mm and net weight is 170 g.

Where this model fits

The MDR-20-15 provides a 15 V output with 1.34 A output current and 20 W rated power. Its input voltage range is 85 ~ 264VAC 120 ~ 370VDC at 47 ~ 63Hz, and its dimensions are 22.5 × 90 × 100 mm with a net weight of 170 g.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 15 V
Rated current 1.34 A
Rated power 20 W
Voltage adjustment range 13.5–16.5 V
Ripple & noise 120 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 81 %
Environmental
Operating temperature -20 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 22.5 × 90 × 100 mm
Net weight 170.0 g
Safety & compliance
Safety standards Ul508, TUV BS EN/EN62368-1,EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1,IS13252(Part1)/IEC60950-1approve

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MDR-20-15
Brand MEAN WELL
Category AC/DC DIN Rail
Series MDR-20

Approvals and compliance

From the manufacturer's datasheet for this series

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS1593
EMC immunity Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry le EAC TP TC 020

Standards certified against

  • AS/NZS 62368.1
  • CNS15598-1
  • EN62368-1
  • IEC60950-1approve
  • IS13252
Read the datasheet's exact wording

Ul508, TUV BS EN/EN62368-1,EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1,IS13252(Part1)/IEC60950-1approve

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MDR-20-15
Minimum order quantity 1
Country of origin China
Typical packed weight 333 g
Unit weight 170 g

Downloads

MDR-20 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MDR-20-2424 V1 A24 W$19.26
Ships in 3–5 business days
MDR-20-15 15 V1.34 A20 W$20.84
Ships in 3–5 business days

MDR-20-15 lists 15 V output and 1.34 A output current; MDR-20-5 lists 5 V and 3 A.

MDR-20-15 lists 15 V output and 1.34 A output current; MDR-20-12 lists 12 V and 1.67 A.

MDR-20-15 lists 15 V output and 1.34 A output current; MDR-20-24 lists 24 V and 1 A.

MDR-20-15 lists an output adjustment range of 13.5 ~ 16.5V; MDR-20-24 lists 21.6 ~ 26.4V.
