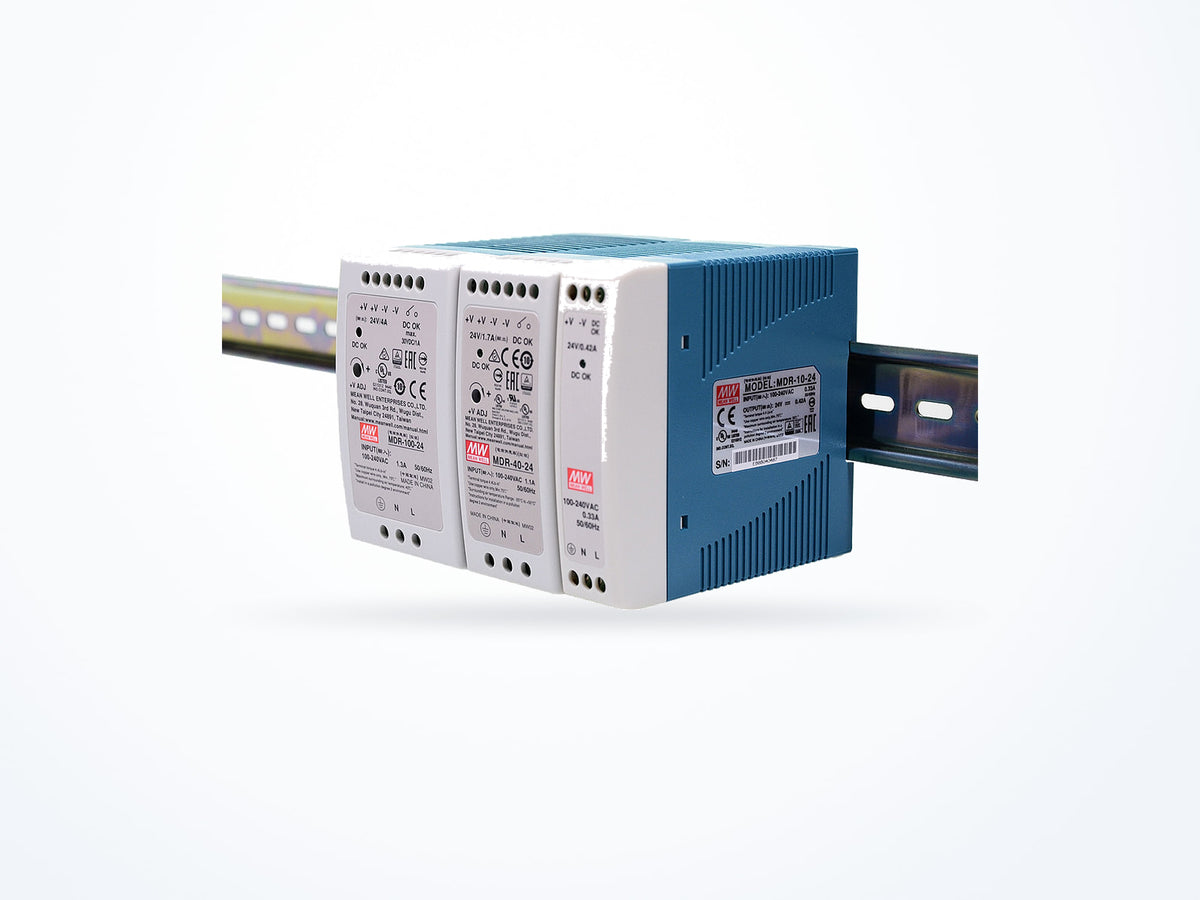

MEAN WELL MDR-10-12 10W 12V 0.84A DIN Rail

Part numberMDR-10-12
Output voltage 12 V
Rated current 0.84 A
Rated power 10 W
$18.95Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MDR-10 model selection table MDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 0.84 A
Rated power 10 W
AC input range 85–264 VAC
Typical efficiency 81 %
Mechanical
Operating temperature -20 to 70 °C
Dimensions (L × W × H) 22.5 × 90 × 100 mm

Is this model right for you?

Within the MDR-10 series, each model is distinguished by its output voltage and output current values. MDR-10-12 provides 12V at 0.84A; MDR-10-5 provides 5V at 2A; MDR-10-15 provides 15V at 0.67A; and MDR-10-24 provides 24V at 0.42A. Matching the required output voltage and current to the value listed for each MPN identifies the appropriate model. Typical efficiency also differs: MDR-10-5 lists 77%, MDR-10-12 lists 81%, and MDR-10-24 lists 84%.

Product overview

The MEAN WELL MDR-10-12 belongs to the MDR Series and is part of the MDR-10 series of DIN Rail products. This model provides a 12V output at 0.84A with 10W rated power. Its electrical input accepts 85 ~ 264VAC and 120 ~ 370VDC across a 47 ~ 63Hz frequency range. Listed specifications include 81% typical efficiency and 120mVp-p ripple and noise, with physical dimensions of 22.5*90*100mm (W*H*D).

Complete technical specifications

Rev. 2024-08-20
Output
Output voltage 12 V
Rated current 0.84 A
Rated power 10 W
Ripple & noise 120 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 81 %
Environmental
Operating temperature -20 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 22.5 × 90 × 100 mm
Net weight 150.0 g
Safety & compliance
Safety standards Ul508, TUV BS EN/EN62368-1,EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1,IS13252(Part1)/IEC60950-1approve

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MDR-10-12
Brand MEAN WELL
Category AC/DC DIN Rail
Series MDR-10

Approvals and compliance

From the manufacturer's datasheet for this series

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS1593
EMC immunity Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry le EAC TP TC 020

Standards certified against

  • AS/NZS 62368.1
  • CNS15598-1
  • EN62368-1
  • IEC60950-1approve
  • IS13252
Read the datasheet's exact wording

Ul508, TUV BS EN/EN62368-1,EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1,IS13252(Part1)/IEC60950-1approve

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MDR-10-12
Minimum order quantity 1
Country of origin China
Typical packed weight 314 g
Unit weight 150 g

Downloads

MDR-10 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MDR-10-55 V2 A10 W$18.95
Ships in 3–5 business days
MDR-10-12 12 V0.84 A10 W$18.95
Ships in 3–5 business days
MDR-10-2424 V0.42 A10 W$17.37
Ships in 3–5 business days

Output voltage: MDR-10-12 provides 12V; MDR-10-5 provides 5V; MDR-10-15 provides 15V; MDR-10-24 provides 24V.

Output current: MDR-10-12 provides 0.84A; MDR-10-5 provides 2A; MDR-10-15 provides 0.67A; MDR-10-24 provides 0.42A.

Typical efficiency: MDR-10-12 lists 81%; MDR-10-5 lists 77%; MDR-10-24 lists 84%.

Ripple and noise: MDR-10-12 lists 120mVp-p; MDR-10-5 lists 80mVp-p; MDR-10-24 lists 150mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for MDR-10-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting MDR-10-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-08-20
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
