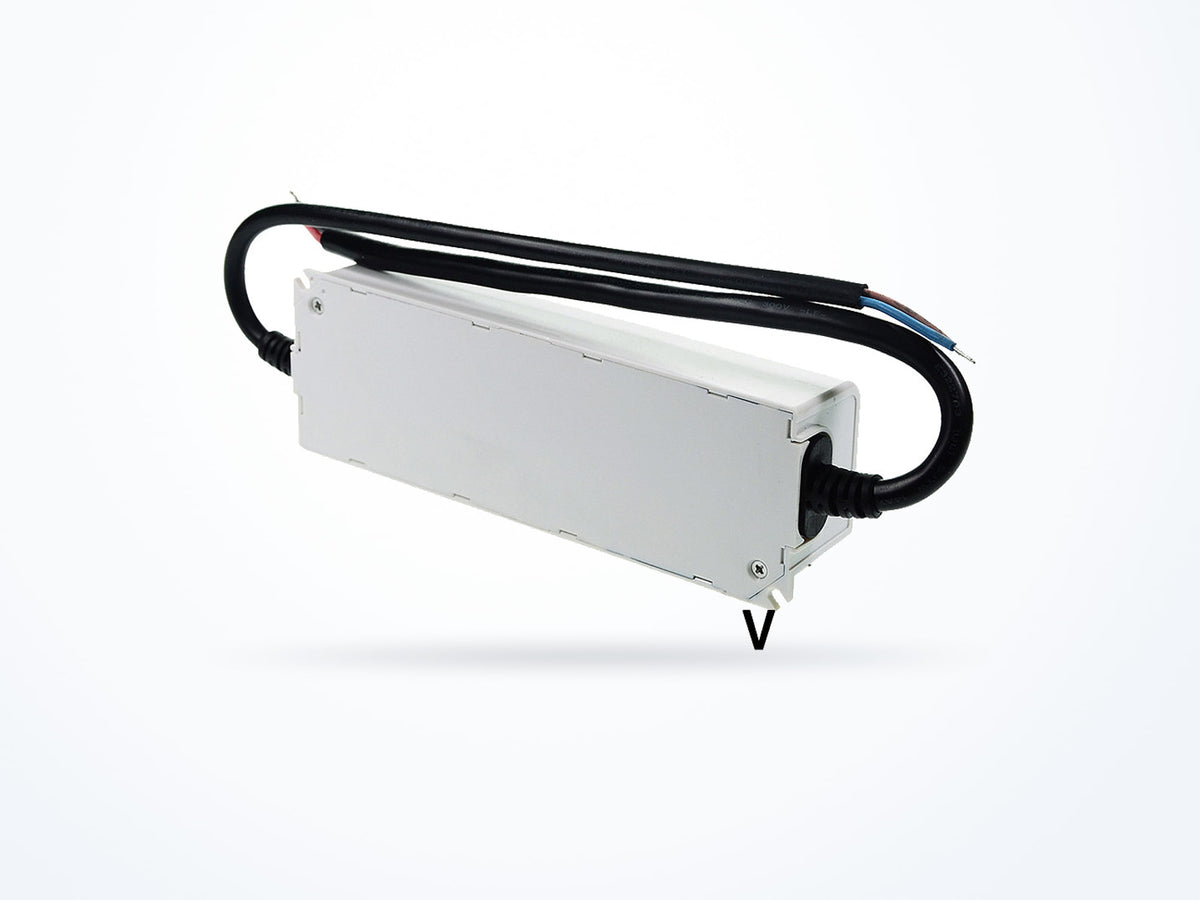

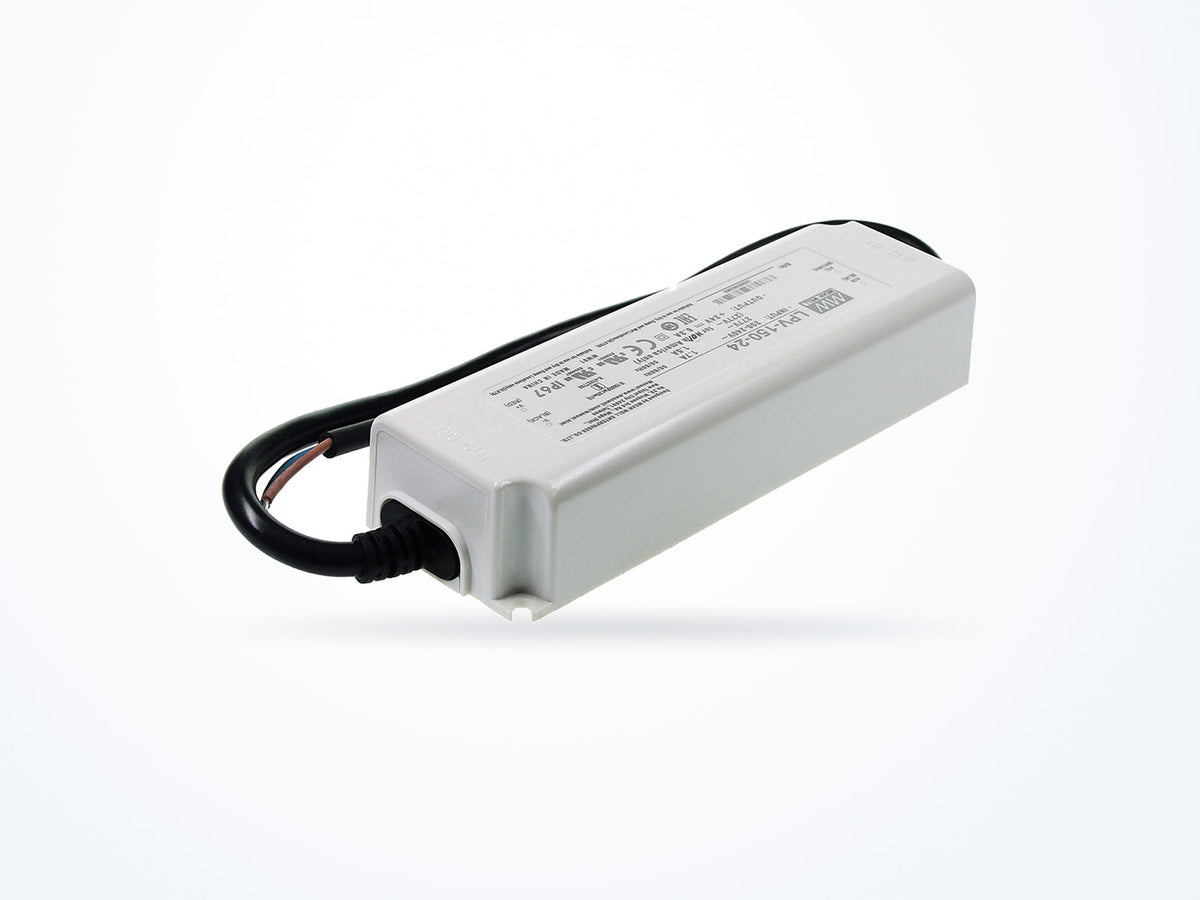

MEAN WELL LPV-150-36 151.2W 36V 4.2A LED Driver

Part numberLPV-150-36
Output voltage 36 V
Rated current 4.2 A
Rated power 151.2 W
$51.79Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
LPV,LPVL-150 model selection table LP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 36 V
Rated current 4.2 A
Rated power 151.2 W
AC input range 180–305 VAC
Mechanical
IP rating IP67
Operating temperature -25 to 65 °C
Dimensions (L × W × H) 191 × 63 × 37.5 mm

Is this model right for you?

The LPV-150-36 lists 180 ~ 305VAC 254 ~ 431VDC input, the same as the other models in the LPV,LPVL-150 series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Other voltages in LPV,LPVL-150

View all models

Product overview

The MEAN WELL LPV-150-36 is an AC/DC LED Driver product with 36 V output at 4.2 A, 151.2 W rated power, 180 ~ 305VAC 254 ~ 431VDC at 47 ~ 63Hz input, 191 × 63 × 37.5 mm, 790 g net weight.

Complete technical specifications

Rev. 2024-12-12
Output
Output voltage 36 V
Rated current 4.2 A
Rated power 151.2 W
Input
AC input range 180–305 VAC
DC input range 254–431 VDC
Frequency range 47–63 Hz
Environmental
Operating temperature -25 to 65 °C
Storage temperature -40 to 80 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 191 × 63 × 37.5 mm
Net weight 790.0 g
IP rating IP67
Safety & compliance
Safety standards Blank type L type UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved UL8750(type”HL”),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number LPV-150-36
Brand MEAN WELL
Category AC/DC LED Driver
Series LPV,LPVL-150

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

    Covers only part of this series: for LPV-150-12,24 only

An approval above is held by only some models in this series. The datasheet's own wording is quoted beside the mark; read it against this part number, and ask us for the certificate if your approval process needs it.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC
Isolation resistance I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Blank type L type Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020 Compliance to FCC part 15
EMC immunity Blank type L type Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020 Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level

Standards certified against

  • EN62368-1
  • IEC62368-1
  • IS15885
  • UL8750
Read the datasheet's exact wording

Blank type L type UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved UL8750(type”HL”),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number LPV-150-36
Minimum order quantity 1
Country of origin China
Typical packed weight 1000 g
Unit weight 790 g

Downloads

LPV,LPVL-150 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
LPV-150-36 36 V4.2 A151.2 W$51.79
Ships in 3–5 business days
LPV-150-4848 V3.2 A153.6 W$51.79
Ships in 3–5 business days

LPV-150-36: 36 V output; the rest of the series runs 12 V to 48 V.

LPV-150-36: 4.2 A output current; the rest of the series runs 3.2 A to 10 A.

LPV-150-36: 151 W rated power; LPV-150-12 and LPV-150-15: 120 W; LPV-150-48: 154 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for LPV-150-36

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting LPV-150-36 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-12-12
Last verified

How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
