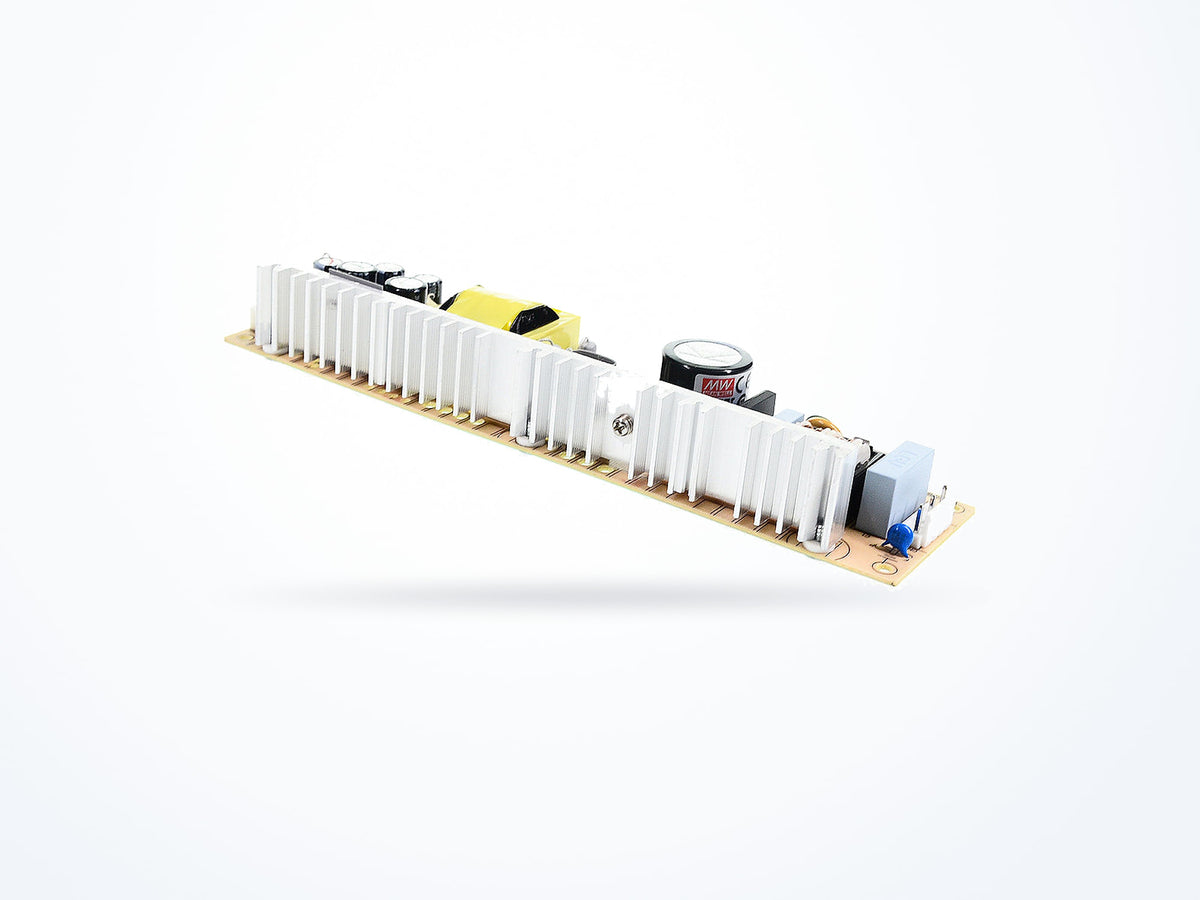

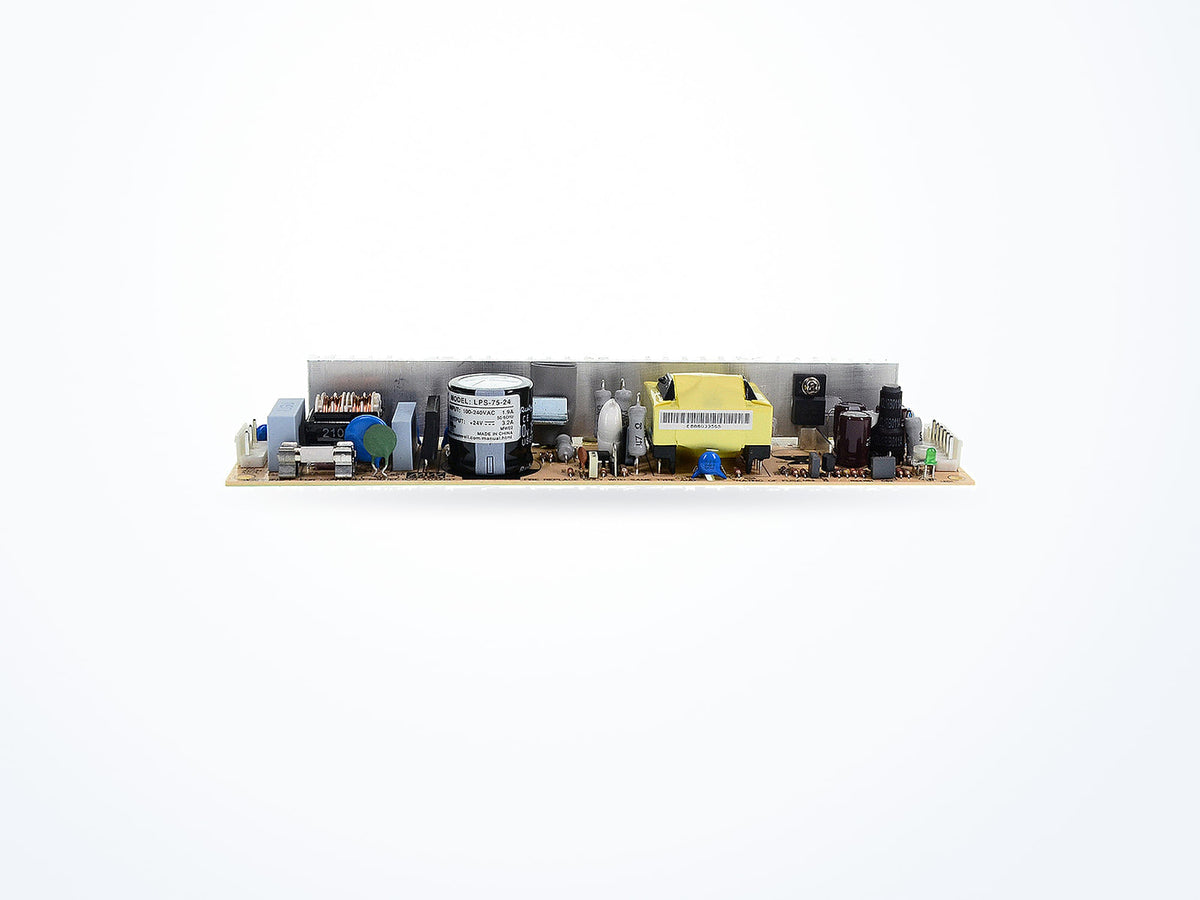

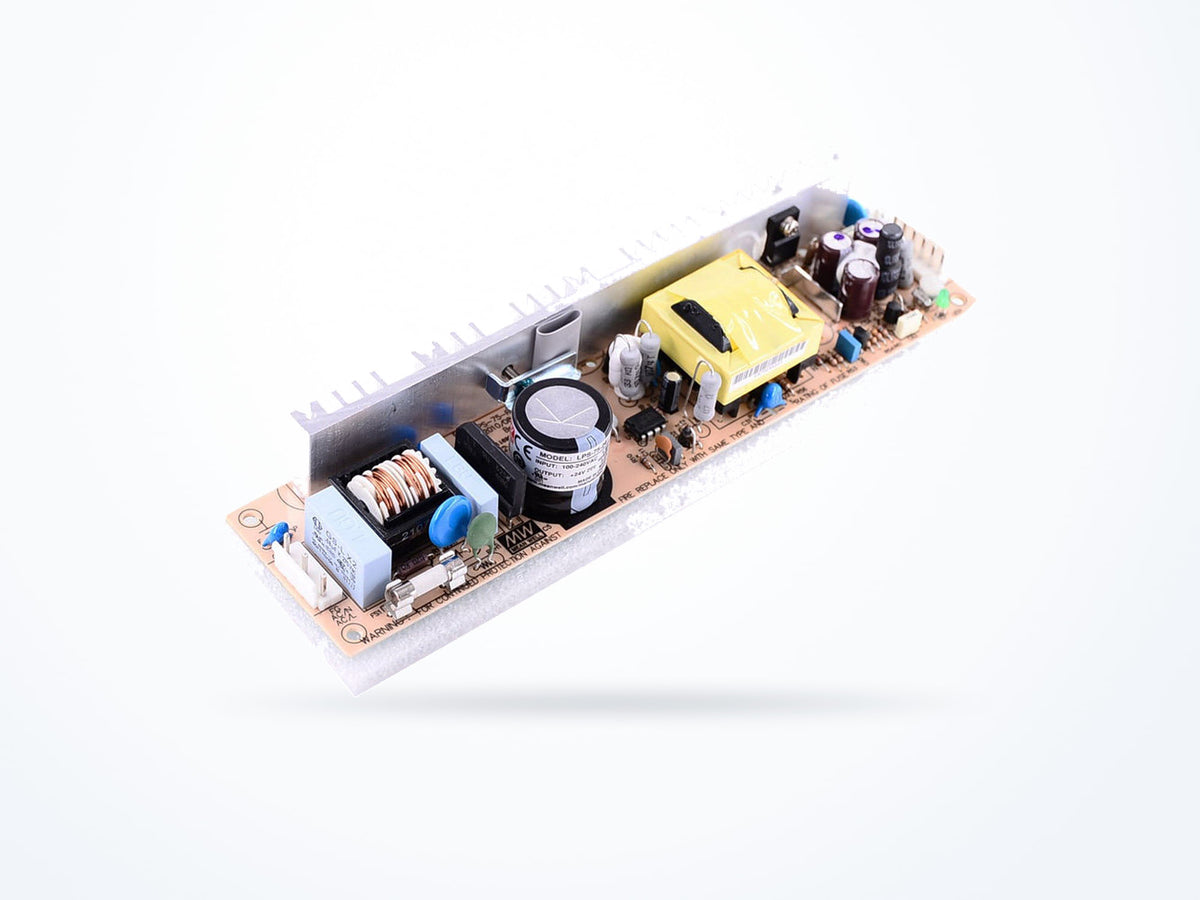

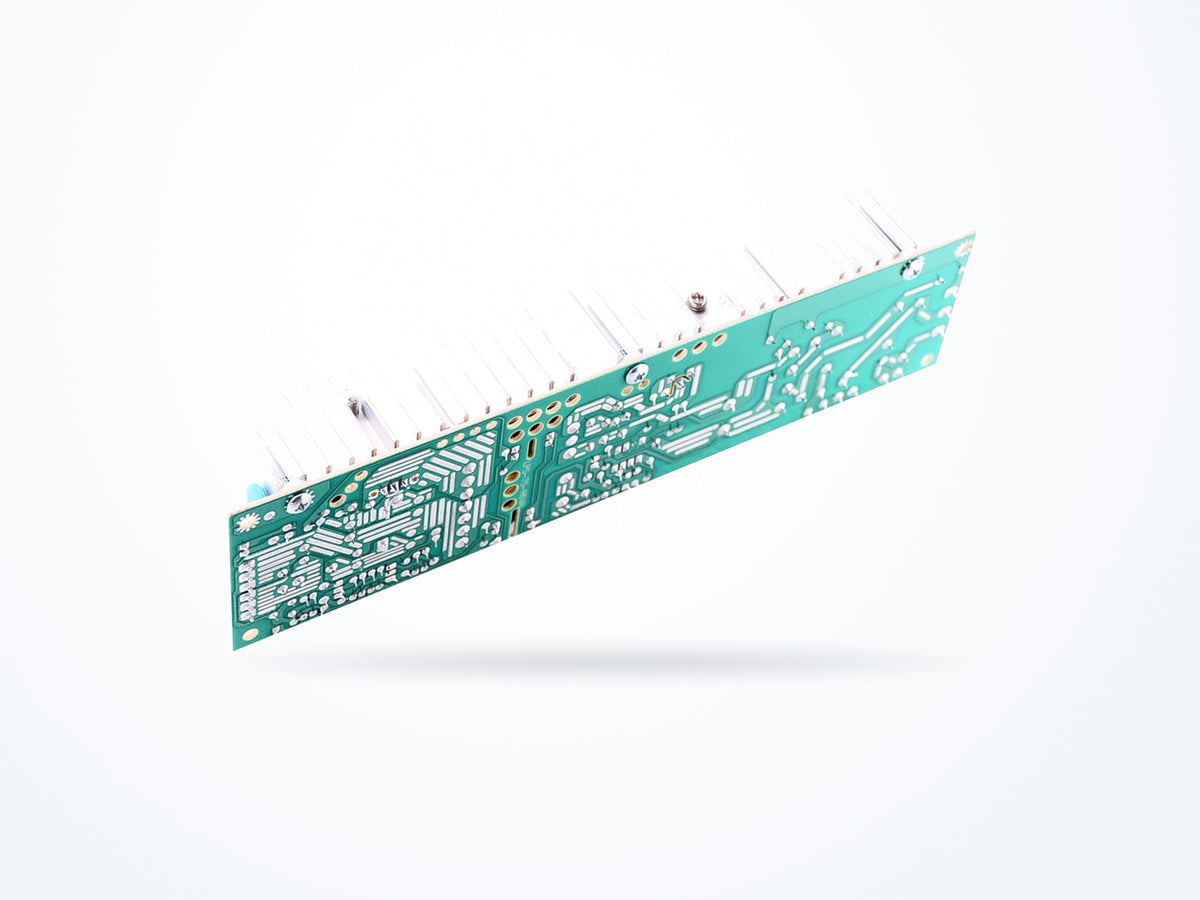

MEAN WELL LPS-75-24 76.8W 24V 3.2A Open Frame

Part numberLPS-75-24
Output voltage 24 V
Rated current 3.2 A
Rated power 76.8 W
$28.11Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
LPS-75 model selection table Industrial - PCB Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 3.2 A
Rated power 76.8 W
AC input range 90–264 VAC
Typical efficiency 83 %
Mechanical
Operating temperature -20 to 70 °C
Dimensions (L × W × H) 222 × 55 × 30 mm

Is this model right for you?

Within the LPS-75 series, the LPS-75-24 differs from siblings by output voltage, output current, rated power, efficiency, ripple and noise, and output adjustment range. LPS-75-24: 24 V, 3.2 A, 76.8 W, 83%, 120 mVp-p, 22 to 27 V. LPS-75-12: 12 V, 6.2 A, 74.4 W, 80%, 100 mVp-p, 11 to 13.5 V. LPS-75-48: 48 V, 1.56 A, 75 W, 45 to 54 V.

Product overview

The LPS-75-24 provides a 24 V output with 3.2 A output current and 76.8 W rated power. Its input range is 90 to 264 VAC and 127 to 370 VDC at 47 to 63 Hz. Typical efficiency is 83%, ripple and noise is 120 mVp-p, and the output adjustment range is 22 to 27 V. Dimensions are 222 × 55 × 30 mm and net weight is 300 g.

Where this model fits

The LPS-75-24 is used in Embedded & Board-level Design. Its 24 V output and 3.2 A output current provide 76.8 W rated power. The 222 × 55 × 30 mm dimensions and 300 g net weight describe the package for board-level integration.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 24 V
Rated current 3.2 A
Rated power 76.8 W
Voltage adjustment range 22–27 V
Ripple & noise 120 mVp-p
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Typical efficiency 83 %
Environmental
Operating temperature -20 to 70 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 222 × 55 × 30 mm
Net weight 300.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number LPS-75-24
Brand MEAN WELL
Category AC/DC Open Frame
Series LPS-75

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number LPS-75-24
Minimum order quantity 1
Country of origin China
Typical packed weight 475 g
Unit weight 300 g

Downloads

LPS-75 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
LPS-75-3.33.3 V15 A49.5 W$30.32
Ships in 3–5 business days
LPS-75-1212 V6.2 A74.4 W$20.75
Ships in 3–5 business days
LPS-75-24 24 V3.2 A76.8 W$28.11
Ships in 3–5 business days

LPS-75-24 lists 24 V output and 3.2 A output current; LPS-75-12 lists 12 V output and 6.2 A output current.

LPS-75-24 lists 76.8 W rated power and 83% typical efficiency; LPS-75-12 lists 74.4 W rated power and 80% typical efficiency.

LPS-75-24 lists 120 mVp-p ripple and noise; LPS-75-12 lists 100 mVp-p ripple and noise.

LPS-75-24 lists 22 to 27 V output adjustment range; LPS-75-48 lists 45 to 54 V output adjustment range.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for LPS-75-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting LPS-75-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
