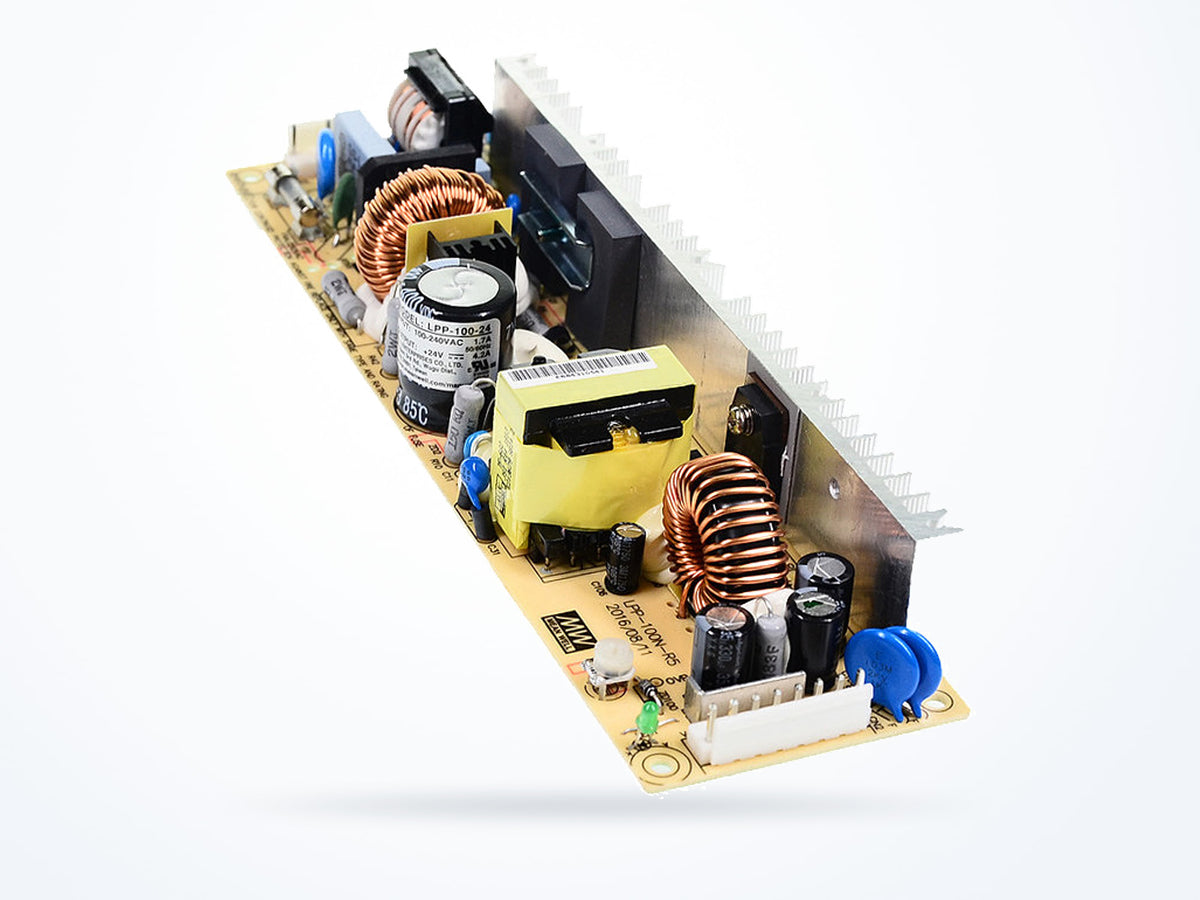

MEAN WELL LPP-100-24 100.8W 24V 4.2A Open Frame

Part numberLPP-100-24
Output voltage 24 V
Rated current 4.2 A
Rated power 100.8 W
$48.95Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
LPP-100 model selection table Industrial - PCB Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 4.2 A
Rated power 100.8 W
AC input range 85–264 VAC
Typical efficiency 83 %
Mechanical
Operating temperature -10 to 60 °C
Power factor correction Supported
Dimensions (L × W × H) 222 × 62 × 33.6 mm

Is this model right for you?

Within the LPP-100 series, the LPP-100-24 differs from siblings by output voltage, output current, rated power, efficiency, ripple noise, and output adjustment range. LPP-100-24: 24 V, 4.2 A, 100.8 W, 83%, 150mVp-p, 22.8~26.4V. LPP-100-12: 12 V, 8.5 A, 102 W, 79%, 100mVp-p, 11.4~13.2V. LPP-100-48: 48 V, 2.1 A, 250mVp-p, 45.6~52.8V.

Product overview

The LPP-100-24 provides a 24 V output with 4.2 A output current and 100.8 W rated power. Its input voltage range is 85 ~ 264VAC and 120 ~ 370VDC, with a frequency range of 47 ~ 63Hz. Typical efficiency is 83%, and ripple noise is 150mVp-p. The output adjustment range is 22.8~26.4V. Dimensions are 222 × 62 × 33.6 mm and net weight is 510 g.

Where this model fits

The LPP-100-24 is used in Embedded & Board-level Design. The 222 × 62 × 33.6 mm dimensions and 510 g net weight describe the footprint and mass for mounting on a host board.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 24 V
Rated current 4.2 A
Rated power 100.8 W
Voltage adjustment range 22.8–26.4 V
Ripple & noise 150 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 83 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -10 to 60 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 222 × 62 × 33.6 mm
Net weight 510.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number LPP-100-24
Brand MEAN WELL
Category AC/DC Open Frame
Series LPP-100

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number LPP-100-24
Minimum order quantity 1
Country of origin China
Typical packed weight 729 g
Unit weight 510 g

Downloads

LPP-100 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
LPP-100-1212 V8.5 A102 W$52.74
Ships in 3–5 business days
LPP-100-1515 V6.7 A100.5 W$37.12
Ships in 3–5 business days
LPP-100-24 24 V4.2 A100.8 W$48.95
Ships in 3–5 business days

LPP-100-24 lists 24 V output and 4.2 A output current; LPP-100-12 lists 12 V output and 8.5 A output current.

LPP-100-24 lists 100.8 W rated power and 83% typical efficiency; LPP-100-12 lists 102 W rated power and 79% typical efficiency.

LPP-100-24 lists 150mVp-p ripple noise; LPP-100-48 lists 250mVp-p ripple noise.

LPP-100-24 lists 22.8~26.4V output adjustment range; LPP-100-48 lists 45.6~52.8V output adjustment range.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for LPP-100-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting LPP-100-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
