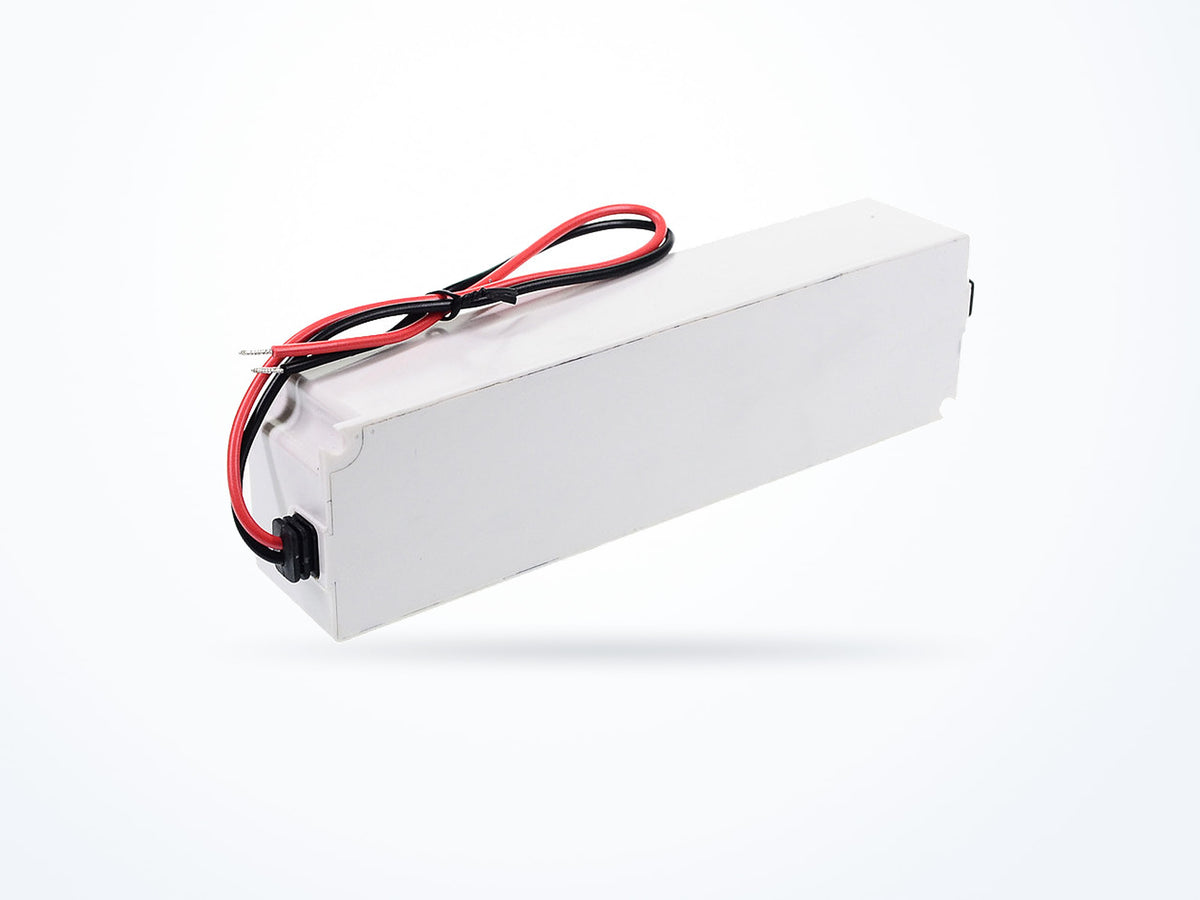

MEAN WELL LPC-100-700 100.1W 143V 0.7A LED Driver

Part numberLPC-100-700
Output voltage 143 V
Rated current 0.7 A
Rated power 100.1 W
$36.32Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
LPC-100 model selection table LP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 143 V
Rated current 0.7 A
Rated power 100.1 W
AC input range 90–264 VAC
Mechanical
IP rating IP67
Operating temperature -25 to 50 °C
Dimensions (L × W × H) 190 × 52 × 37 mm

Is this model right for you?

Within the LPC-100 series, the LPC-100-700 is distinguished by its 0.7 A output current. The LPC-100-350 provides 0.35 A, the LPC-100-500 provides 0.5 A, the LPC-100-1050 provides 1.05 A, the LPC-100-1400 provides 1.4 A, the LPC-100-1750 provides 1.75 A, and the LPC-100-2100 provides 2.1 A. Rated power also differs: the LPC-100-700 lists 100.1 W, while the LPC-100-500 lists 100 W, the LPC-100-1050, LPC-100-1400, and LPC-100-2100 list 100.8 W, and the LPC-100-1750 lists 101.5 W.

Product overview

The LPC-100-700 is an AC/DC LED Driver from MEAN WELL's LPC-100 series. It provides a 0.7 A output current with 100.1 W rated power. The input voltage range is 90 ~ 264VAC or 127VDC ~ 370VDC at 47 ~ 63Hz. The product measures 190 × 52 × 37 mm and has a net weight of 610 g.

Where this model fits

The LPC-100-700 is used in LED Lighting and Building & Home Automation applications. Its 0.7 A output current and 100.1 W rated power are the electrical figures relevant to those installations. The product measures 190 × 52 × 37 mm and has a net weight of 610 g.

Complete technical specifications

Rev. 2025-12-12
Output
Output voltage 143 V
Rated current 0.7 A
Rated power 100.1 W
Input
AC input range 90–264 VAC
Frequency range 47–63 Hz
Environmental
Operating temperature -25 to 50 °C
Storage temperature -40 to 80 °C
Operating humidity 10–95 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 190 × 52 × 37 mm
Net weight 610.0 g
IP rating IP67
Safety & compliance
Safety standards IEC 62368-1;EAC TP TC 004, IP67 , BS EN/EN62368-1 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number LPC-100-700
Brand MEAN WELL
Category AC/DC LED Driver
Series LPC-100

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≦80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

Standards certified against

  • EN62368-1
  • IEC 62368-1
Read the datasheet's exact wording

IEC 62368-1;EAC TP TC 004, IP67 , BS EN/EN62368-1 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number LPC-100-700
Minimum order quantity 1
Country of origin China
Typical packed weight 810 g
Unit weight 610 g

Downloads

LPC-100 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
LPC-100-350286 V0.35 A100.1 W$36.32
Ships in 3–5 business days
LPC-100-140072 V1.4 A100.8 W$36.32
Ships in 3–5 business days
LPC-100-700 143 V0.7 A100.1 W$36.32
Ships in 3–5 business days

LPC-100-700 provides 0.7 A output current; LPC-100-350 provides 0.35 A.

LPC-100-700 provides 0.7 A output current; LPC-100-500 provides 0.5 A.

LPC-100-700 provides 0.7 A output current; LPC-100-1050 provides 1.05 A.

LPC-100-700 lists 100.1 W rated power; LPC-100-1750 lists 101.5 W.
