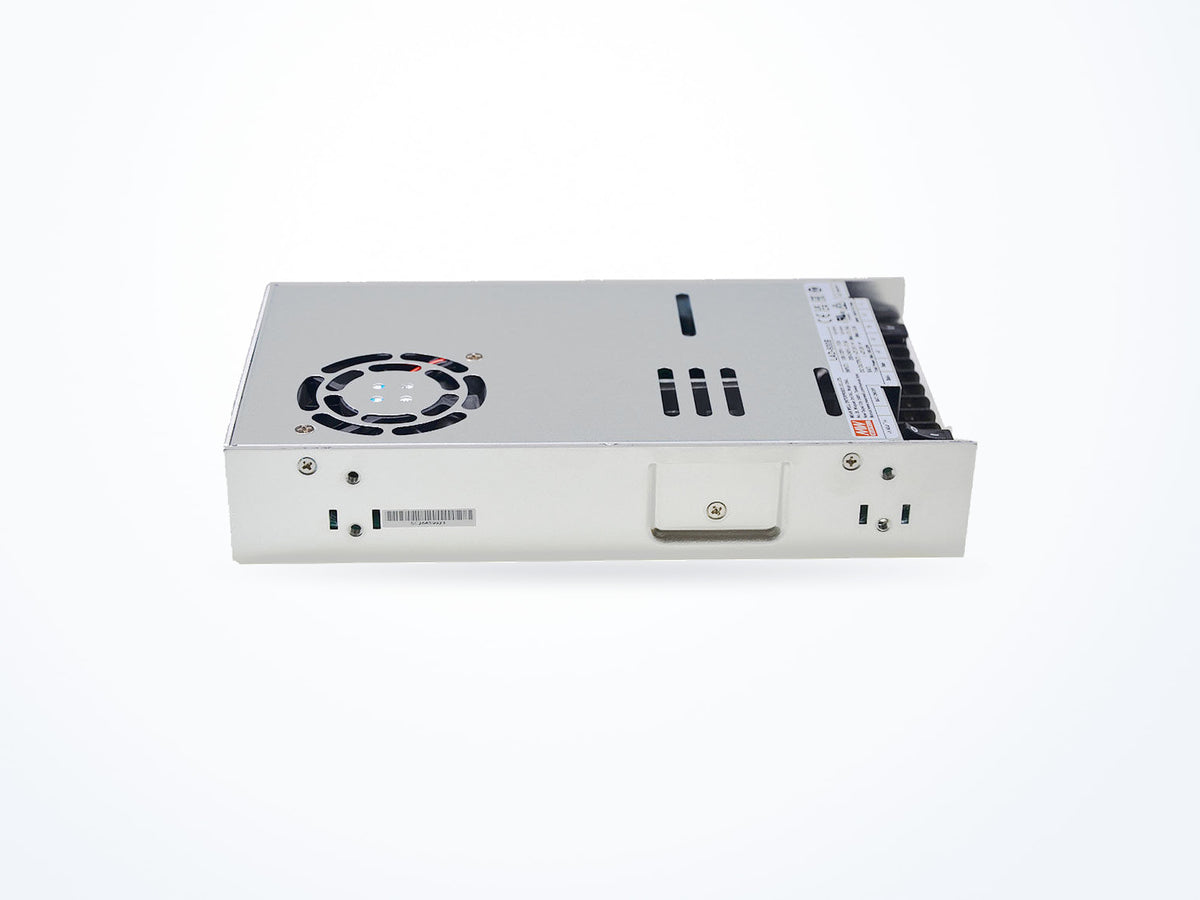

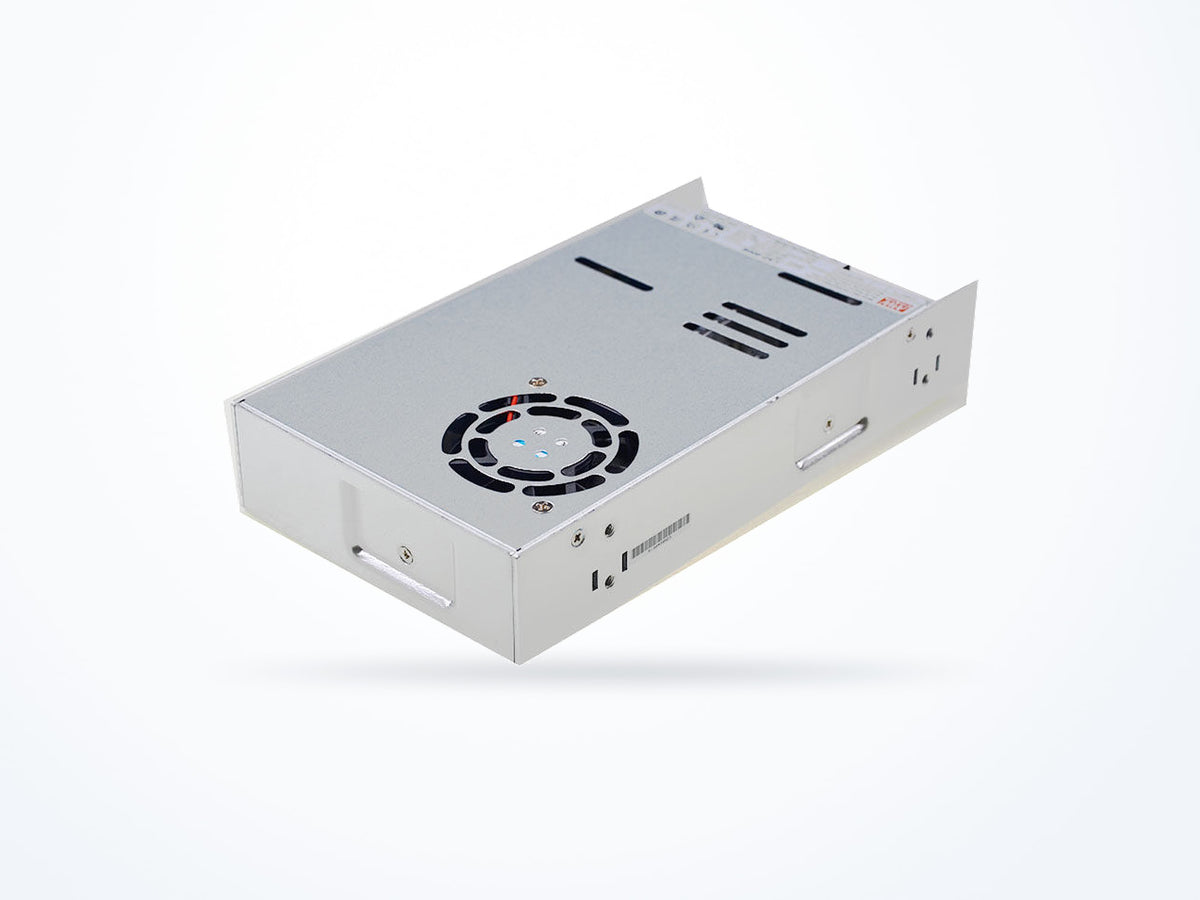

MEAN WELL LAD-600D 600.02W 55.2V 7.87A Security & Specific

Part numberLAD-600D
Output voltage 55.2 V
Rated current 7.87 A
Rated power 600.02 W
$123.80Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
LAD-600 model selection table Security—SCP & AD/ ADS/ ADD/ LAD
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 55.2 V
Rated current 7.87 A
Rated power 600.02 W
Typical efficiency 91 %
Mechanical
Operating temperature -20 to 60 °C
Dimensions (L × W × H) 225 × 124 × 41 mm

Is this model right for you?

Within the LAD-600 series, the LAD-600D lists 600.02 W, 91%. By comparison LAD-600B lists 600.02 W, 90%; LAD-600BU lists 600.02 W, 90%; LAD-600C lists 599.67 W, 91%; LAD-600CU lists 599.67 W, 91%, and 1 further model. Select the model whose rated power matches the installation.

Product overview

The LAD-600D is a MEAN WELL product in the LAD-600 series, classified as AC/DC Security & Specific. It operates with an input frequency range of 47 ~ 63Hz. The unit measures 225 × 124 × 41 mm and has a net weight of 1020 g. Operating temperature spans -20 to 60 °C, and relative humidity ranges from 20 to 95%.

Where this model fits

The LAD-600D is used in Security & Surveillance. Its operating temperature range is -20 to 60 °C, and relative humidity spans 20 to 95%. The unit measures 225 × 124 × 41 mm and weighs 1020 g.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 55.2 V
Rated current 7.87 A
Rated power 600.02 W
Input
AC input range 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (Default switch at 230VAC)
DC input range 240–370 VDC
Frequency range 47–63 Hz
Typical efficiency 91 %
Protection
Overload Protected
Over voltage Protected
Reverse polarity Protected
Environmental
Operating temperature -20 to 60 °C
Storage temperature -30 to 85 °C
Operating humidity 20–95 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 225 × 124 × 41 mm
Net weight 1020.0 g
Safety & compliance
Safety standards UL62368-1, BS EN/EN62368-1,AS/NZS62368.1, EAC TP TC 004 approved; Design refer to GB 17945-2010

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number LAD-600D
Brand MEAN WELL
Category AC/DC Security & Specific
Series LAD-600

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Standards certified against

  • AS/NZS62368.1
  • EN62368-1
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

GB 17945-2010

Read the datasheet's exact wording

UL62368-1, BS EN/EN62368-1,AS/NZS62368.1, EAC TP TC 004 approved; Design refer to GB 17945-2010

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number LAD-600D
Minimum order quantity 1
Country of origin China
Typical packed weight 1275 g
Unit weight 1020 g

Downloads

LAD-600 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
LAD-600CU41.5 V11.45 A599.67 W$142.75
Ships in 3–5 business days
LAD-600D 55.2 V7.87 A600.02 W$123.80
Ships in 3–5 business days
LAD-600DU55.2 V7.87 A600.02 W$142.75
Ships in 3–5 business days

LAD-600D: 91% typical efficiency; LAD-600B and LAD-600BU: 90%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for LAD-600D

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting LAD-600D View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
