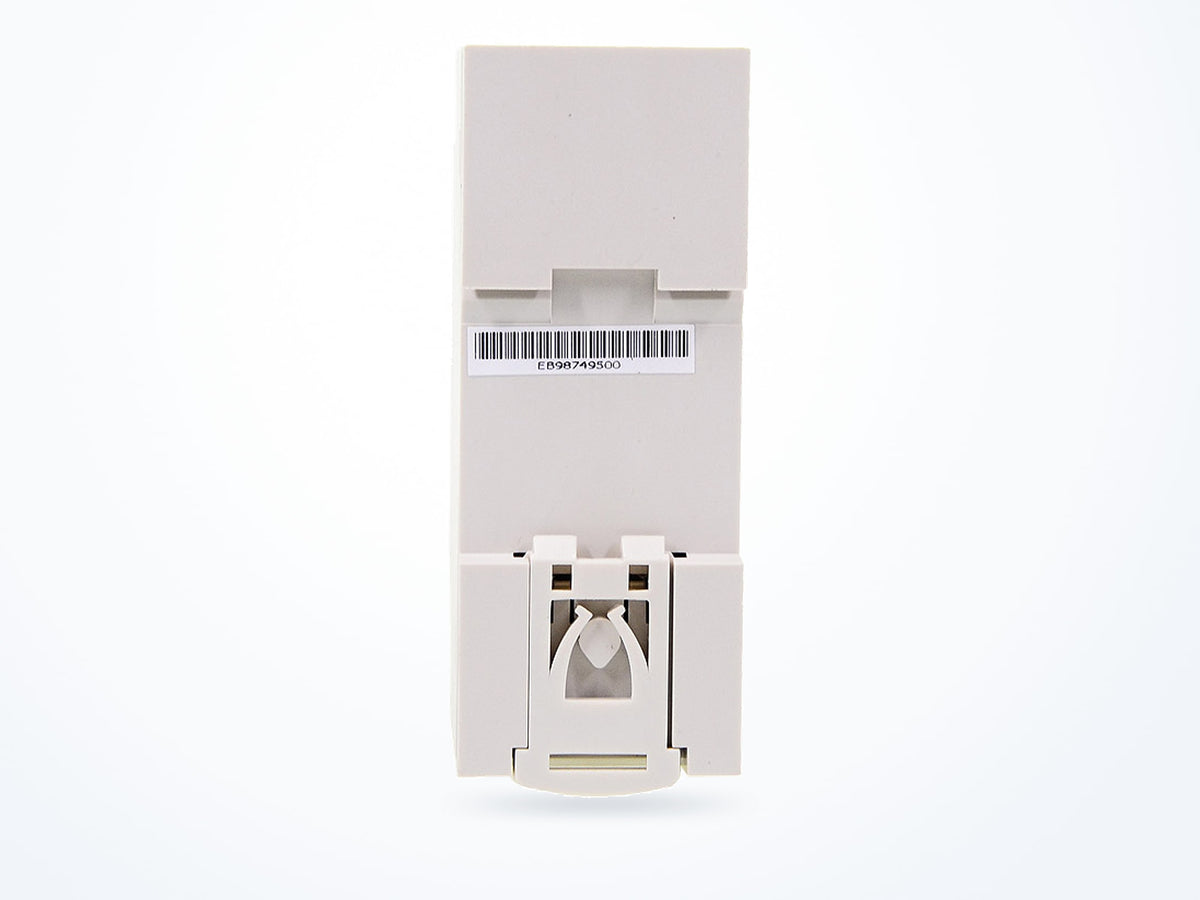

MEAN WELL ICL-28L DIN Rail

Part numberICL-28L
$63.16Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
ICL-28R,28L model selection table Peripheral
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
AC continuous current 28 A
AC input range 180–264 VAC
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 52.5 × 90 × 54.5 mm

Is this model right for you?

Match this limiter to your load's continuous AC current draw, keeping it at or below 28A, and confirm your supply falls within the 180–264VAC range. Check that total input power stays within 6440VA and that the 48A inrush limit suits your upstream breaker and capacitive load characteristics. Finally, verify the 52.5 × 90 × 54.5 mm housing fits your panel or enclosure layout before ordering.

Product overview

The ICL-28L is part of the MEAN WELL ICL-28R,28L series within the AC/DC DIN Rail product class. It measures 52.5 × 90 × 54.5 mm and has a net weight of 160 g. The operating temperature range is -30 to 70 °C, and the storage temperature range is -40 to 85 °C. The humidity range is 20 to 90%.

Where this model fits

The ICL-28L is used in Industrial Automation, Motor Drives, and Building & Home Automation. Its operating temperature range is -30 to 70 °C, and its storage temperature range is -40 to 85 °C. The humidity range is 20 to 90%. The product measures 52.5 × 90 × 54.5 mm and has a net weight of 160 g.

Complete technical specifications

Rev. 2026-04-03
Output
AC continuous current 28 A
Inrush limiting current 48 A
Output profile inrush limiter
Primary DC output Not applicableAC inrush limiter. Continuous current is not a DC output.
Input
AC input range 180–264 VAC
Protection
Overload Protected
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 52.5 × 90 × 54.5 mm
Net weight 160.0 g
Safety & compliance
Safety standards LVD BS EN/EN62368-1 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number ICL-28L
Brand MEAN WELL
Category AC/DC DIN Rail
Series ICL-28R,28L

Approvals and compliance

From the manufacturer's datasheet for this series
Isolation and electromagnetic compatibility
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • EN62368-1
Read the datasheet's exact wording

LVD BS EN/EN62368-1 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number ICL-28L
Minimum order quantity 1
Country of origin China
Typical packed weight 322 g
Unit weight 160 g
