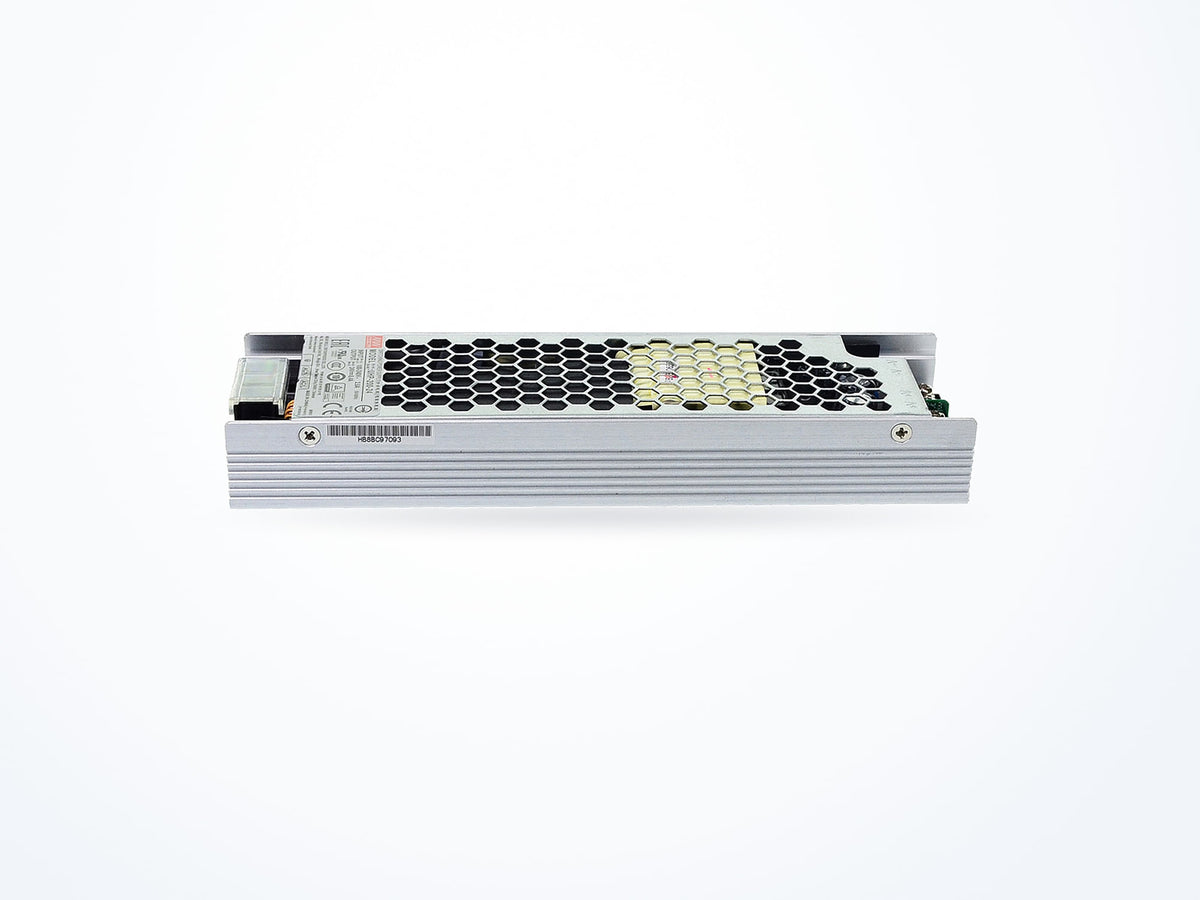

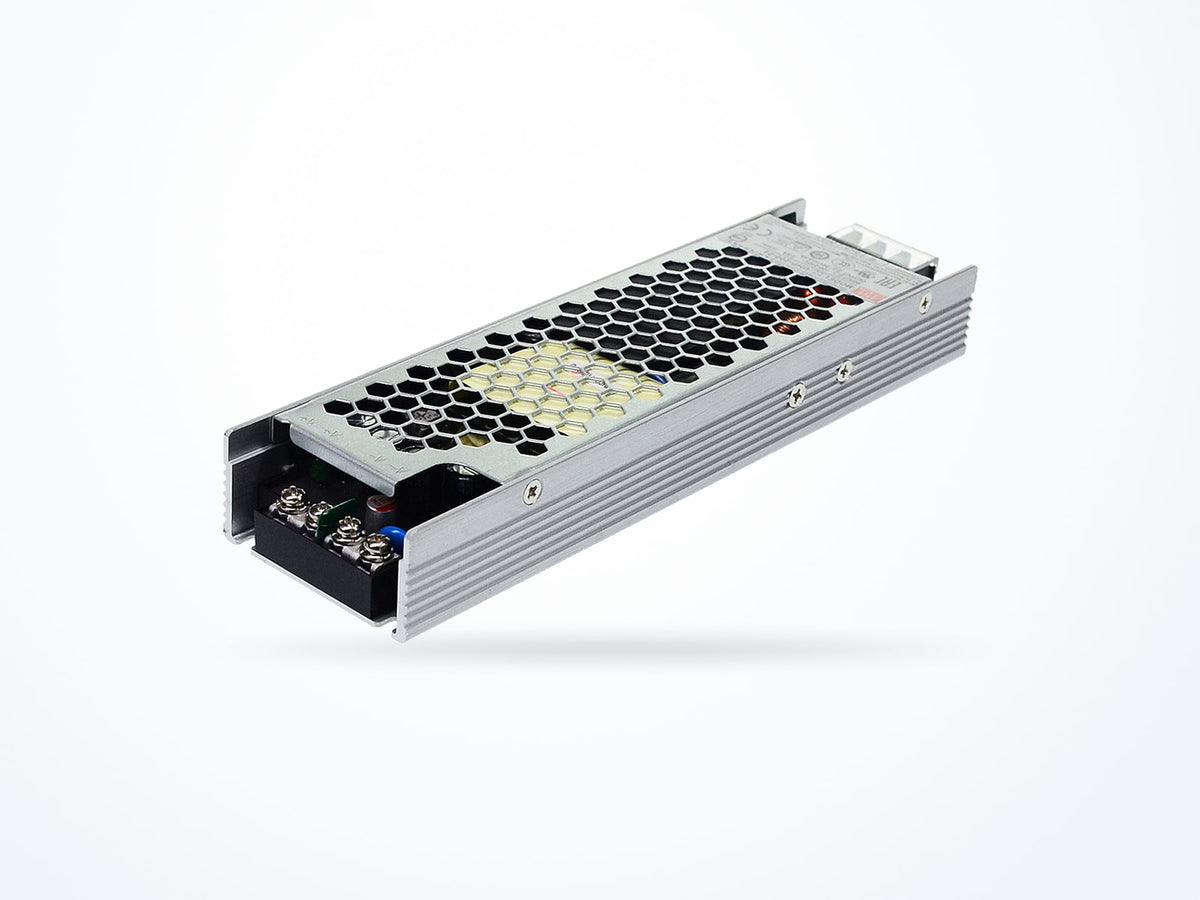

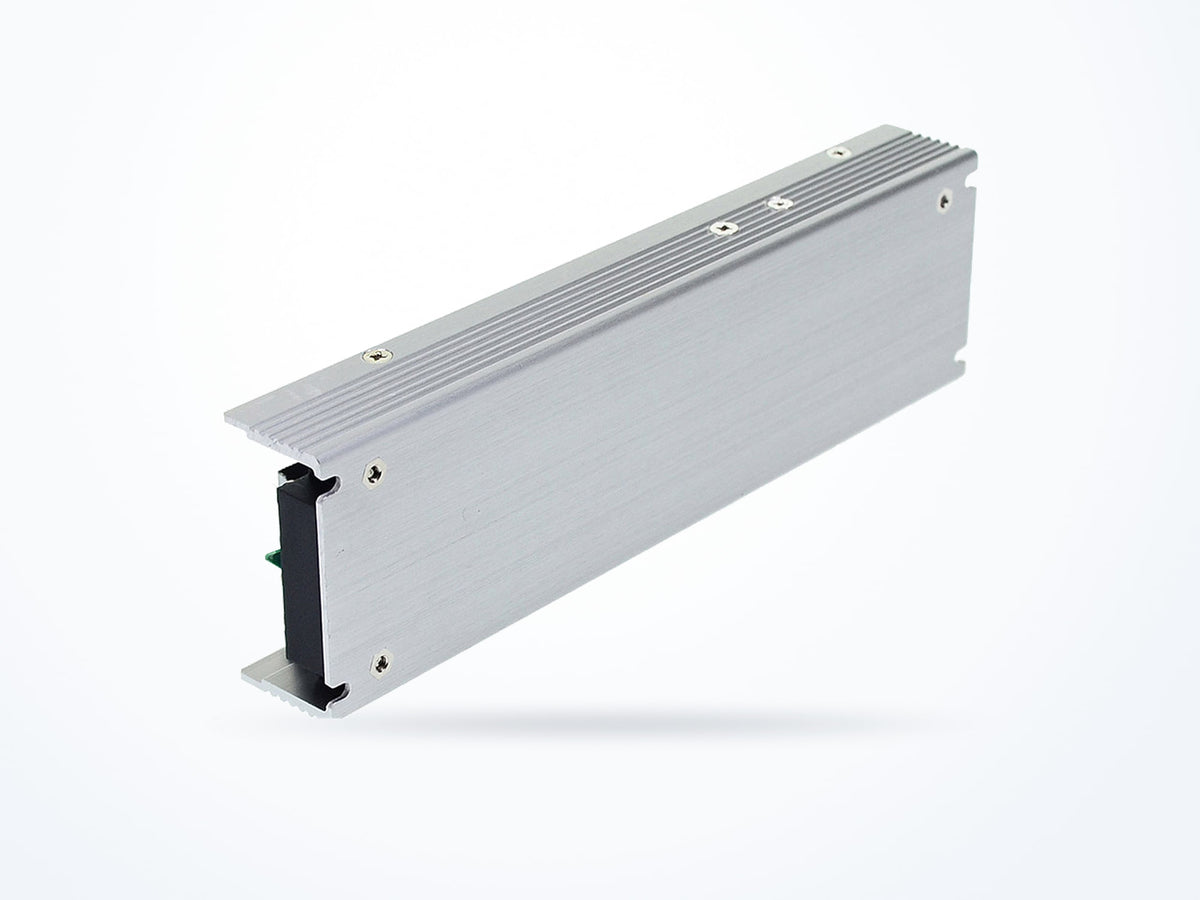

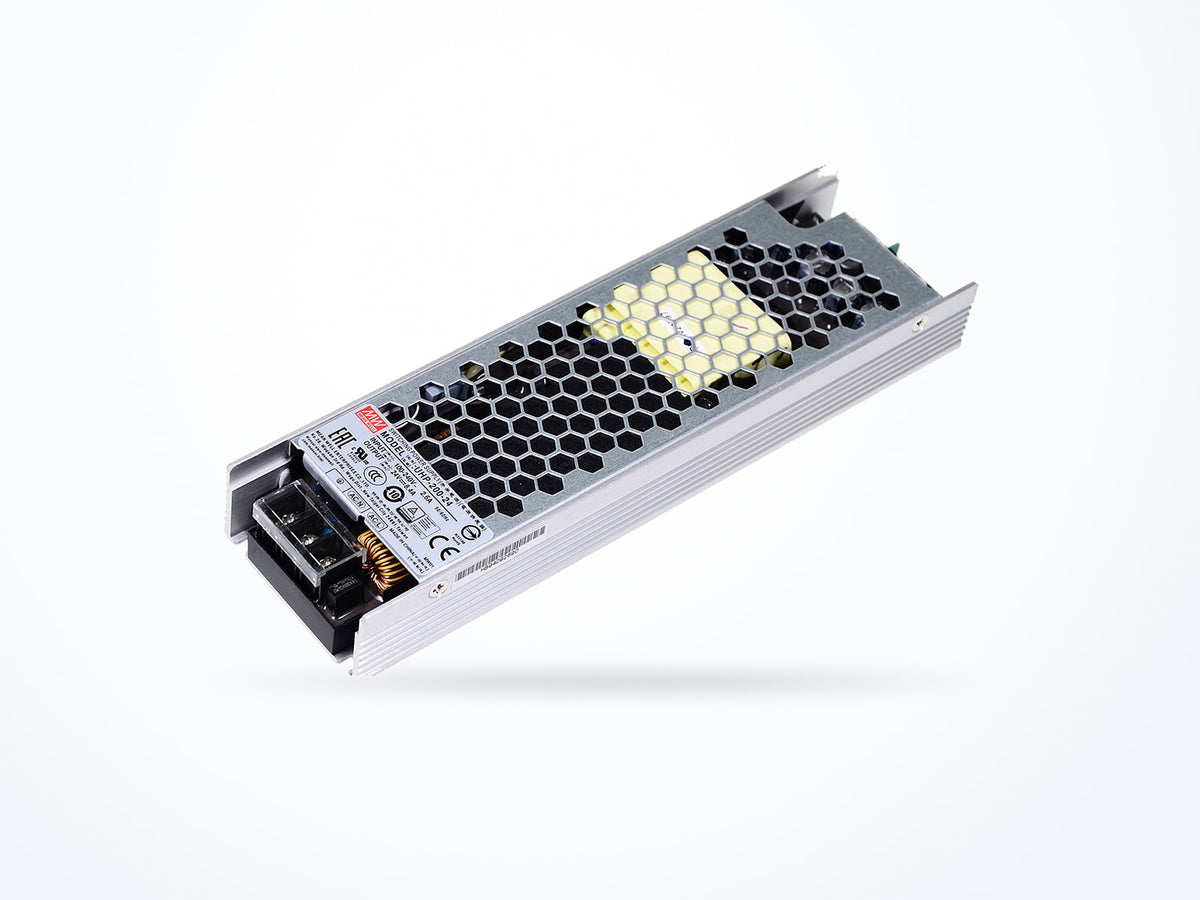

MEAN WELL HSP-200-5 200W 5V 40A Enclosed Type

Part numberHSP-200-5
Output voltage 5 V
Rated current 40 A
Rated power 200 W
$78.01Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
HSP-200 model selection table Moving Sign
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 40 A
Rated power 200 W
AC input range 90–264 VAC
Typical efficiency 88.5 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 210 × 62 × 31 mm

Is this model right for you?

Within the HSP-200 series, choose between the HSP-200-5 and HSP-200-4.2 by output voltage and rated power. HSP-200-5 provides 5 V at 200 W, while HSP-200-4.2 provides 4.2 V at 168 W. Output adjustment ranges also differ: 4.5 to 5.5 V for HSP-200-5 and 3.6 to 4.4 V for HSP-200-4.2. Typical efficiency is 88.5% for HSP-200-5 and 88% for HSP-200-4.2.

Product overview

The HSP-200-5 is part of the HSP-200 series from MEAN WELL. It provides a 5 V output at 40 A, delivering 200 W of rated power. The output voltage can be adjusted from 4.5 to 5.5 V. Input covers 90 to 264 VAC or 127 to 370 VDC at 47 to 63 Hz. Typical efficiency is 88.5%, with ripple and noise of 150 mVp-p. Dimensions are 210 × 62 × 31 mm and net weight is 520 g.

Where this model fits

The HSP-200-5 is used in Industrial Automation, Motor Drives, Security & Surveillance, Telecom & Datacom, and Test & Measurement. Its 5 V output at 40 A suits installations drawing high current at low voltage. The operating temperature range is -30 to 70 °C, and the unit measures 210 × 62 × 31 mm with a net weight of 520 g.

Complete technical specifications

Rev. 2024-10-16
Output
Output voltage 5 V
Rated current 40 A
Rated power 200 W
Voltage adjustment range 4.5–5.5 V
Ripple & noise 150 mVp-p
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Typical efficiency 88.5 %
Power factor 0.95
Power factor correction Supported
Protection
Over voltage Protected
Over temperature Protected
Hiccup mode, recovers automatically after fault condition is removed
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 210 × 62 × 31 mm
Net weight 520.0 g
Safety & compliance
Safety standards UL60950-1,IEC/BS EN/EN62368-1,GB 4943.1,EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HSP-200-5
Brand MEAN WELL
Category AC/DC Enclosed Type
Series HSP-200

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC emission Compliance to BS EN/EN55032 (CISPR32),GB17625.1,GB/T 9254.1,Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN55035, light industry level (surge 4KV), EAC TP TC 020

Standards certified against

  • EN62368-1
  • GB 4943.1
  • UL60950-1
Read the datasheet's exact wording

UL60950-1,IEC/BS EN/EN62368-1,GB 4943.1,EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number HSP-200-5
Minimum order quantity 1
Country of origin China
Typical packed weight 720 g
Unit weight 520 g

Downloads

HSP-200 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HSP-200-5 5 V40 A200 W$78.01
Ships in 3–5 business days

HSP-200-5 provides 5 V output; HSP-200-4.2 provides 4.2 V output.

HSP-200-5 has a rated power of 200 W; HSP-200-4.2 has a rated power of 168 W.

HSP-200-5 output adjustment range is 4.5 to 5.5 V; HSP-200-4.2 range is 3.6 to 4.4 V.

HSP-200-5 typical efficiency is 88.5%; HSP-200-4.2 typical efficiency is 88%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for HSP-200-5

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting HSP-200-5 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-16
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
