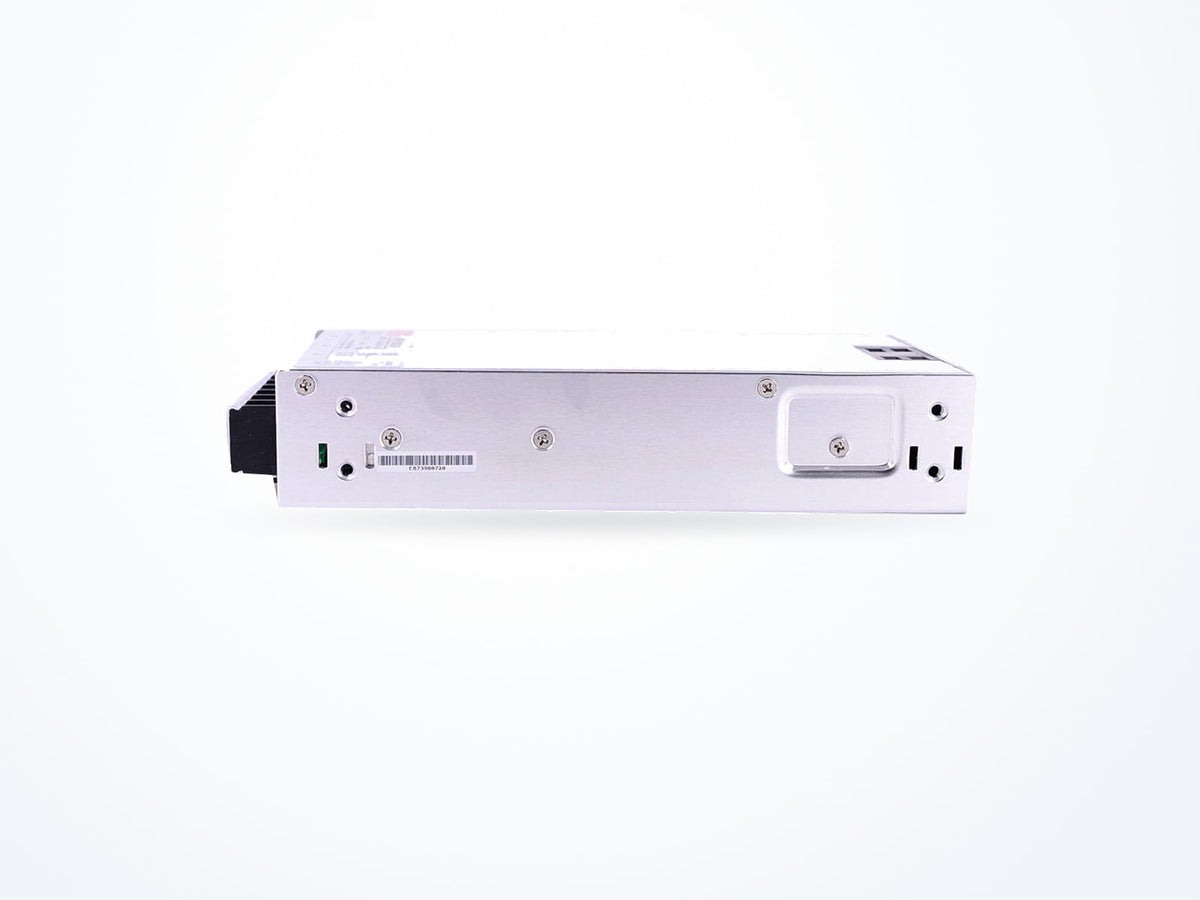

MEAN WELL HRPG-300-36 324W 36V 9A Enclosed Type

Part numberHRPG-300-36
Output voltage 36 V
Rated current 9 A
Rated power 324 W
$142.75Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
HRPG-300 model selection table HRP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 36 V
Rated current 9 A
Rated power 324 W
AC input range 85–264 VAC
Typical efficiency 88 %
Mechanical
Operating temperature -40 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 199 × 105 × 41 mm

Is this model right for you?

Within the HRPG-300 series, the HRPG-300-36 is distinguished by its 36 V output and 9 A output current. The HRPG-300-24 provides 24 V at 14 A, while the HRPG-300-48 provides 48 V at 7 A. Rated power also differs: HRPG-300-36 lists 324 W, HRPG-300-24 lists 336 W, and HRPG-300-48 lists 336 W.

Product overview

The HRPG-300-36 provides a 36 V output with a 9 A output current and 324 W rated power. Its output adjustment range is 28.8 to 39.6 V, and typical efficiency is 88%. The input voltage range is 85 to 264 VAC and 120 to 370 VDC, with a frequency range of 47 to 63 Hz. Ripple and noise are 250 mVp-p. Dimensions are 199 × 105 × 41 mm and net weight is 950 g.

Where this model fits

The HRPG-300-36 is used in Industrial Automation and Motor Drives applications. Its operating temperature range is -40 to 70 °C, and its dimensions are 199 × 105 × 41 mm with a net weight of 950 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 36 V
Rated current 9 A
Rated power 324 W
Voltage adjustment range 28.8–39.6 V
Ripple & noise 250 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 88 %
No-load consumption 0.5 W
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -40 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 199 × 105 × 41 mm
Net weight 950.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HRPG-300-36
Brand MEAN WELL
Category AC/DC Enclosed Type
Series HRPG-300

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035, BS EN/EN61000-6-2,heavy industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number HRPG-300-36
Minimum order quantity 1
Country of origin China
Typical packed weight 1170 g
Unit weight 950 g

Downloads

HRPG-300 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HRPG-300-1212 V27 A324 W$142.75
Ships in 3–5 business days
HRPG-300-36 36 V9 A324 W$142.75
Ships in 3–5 business days

HRPG-300-36: 36 V output, 9 A output current; HRPG-300-24: 24 V output, 14 A output current.

HRPG-300-36: 324 W rated power; HRPG-300-24: 336 W rated power.

HRPG-300-36: 36 V output, 9 A output current; HRPG-300-48: 48 V output, 7 A output current.

HRPG-300-36: 324 W rated power; HRPG-300-48: 336 W rated power.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for HRPG-300-36

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting HRPG-300-36 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-03
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
