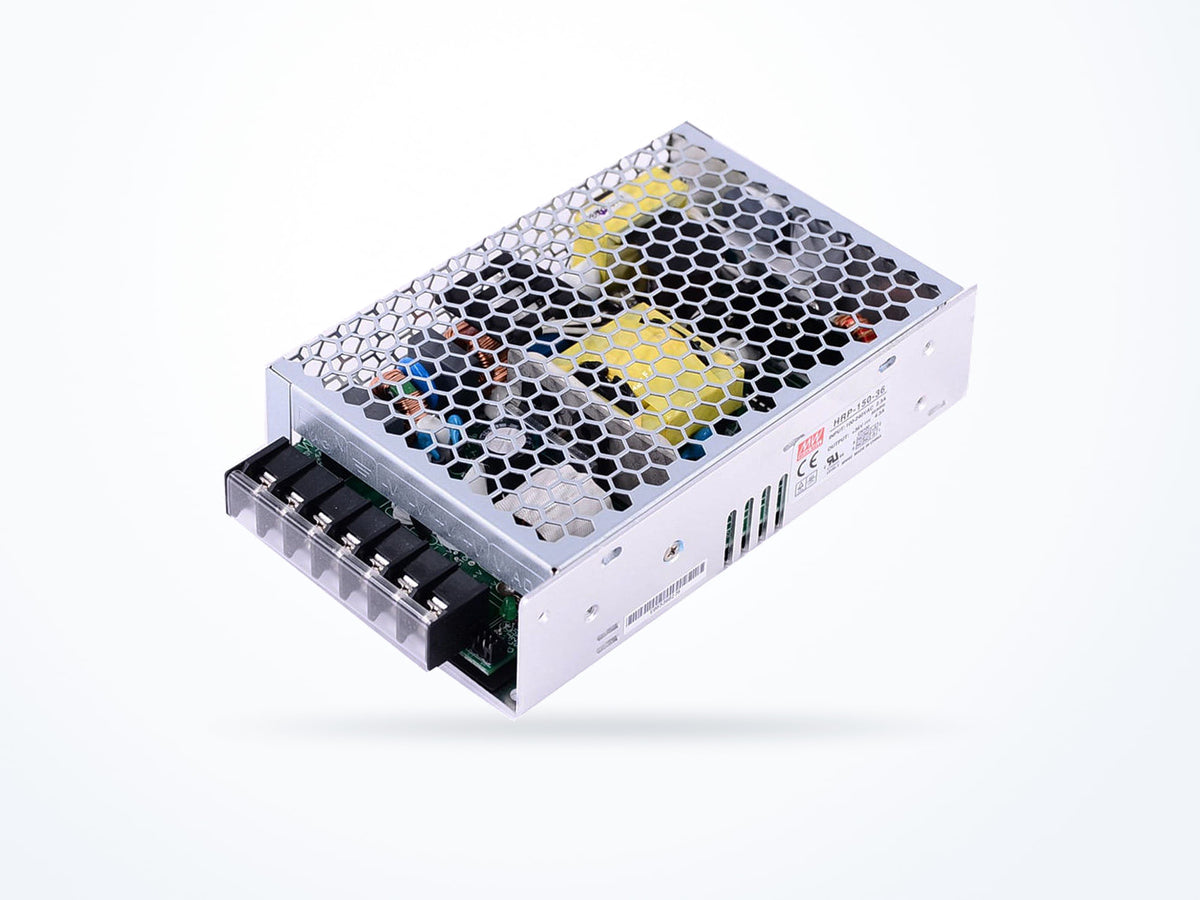

MEAN WELL HRPG-150-36 154.8W 36V 4.3A Enclosed Type

Part numberHRPG-150-36
Output voltage 36 V
Rated current 4.3 A
Rated power 154.8 W
$99.80Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
HRPG-150 model selection table HRP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 36 V
Rated current 4.3 A
Rated power 154.8 W
AC input range 85–264 VAC
Typical efficiency 88 %
Mechanical
Operating temperature -40 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 159 × 97 × 38 mm

Is this model right for you?

Within the HRPG-150 series, the HRPG-150-36 differs from siblings by output voltage, output current, rated power, output adjustment range, ripple and noise, and typical efficiency. HRPG-150-36: 36 V, 4.3 A, 154.8 W, 28.8~39.6V, 200mVp-p, 88%. HRPG-150-48: 48 V, 3.3 A, 158.4 W, 40.8~55.2V, 240mVp-p. HRPG-150-24: 24 V, 6.5 A, 156 W, 21.6~28.8V, 150mVp-p, 87%.

Product overview

The HRPG-150-36 provides a 36 V output with a 4.3 A output current and 154.8 W rated power. Its input voltage range is 85 ~ 264VAC 120 ~ 370VDC, with a frequency range of 47 ~ 63Hz. Typical efficiency is 88%, and ripple and noise are 200mVp-p. The output adjustment range is 28.8~39.6V. Dimensions are 159 × 97 × 38 mm and net weight is 630 g.

Where this model fits

The HRPG-150-36 is used in Industrial Automation and Motor Drives. Its operating temperature range is -40 to 70 °C, and its net weight is 630 g. The 36 V output and 4.3 A output current are the electrical figures for this model.

Complete technical specifications

Rev. 2026-07-13
Output
Output voltage 36 V
Rated current 4.3 A
Rated power 154.8 W
Voltage adjustment range 28.8–39.6 V
Ripple & noise 200 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 88 %
No-load consumption 0.5 W
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -40 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 159 × 97 × 38 mm
Net weight 630.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HRPG-150-36
Brand MEAN WELL
Category AC/DC Enclosed Type
Series HRPG-150

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2,heavy industry level,EAC TP TC 020

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number HRPG-150-36
Minimum order quantity 1
Country of origin China
Typical packed weight 817 g
Unit weight 630 g

Downloads

HRPG-150 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HRPG-150-7.57.5 V20 A150 W$99.80
Ships in 3–5 business days
HRPG-150-36 36 V4.3 A154.8 W$99.80
Ships in 3–5 business days
HRPG-150-2424 V6.5 A156 W$99.80
Ships in 3–5 business days

HRPG-150-36 provides 36 V output and 4.3 A output current; HRPG-150-48 provides 48 V output and 3.3 A output current.

HRPG-150-36 has a rated power of 154.8 W; HRPG-150-48 has a rated power of 158.4 W.

HRPG-150-36 has an output adjustment range of 28.8~39.6V; HRPG-150-24 has an output adjustment range of 21.6~28.8V.

HRPG-150-36 has ripple and noise of 200mVp-p; HRPG-150-24 has ripple and noise of 150mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for HRPG-150-36

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting HRPG-150-36 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-07-13
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
