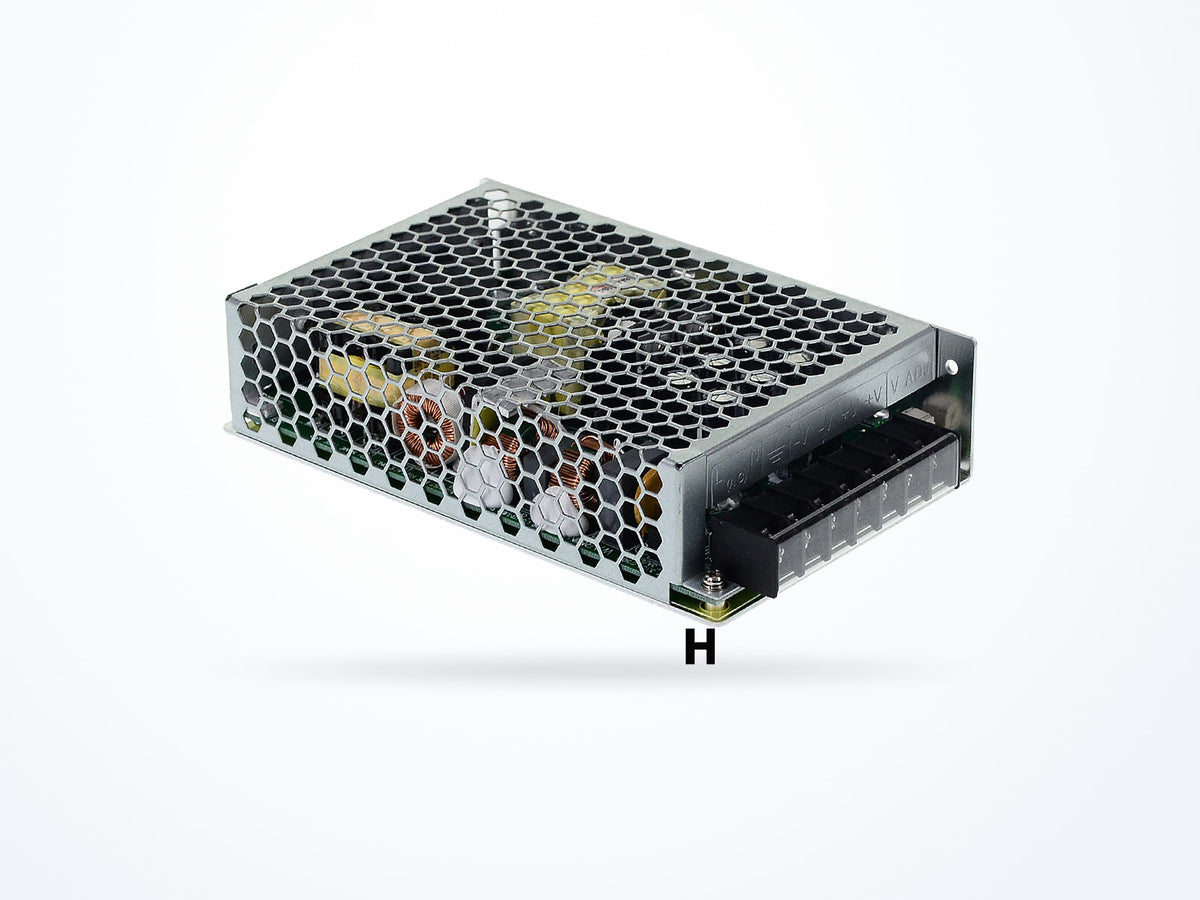

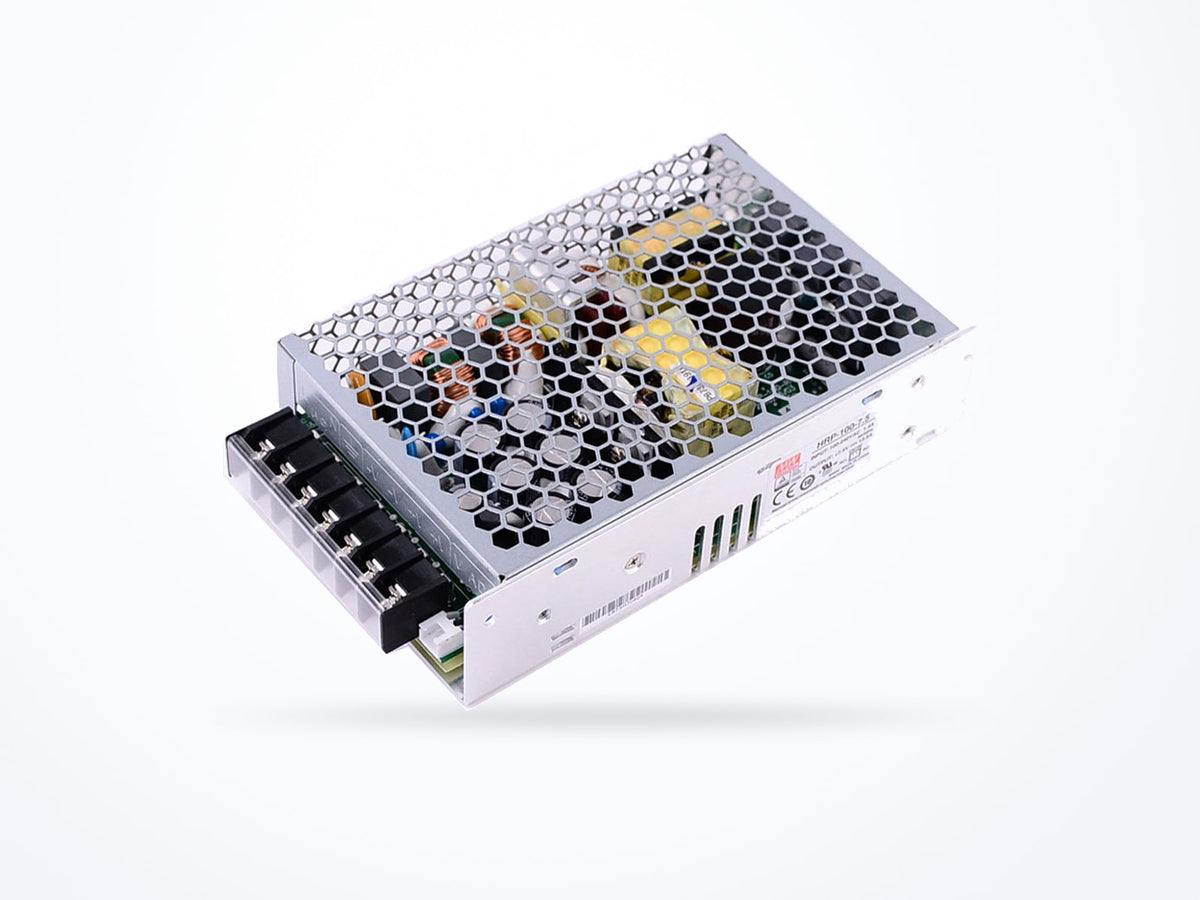

MEAN WELL HRP-100-48 105.6W 48V 2.2A Enclosed Type

Part numberHRP-100-48
Output voltage 48 V
Rated current 2.2 A
Rated power 105.6 W
$68.22Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
HRP-100 model selection table HRP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 2.2 A
Rated power 105.6 W
AC input range 85–264 VAC
Typical efficiency 90 %
Mechanical
Operating temperature -40 to 60 °C
Power factor correction Supported
Dimensions (L × W × H) 159 × 97 × 38 mm

Is this model right for you?

Within the HRP-100 series, the HRP-100-48 is distinguished by its 48 V output and 2.2 A output current. HRP-100-12 provides 12 V at 8.5 A, HRP-100-24 provides 24 V at 4.5 A, and HRP-100-36 provides 36 V at 2.9 A. Rated power is 105.6 W for HRP-100-48, compared with 102 W for HRP-100-12, 108 W for HRP-100-24, and 104.4 W for HRP-100-36.

Product overview

The HRP-100-48 provides a 48 V output with 2.2 A output current and 105.6 W rated power. The output adjustment range is 45.6~55.2V, and typical efficiency is 90%. Input voltage range is 85 ~ 264VAC 120 ~ 370VDC with a frequency range of 47 ~ 63Hz. Ripple and noise is 240mVp-p. Dimensions are 159 × 97 × 38 mm and net weight is 560 g.

Where this model fits

The HRP-100-48 provides a 48 V output with 2.2 A output current and 105.6 W rated power. Its operating temperature range is -40 to 60 °C and humidity range is 20 to 90%. Dimensions are 159 × 97 × 38 mm and net weight is 560 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 48 V
Rated current 2.2 A
Rated power 105.6 W
Voltage adjustment range 45.6–55.2 V
Ripple & noise 240 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 90 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -40 to 60 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 159 × 97 × 38 mm
Net weight 560.0 g
Safety & compliance
Safety standards UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HRP-100-48
Brand MEAN WELL
Category AC/DC Enclosed Type
Series HRP-100

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035,BS EN/EN61000-6-2,heavy industry level,EAC TP TC 020

Standards certified against

  • AS/NZS62368.1
  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number HRP-100-48
Minimum order quantity 1
Country of origin China
Warranty 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 775 g
Unit weight 560 g

Downloads

HRP-100 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HRP-100-55 V17 A85 W$68.22
Ships in 3–5 business days
HRP-100-48 48 V2.2 A105.6 W$68.22
Ships in 3–5 business days

HRP-100-48: 48 V output, 2.2 A; HRP-100-12: 12 V output, 8.5 A.

HRP-100-48: 48 V output, 2.2 A; HRP-100-24: 24 V output, 4.5 A.

HRP-100-48: 48 V output, 2.2 A; HRP-100-36: 36 V output, 2.9 A.

HRP-100-48: 105.6 W rated power; HRP-100-24: 108 W rated power.
