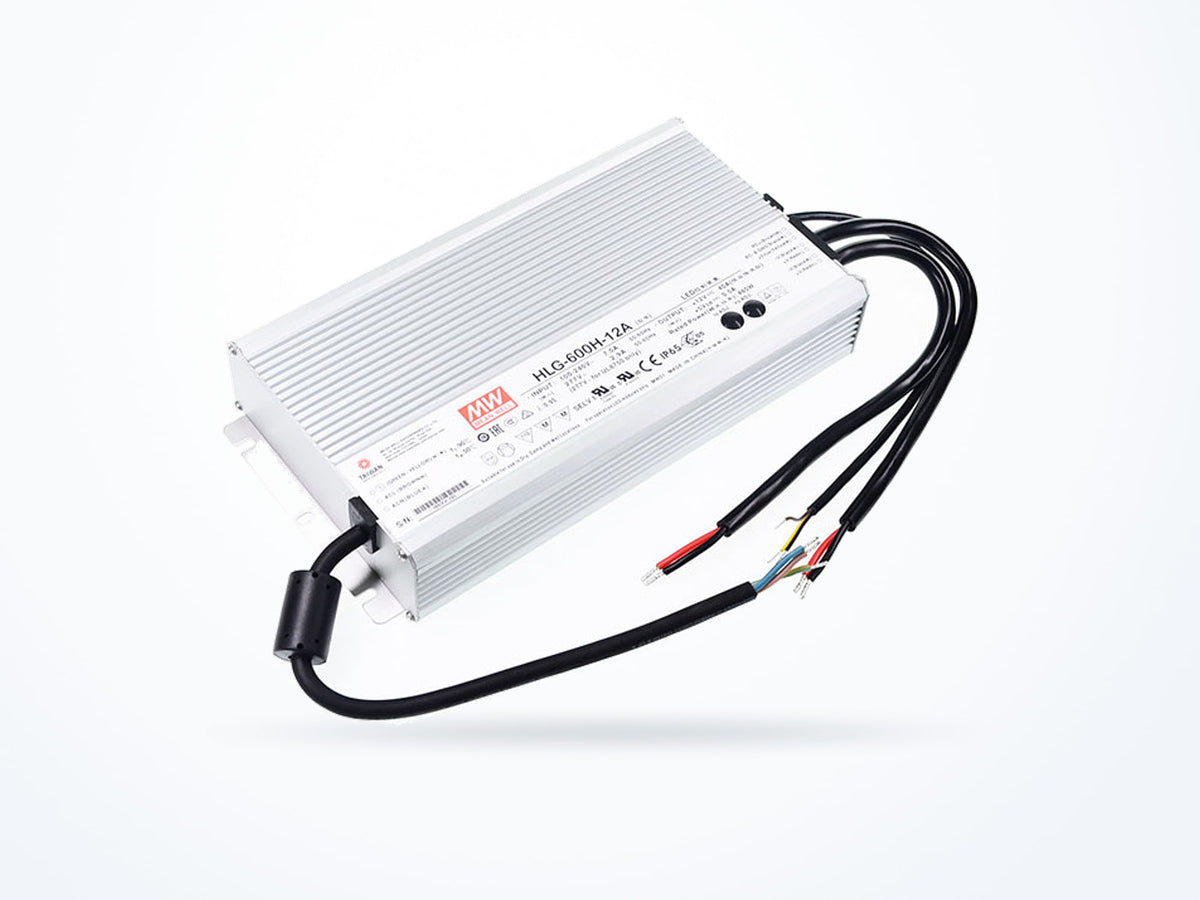

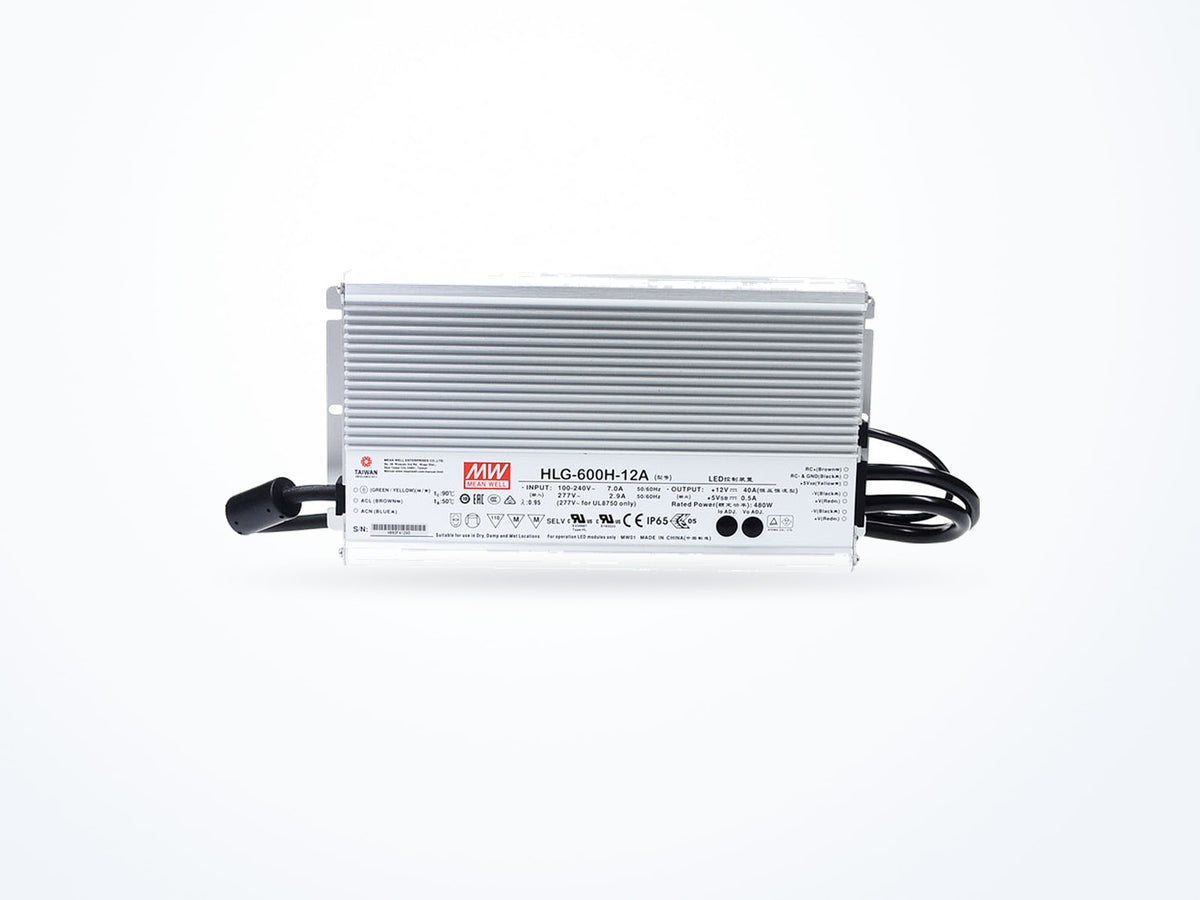

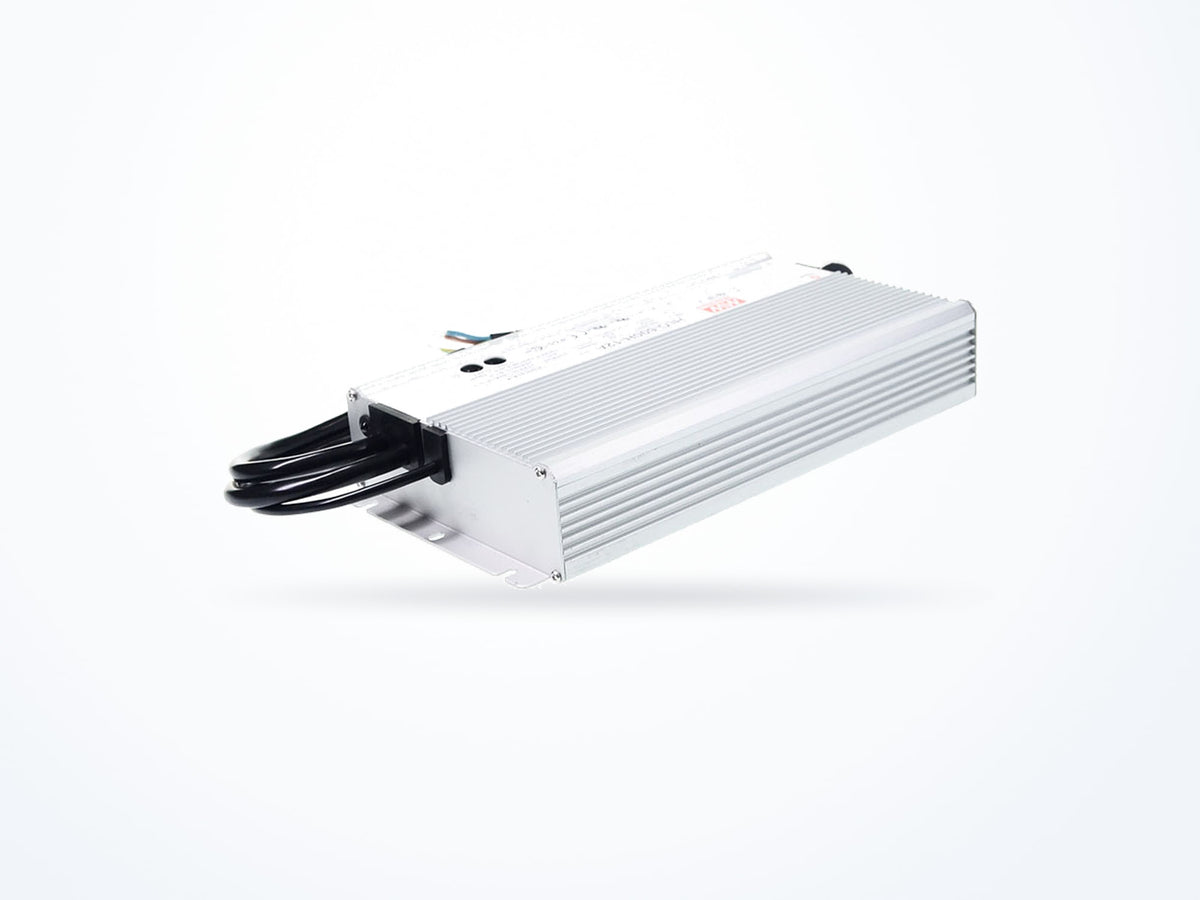

MEAN WELL HLG-600H-12 480W 12V 40A LED Driver

Part numberHLG-600H-12
Output voltage 12 V
Rated current 40 A
Rated power 480 W
$310.15Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote

Procurement confidence

  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.
Output
Output voltage 12 V
Rated current 40 A
Rated power 480 W
AC input range 90–305 VAC
Typical efficiency 92 %
Mechanical
Cooling Free-air convection
IP rating IP65
Operating temperature -40 to 90 °C
Power factor correction Supported
Dimensions (L × W × H) 280 × 144 × 48.5 mm

Is this model right for you?

Within the HLG-600H series, the HLG-600H-12 lists 12 V output and 40 A output current. The HLG-600H-15 lists 15 V and 36 A, the HLG-600H-20 lists 20 V and 28 A, and the HLG-600H-24 lists 24 V and 25 A. Rated power also differs: 480 W for the HLG-600H-12, 540 W for the HLG-600H-15, 560 W for the HLG-600H-20, and 600 W for the HLG-600H-24.

Product overview

The HLG-600H-12 is an AC/DC LED Driver from MEAN WELL in the HLG-600H series. It provides a 12 V output with 40 A output current and 480 W rated power. The input frequency range is 47 ~ 63Hz, and ripple and noise are 150 mVp-p. Dimensions are 280 × 144 × 48.5 mm and net weight is 3900 g.

Where this model fits

The HLG-600H-12 is used in LED Lighting and Building & Home Automation. Its 12 V output and 40 A output current support constant-voltage LED loads. The operating temperature range is -40 to 90 °C, and the humidity range is 20 to 95%.

Complete technical specifications

Rev. 2026-07-24
Output
Output voltage 12 V
Rated current 40 A
Rated power 480 W
Ripple & noise 150 mVp-p
Input
AC input range 90–305 VAC
DC input range 127–431 VDC
Frequency range 47–63 Hz
Typical efficiency 92 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -40 to 90 °C
Storage temperature -40 to 85 °C
Operating humidity 20–95 % RH
Vibration 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 280 × 144 × 48.5 mm
Net weight 3900.0 g
Cooling Free-air convection
Fan Not supported
IP rating IP65
Safety & compliance
Safety standards UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB/T19510.1,GB/T19510.213, EAC TP TC 004, AS/NZS 60950.1(by CB),KC61347-1, KC61347-2-13(except for AB type) approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HLG-600H-12
Brand MEAN WELL
Category AC/DC LED Driver
Series HLG-600H

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • ENEC

    ENEC is a pan-European mark for electrical equipment, issued by a national certification body and recognised across the member schemes. It covers both product testing and factory surveillance, which is what separates it from a self-declared CE mark.

International

  • CB Scheme

    A CB Test Certificate reports testing against the IEC standard and is accepted by member certification bodies as the basis for a national approval. It shortens a new-country approval rather than granting market access by itself, so it is the most useful item on this list when you are entering a market that is not shown here.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

South Korea

  • KC

    Korea Certification, mandatory for electrical equipment in scope. The KC number mirrors the IEC standard it is based on, so KC 62368-1 is assessment against the Korean adoption of IEC 62368-1.

    Covers only part of this series: except for AB type

Japan

  • PSE

    Conformity with Japan's Electrical Appliance and Material Safety Act. Japanese datasheets cite a J-prefixed standard such as J62368-1, which is the Japanese deviation-adjusted version of the IEC text.

An approval above is held by only some models in this series. The datasheet's own wording is quoted beside the mark; read it against this part number, and ask us for the certificate if your approval process needs it.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC emission Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, EAC TP TC 020; GB/T 17743,GB17625.1, KS C 9815, KS C 9547
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; KS C 9815, KS C 9547

Standards certified against

  • AS/NZS 60950.1
  • EN61347-1
  • EN61347-2-13
  • EN62384
  • GB/T19510.1
  • GB/T19510.213
  • J61347-1
  • J61347-2-13
  • KC61347-1
  • KC61347-2-13
  • UL60950-1
  • UL8750
Read the datasheet's exact wording

UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB/T19510.1,GB/T19510.213, EAC TP TC 004, AS/NZS 60950.1(by CB),KC61347-1, KC61347-2-13(except for AB type) approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Ordering & shipping information

Order and delivery terms
Part number HLG-600H-12
Minimum order quantity 1
Country of origin China
Warranty 7-year limited warranty from date of manufacture, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 4486 g
Unit weight 3900 g

HLG-600H model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HLG-600H-4242 V14.3 A600.6 W$209.35
Ships in 3–5 business days
HLG-600H-2424 V25 A600 W$310.15
Ships in 3–5 business days
HLG-600H-3030 V20 A600 W$199.50
Ships in 3–5 business days
HLG-600H-5454 V11.2 A604.8 W$199.50
Ships in 3–5 business days
HLG-600H-1515 V36 A540 W$199.50
Ships in 3–5 business days
HLG-600H-2020 V28 A560 W$209.35
Ships in 3–5 business days
HLG-600H-12 Currently viewing12 V40 A480 W$310.15
Ships in 3–5 business days
HLG-600H-4848 V12.5 A600 W$310.15
Ships in 3–5 business days
HLG-600H-3636 V16.7 A601.2 W$209.35
Ships in 3–5 business days

HLG-600H-12 lists 12 V output and 40 A output current; HLG-600H-15 lists 15 V and 36 A.

HLG-600H-12 lists 480 W rated power; HLG-600H-20 lists 560 W.

HLG-600H-12 lists 150 mVp-p ripple and noise; HLG-600H-30 lists 200 mVp-p.

HLG-600H-12 lists 12 V output; HLG-600H-54 lists 54 V.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for HLG-600H-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting HLG-600H-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-07-24
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
