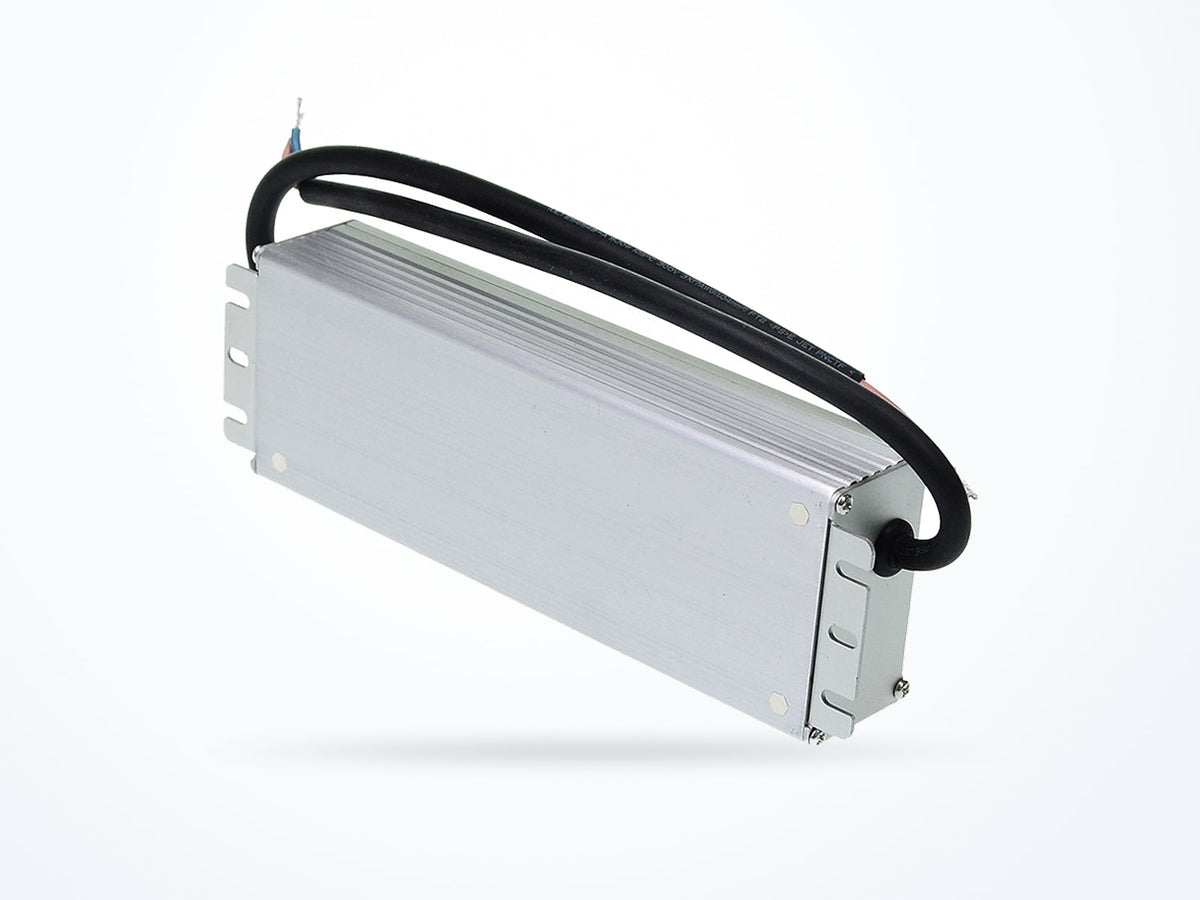

MEAN WELL HLG-120H-24 120W 24V 5A LED Driver
Procurement confidence
- Genuine product Sourced through our documented supply chain.
- Worldwide shipping Export documentation handled for you.
- Commercial invoice Available for every order.
- Specification support Talk to someone who reads datasheets.
Key specifications
Complete technical specifications| Output voltage | 24 V |
|---|---|
| Rated current | 5 A |
| Rated power | 120 W |
| AC input range | 90–305 VAC |
| Typical efficiency | 93 % |
| Cooling | Free-air convection |
|---|---|
| IP rating | IP65 |
| Operating temperature | -40 to 80 °C |
| Power factor correction | Supported |
| Dimensions (L × W × H) | 220 × 68 × 38.8 mm |
Is this model right for you?
Product overview
Where this model fits
Complete technical specifications
Rev. 2026-07-24| Output voltage | 24 V |
|---|---|
| Rated current | 5 A |
| Rated power | 120 W |
| Ripple & noise | 150 mVp-p |
| AC input range | 90–305 VAC |
|---|---|
| DC input range | 127–431 VDC |
| Frequency range | 47–63 Hz |
| Typical efficiency | 93 % |
| Power factor | 0.95 |
| Power factor correction | Supported |
| Operating temperature | -40 to 80 °C |
|---|---|
| Storage temperature | -40 to 80 °C |
| Operating humidity | 20–95 % RH |
| Vibration | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
| Dimensions (L × W × H) | 220 × 68 × 38.8 mm |
|---|---|
| Net weight | 1120.0 g |
| Cooling | Free-air convection |
| Fan | Not supported |
| IP rating | IP65 |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13,AS/NZS 61347-1, AS/NZS 61347-2-13 independent;GB/T19510.1,GB/T19510.213,IP65 or IP67, J61347-1, J61347-2-13(except for D-type),BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004,KC61347-1,KC61347-2-13(except for D-type) approved |
|---|
These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.
| Part number | HLG-120H-24 |
|---|---|
| Brand | MEAN WELL |
| Category | AC/DC LED Driver |
| Series | HLG-120H |
Approvals and compliance
From the manufacturer's datasheet for this seriesUnited States
- UL
UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.
Canada
- CSA
Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.
Eurasian Economic Union
- EAC
Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.
India
- BIS
Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.
Covers only part of this series: for 12B,24B,36A,54A only
South Korea
- KC
Korea Certification, mandatory for electrical equipment in scope. The KC number mirrors the IEC standard it is based on, so KC 62368-1 is assessment against the Korean adoption of IEC 62368-1.
Covers only part of this series: except for D-type
Japan
- PSE
Conformity with Japan's Electrical Appliance and Material Safety Act. Japanese datasheets cite a J-prefixed standard such as J62368-1, which is the Japanese deviation-adjusted version of the IEC text.
Covers only part of this series: except for D-type
An approval above is held by only some models in this series. The datasheet's own wording is quoted beside the mark; read it against this part number, and ask us for the certificate if your approval process needs it.
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
|---|---|
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC emission | Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type) |
| EMC immunity | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type) |
Standards certified against
- AS/NZS 61347-1
- AS/NZS 61347-2-13
- EN 61347-1
- EN 61347-2-13
- GB/T19510.1
- GB/T19510.213
- IS15885
- J61347-1
- J61347-2-13
- KC61347-1
- KC61347-2-13
- UL8750
Read the datasheet's exact wording
UL8750(type”HL”), CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13,AS/NZS 61347-1, AS/NZS 61347-2-13 independent;GB/T19510.1,GB/T19510.213,IP65 or IP67, J61347-1, J61347-2-13(except for D-type),BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004,KC61347-1,KC61347-2-13(except for D-type) approved
Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.
Ordering & shipping information
| Part number | HLG-120H-24 |
|---|---|
| Minimum order quantity | 1 |
| Country of origin | China |
| Warranty | 7-year limited warranty from date of manufacture, subject to the conditions in MEAN WELL's published warranty statement. |
| Typical packed weight | 1350 g |
| Unit weight | 1120 g |
HLG-120H model comparison
View all models| Model | Output voltage | Rated current | Rated power | Price | Availability |
|---|---|---|---|---|---|
| HLG-120H-30 | 30 V | 4 A | 120 W | $52.70 |
Ships in 3–5 business days
|
| HLG-120H-42 | 42 V | 2.9 A | 121.8 W | $52.70 |
Ships in 3–5 business days
|
| HLG-120H-36 | 36 V | 3.4 A | 122.4 W | $52.70 |
Ships in 3–5 business days
|
| HLG-120H-20 | 20 V | 6 A | 120 W | $52.70 |
Ships in 3–5 business days
|
| HLG-120H-15 | 15 V | 8 A | 120 W | $52.70 |
Ships in 3–5 business days
|
| HLG-120H-48 | 48 V | 2.5 A | 120 W | $49.28 |
Ships in 3–5 business days
|
| HLG-120H-54 | 54 V | 2.3 A | 124.2 W | $51.22 |
Ships in 3–5 business days
|
| HLG-120H-24 Currently viewing | 24 V | 5 A | 120 W | $76.11 |
Ships in 3–5 business days
|
| HLG-120H-12 | 12 V | 10 A | 120 W | $54.29 |
Ships in 3–5 business days
|
Request a bulk quote
Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.
- 1 We confirm the part number and quantity against current stock.
- 2 You receive pricing, lead time and freight options by email.
- 3 Approve the quotation and we issue the invoice and shipping documents.
Request a quote for HLG-120H-24
Confirm quantity and destination and we will come back with pricing and lead time.
Technical data source
- Primary source
- MEAN WELL
- Datasheet revision
- 2026-07-24
- Last verified
View the manufacturer datasheet How we source and verify product data
Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
