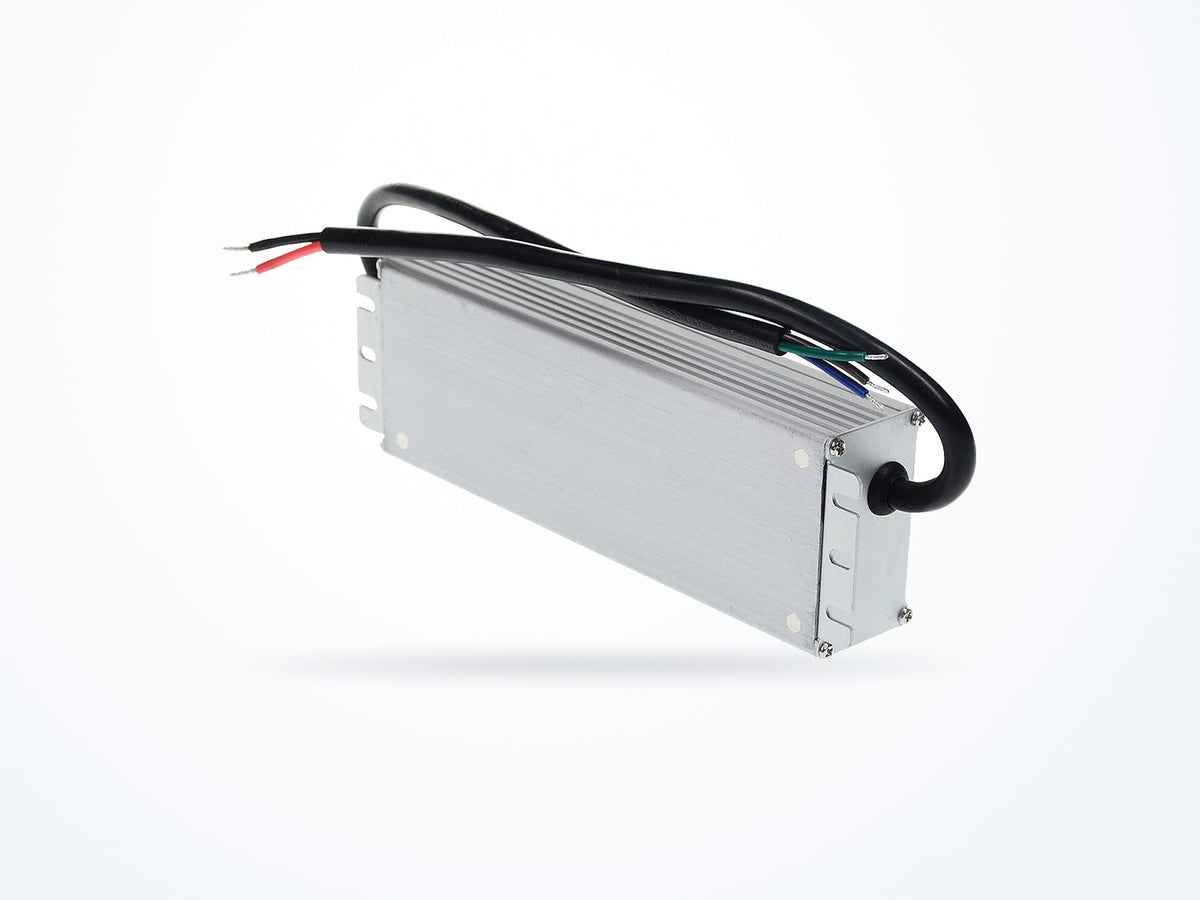

MEAN WELL HEP-100-12 100.08W 12V 8.34A Security & Specific

Part numberHEP-100-12
Output voltage 12 V
Rated current 8.34 A
Rated power 100.08 W
$167.39Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
HEP-100 model selection table Harsh Environment—HEP
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 8.34 A
Rated power 100.08 W
AC input range 90–264 VAC
Typical efficiency 92 %
Mechanical
IP rating IP65
Operating temperature -55 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 220 × 68 × 38.8 mm

Is this model right for you?

Within the HEP-100 series, the HEP-100-12 is distinguished by its 12V output and 8.34A output current. HEP-100-15 provides 15V at 6.67A, HEP-100-24 provides 24V at 4A, HEP-100-36 provides 36V at 2.65A, HEP-100-48 provides 48V at 2A, and HEP-100-54 provides 54V at 1.77A. The HEP-100-12 also lists a 120mVp-p ripple and noise value, while HEP-100-15 and HEP-100-24 list 150mVp-p and HEP-100-36, HEP-100-48, and HEP-100-54 list 200mVp-p.

Product overview

The HEP-100-12 provides a 12V output with an adjustment range of 10.8 ~ 13.5V and an output current of 8.34A. Rated power is 100.08W with typical efficiency of 92%. Ripple and noise are 120mVp-p. The input frequency range is 47 ~ 63Hz. Dimensions are 220 × 68 × 38.8 mm and net weight is 1120g.

Where this model fits

The HEP-100-12 is used in Security & Surveillance. Its operating temperature range is -55 to 70 °C and its humidity range is 20 to 95%. The product measures 220 × 68 × 38.8 mm and weighs 1120g.

Complete technical specifications

Rev. 2025-10-10
Output
Output voltage 12 V
Rated current 8.34 A
Rated power 100.08 W
Voltage adjustment range 10.8–13.5 V
Ripple & noise 120 mVp-p
Input
AC input range 90–264 VAC
DC input range 128–370 VDC
Frequency range 47–63 Hz
Typical efficiency 92 %
Power factor 0.98
Power factor correction Supported
Environmental
Operating temperature -55 to 70 °C
Storage temperature -60 to 85 °C
Operating humidity 20–95 % RH
Vibration 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 220 × 68 × 38.8 mm
Net weight 1120.0 g
IP rating IP65
Safety & compliance
Safety standards UL62368-1, IEC62368-1,IP65 (or IP68 for HEP-100 Blank type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HEP-100-12
Brand MEAN WELL
Category AC/DC Security & Specific
Series HEP-100

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

Standards certified against

  • IEC62368-1
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN62368-1

Read the datasheet's exact wording

UL62368-1, IEC62368-1,IP65 (or IP68 for HEP-100 Blank type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number HEP-100-12
Minimum order quantity 1
Country of origin China
Typical packed weight 1350 g
Unit weight 1120 g

Downloads

HEP-100 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HEP-100-1515 V6.67 A100.05 W$167.39
Ships in 3–5 business days
HEP-100-12 12 V8.34 A100.08 W$167.39
Ships in 3–5 business days

HEP-100-12: 12V output, 8.34A; HEP-100-15: 15V output, 6.67A.

HEP-100-12: 12V output, 8.34A; HEP-100-24: 24V output, 4A.

HEP-100-12: 12V output, 8.34A; HEP-100-36: 36V output, 2.65A.

HEP-100-12: 12V output, 8.34A; HEP-100-48: 48V output, 2A.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for HEP-100-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting HEP-100-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-10-10
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
