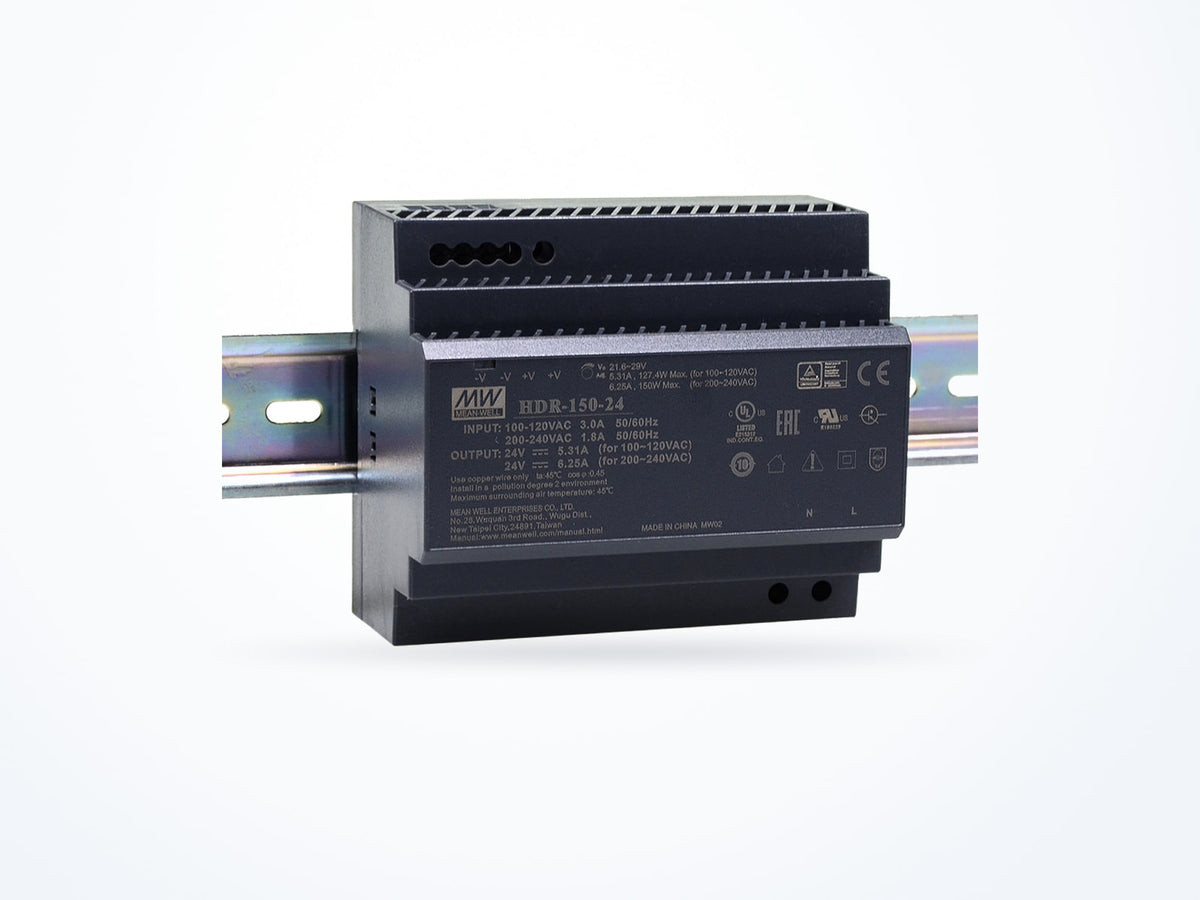

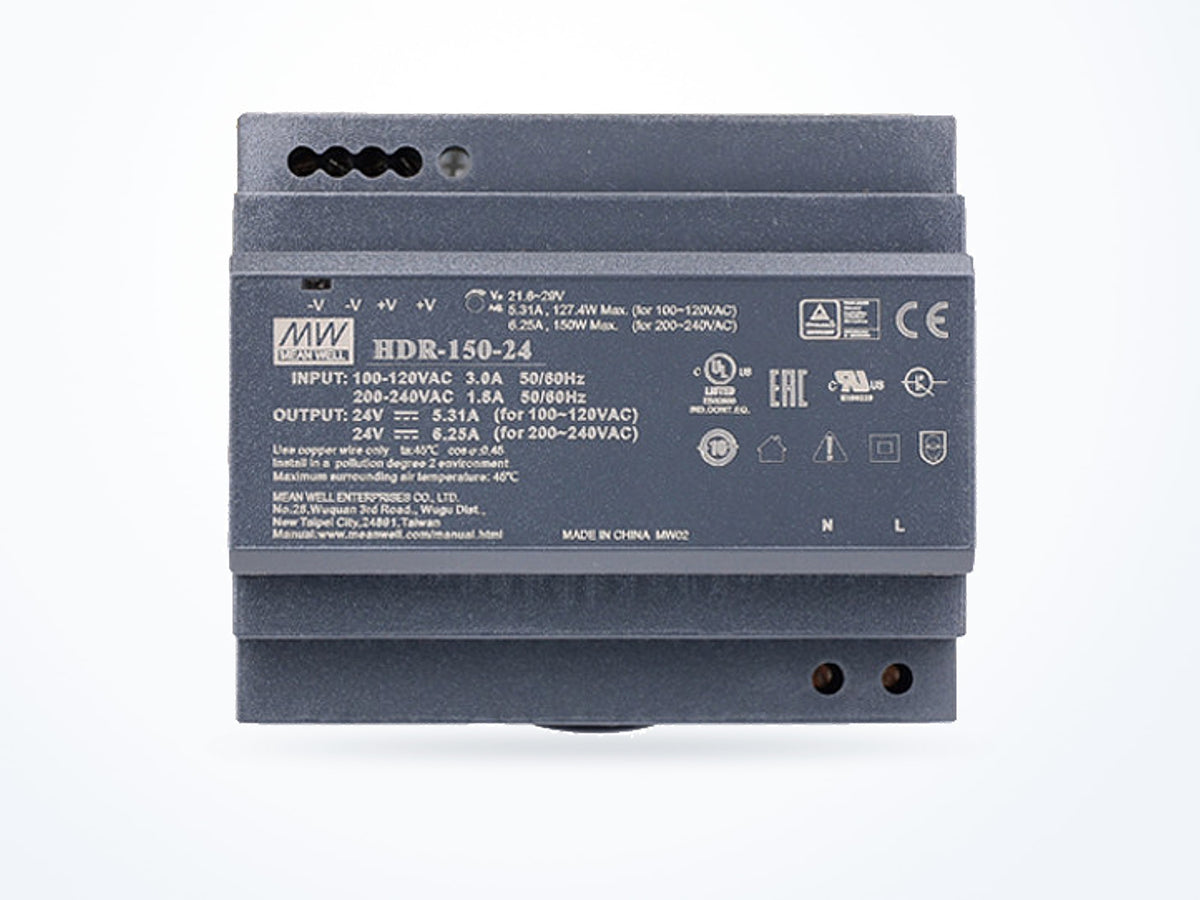

MEAN WELL HDR-150-24 150W 24V 6.25A DIN Rail

Part numberHDR-150-24
Output voltage 24 V
Rated current 6.25 A
Rated power 150 W
$50.22Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
HDR-150 model selection table HDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 6.25 A
Rated power 150 W
AC input range 85–264 VAC
Typical efficiency 90.5 %
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 105 × 90 × 54.5 mm

Is this model right for you?

Within the HDR-150 series, the HDR-150-24 lists an output adjustment range of 21.6 ~ 29V. HDR-150-12 lists 10.8~ 13.8V, HDR-150-15 lists 13.5 ~ 18V, and HDR-150-48 lists 43.2 ~ 55.2V. Typical efficiency differs: HDR-150-24 lists 90.5%, HDR-150-12 lists 89%, HDR-150-15 lists 89.5%.

Product overview

The HDR-150-24 is part of the HDR-150 series from MEAN WELL. It provides an output adjustment range of 21.6 ~ 29V, a typical efficiency of 90.5%, and ripple and noise of 150mVp-p. The input frequency range is 47 ~ 63Hz. Dimensions are 105 × 90 × 54.5 mm and net weight is 310 g.

Where this model fits

The HDR-150-24 is used in Industrial Automation, Motor Drives, and Building & Home Automation. Its output adjustment range is 21.6 ~ 29V, typical efficiency is 90.5%, and net weight is 310 g. Dimensions are 105 × 90 × 54.5 mm.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 24 V
Rated current 6.25 A
Rated power 150 W
Voltage adjustment range 21.6–29 V
Ripple & noise 150 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 90.5 %
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 105 × 90 × 54.5 mm
Net weight 310.0 g
Safety & compliance
Safety standards IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EAC TP TC 004,BIS IS13252(Part1): 2010/IEC 609501:2005(except for 48) approved; Design refer to BS EN/EN50178, TUV BS EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HDR-150-24
Brand MEAN WELL
Category AC/DC DIN Rail
Series HDR-150

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

    Covers only part of this series: except for 48

An approval above is held by only some models in this series. The datasheet's own wording is quoted beside the mark; read it against this part number, and ask us for the certificate if your approval process needs it.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH Parameter Standard Test Level / Note

Standards certified against

  • EN61558-1
  • EN61558-2-16
  • IEC 609501
  • IEC62368-1
  • IS13252
  • UL61010
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN50178, TUV BS EN/EN62368-1

Read the datasheet's exact wording

IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EAC TP TC 004,BIS IS13252(Part1): 2010/IEC 609501:2005(except for 48) approved; Design refer to BS EN/EN50178, TUV BS EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number HDR-150-24
Minimum order quantity 1
Country of origin China
Typical packed weight 494 g
Unit weight 310 g

Downloads

HDR-150 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HDR-150-24 24 V6.25 A150 W$50.22
Ships in 3–5 business days
HDR-150-1212 V11.3 A135.6 W$54.32
Ships in 3–5 business days

HDR-150-24 lists an output adjustment range of 21.6 ~ 29V; HDR-150-12 lists 10.8~ 13.8V.

HDR-150-24 lists typical efficiency of 90.5%; HDR-150-15 lists 89.5%.

HDR-150-24 lists ripple and noise of 150mVp-p; HDR-150-48 lists 200mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for HDR-150-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting HDR-150-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-03
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
