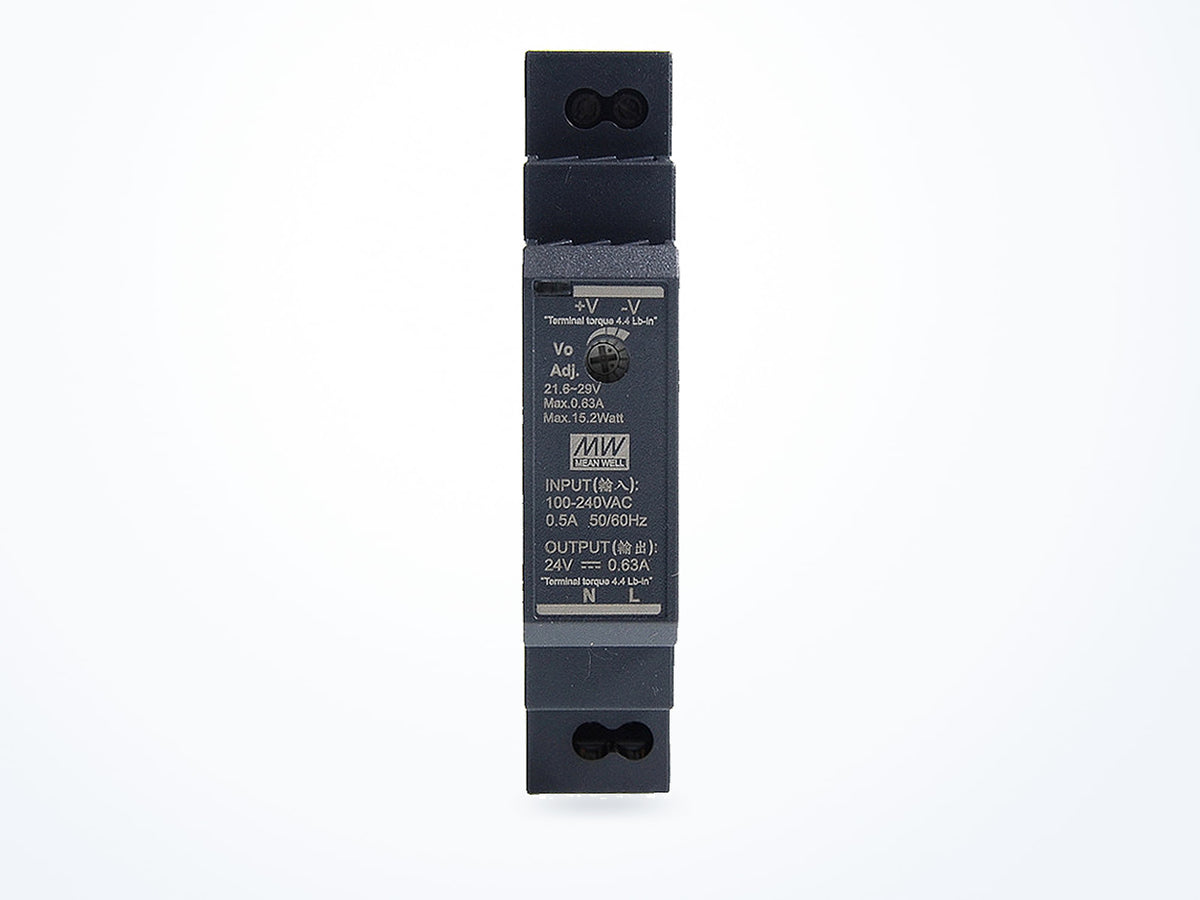

MEAN WELL HDR-15-24 15.2W 24V 0.63A DIN Rail

Part numberHDR-15-24
Output voltage 24 V
Rated current 0.63 A
Rated power 15.2 W
$17.05Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
HDR-15 model selection table HDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 0.63 A
Rated power 15.2 W
AC input range 85–264 VAC
Typical efficiency 86 %
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 17.5 × 90 × 54.5 mm

Is this model right for you?

Within the HDR-15 series, the HDR-15-24 is distinguished by its 24 V output and 0.63 A output current. HDR-15-5 provides 5 V at 2.4 A, HDR-15-12 provides 12 V at 1.25 A, HDR-15-15 provides 15 V at 1 A, and HDR-15-48 provides 48 V at 0.32 A. Rated power is 15.2 W for HDR-15-24, 12 W for HDR-15-5, 15 W for HDR-15-12 and HDR-15-15, and 15.4 W for HDR-15-48.

Product overview

The HDR-15-24 provides a 24 V output with 0.63 A output current and 15.2 W rated power. Its output adjustment range is 21.6 to 29 V, with typical efficiency of 86% and ripple and noise of 150 mVp-p. The product measures 17.5 × 90 × 54.5 mm and has a net weight of 74 g.

Where this model fits

The HDR-15-24 is used in Industrial Automation, Motor Drives, and Building & Home Automation. Its 24 V output and 0.63 A output current suit control cabinets and PLC racks that run from a 24 V DC rail. The product measures 17.5 × 90 × 54.5 mm and has a net weight of 74 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 24 V
Rated current 0.63 A
Rated power 15.2 W
Voltage adjustment range 21.6–29 V
Ripple & noise 150 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 86 %
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 17.5 × 90 × 54.5 mm
Net weight 74.0 g
Safety & compliance
Safety standards UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 609501:2005(except for 48) approved; Design refer to TUV BS EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HDR-15-24
Brand MEAN WELL
Category AC/DC DIN Rail
Series HDR-15

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

    Covers only part of this series: except for 48

An approval above is held by only some models in this series. The datasheet's own wording is quoted beside the mark; read it against this part number, and ask us for the certificate if your approval process needs it.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

Standards certified against

  • CNS15598-1
  • EN61558-1
  • EN61558-2-16
  • IEC 609501
  • IEC62368-1
  • IS13252
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

TUV BS EN/EN62368-1

Read the datasheet's exact wording

UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 609501:2005(except for 48) approved; Design refer to TUV BS EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number HDR-15-24
Minimum order quantity 1
Country of origin China
Typical packed weight 231 g
Unit weight 74 g

Downloads

HDR-15 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HDR-15-1515 V1 A15 W$19.58
Ships in 3–5 business days
HDR-15-24 24 V0.63 A15.2 W$17.05
Ships in 3–5 business days
HDR-15-4848 V0.32 A15.4 W$18.32
Ships in 3–5 business days

HDR-15-24 provides 24 V output and 0.63 A output current; HDR-15-5 provides 5 V output and 2.4 A output current.

HDR-15-24 provides 24 V output and 0.63 A output current; HDR-15-12 provides 12 V output and 1.25 A output current.

HDR-15-24 provides 24 V output and 0.63 A output current; HDR-15-15 provides 15 V output and 1 A output current.

HDR-15-24 provides 24 V output and 0.63 A output current; HDR-15-48 provides 48 V output and 0.32 A output current.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for HDR-15-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting HDR-15-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-03
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
