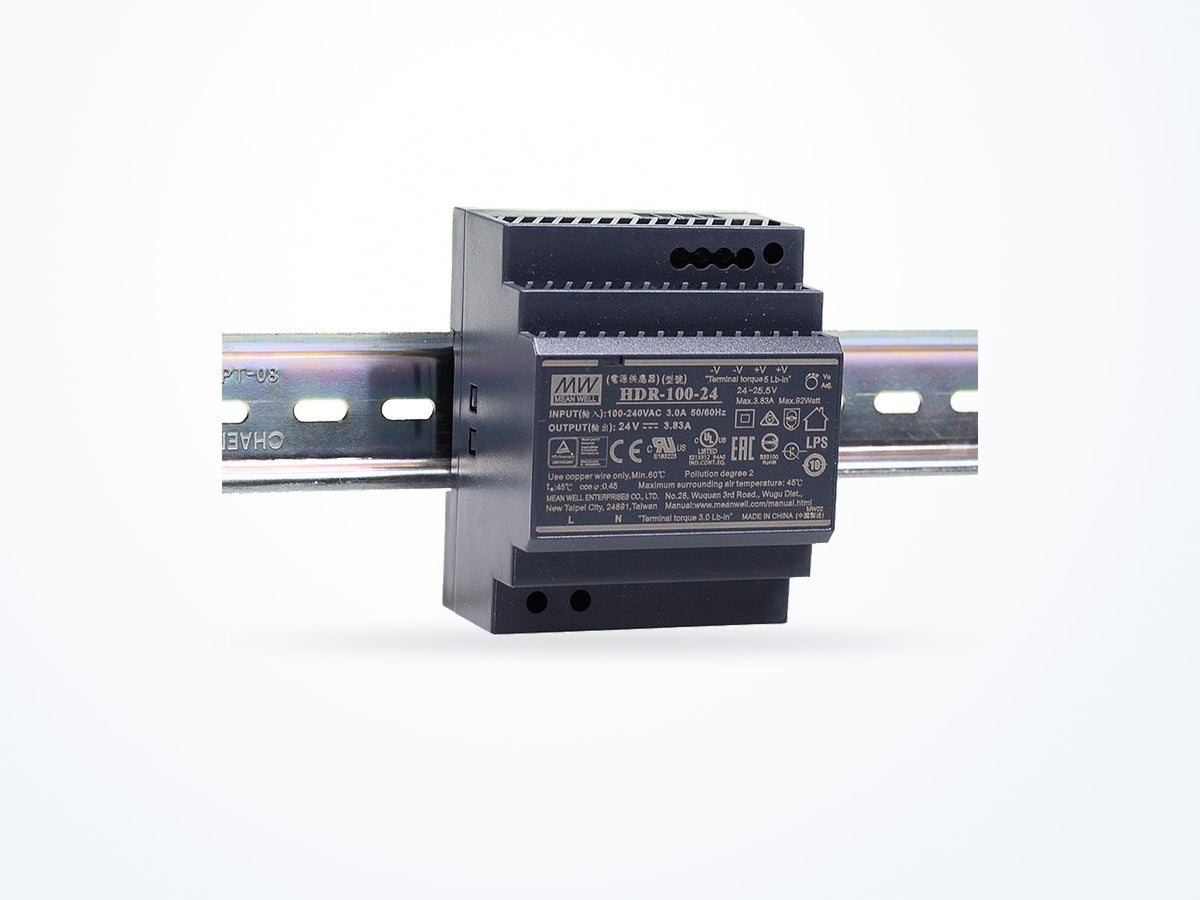

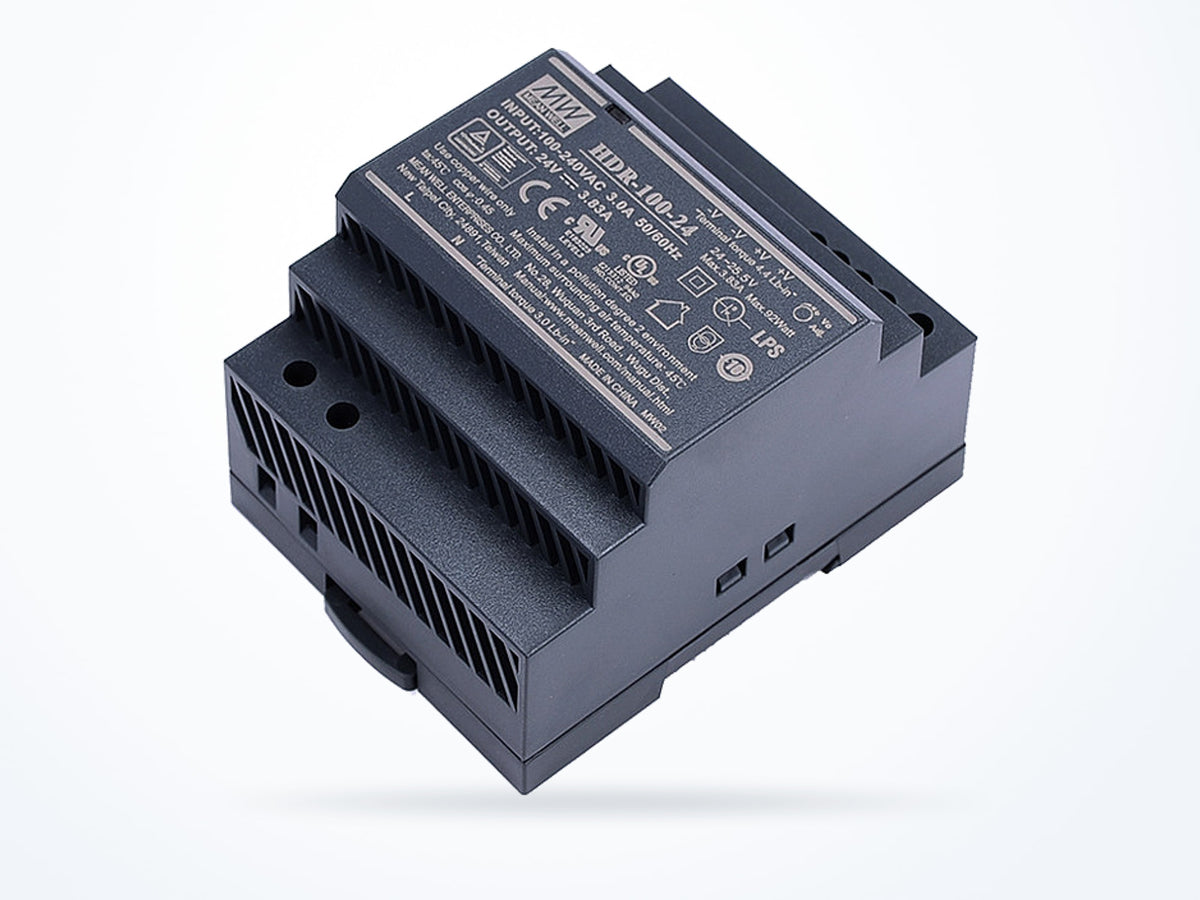

MEAN WELL HDR-100-24 92W 24V 3.83A DIN Rail

Part numberHDR-100-24
Output voltage 24 V
Rated current 3.83 A
Rated power 92 W
$39.48Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
HDR-100 model selection table HDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 3.83 A
Rated power 92 W
AC input range 85–264 VAC
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 70 × 90 × 54.5 mm

Is this model right for you?

Within the HDR-100 series, the HDR-100-24 lists a 24~25.5V output adjustment range, 3.83A output current, and 92W rated power. HDR-100-12 lists 12~13V, 7.1A, and 85.2W. HDR-100-48 lists 48~48.7V, 1.92A, and 92.2W.

Product overview

The HDR-100-24 belongs to the HDR-100 series and is classified as an AC/DC DIN Rail product. Its output adjustment range is 24~25.5V, with an output current of 3.83A and rated power of 92W. The frequency range is 47 ~ 63Hz. Dimensions are 70 × 90 × 54.5 mm and net weight is 270 g.

Where this model fits

The HDR-100-24 is used in Industrial Automation and Building & Home Automation. Its output adjustment range is 24~25.5V, output current is 3.83A, and rated power is 92W. Dimensions are 70 × 90 × 54.5 mm and net weight is 270 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 24 V
Rated current 3.83 A
Rated power 92 W
Voltage adjustment range 24–25.5 V
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 70 × 90 × 54.5 mm
Net weight 270.0 g
Safety & compliance
Safety standards UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS15598-1 BIS IS13252(Part1):2010/IEC 609501:2005 approved; Design refer to TUV BS EN/EN62368-1 (datasheet note applies)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number HDR-100-24
Brand MEAN WELL
Category AC/DC DIN Rail
Series HDR-100

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

Standards certified against

  • CNS15598-1
  • EN61558-1
  • EN61558-2-16
  • IEC 609501
  • IEC62368-1
  • IS13252
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

TUV BS EN/EN62368-1

Read the datasheet's exact wording

UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS15598-1 BIS IS13252(Part1):2010/IEC 609501:2005 approved; Design refer to TUV BS EN/EN62368-1 (datasheet note applies)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number HDR-100-24
Minimum order quantity 1
Country of origin China
Typical packed weight 436 g
Unit weight 270 g

Downloads

HDR-100 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
HDR-100-12N12 V7.5 A90 W$42.64
Ships in 3–5 business days
HDR-100-24 24 V3.83 A92 W$39.48
Ships in 3–5 business days

HDR-100-24 lists 24~25.5V output adjustment range; HDR-100-12 lists 12~13V.

HDR-100-24 lists 3.83A output current; HDR-100-12 lists 7.1A.

HDR-100-24 lists 92W rated power; HDR-100-12 lists 85.2W.

HDR-100-24 lists 24~25.5V output adjustment range; HDR-100-48 lists 48~48.7V.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for HDR-100-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting HDR-100-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-03
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
