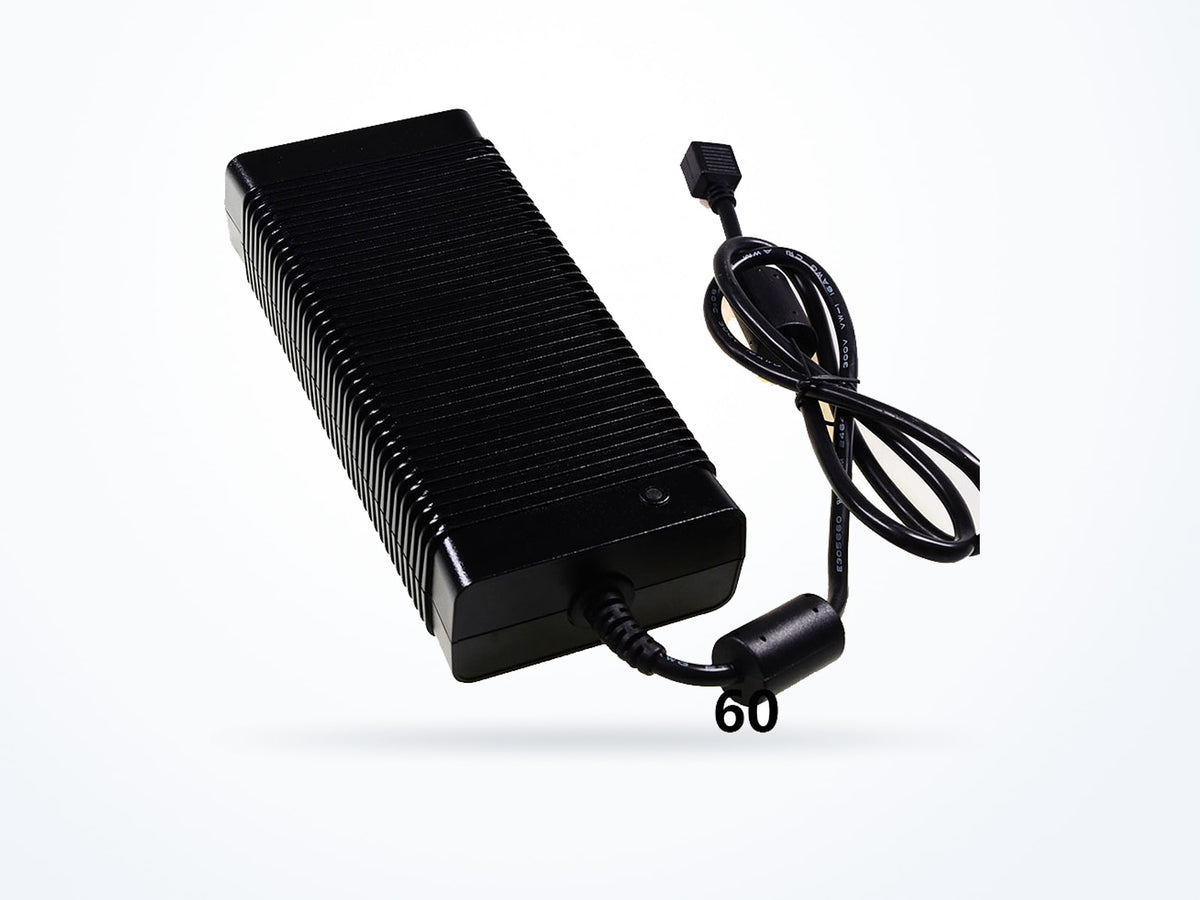

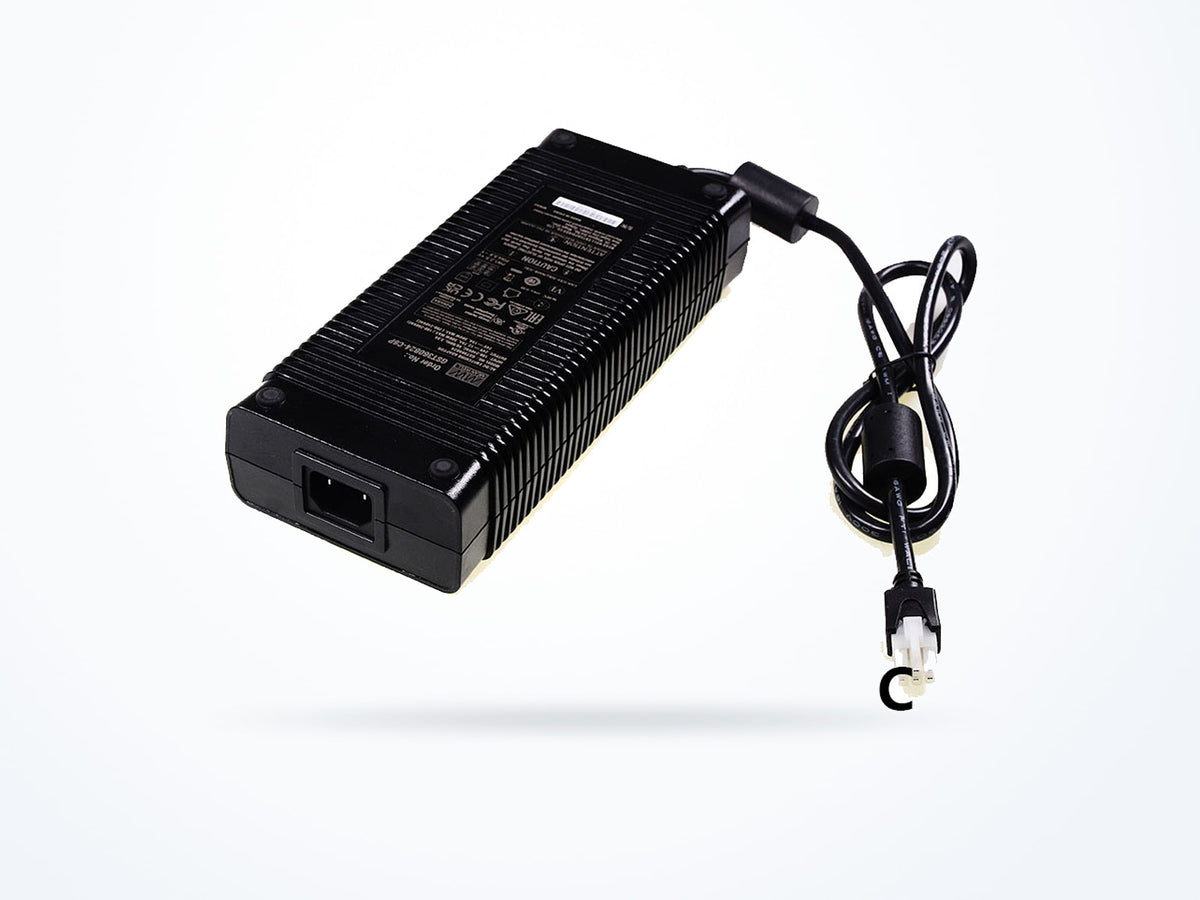

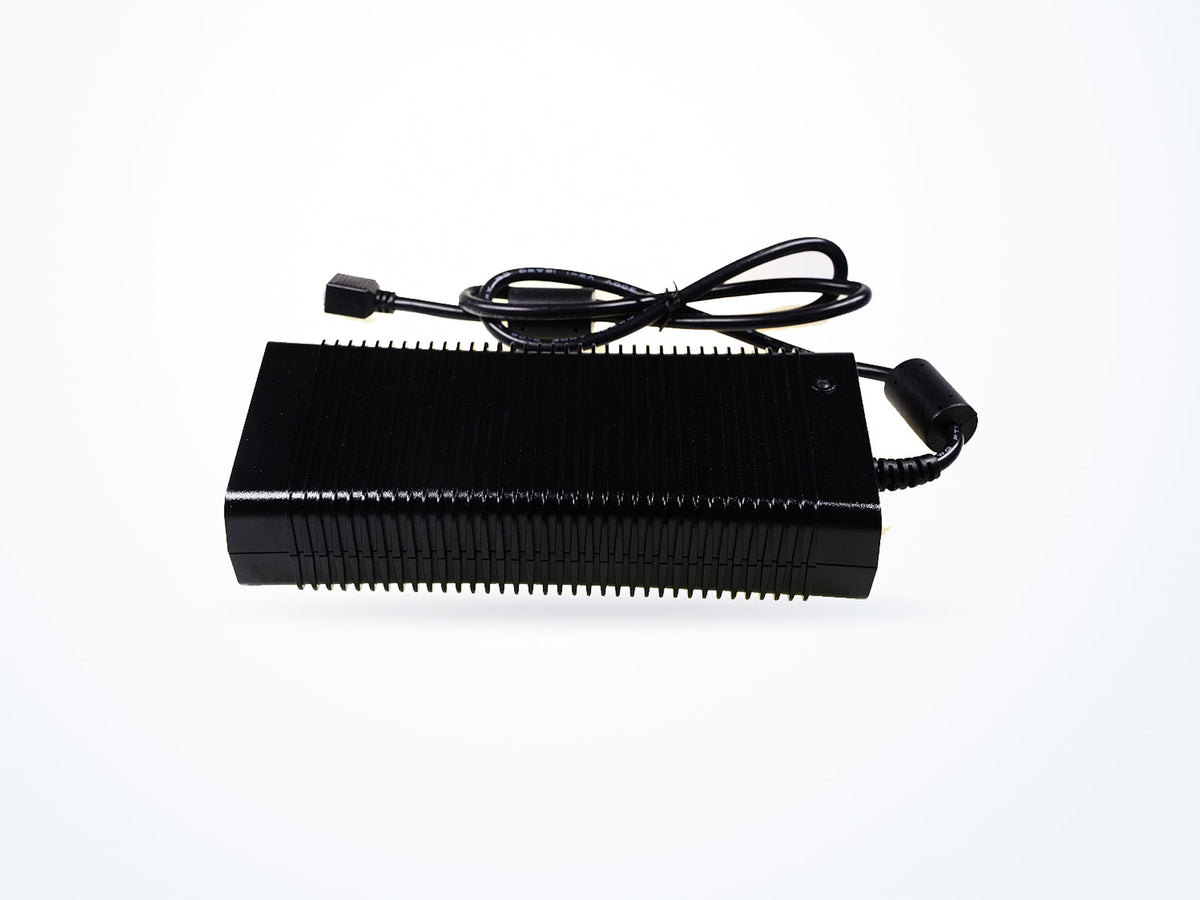

MEAN WELL GST360B15 340.5W 15V 22.7A Adaptor

Part numberGST360B15-C8P Model: GST360B15
Output voltage 15 V
Rated current 22.7 A
Rated power 340.5 W
$164.55Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
GST360B model selection table Desktop (Level VI) — ITE
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 22.7 A
Rated power 340.5 W
AC input range 85–264 VAC
Typical efficiency 92 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 220 × 95 × 46 mm

Is this model right for you?

The GST360B15 lists 85 ~ 264VAC 120 ~ 370VDC input, the same as the other models in the GST360B series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The GST360B15 is a MEAN WELL AC/DC Adaptor in the Desktop (Level VI) — ITE family, part of the GST360B series. Its input range is 85 ~ 264VAC or 120 ~ 370VDC at 47 ~ 63Hz. The unit measures 220 × 95 × 46 mm and weighs 1400 g. Operating temperature spans -30 to 70 °C.

Where this model fits

The GST360B15 is used in Security & Surveillance. Its operating temperature range is -30 to 70 °C, and it measures 220 × 95 × 46 mm with a net weight of 1400 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 15 V
Rated current 22.7 A
Rated power 340.5 W
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 92 %
Power factor 0.95
Power factor correction Supported
Protection
Over voltage Protected
Over temperature Protected
Shut down o/p voltage, re-power on to recover
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 220 × 95 × 46 mm
Net weight 1400.0 g
Safety & compliance
Safety standards UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1,IEC 61558-1,IEC 61558-2-16, CCC GB4943.1, AS/NZS 61558-1/-2-16, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number GST360B15
Brand MEAN WELL
Category AC/DC Adaptor
Series GST360B

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • DEKRA

    DEKRA is a European notified body; a DEKRA certificate on a datasheet is third-party testing against the cited EN standard, equivalent in standing to a TÜV one.

China

  • CCC

    China Compulsory Certification. Mandatory for the product categories in its scope; where it applies, a shipment without it is not clearable. Certification is against the GB standard the datasheet cites.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P: 3KVAC
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • AS/NZS 61558-1/-2-16
  • EN62368-1
  • GB4943.1
  • IEC 61558-1
  • IEC 61558-2-16
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1,IEC 61558-1,IEC 61558-2-16, CCC GB4943.1, AS/NZS 61558-1/-2-16, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number GST360B15
SKU GST360B15-C8P
Minimum order quantity 1
Country of origin China
Typical packed weight 1670 g
Unit weight 1400 g

Downloads

GST360B model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
GST360B2424 V15 A360 W$153.18
Ships in 3–5 business days
GST360B15 15 V22.7 A340.5 W$164.55
Ships in 3–5 business days
GST360B3636 V10 A360 W$164.55
Ships in 3–5 business days

GST360B15: 15 V output; the rest of the series runs 12 V to 55 V.

GST360B15: 22.7 A output current; the rest of the series runs 6.55 A to 27.5 A.

GST360B15: 340 W rated power; GST360B12 and GST360B12-C8P: 330 W; 8 other models: 360 W.

GST360B15: 92% typical efficiency; the rest of the series runs 5% to 95%.
