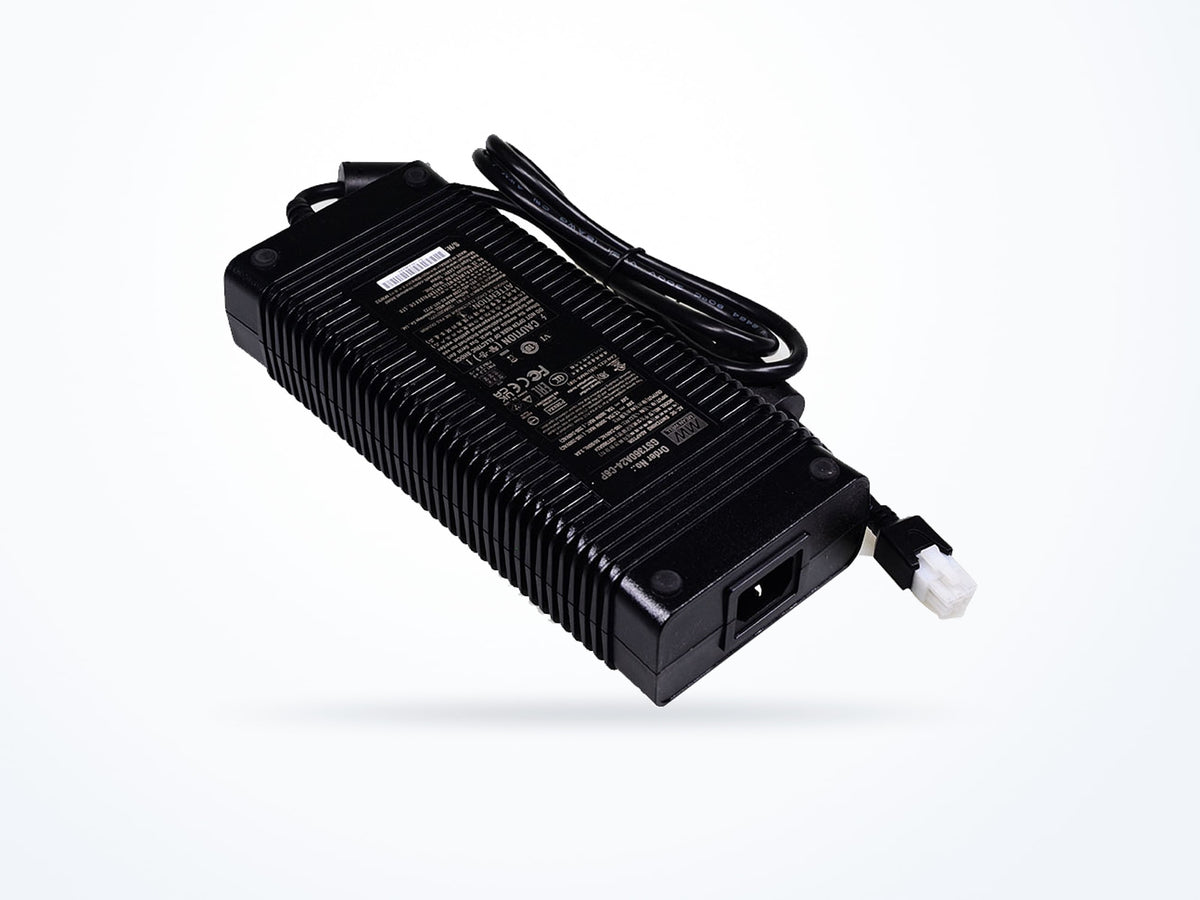

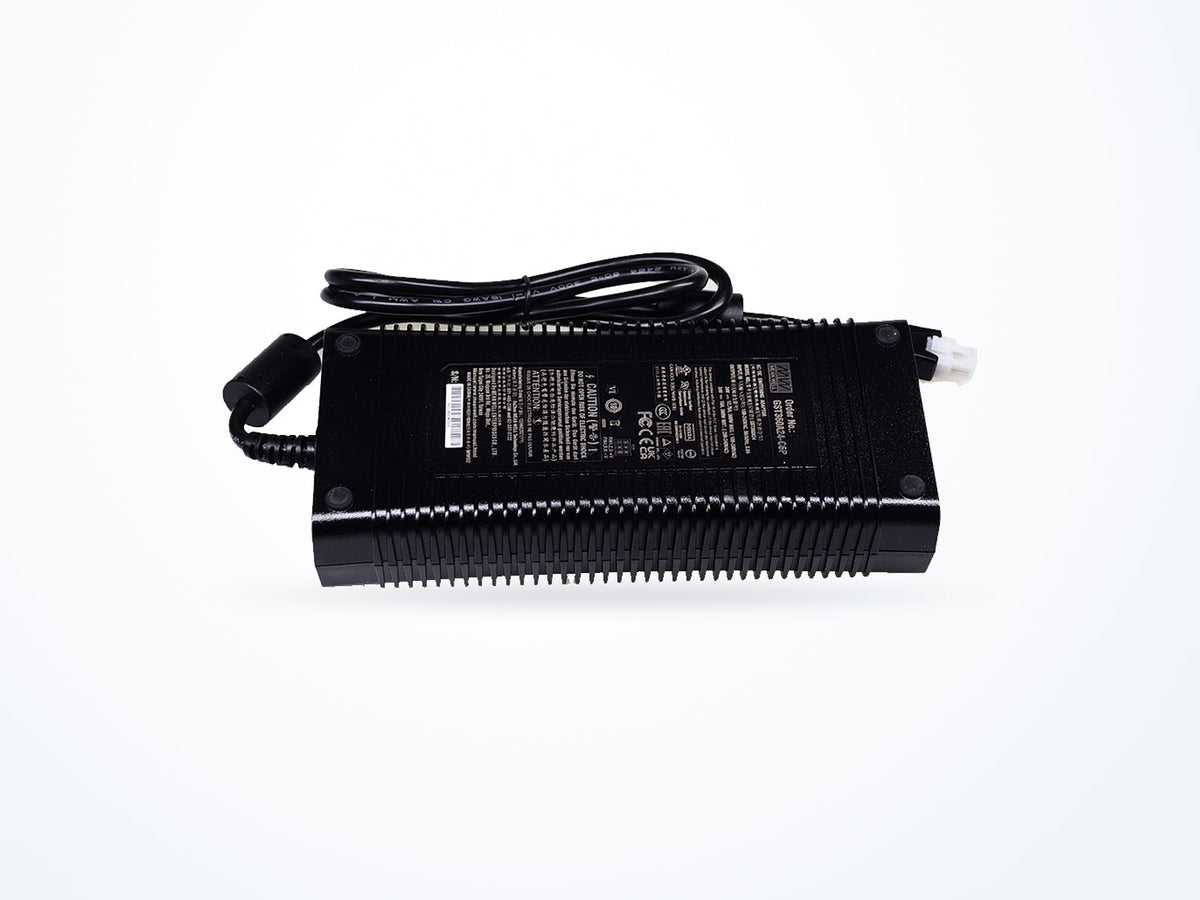

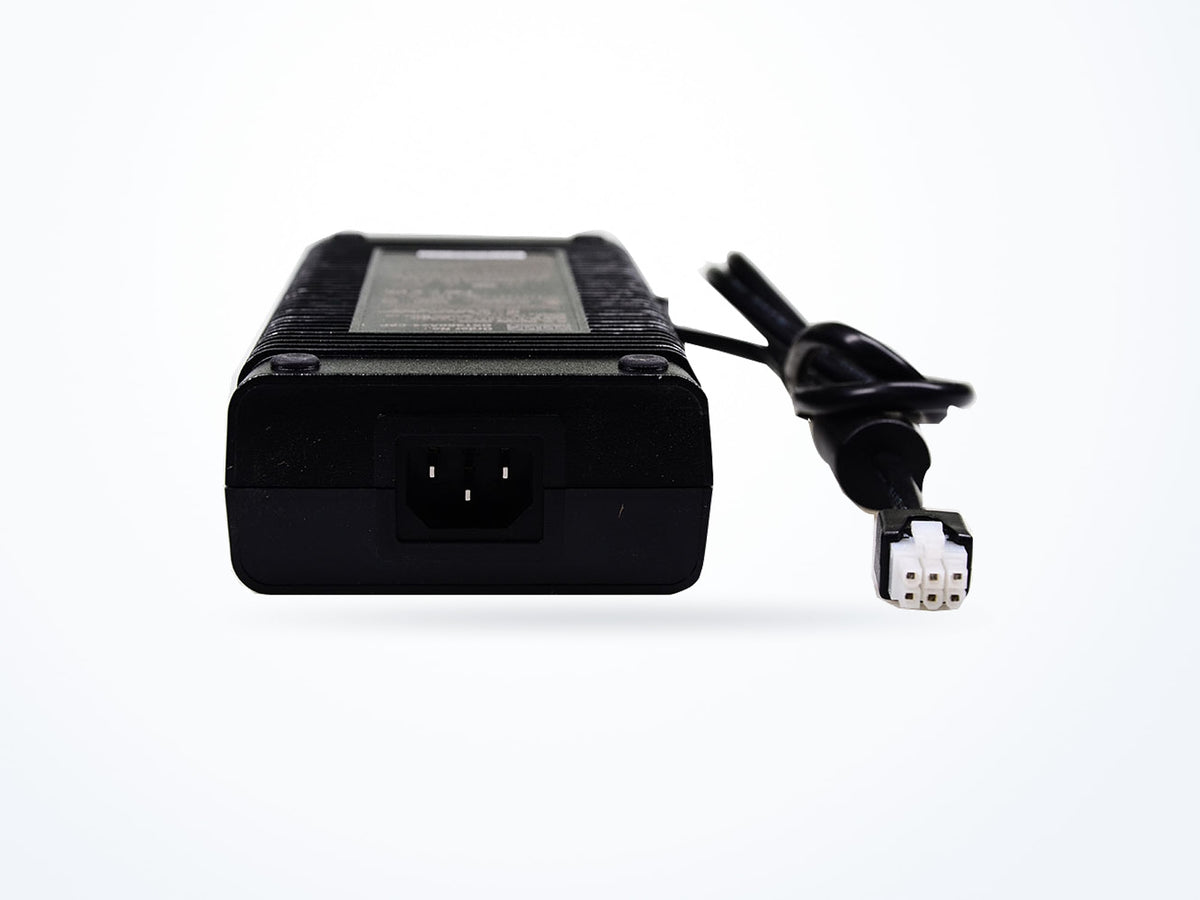

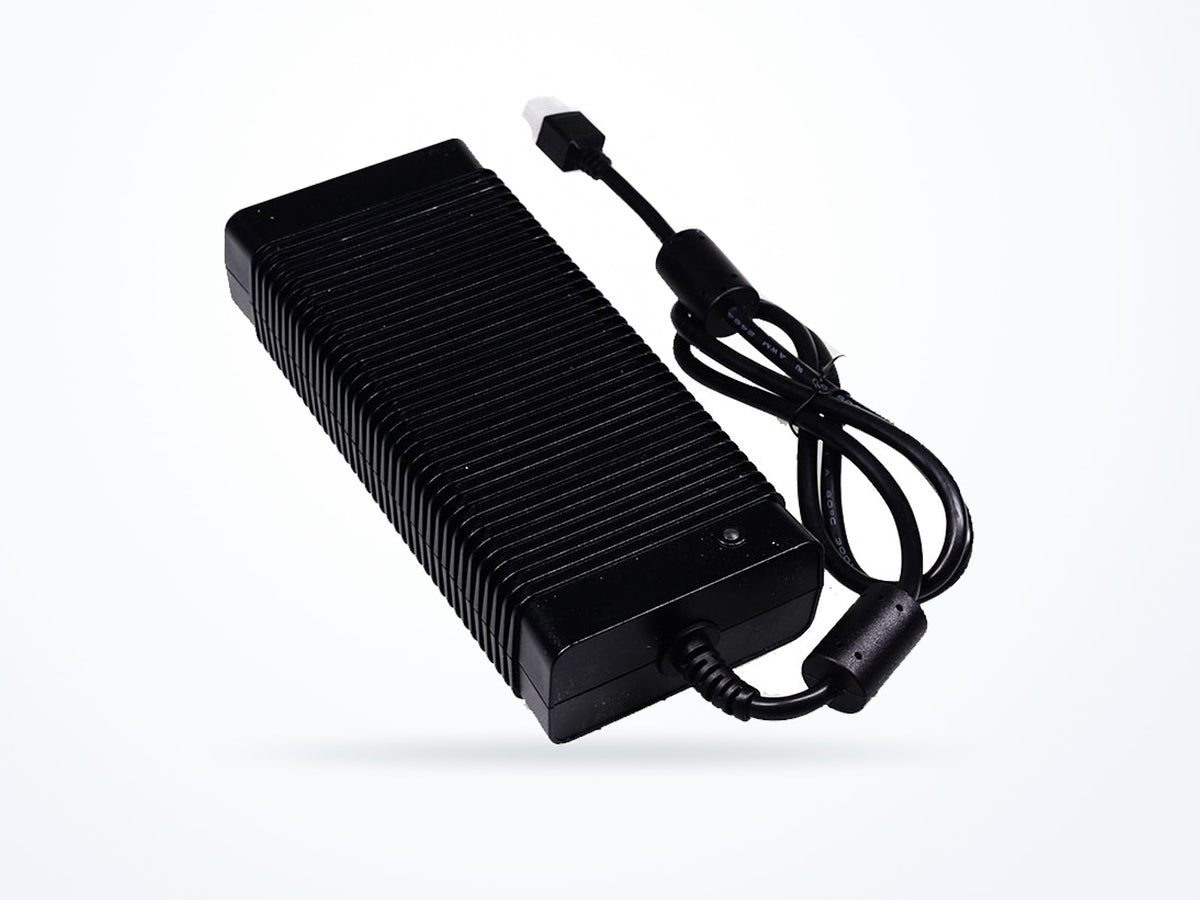

MEAN WELL GST360A12 330W 12V 27.5A Adaptor

Part numberGST360A12-C8P Model: GST360A12
Output voltage 12 V
Rated current 27.5 A
Rated power 330 W
$156.02Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote

Procurement confidence

  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.
Output
Output voltage 12 V
Rated current 27.5 A
Rated power 330 W
AC input range 85–264 VAC
Typical efficiency 91 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 220 × 95 × 46 mm

Is this model right for you?

The GST360A12 lists 85 ~ 264VAC 120 ~ 370VDC input, the same as the other models in the GST360A series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The GST360A12 is a MEAN WELL AC/DC Adaptor in the Desktop (Level VI) — ITE family, part of the GST360A series. It accepts 85 ~ 264VAC 120 ~ 370VDC input at 47 ~ 63Hz. The unit measures 220 × 95 × 46 mm and weighs 1400 g. Operating temperature range is -30 to 70 °C.

Where this model fits

The GST360A12 is used in Security & Surveillance applications. Its operating temperature range is -30 to 70 °C, and the unit measures 220 × 95 × 46 mm with a net weight of 1400 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 12 V
Rated current 27.5 A
Rated power 330 W
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 91 %
Power factor 0.95
Power factor correction Supported
Protection
Over voltage Protected
Over temperature Protected
Shut down o/p voltage, re-power on to recover
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 220 × 95 × 46 mm
Net weight 1400.0 g
Safety & compliance
Safety standards UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943, AS/NZS 62368.1, PSE J62368-1, BIS IS13252, KC 62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number GST360A12
Brand MEAN WELL
Category AC/DC Adaptor
Series GST360A

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • DEKRA

    DEKRA is a European notified body; a DEKRA certificate on a datasheet is third-party testing against the cited EN standard, equivalent in standing to a TÜV one.

China

  • CCC

    China Compulsory Certification. Mandatory for the product categories in its scope; where it applies, a shipment without it is not clearable. Certification is against the GB standard the datasheet cites.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

South Korea

  • KC

    Korea Certification, mandatory for electrical equipment in scope. The KC number mirrors the IEC standard it is based on, so KC 62368-1 is assessment against the Korean adoption of IEC 62368-1.

Japan

  • PSE

    Conformity with Japan's Electrical Appliance and Material Safety Act. Japanese datasheets cite a J-prefixed standard such as J62368-1, which is the Japanese deviation-adjusted version of the IEC text.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P: 3KVAC I/P-F/G: 2KVAC O/P-F/G: Short
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • AS/NZS 62368.1
  • CNS15598-1
  • EN62368-1
  • GB4943
  • IS13252
  • J62368-1
  • KC 62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943, AS/NZS 62368.1, PSE J62368-1, BIS IS13252, KC 62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.
  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number GST360A12
SKU GST360A12-C8P
Minimum order quantity 1
Country of origin China
Typical packed weight 1670 g
Unit weight 1400 g

GST360A model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
GST360A3636 V10 A360 W$156.02
Ships in 3–5 business days
GST360A2424 V15 A360 W$145.28
Ships in 3–5 business days
GST360A12 Currently viewing12 V27.5 A330 W$156.02
Ships in 3–5 business days

GST360A12: 12 V output; the rest of the series runs 15 V to 55 V.

GST360A12: 27.5 A output current; the rest of the series runs 6.55 A to 22.7 A.

GST360A12: 330 W rated power; GST360A15 and GST360A15-C8P: 340 W; 8 other models: 360 W.

GST360A12: 91% typical efficiency; the rest of the series runs 5% to 95%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for GST360A12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting GST360A12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-03
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
