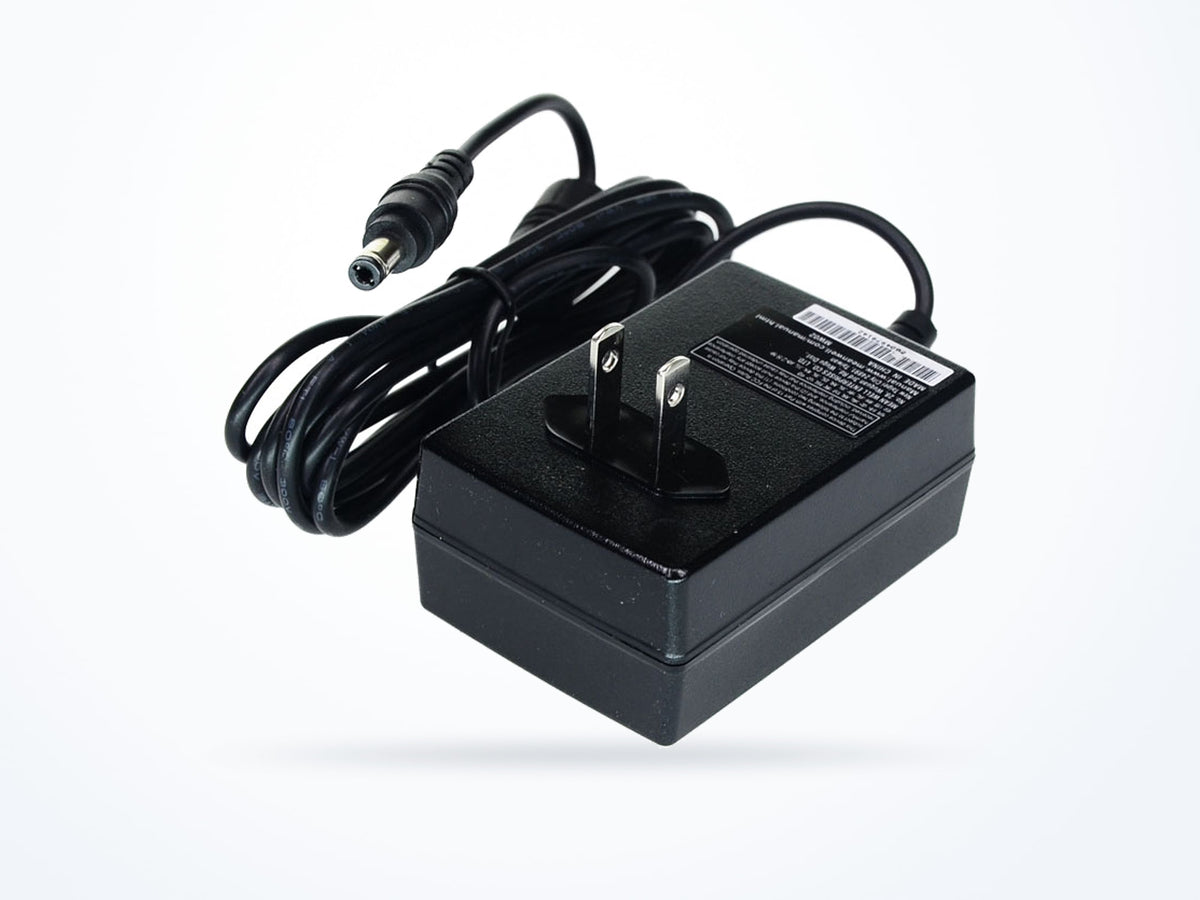

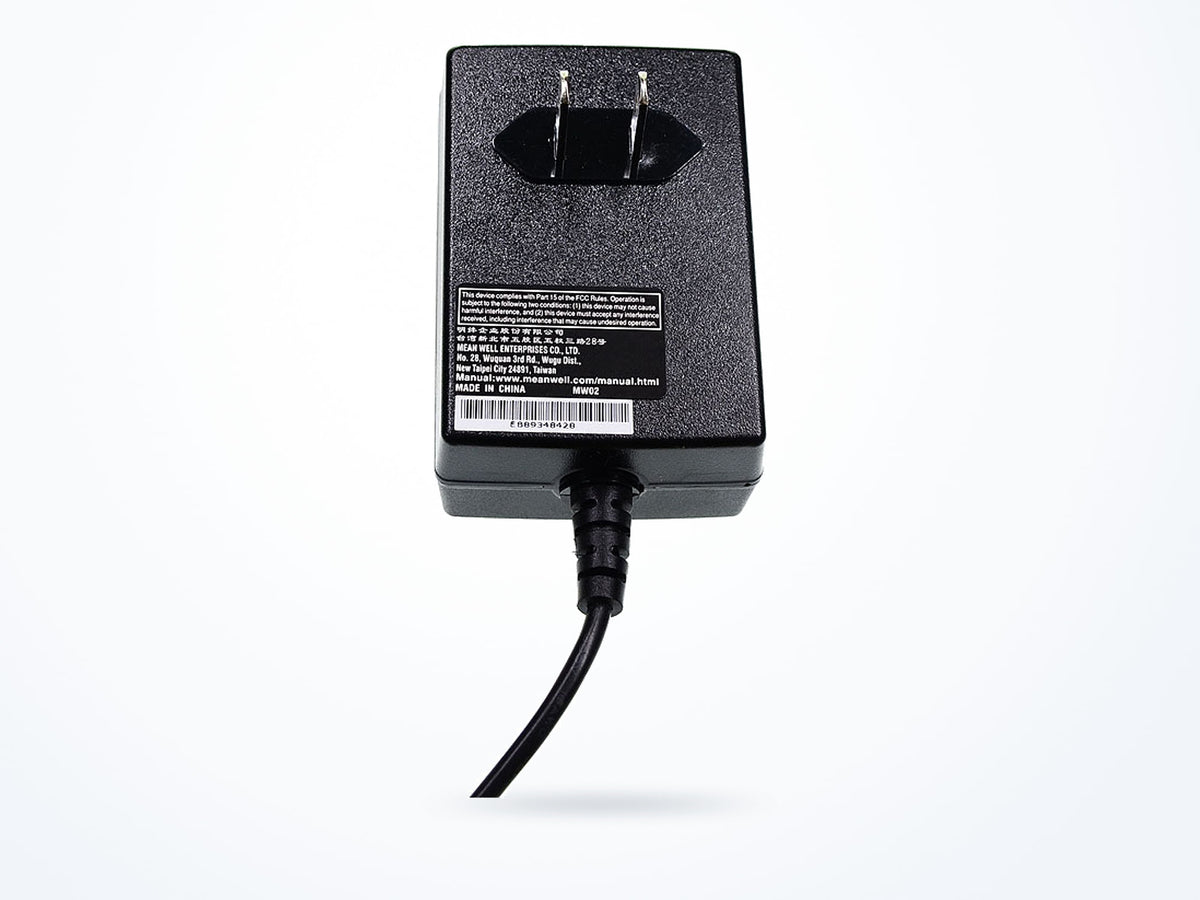

MEAN WELL GST18U24 18W 24V 0.75A Adaptor

Part numberGST18U24-P1J Model: GST18U24
Output voltage 24 V
Rated current 0.75 A
Rated power 18 W
$19.26Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
GST18U model selection table Wall-mounted (Level VI) — ITE
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 0.75 A
Rated power 18 W
AC input range 85–264 VAC
Typical efficiency 88 %
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 79 × 54 × 33 mm

Is this model right for you?

The GST18U24 lists 85 ~ 264VAC input, the same as the other models in the GST18U series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The GST18U24 is a MEAN WELL AC/DC Adaptor in the Wall-mounted (Level VI) — ITE family. It lists an input voltage range of 85 ~ 264VAC and a frequency range of 47 ~ 63Hz. The product measures 79 × 54 × 33 mm and has a net weight of 198 g.

Where this model fits

The GST18U24 is used in Security & Surveillance. Its input voltage range is 85 ~ 264VAC and its frequency range is 47 ~ 63Hz. The product measures 79 × 54 × 33 mm and has a net weight of 198 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 24 V
Rated current 0.75 A
Rated power 18 W
Input
AC input range 85–264 VAC
Frequency range 47–63 Hz
Typical efficiency 88 %
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 79 × 54 × 33 mm
Net weight 198.0 g
Safety & compliance
Safety standards UL62368-1, CSA C22.2 No.62368-1, BSMI CNS15598-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number GST18U24
Brand MEAN WELL
Category AC/DC Adaptor
Series GST18U

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4242VDC

Standards certified against

  • CNS15598-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, CSA C22.2 No.62368-1, BSMI CNS15598-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number GST18U24
SKU GST18U24-P1J
Minimum order quantity 1
Country of origin China
Typical packed weight 365 g
Unit weight 198 g

Downloads

GST18U model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
GST18U4848 V0.375 A18 W$20.53
Ships in 3–5 business days
GST18U24 24 V0.75 A18 W$19.26
Ships in 3–5 business days
GST18U2828 V0.64 A18 W$20.53
Ships in 3–5 business days

GST18U24: 24 V output; the rest of the series runs 5 V to 48 V.

GST18U24: 0.75 A output current; the rest of the series runs 0.375 A to 3 A.

GST18U24: 18 W rated power; 4 other models: 15 W.

GST18U24: 88% typical efficiency; the rest of the series runs 81% to 89%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for GST18U24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting GST18U24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-03
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
