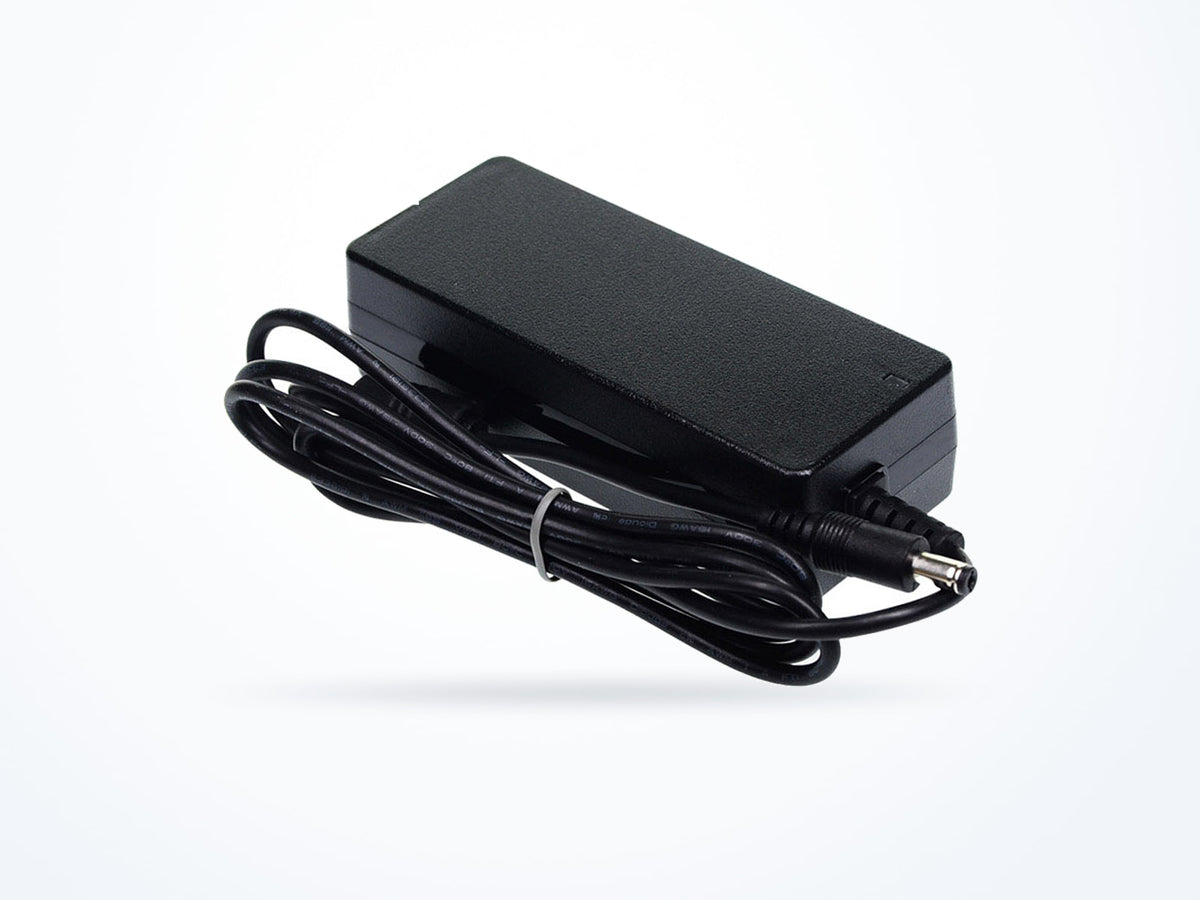

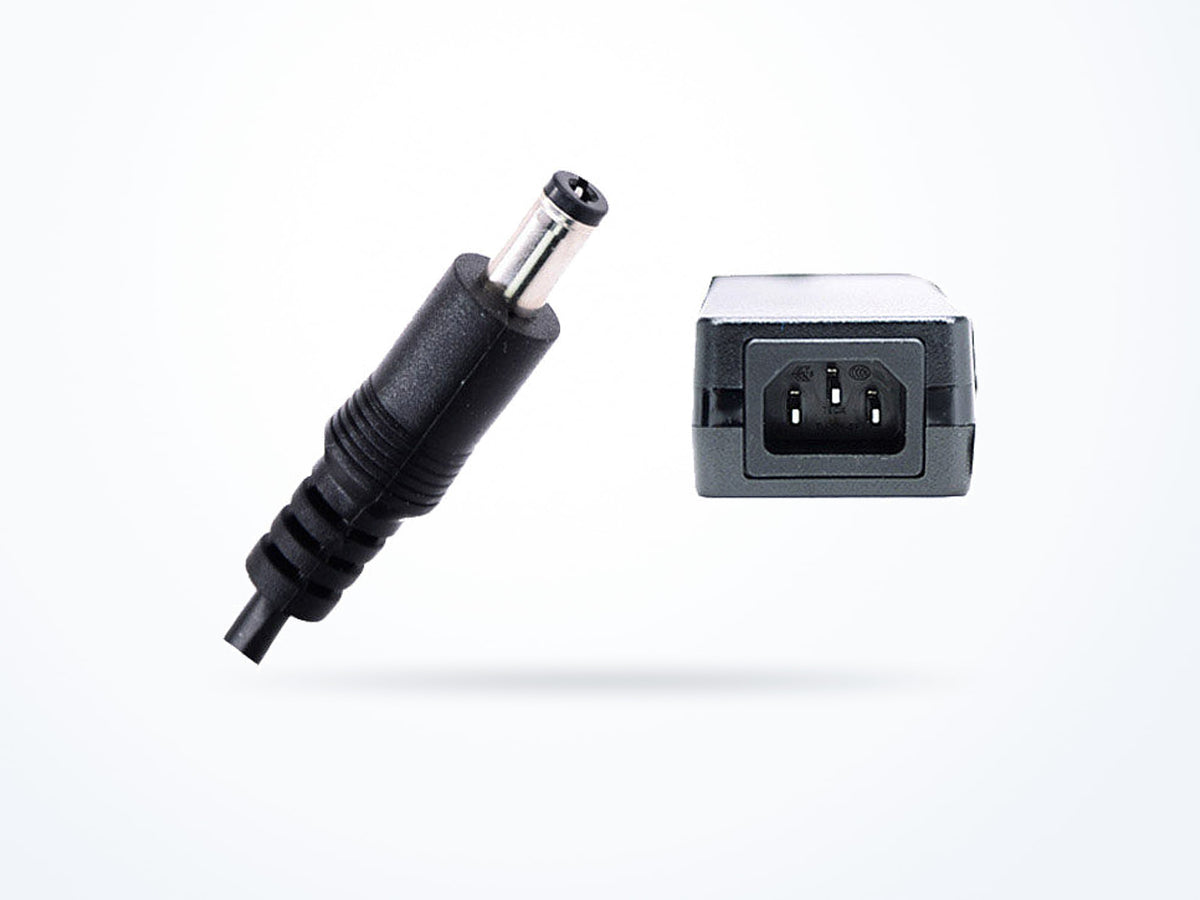

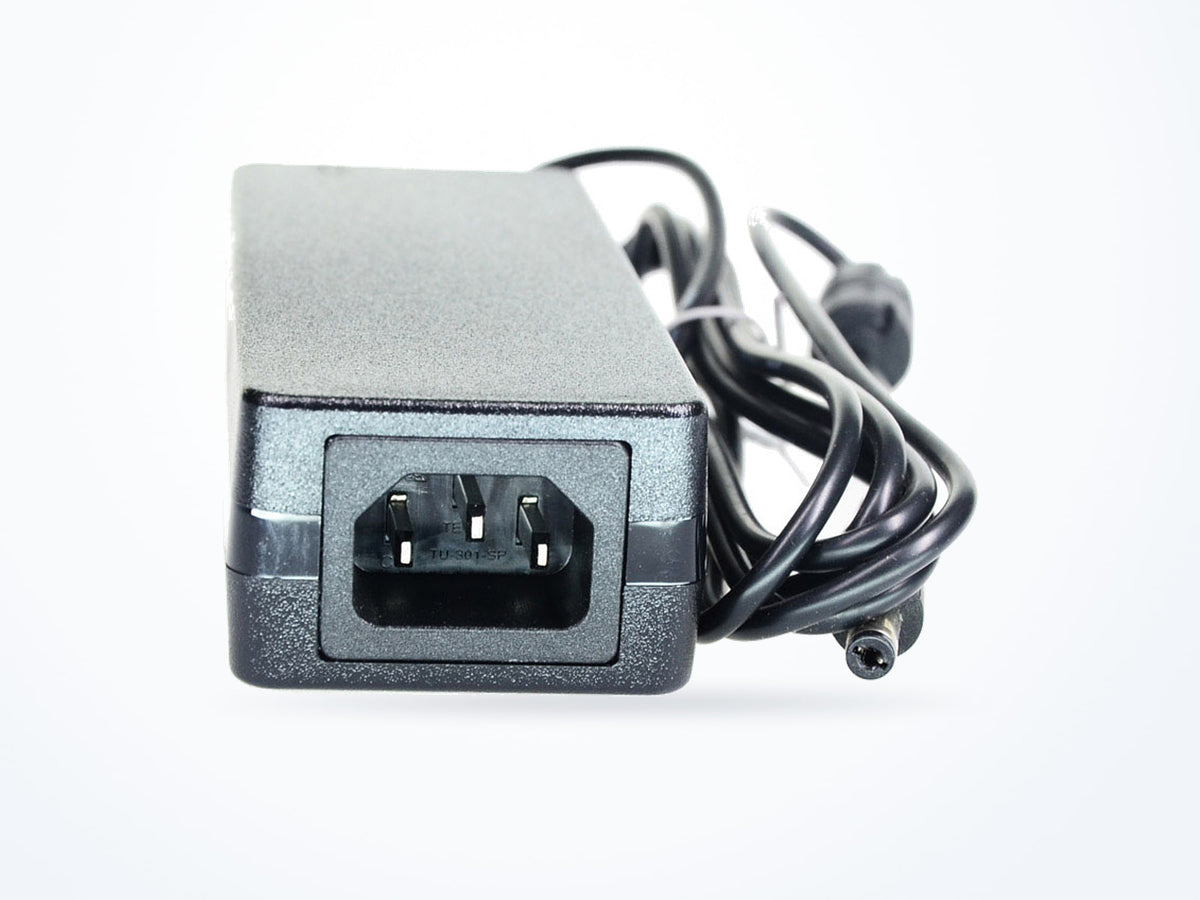

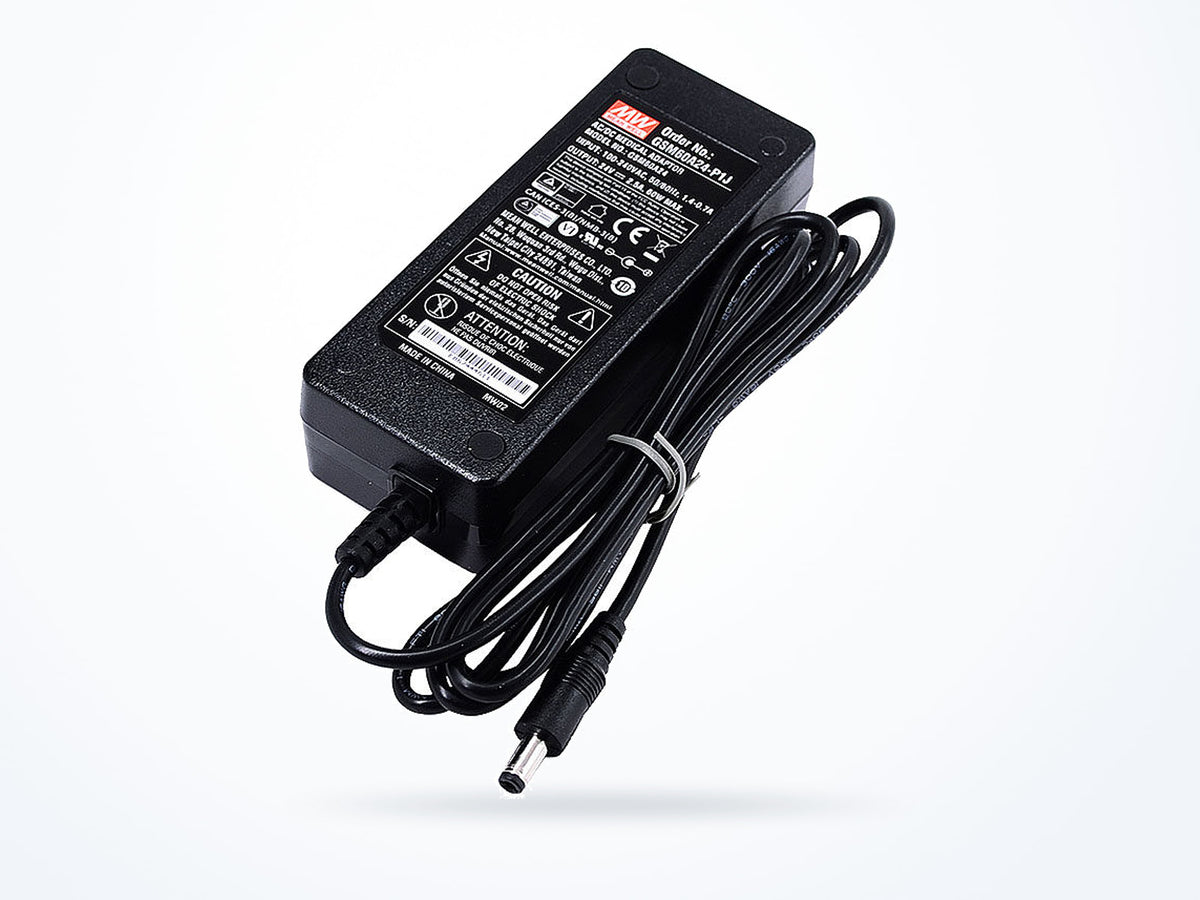

MEAN WELL GSM60A09 54W 9V 6A Adaptor

Part numberGSM60A09-P1J Model: GSM60A09
Output voltage 9 V
Rated current 6 A
Rated power 54 W
$37.58Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
GSM60A model selection table Desktop (Level VI) — Medical
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 9 V
Rated current 6 A
Rated power 54 W
AC input range 80–264 VAC
Typical efficiency 87.5 %
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 125 × 50 × 31.5 mm

Is this model right for you?

The GSM60A09 lists 80 ~ 264VAC input, the same as the other models in the GSM60A series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The GSM60A09 is an AC/DC Adaptor in the MEAN WELL GSM60A series, part of the Desktop (Level VI) — Medical family. Its input voltage range is 80 ~ 264VAC with a frequency range of 47 ~ 63Hz. The product measures 125 × 50 × 31.5 mm and has a net weight of 250 g.

Where this model fits

The GSM60A09 is used in Security & Surveillance applications. Its input voltage range is 80 ~ 264VAC at 47 ~ 63Hz, and its dimensions are 125 × 50 × 31.5 mm with a net weight of 250 g.

Complete technical specifications

Rev. 2026-05-09
Output
Output voltage 9 V
Rated current 6 A
Rated power 54 W
Input
AC input range 80–264 VAC
Frequency range 47–63 Hz
Typical efficiency 87.5 %
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 125 × 50 × 31.5 mm
Net weight 250.0 g
Safety & compliance
Safety standards IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number GSM60A09
Brand MEAN WELL
Category AC/DC Adaptor
Series GSM60A

Approvals and compliance

From the manufacturer's datasheet for this series

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT

Standards certified against

  • ANSI/AAMI ES60601-1
  • EN 60601-1
  • IEC 60601-1
Read the datasheet's exact wording

IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number GSM60A09
SKU GSM60A09-P1J
Minimum order quantity 1
Country of origin China
Typical packed weight 450 g
Unit weight 250 g

Downloads

GSM60A model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
GSM60A2424 V2.5 A60 W$40.74
Ships in 3–5 business days
GSM60A09 9 V6 A54 W$37.58
Ships in 3–5 business days

GSM60A09: 9 V output; the rest of the series runs 5 V to 48 V.

GSM60A09: 6 A output current; the rest of the series runs 1.25 A to 5 A.

GSM60A09: 54 W rated power; the rest of the series runs 30 W to 60 W.

GSM60A09: 87.5% typical efficiency; the rest of the series runs 81.5% to 91.5%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for GSM60A09

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting GSM60A09 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-05-09
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
