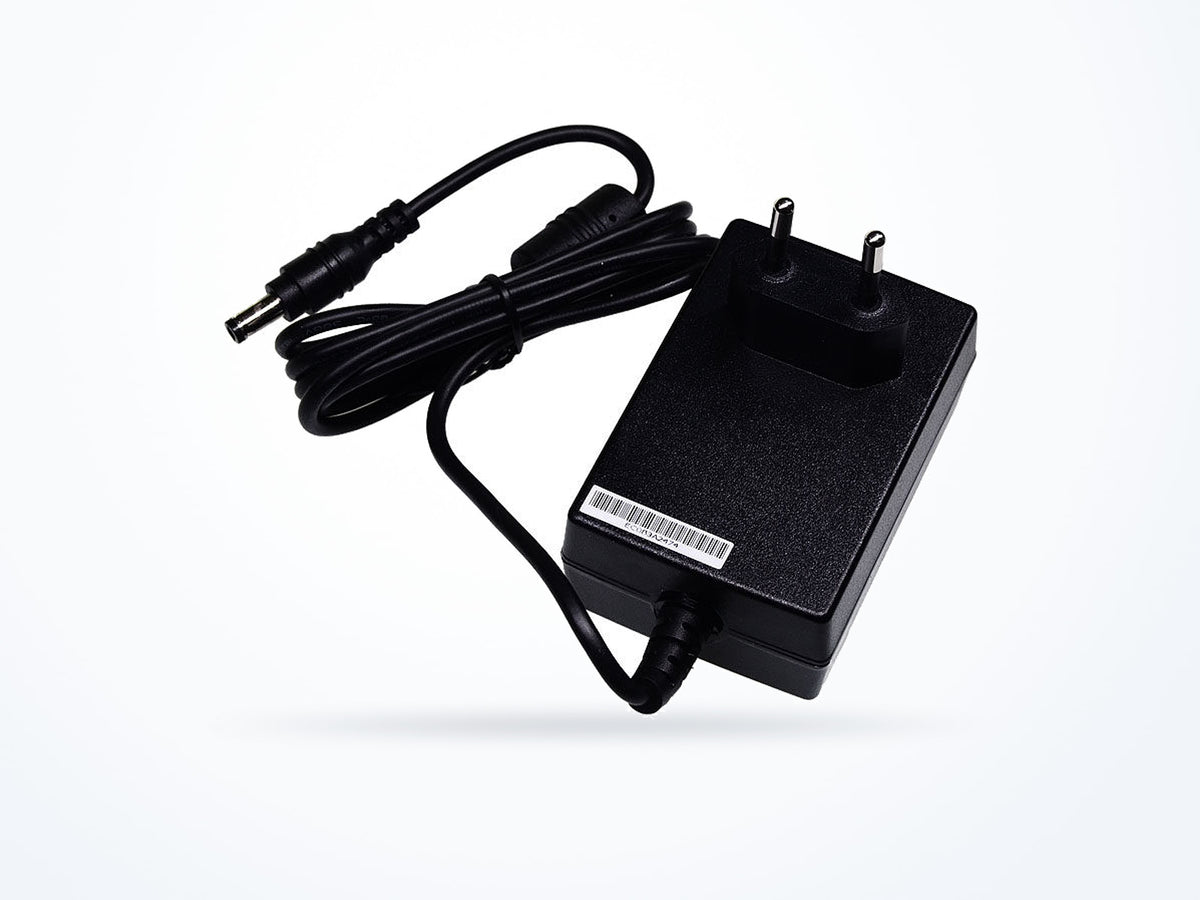

MEAN WELL GSM36E05 22.5W 5V 4.5A Adaptor

Part numberGSM36E05-P1J Model: GSM36E05
Output voltage 5 V
Rated current 4.5 A
Rated power 22.5 W
$27.16Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
GSM36E model selection table GSM Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 4.5 A
Rated power 22.5 W
AC input range 80–264 VAC
Typical efficiency 80 %
Mechanical
Operating temperature -25 to 60 °C
Dimensions (L × W × H) 79 × 54 × 33 mm

Is this model right for you?

The GSM36E05 lists 80 ~ 264VAC 113 ~ 370VDC input, the same as the other models in the GSM36E series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The GSM36E05 is an AC/DC Adaptor from MEAN WELL's GSM Series. It accepts an input voltage range of 80 ~ 264VAC 113 ~ 370VDC at 47 ~ 63Hz. The unit measures 79 × 54 × 33 mm and has a net weight of 230 g.

Where this model fits

The GSM36E05 is used in Security & Surveillance applications. Its input voltage range is 80 ~ 264VAC 113 ~ 370VDC, and its operating temperature range is -25 to 60 °C. The unit measures 79 × 54 × 33 mm and weighs 230 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 5 V
Rated current 4.5 A
Rated power 22.5 W
Input
AC input range 80–264 VAC
DC input range 113–370 VDC
Frequency range 47–63 Hz
Typical efficiency 80 %
Environmental
Operating temperature -25 to 60 °C
Storage temperature -40 to 85 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 79 × 54 × 33 mm
Net weight 230.0 g
Safety & compliance
Safety standards IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number GSM36E05
Brand MEAN WELL
Category AC/DC Adaptor
Series GSM36E

Approvals and compliance

From the manufacturer's datasheet for this series

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC

Standards certified against

  • EN 60601-1
  • EN 60601-1-11
  • IEC 60601-1
  • IEC 60601-1-11
Read the datasheet's exact wording

IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number GSM36E05
SKU GSM36E05-P1J
Minimum order quantity 1
Country of origin China
Typical packed weight 397 g
Unit weight 230 g

Downloads

GSM36E model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
GSM36E05 5 V4.5 A22.5 W$27.16
Ships in 3–5 business days
GSM36E1515 V2.4 A36 W$27.16
Ships in 3–5 business days
GSM36E1212 V3 A36 W$27.16
Ships in 3–5 business days

GSM36E05: 5 V output; the rest of the series runs 7.5 V to 48 V.

GSM36E05: 4.5 A output current; the rest of the series runs 0.75 A to 4.32 A.

GSM36E05: 22.5 W rated power; GSM36E07 and GSM36E07-P1J: 32.4 W; 12 other models: 36 W.

GSM36E05: 80% typical efficiency; the rest of the series runs 83% to 88%.
