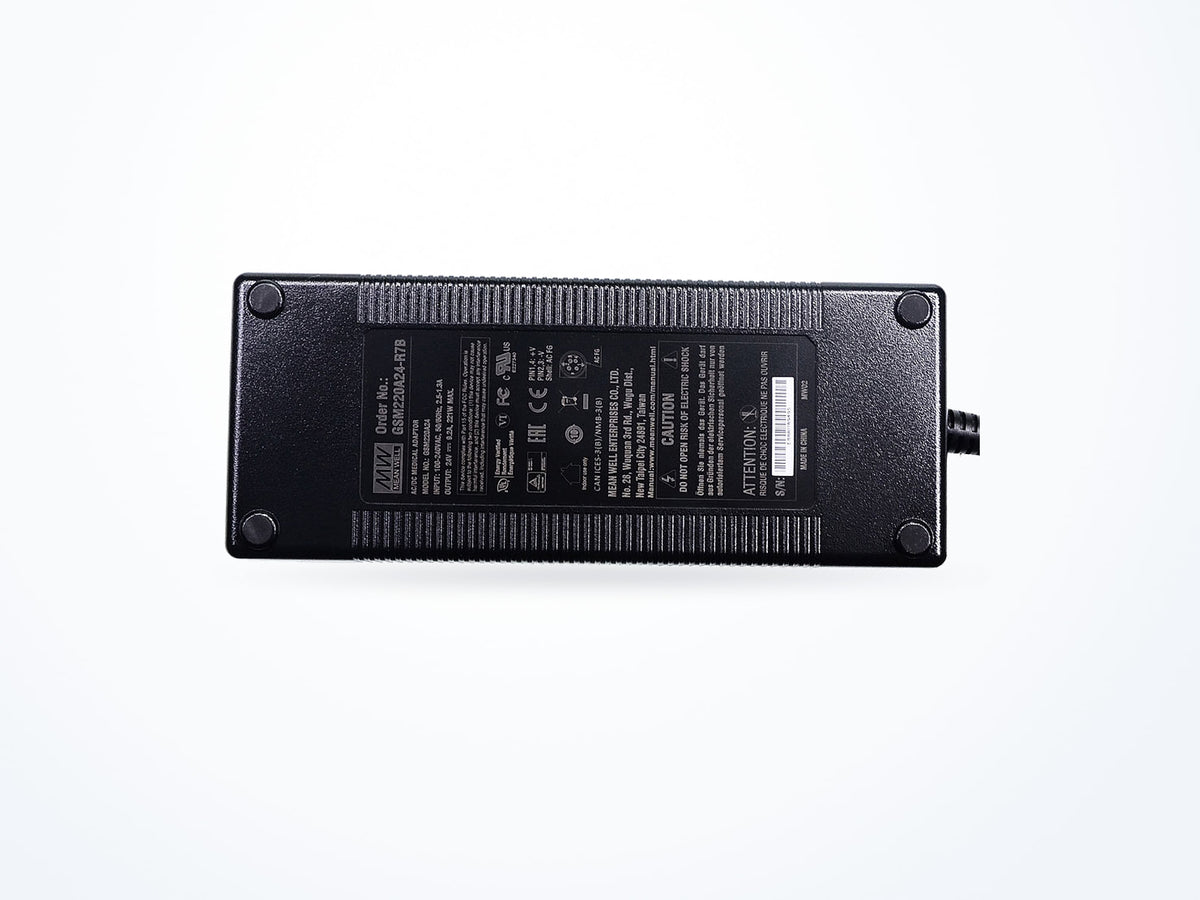

MEAN WELL GSM220A48 221W 48V 4.6A Adaptor

Part numberGSM220A48-R7B Model: GSM220A48
Output voltage 48 V
Rated current 4.6 A
Rated power 221 W
$130.44Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
GSM220A model selection table Desktop (Level VI) — Medical
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 4.6 A
Rated power 221 W
AC input range 80–264 VAC
Typical efficiency 94.5 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 210 × 85 × 46 mm

Is this model right for you?

The GSM220A48 lists 80 ~ 264VAC input, the same as the other models in the GSM220A series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The GSM220A48 is a MEAN WELL AC/DC Adaptor in the GSM220A series. It lists an input voltage range of 80 ~ 264VAC and a frequency range of 47 ~ 63Hz. The product measures 210 × 85 × 46 mm and has a net weight of 1100 g.

Where this model fits

The GSM220A48 is used in Security & Surveillance. Its input voltage range is 80 ~ 264VAC and its frequency range is 47 ~ 63Hz. The product measures 210 × 85 × 46 mm and has a net weight of 1100 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 48 V
Rated current 4.6 A
Rated power 221 W
Input
AC input range 80–264 VAC
Frequency range 47–63 Hz
Typical efficiency 94.5 %
Power factor 0.91
Power factor correction Supported
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 210 × 85 × 46 mm
Net weight 1100.0 g
Safety & compliance
Safety standards IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number GSM220A48
Brand MEAN WELL
Category AC/DC Adaptor
Series GSM220A

Approvals and compliance

From the manufacturer's datasheet for this series

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • ANSI/AAMI ES60601-1
  • EN 60601-1
  • IEC 60601-1
Read the datasheet's exact wording

IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number GSM220A48
SKU GSM220A48-R7B
Minimum order quantity 1
Country of origin China
Typical packed weight 1333 g
Unit weight 1100 g

Downloads

GSM220A model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
GSM220A48 48 V4.6 A221 W$130.44
Ships in 3–5 business days

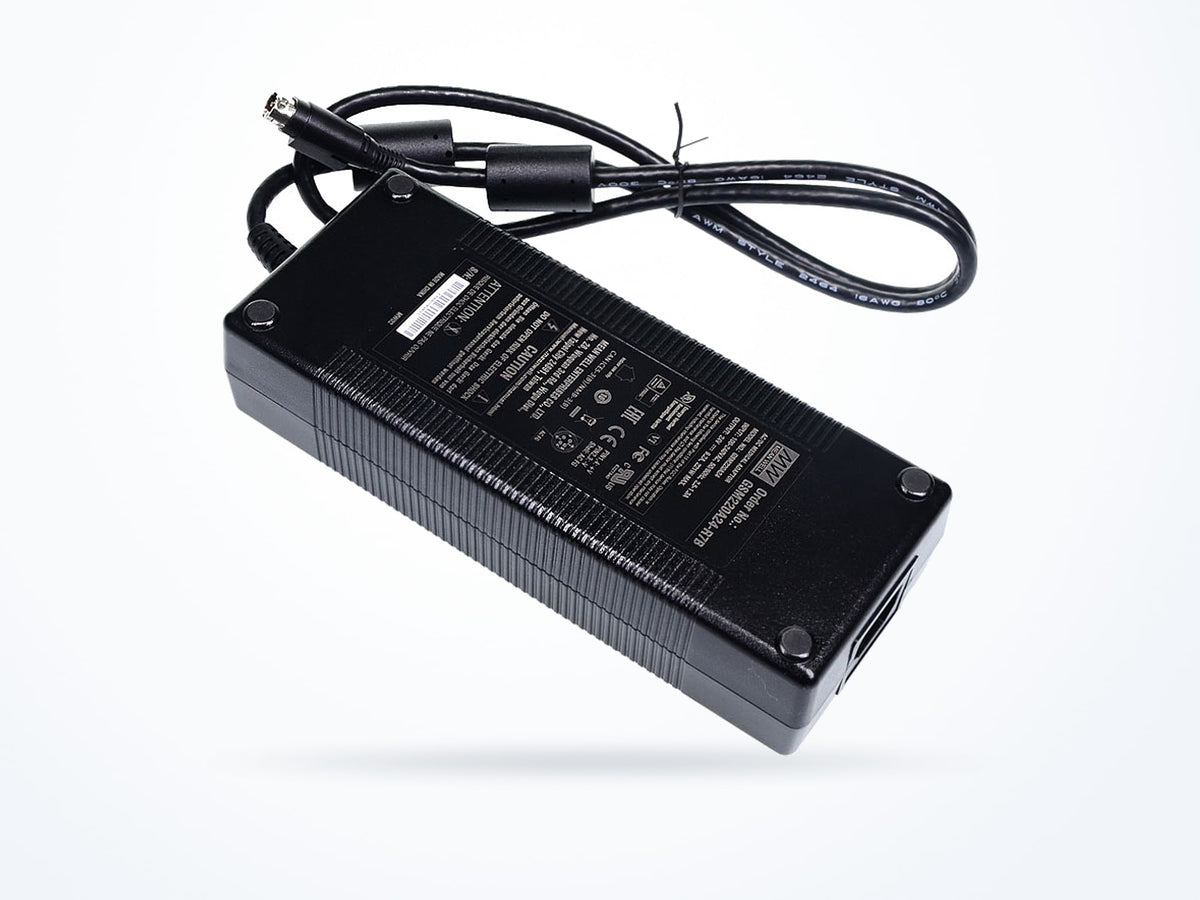

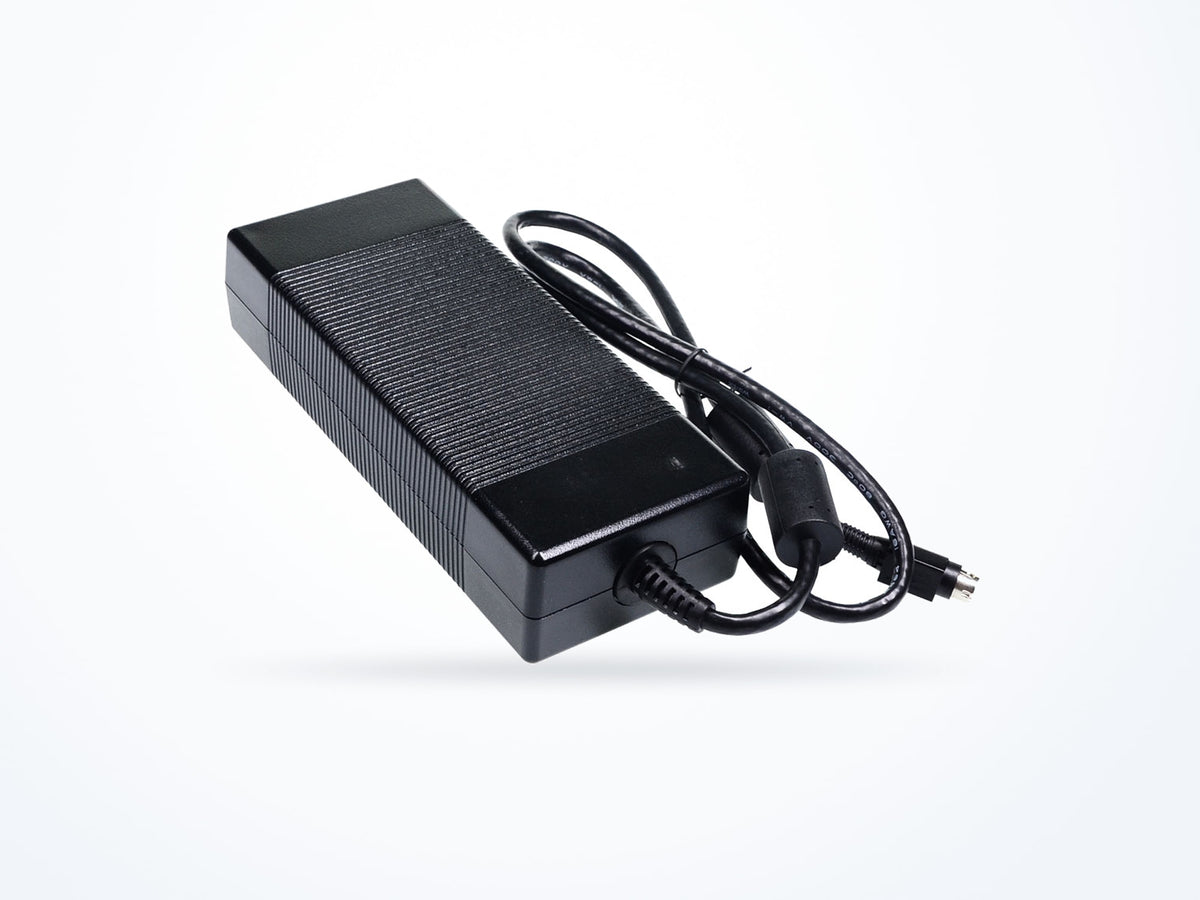

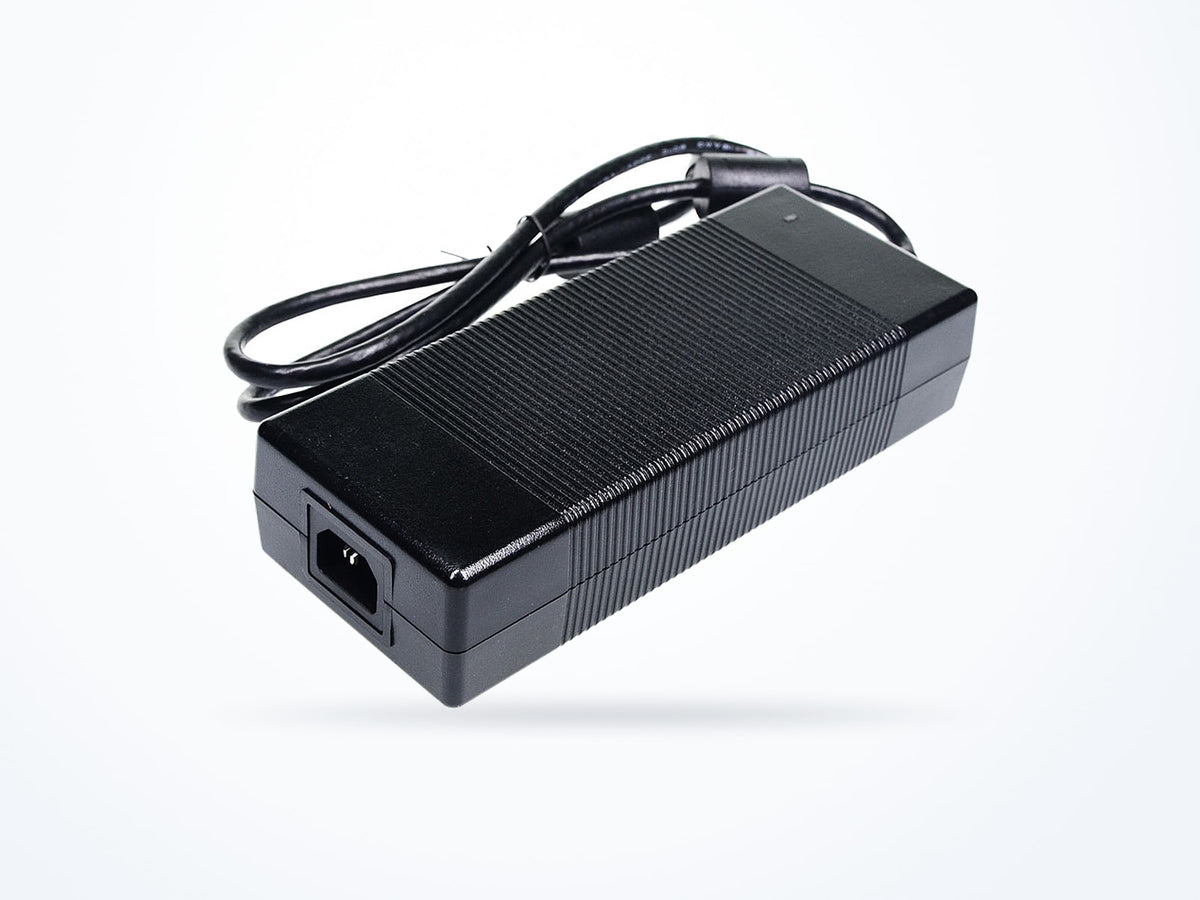

GSM220A2020 V11 A220 W$130.44
Ships in 3–5 business days

GSM220A48: 48 V output; the rest of the series runs 12 V to 24 V.

GSM220A48: 4.6 A output current; the rest of the series runs 9.2 A to 15 A.

GSM220A48: 221 W rated power; the rest of the series runs 180 W to 220 W.

GSM220A48: 94.5% typical efficiency; the rest of the series runs 90% to 93.5%.
