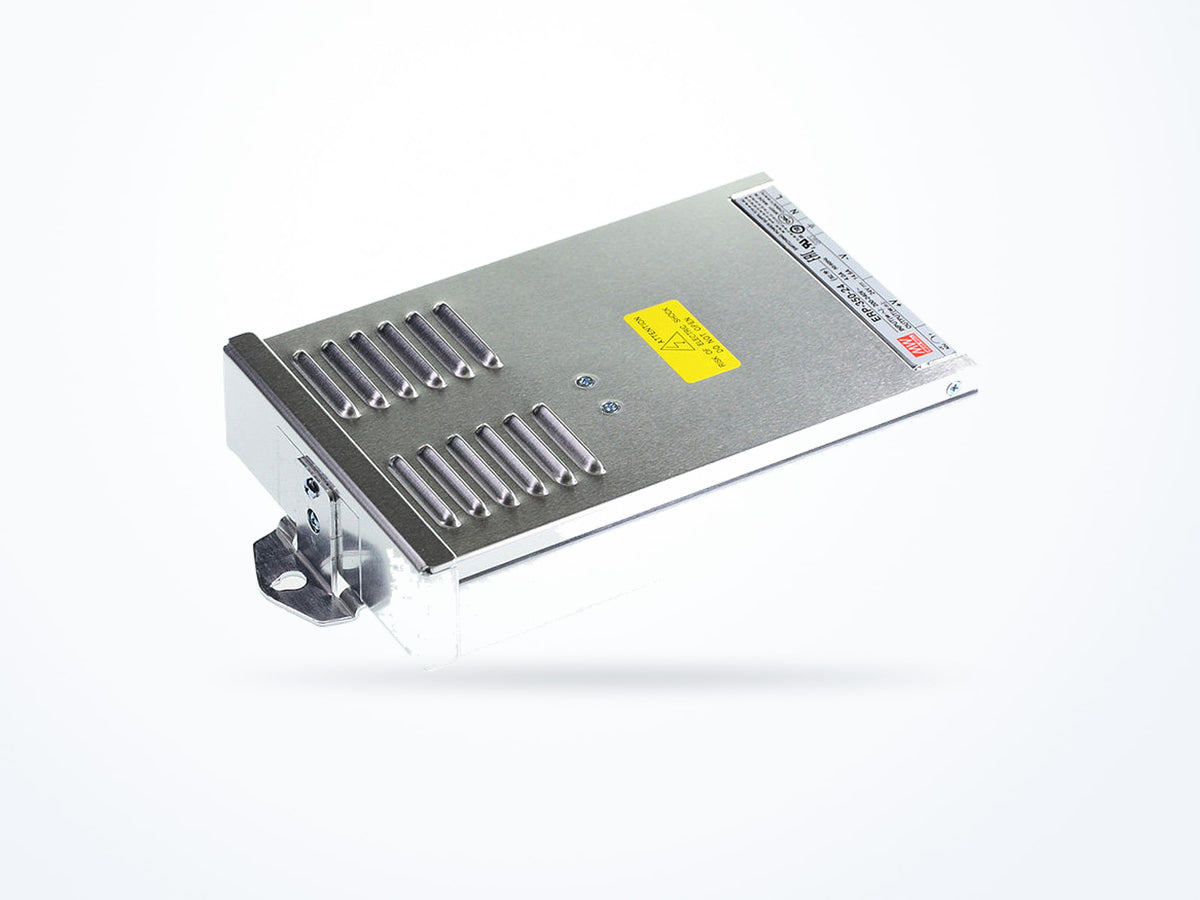

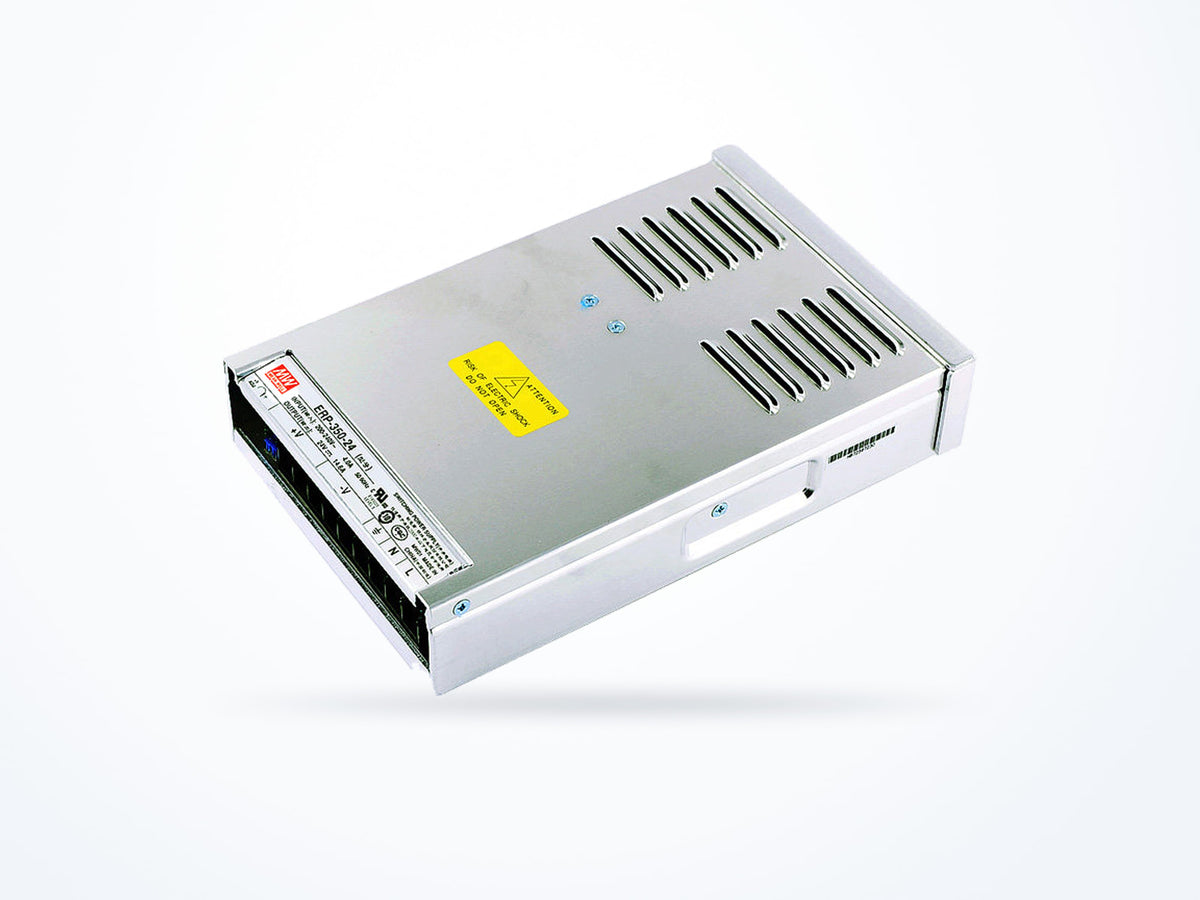

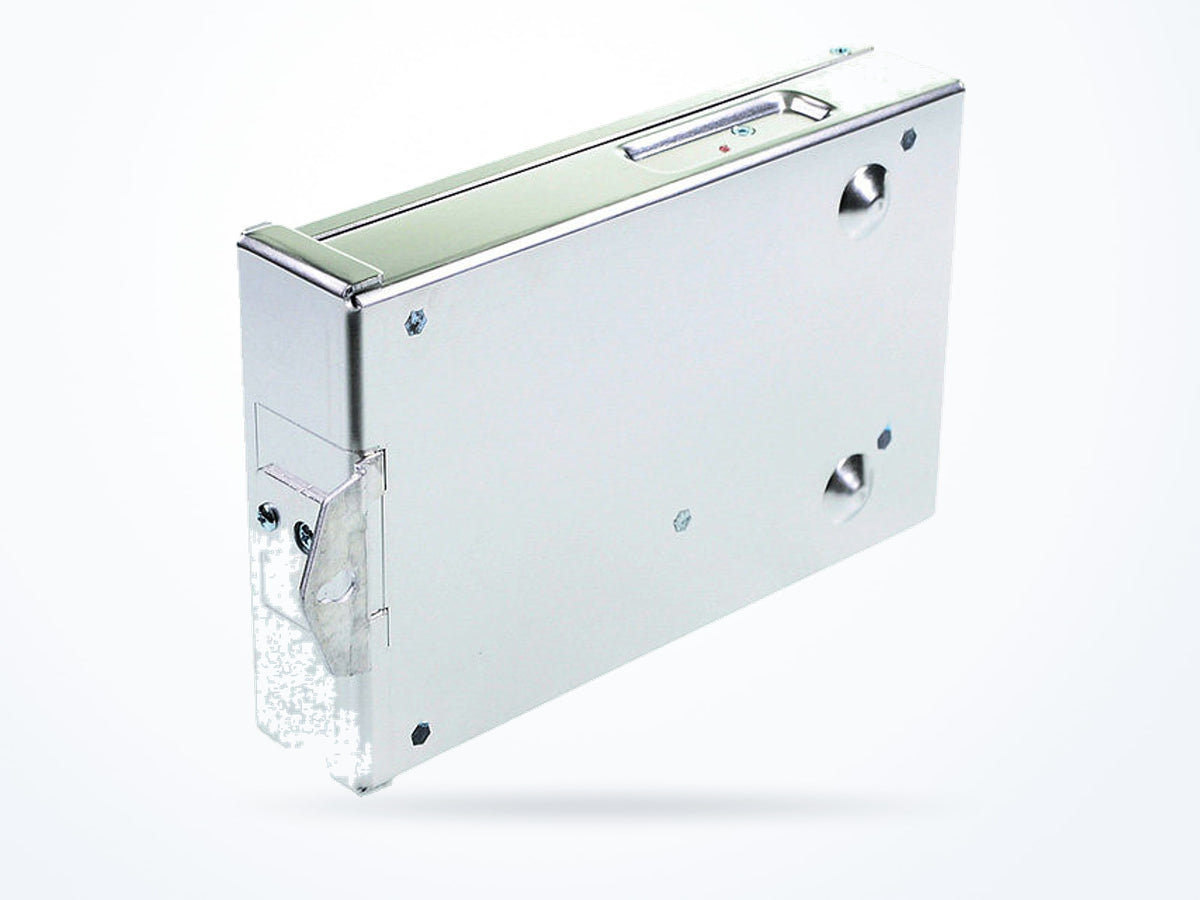

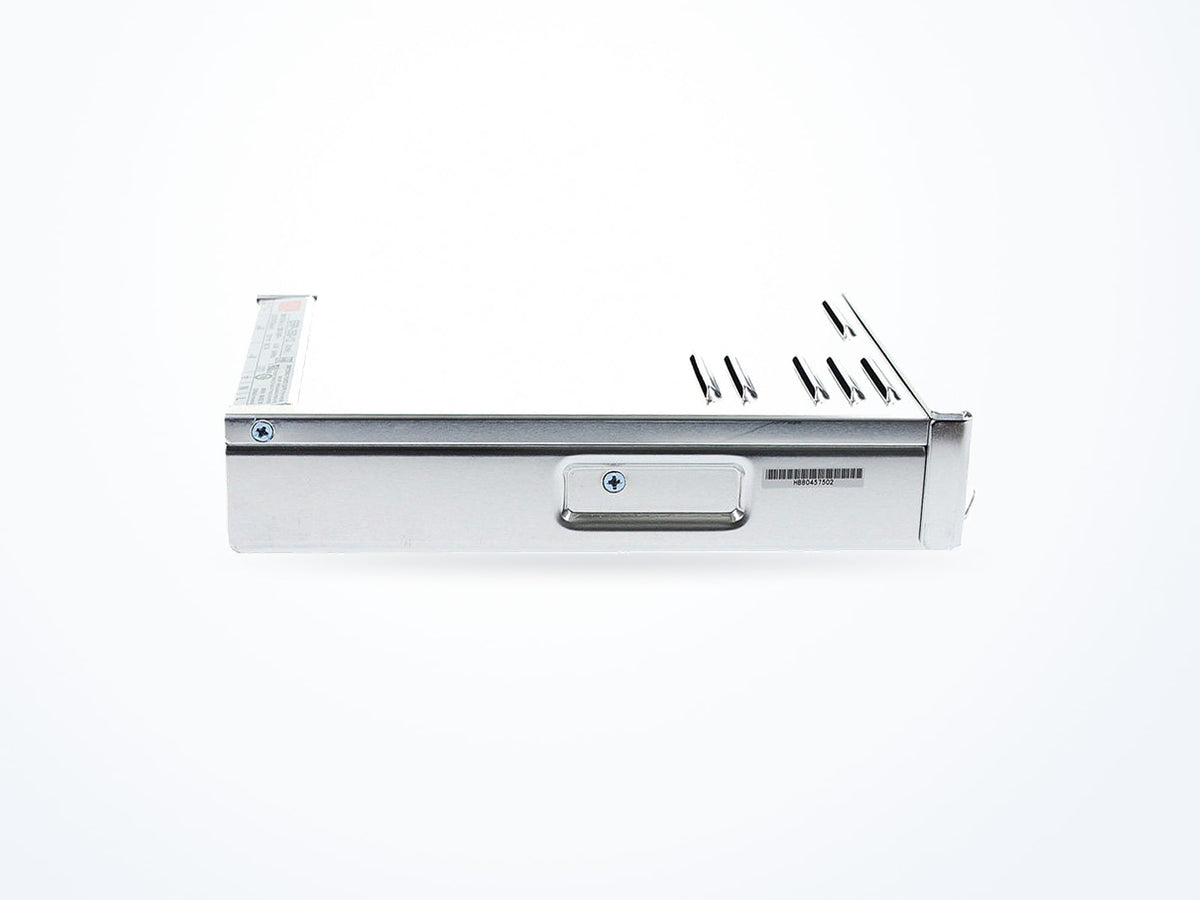

MEAN WELL ERP-350-36 349.2W 36V 9.7A Enclosed Type

Part numberERP-350-36
Output voltage 36 V
Rated current 9.7 A
Rated power 349.2 W
$59.69Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
ERP-350 model selection table Moving Sign
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 36 V
Rated current 9.7 A
Rated power 349.2 W
AC input range 180–264 VAC
Typical efficiency 90 %
Mechanical
Operating temperature -30 to 60 °C
Dimensions (L × W × H) 220.4 × 130 × 48 mm

Is this model right for you?

Within the ERP-350 series, the ERP-350-36 differs from siblings by output voltage and current. ERP-350-12: 12 V, 26.7 A; ERP-350-24: 24 V, 14.6 A; ERP-350-36: 36 V, 9.7 A; ERP-350-48: 48 V, 7.3 A. Rated power also differs: ERP-350-12 lists 320.4 W, while ERP-350-24 and ERP-350-48 list 350.4 W and ERP-350-36 lists 349.2 W.

Product overview

The ERP-350-36 provides a 36 V output with a 9.7 A output current and a rated power of 349.2 W. Its input voltage range is 180 ~ 264VAC 254 ~ 370VDC, with a frequency range of 47 ~ 63Hz. The output adjustment range is 32.4 ~ 39.6V, and typical efficiency is 90%. Ripple and noise is 240mVp-p. Dimensions are 220.4 × 130 × 48 mm and net weight is 900 g.

Where this model fits

The ERP-350-36 is used in Industrial Automation and Motor Drives. Its 36 V output and 9.7 A output current serve loads on a 36 V rail. The operating temperature range is -30 to 60 °C, and the net weight is 900 g with dimensions of 220.4 × 130 × 48 mm.

Complete technical specifications

Rev. 2025-12-12
Output
Output voltage 36 V
Rated current 9.7 A
Rated power 349.2 W
Voltage adjustment range 32.4–39.6 V
Ripple & noise 240 mVp-p
Input
AC input range 180–264 VAC
DC input range 254–370 VDC
Frequency range 47–63 Hz
Typical efficiency 90 %
Environmental
Operating temperature -30 to 60 °C
Storage temperature -30 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 220.4 × 130 × 48 mm
Net weight 900.0 g
Safety & compliance
Safety standards UL 62368-1,IEC 62368-1,GB 4943.1,EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number ERP-350-36
Brand MEAN WELL
Category AC/DC Enclosed Type
Series ERP-350

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
EMC emission Refer to EN55022 (CISPR22) class A, EAC TP TC 020
EMC immunity Refer to EN61000-4-5;light industry level, EAC TP TC 020

Standards certified against

  • GB 4943.1
  • IEC 62368-1
  • UL 62368-1
Read the datasheet's exact wording

UL 62368-1,IEC 62368-1,GB 4943.1,EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number ERP-350-36
Minimum order quantity 1
Country of origin China
Typical packed weight 1372 g
Unit weight 900 g

Downloads

ERP-350 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
ERP-350-36 36 V9.7 A349.2 W$59.69
Ships in 3–5 business days
ERP-350-2424 V14.6 A350.4 W$51.48
Ships in 3–5 business days

ERP-350-36 provides 36 V output and 9.7 A output current; ERP-350-12 provides 12 V and 26.7 A.

ERP-350-36 provides 36 V output and 9.7 A output current; ERP-350-24 provides 24 V and 14.6 A.

ERP-350-36 provides 36 V output and 9.7 A output current; ERP-350-48 provides 48 V and 7.3 A.

ERP-350-36 lists a rated power of 349.2 W; ERP-350-12 lists 320.4 W, while ERP-350-24 and ERP-350-48 list 350.4 W.
