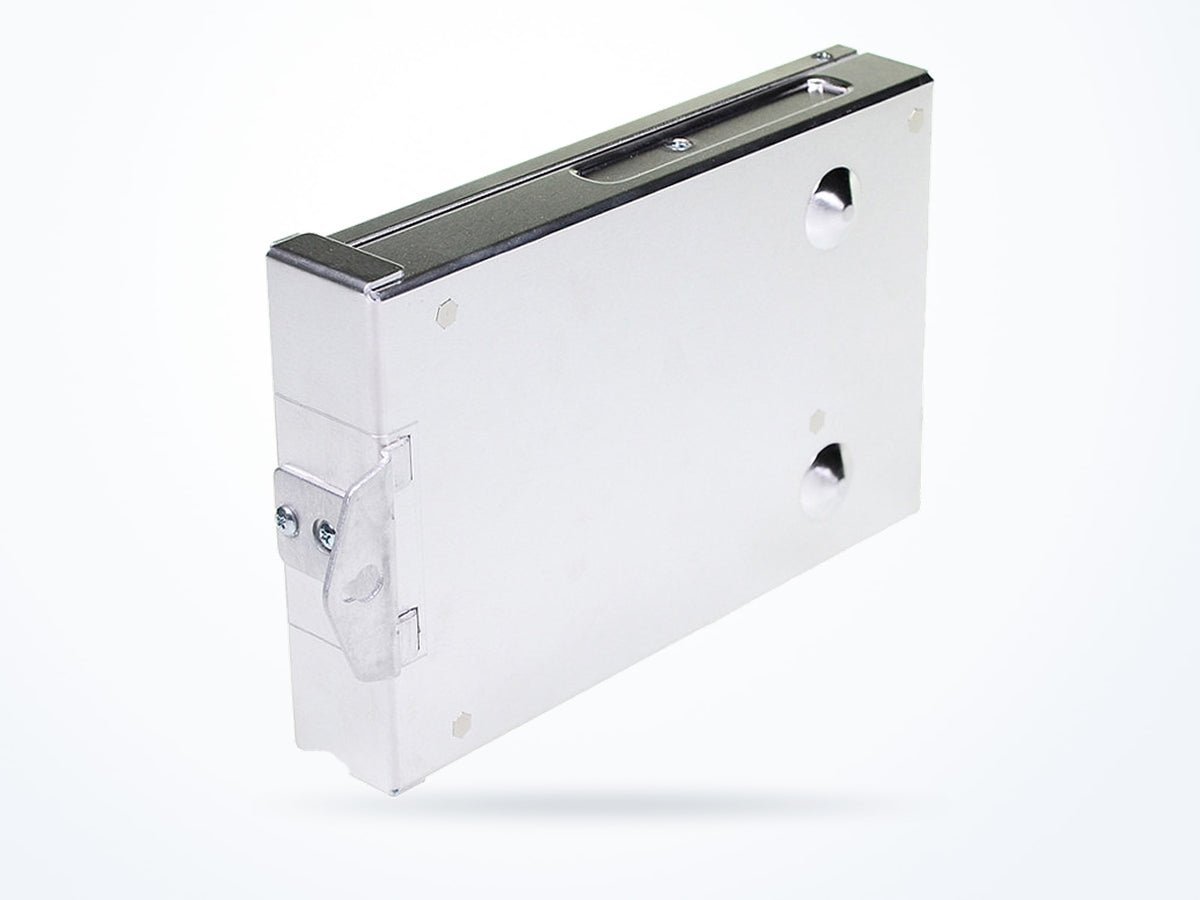

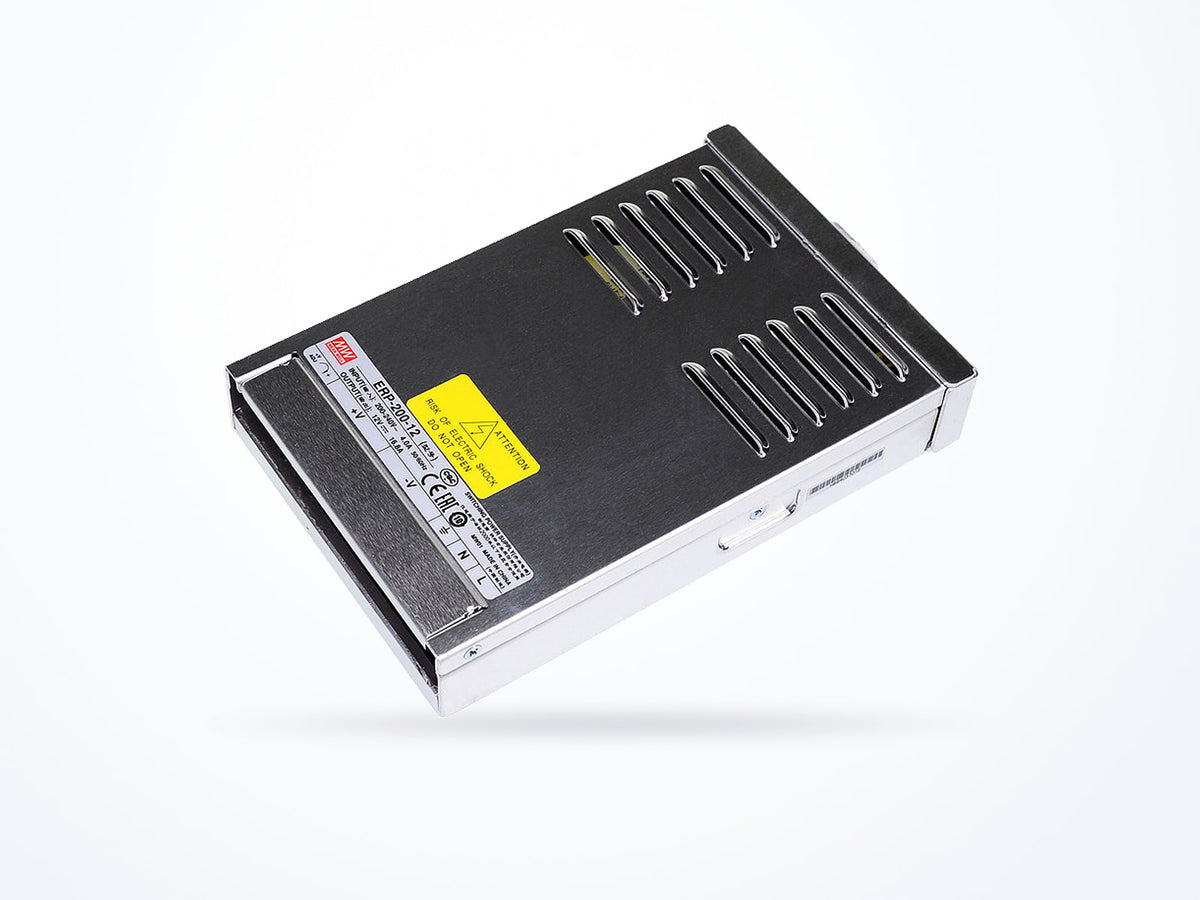

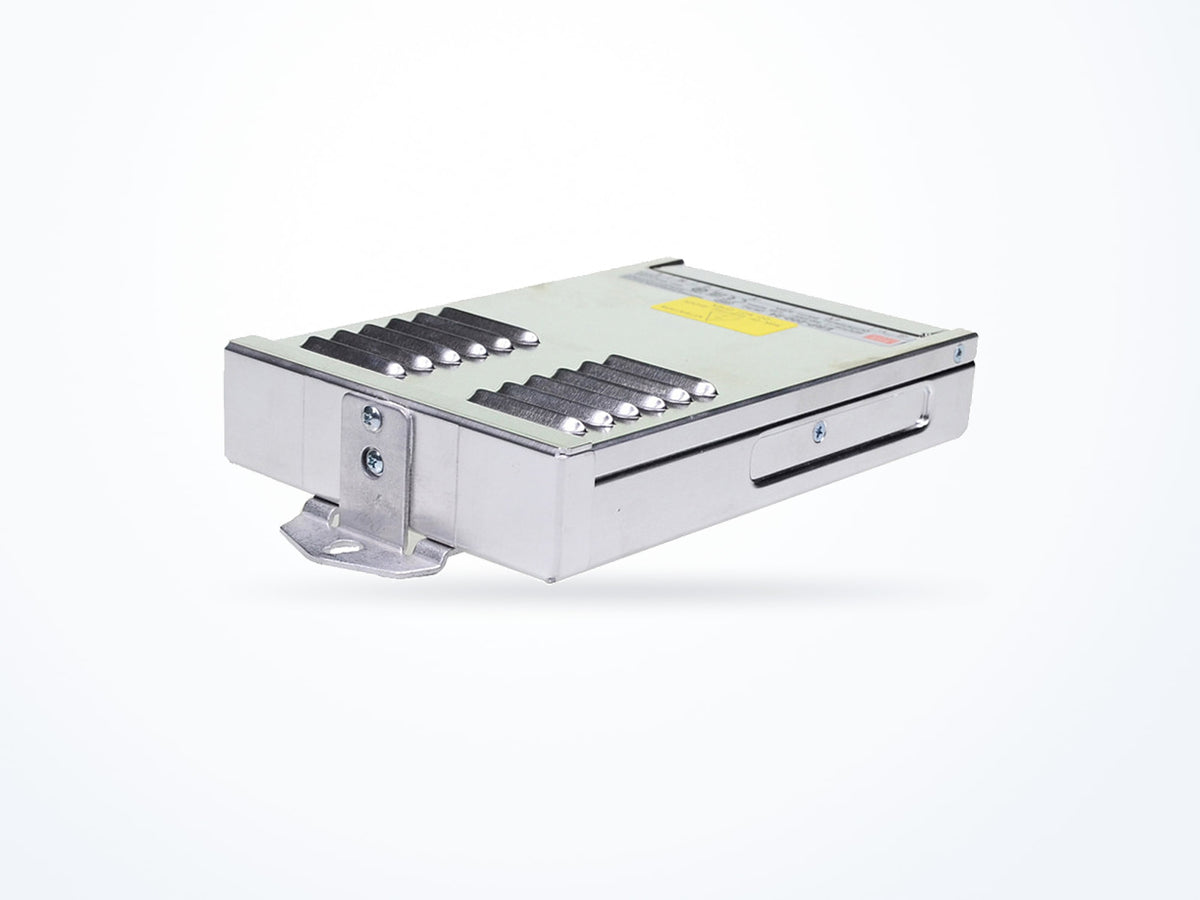

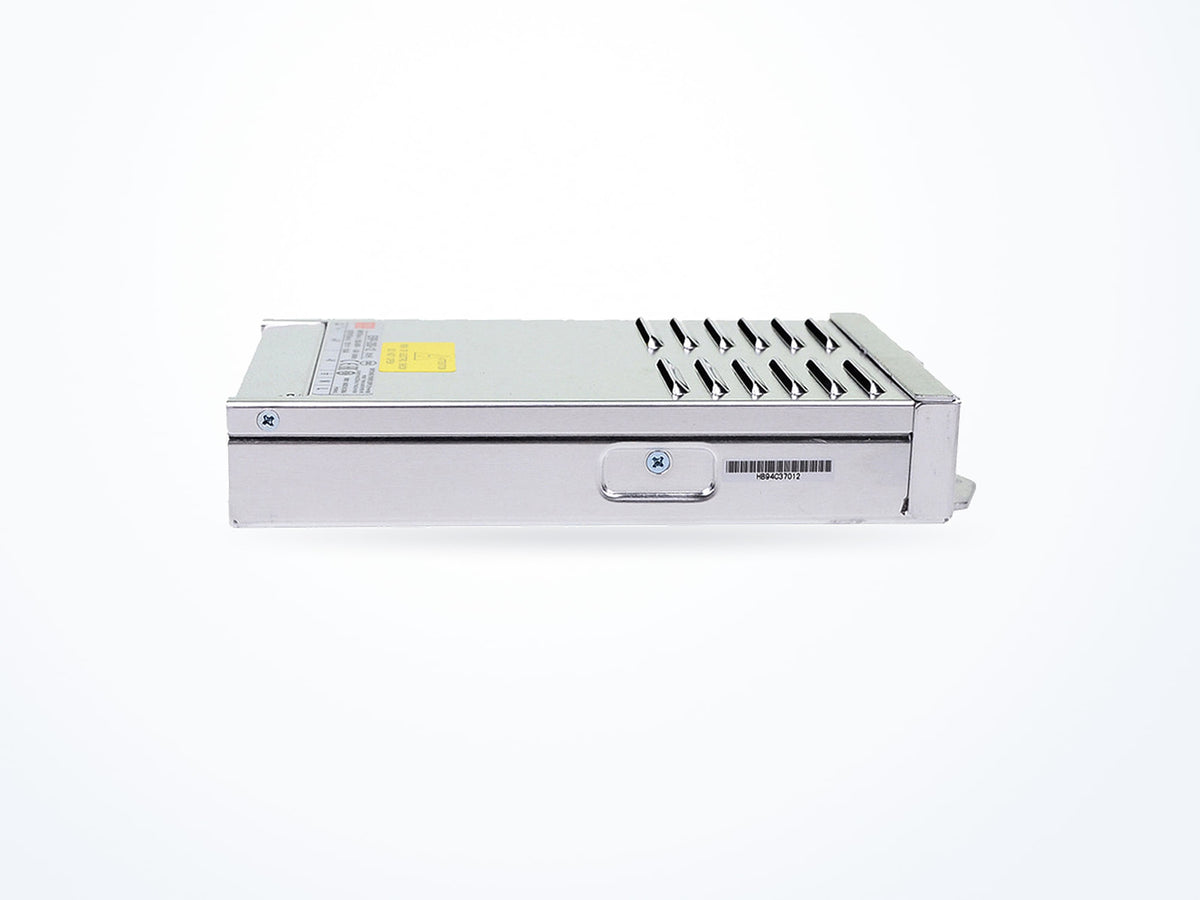

MEAN WELL ERP-200-12 200.4W 12V 16.8A Enclosed Type

Part numberERP-200-12
Output voltage 12 V
Rated current 16.8 A
Rated power 200.4 W
$44.21Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
ERP-200 model selection table Moving Sign
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 16.8 A
Rated power 200.4 W
AC input range 180–264 VAC
Typical efficiency 87 %
Mechanical
Operating temperature -30 to 60 °C
Dimensions (L × W × H) 200 × 120 × 40 mm

Is this model right for you?

Within the ERP-200 series, the ERP-200-12 provides a 12 V output at 16.8 A, while the ERP-200-24 provides a 24 V output at 8.33 A. The ERP-200-12 has a rated power of 200.4 W and the ERP-200-24 has a rated power of 199.92 W. Typical efficiency is 87% for the ERP-200-12 and 89% for the ERP-200-24.

Product overview

The ERP-200-12 provides a 12 V output at 16.8 A and a rated power of 200.4 W. Its input voltage range is 180 ~ 264VAC and 254 ~ 370VDC, with a frequency range of 47 ~ 63Hz. Typical efficiency is 87%. The output adjustment range is 10.8 ~ 13.2V, and ripple and noise is 150mVp-p. Dimensions are 200 × 120 × 40 mm and net weight is 860 g.

Where this model fits

The ERP-200-12 is used in Industrial Automation and Security & Surveillance applications. Its operating temperature range is -30 to 60 °C, and its humidity range is 20 to 90%. The enclosure measures 200 × 120 × 40 mm and weighs 860 g.

Complete technical specifications

Rev. 2025-12-12
Output
Output voltage 12 V
Rated current 16.8 A
Rated power 200.4 W
Voltage adjustment range 10.8–13.2 V
Ripple & noise 150 mVp-p
Input
AC input range 180–264 VAC
DC input range 254–370 VDC
Frequency range 47–63 Hz
Typical efficiency 87 %
Environmental
Operating temperature -30 to 60 °C
Storage temperature -30 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 200 × 120 × 40 mm
Net weight 860.0 g
Safety & compliance
Safety standards IEC/BS EN/EN 62368-1,GB 4943.1,EAC TP TC 004,IS13252(Part1) approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number ERP-200-12
Brand MEAN WELL
Category AC/DC Enclosed Type
Series ERP-200

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
EMC emission Refer to BS EN/EN55022 (CISPR22) class A, EAC TP TC 020
EMC immunity Refer to BS EN/EN55035, BS EN/EN61000-4-5;light industry level, EAC TP TC 020

Standards certified against

  • EN 62368-1
  • GB 4943.1
  • IS13252
Read the datasheet's exact wording

IEC/BS EN/EN 62368-1,GB 4943.1,EAC TP TC 004,IS13252(Part1) approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number ERP-200-12
Minimum order quantity 1
Country of origin China
Typical packed weight 1058 g
Unit weight 860 g

Downloads

ERP-200 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
ERP-200-12 12 V16.8 A200.4 W$44.21
Ships in 3–5 business days
ERP-200-2424 V8.33 A199.92 W$44.21
Ships in 3–5 business days

ERP-200-12 provides a 12 V output at 16.8 A; ERP-200-24 provides a 24 V output at 8.33 A.

ERP-200-12 has a rated power of 200.4 W; ERP-200-24 has a rated power of 199.92 W.

ERP-200-12 has a typical efficiency of 87%; ERP-200-24 has a typical efficiency of 89%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for ERP-200-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting ERP-200-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-12-12
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
