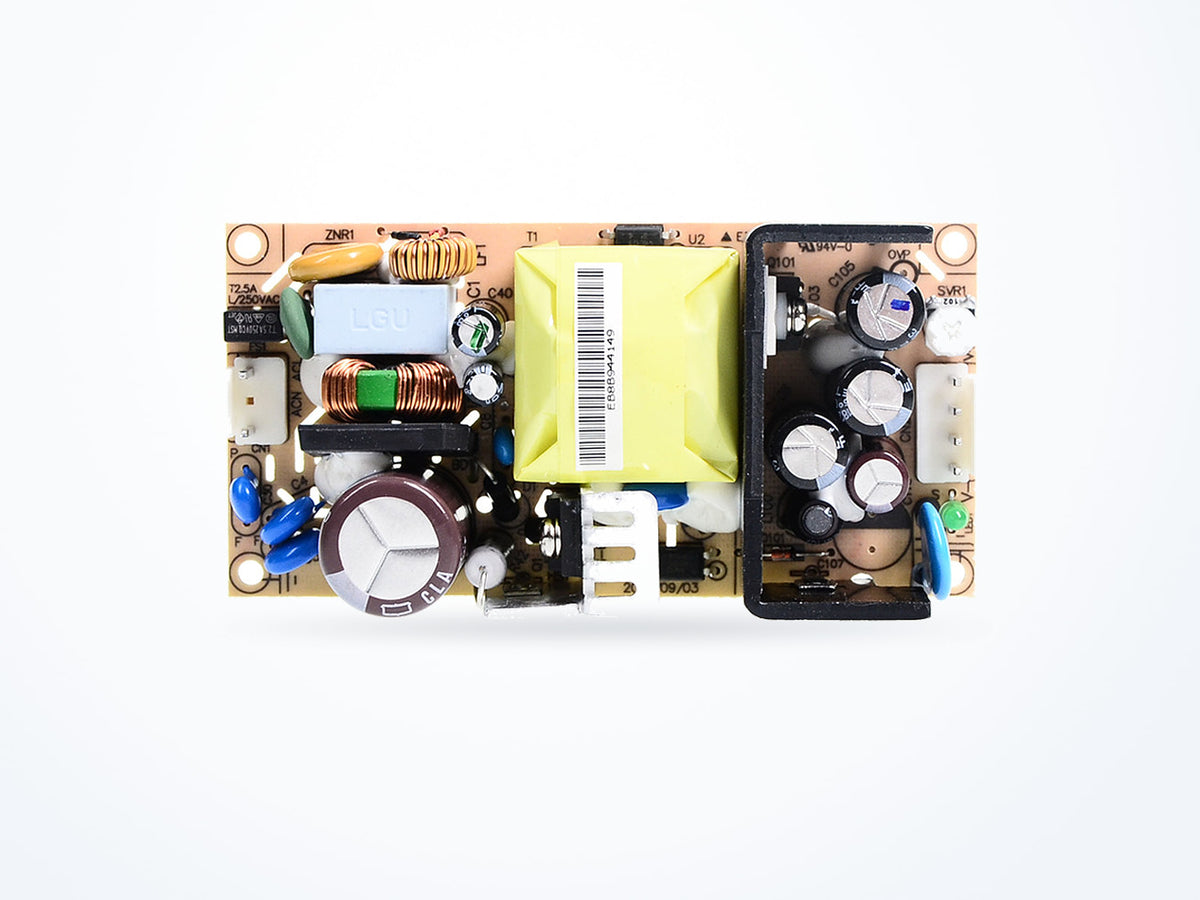

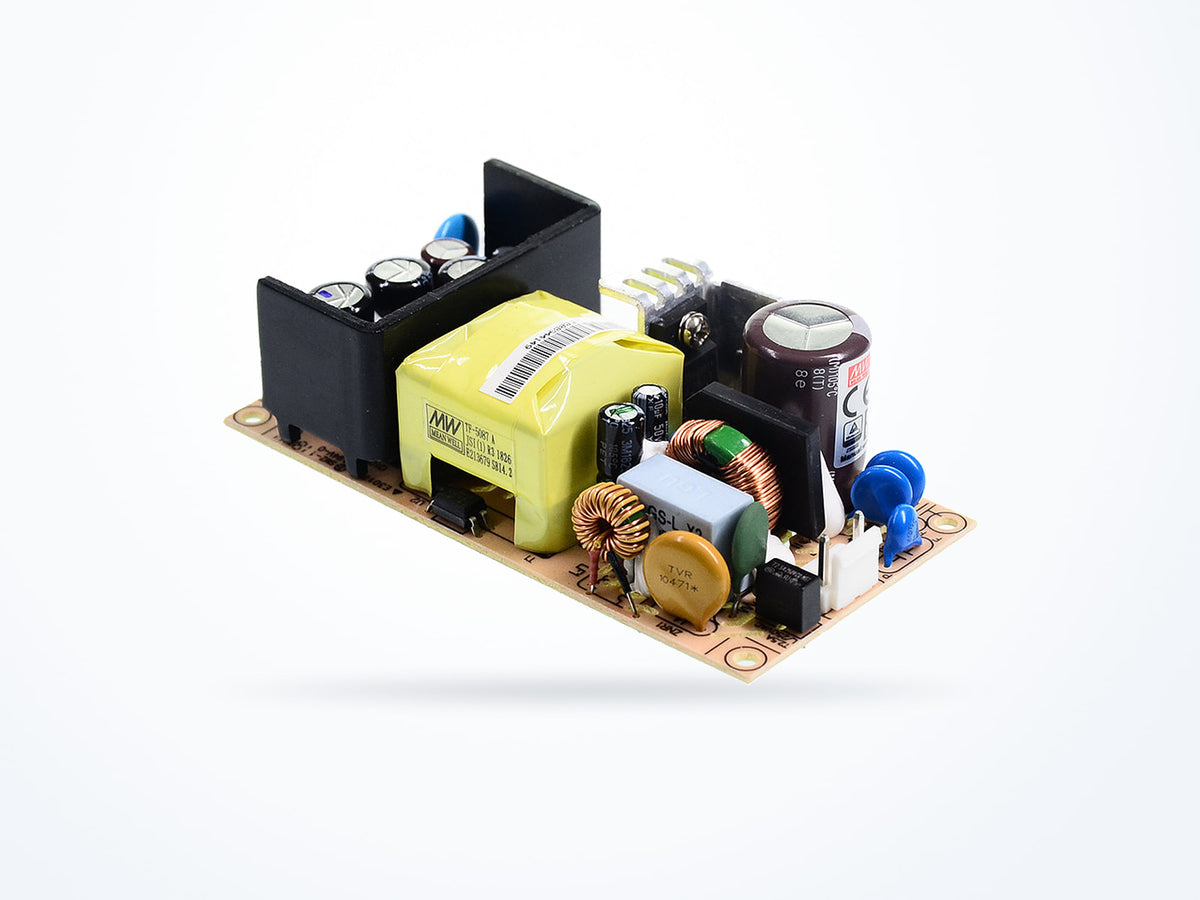

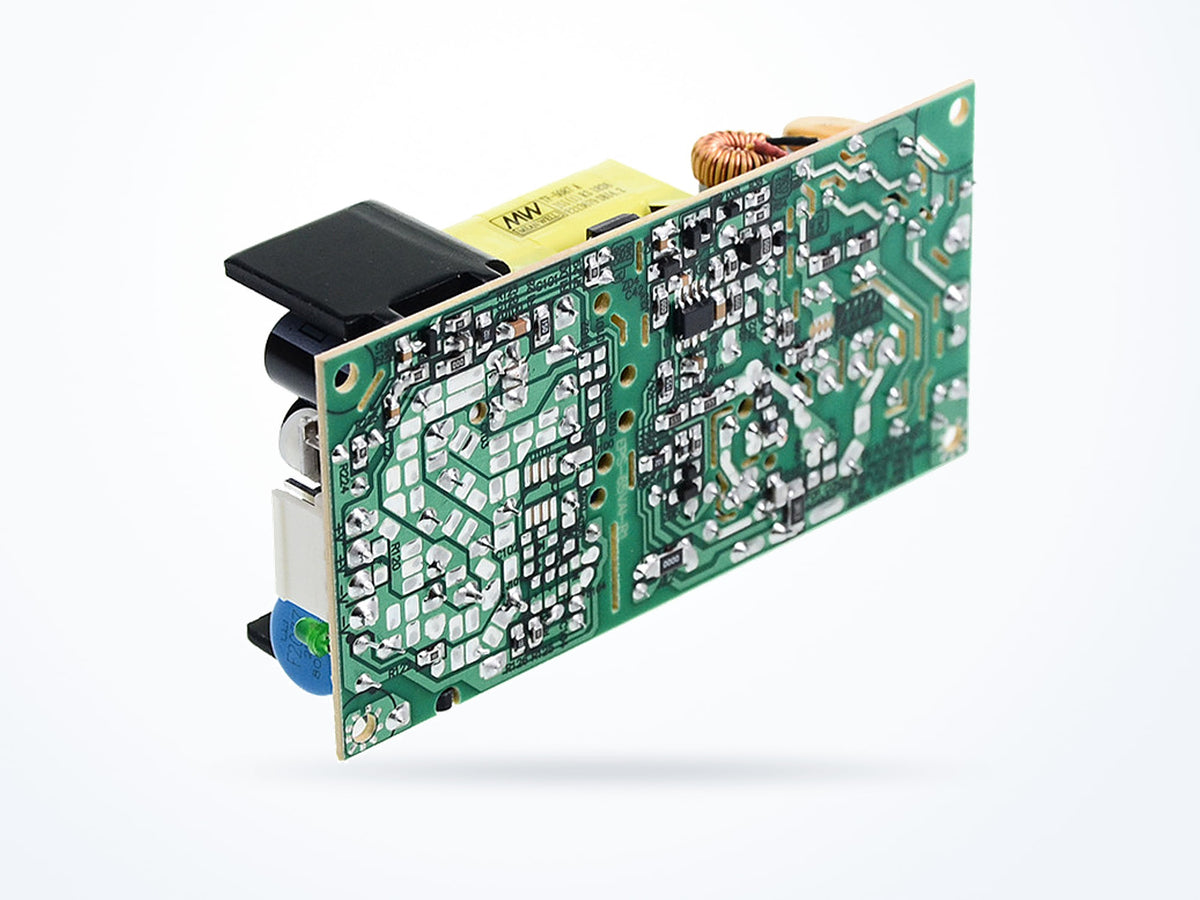

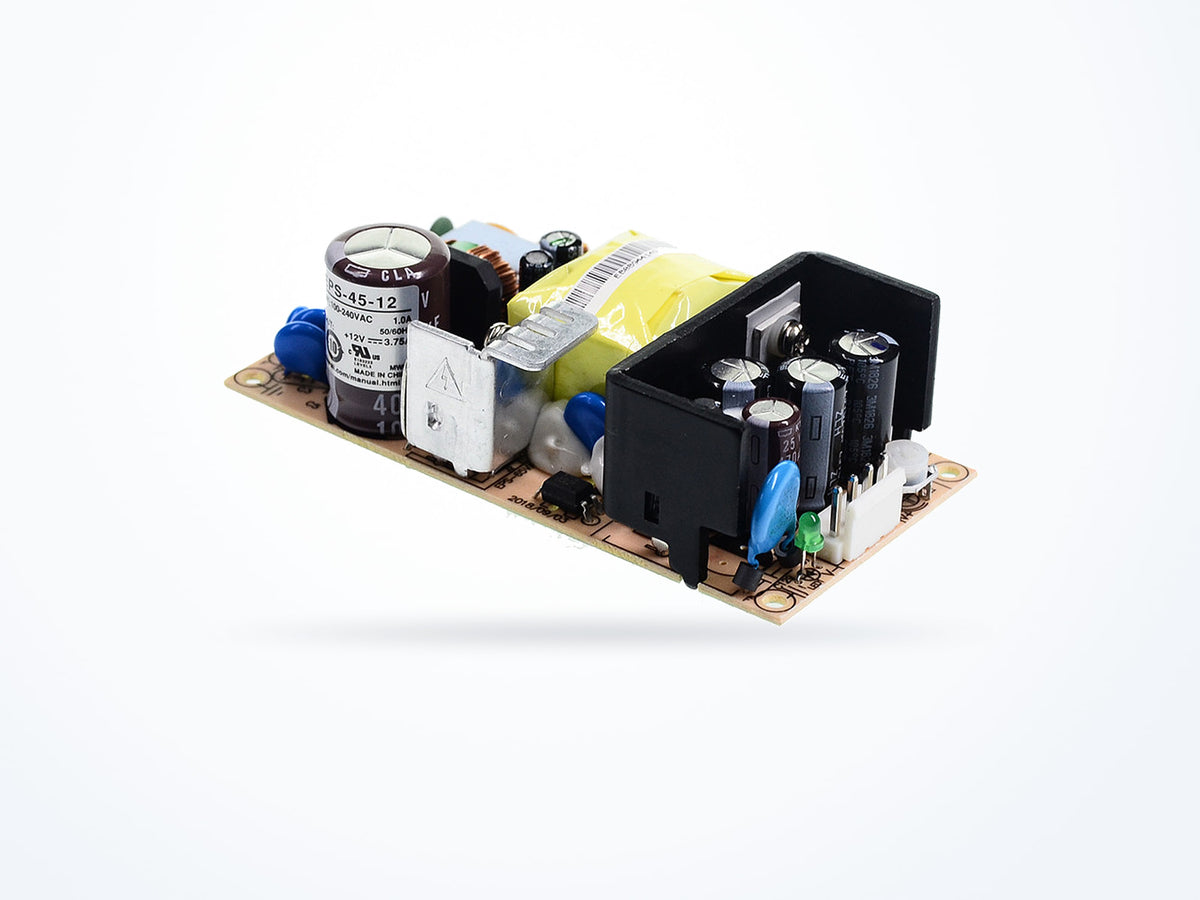

MEAN WELL EPS-45-15 45W 15V 3A Open Frame

Part numberEPS-45-15
Output voltage 15 V
Rated current 3 A
Rated power 45 W
$21.16Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
EPS-45 model selection table Industrial - Green PCB Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 3 A
Rated power 45 W
AC input range 90–264 VAC
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 101.6 × 50.8 × 29 mm

Is this model right for you?

Within the EPS-45 series, the EPS-45-15 differs from siblings by output voltage and current. EPS-45-15: 15 V, 3 A; EPS-45-12: 12 V, 3.75 A; EPS-45-24: 24 V, 1.9 A; EPS-45-36: 36 V, 1.25 A.

Product overview

The EPS-45-15 provides a 15 V output with a 3 A output current and 45 W rated power. Its output adjustment range is 13.5~16.5V, and the input frequency range is 47 ~ 63Hz. The product measures 101.6 × 50.8 × 29 mm.

Where this model fits

The EPS-45-15 is used in Embedded & Board-level Design. Its 15 V output and 3 A output current are the electrical figures for this model, and its dimensions are 101.6 × 50.8 × 29 mm.

Complete technical specifications

Rev. 2026-03-31
Output
Output voltage 15 V
Rated current 3 A
Rated power 45 W
Voltage adjustment range 13.5–16.5 V
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 101.6 × 50.8 × 29 mm
Net weight 300.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number EPS-45-15
Brand MEAN WELL
Category AC/DC Open Frame
Series EPS-45

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

China

  • CCC

    China Compulsory Certification. Mandatory for the product categories in its scope; where it applies, a shipment without it is not clearable. Certification is against the GB standard the datasheet cites.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC T
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • GB4943.1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number EPS-45-15
Minimum order quantity 1
Country of origin China
Typical packed weight 472 g
Unit weight 300 g

Downloads

EPS-45 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
EPS-45-15 15 V3 A45 W$21.16
Ships in 3–5 business days
EPS-45-2424 V1.9 A45.6 W$19.58
Ships in 3–5 business days

EPS-45-15 lists 15 V output and 3 A output current; EPS-45-12 lists 12 V output and 3.75 A output current.

EPS-45-15 lists 15 V output and 3 A output current; EPS-45-24 lists 24 V output and 1.9 A output current.

EPS-45-15 lists 15 V output and 3 A output current; EPS-45-36 lists 36 V output and 1.25 A output current.
