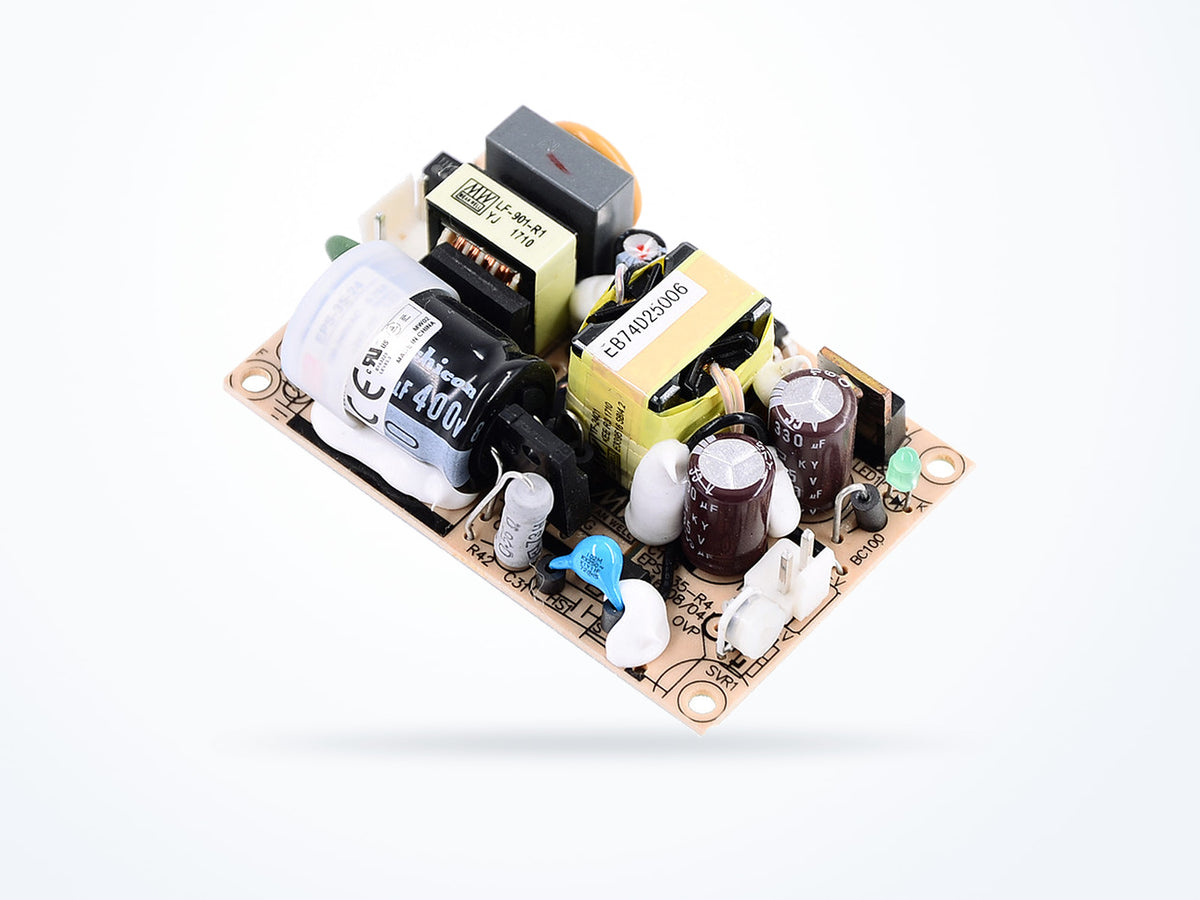

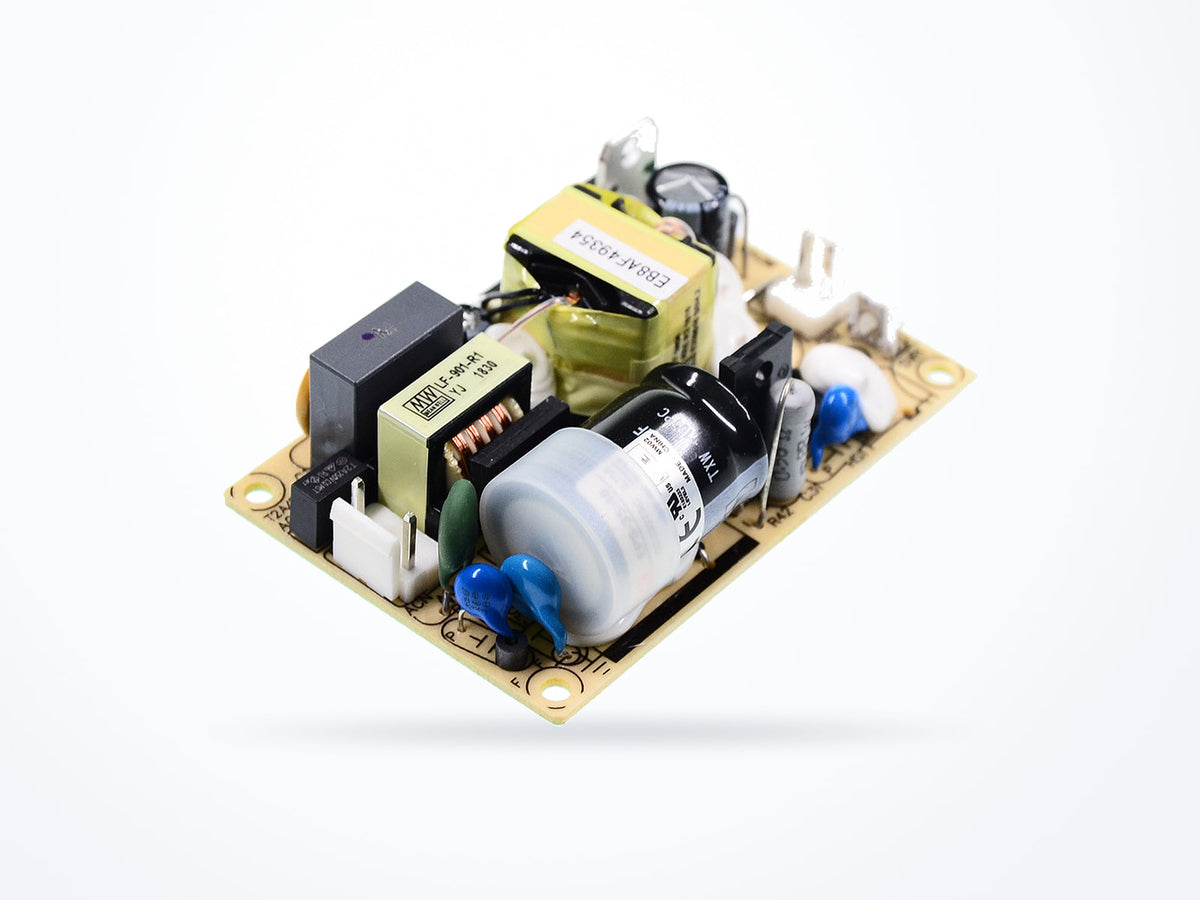

MEAN WELL EPS-35-24 36W 24V 1.5A Open Frame
Procurement confidence
- Genuine product Sourced through our documented supply chain.
- Worldwide shipping Export documentation handled for you.
- Commercial invoice Available for every order.
- Specification support Talk to someone who reads datasheets.
Key specifications
Complete technical specifications| Output voltage | 24 V |
|---|---|
| Rated current | 1.5 A |
| Rated power | 36 W |
| AC input range | 85–264 VAC |
| Typical efficiency | 89 % |
| Operating temperature | -30 to 70 °C |
|---|---|
| Dimensions (L × W × H) | 76.2 × 50.8 × 24 mm |
Is this model right for you?
Product overview
Complete technical specifications
Rev. 2026-03-31| Output voltage | 24 V |
|---|---|
| Rated current | 1.5 A |
| Rated power | 36 W |
| Voltage adjustment range | 21.6–27 V |
| AC input range | 85–264 VAC |
|---|---|
| DC input range | 120–370 VDC |
| Frequency range | 47–63 Hz |
| Typical efficiency | 89 % |
| Operating temperature | -30 to 70 °C |
|---|---|
| Storage temperature | -40 to 85 °C |
| Operating humidity | 20–90 % RH |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Dimensions (L × W × H) | 76.2 × 50.8 × 24 mm |
|---|---|
| Net weight | 85.0 g |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved |
|---|
These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.
| Part number | EPS-35-24 |
|---|---|
| Brand | MEAN WELL |
| Category | AC/DC Open Frame |
| Series | EPS-35 |
Approvals and compliance
From the manufacturer's datasheet for this seriesUnited States
- UL
UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.
Europe
- TÜV
A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.
China
- CCC
China Compulsory Certification. Mandatory for the product categories in its scope; where it applies, a shipment without it is not clearable. Certification is against the GB standard the datasheet cites.
Eurasian Economic Union
- EAC
Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|---|---|
| EMC emission | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020 |
| EMC immunity | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020 |
Standards certified against
- EN62368-1
- GB4943.1
- UL62368-1
Read the datasheet's exact wording
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1,EAC TP TC 004 approved
Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.
Certificates
Certificate copy supplied with this model.
Enlarge
CE · Certificate number R50453592
Ordering & shipping information
| Part number | EPS-35-24 |
|---|---|
| Minimum order quantity | 1 |
| Country of origin | China |
| Typical packed weight | 243 g |
| Unit weight | 85 g |
EPS-35 model comparison
View all models| Model | Output voltage | Rated current | Rated power | Price | Availability |
|---|---|---|---|---|---|
| EPS-35-3.3 | 3.3 V | 6 A | 19.8 W | $19.58 |
Ships in 3–5 business days
|
| EPS-35-24 Currently viewing | 24 V | 1.5 A | 36 W | $18.32 |
Ships in 3–5 business days
|
Request a bulk quote
Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.
- 1 We confirm the part number and quantity against current stock.
- 2 You receive pricing, lead time and freight options by email.
- 3 Approve the quotation and we issue the invoice and shipping documents.
Request a quote for EPS-35-24
Confirm quantity and destination and we will come back with pricing and lead time.
Technical data source
- Primary source
- MEAN WELL
- Datasheet revision
- 2026-03-31
- Last verified
View the manufacturer datasheet How we source and verify product data
Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
