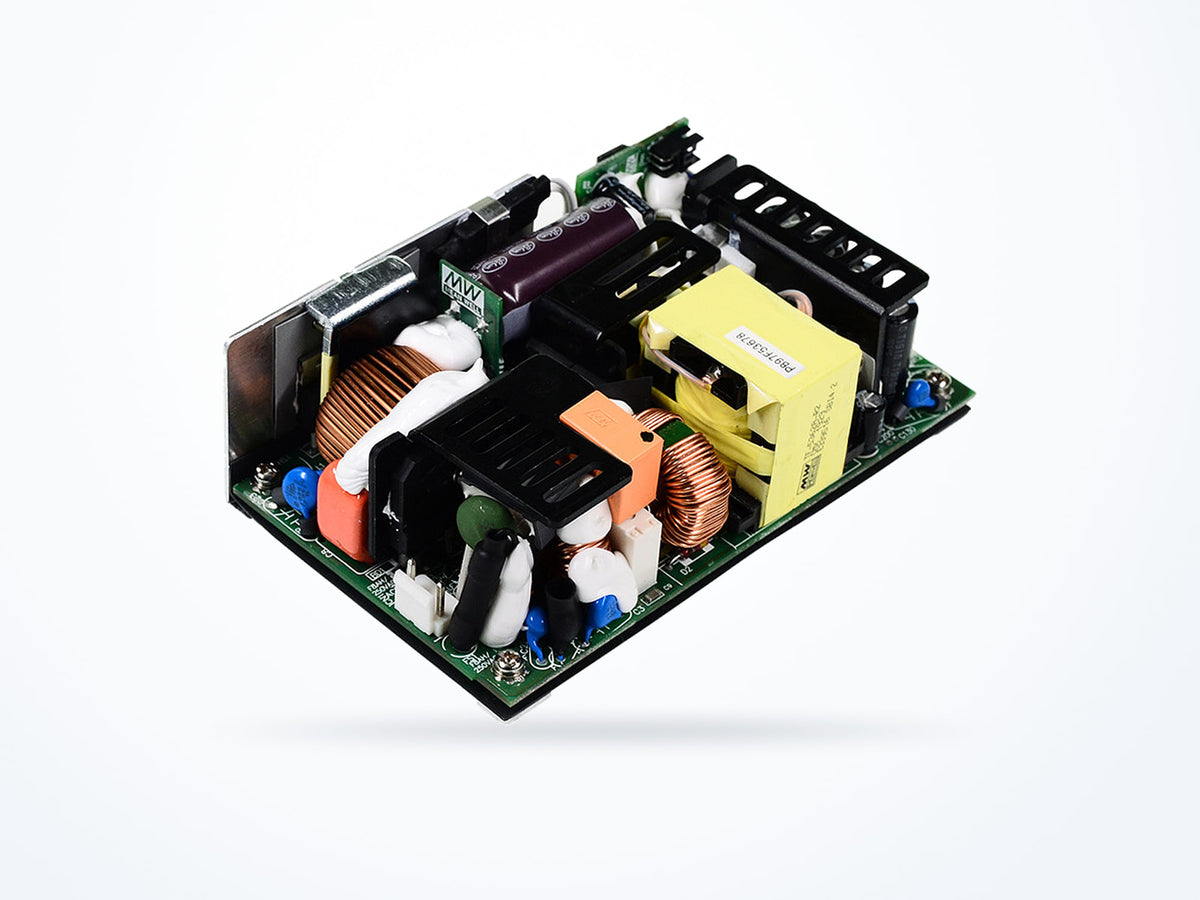

MEAN WELL EPP-500-12 499.2W 12V 41.6A Open Frame

Part numberEPP-500-12
Output voltage 12 V
Rated current 41.6 A
Rated power 499.2 W
$166.13Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
EPP-500 model selection table Industrial - Green PCB Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 41.6 A
Rated power 499.2 W
AC input range 80–264 VAC
Typical efficiency 91 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported

Is this model right for you?

Within the EPP-500 series, the EPP-500-12 is distinguished by its 12 V output voltage and 11.4~12.6V output adjustment range. The EPP-500-15 lists 15 V with 14.3~15.8V, the EPP-500-18 lists 18 V with 17.1~18.9V, and the EPP-500-24 lists 24 V with 22.8~25.2V. Typical efficiency also differs: EPP-500-12 lists 91%, EPP-500-15 lists 92%, EPP-500-18 lists 92.5%, and EPP-500-24 lists 93%.

Product overview

The EPP-500-12 is part of the MEAN WELL EPP-500 series and is classified as an AC/DC Open Frame product in the Industrial - Green PCB Type family. It lists a 12 V output voltage, a 91% typical efficiency, and an output adjustment range of 11.4~12.6V. The input voltage range is 80 ~ 264VAC 113 ~ 370VDC with a frequency range of 47 ~ 63Hz.

Where this model fits

The EPP-500-12 is used in Embedded & Board-level Design. Its 12 V output voltage and 11.4~12.6V output adjustment range are the electrical parameters for this model. The input voltage range is 80 ~ 264VAC 113 ~ 370VDC.

Complete technical specifications

Rev. 2026-03-31
Output
Output voltage 12 V
Rated current 41.6 A
Rated power 499.2 W
Voltage adjustment range 11.4–12.6 V
Input
AC input range 80–264 VAC
DC input range 113–370 VDC
Frequency range 47–63 Hz
Typical efficiency 91 %
Power factor 0.94
Power factor correction Supported
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Net weight 460.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, EAC TP TC 004 approved", null, null, null], [null

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number EPP-500-12
Brand MEAN WELL
Category AC/DC Open Frame
Series EPP-500

Approvals and compliance

From the manufacturer's datasheet for this series

Standards certified against

  • EN60335-1
  • EN62368-1
  • IEC62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, EAC TP TC 004 approved", null, null, null], [null

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number EPP-500-12
Minimum order quantity 1
Country of origin China
Typical packed weight 643 g
Unit weight 460 g

Downloads

EPP-500 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
EPP-500-1515 V33.3 A499.5 W$166.13
Ships in 3–5 business days
EPP-500-12 12 V41.6 A499.2 W$166.13
Ships in 3–5 business days
EPP-500-2727 V18.5 A499.5 W$166.13
Ships in 3–5 business days

EPP-500-12 lists a 12 V output voltage; EPP-500-15 lists 15 V.

EPP-500-12 lists an output adjustment range of 11.4~12.6V; EPP-500-24 lists 22.8~25.2V.

EPP-500-12 lists a 91% typical efficiency; EPP-500-36 lists 94%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for EPP-500-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting EPP-500-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-03-31
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
