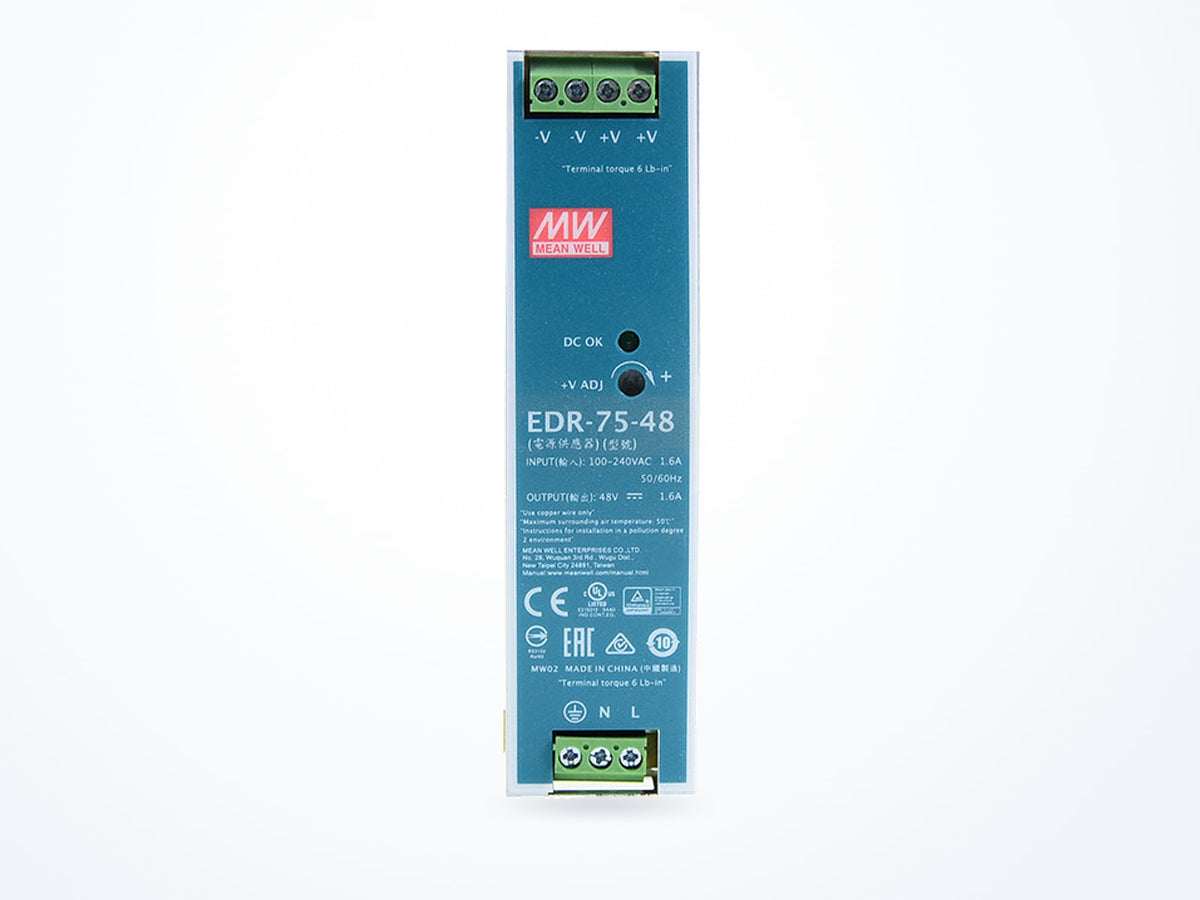

MEAN WELL EDR-75-48 76.8W 48V 1.6A DIN Rail

Part numberEDR-75-48
Output voltage 48 V
Rated current 1.6 A
Rated power 76.8 W
$34.11Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
EDR-75 model selection table EDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 1.6 A
Rated power 76.8 W
AC input range 90–264 VAC
Typical efficiency 88.5 %
Mechanical
Operating temperature -20 to 60 °C
Dimensions (L × W × H) 32 × 125.2 × 102 mm

Is this model right for you?

Within the EDR-75 Series, output ratings distinguish the supplied models. EDR-75-48 provides 48V at 1.6A (76.8W rated power); EDR-75-24 provides 24V at 3.2A; EDR-75-12 provides 12V at 6.3A (75.6W rated power). Typical efficiency lists 88.5% for EDR-75-48, 87.5% for EDR-75-24, and 85.5% for EDR-75-12. Output adjustment ranges are 48 ~ 55V for EDR-75-48, 24 ~ 28V for EDR-75-24, and 12 ~ 14V for EDR-75-12.

Product overview

The MEAN WELL EDR-75-48 is a DIN Rail product within the EDR-75 Series of the EDR Series. It provides a 48V output at 1.6A with 76.8W rated power. The output is adjustable across 48 ~ 55V, and typical efficiency is 88.5%. Ripple noise is specified at 150mVp-p, and the frequency range is 47 ~ 63Hz. The unit measures 32*125.2*102mm (W*H*D).

Complete technical specifications

Rev. 2026-03-31
Output
Output voltage 48 V
Rated current 1.6 A
Rated power 76.8 W
Voltage adjustment range 48–55 V
Ripple & noise 150 mVp-p
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Typical efficiency 88.5 %
Environmental
Operating temperature -20 to 60 °C
Storage temperature -40 to 85 °C
Operating humidity 20–95 % RH
Vibration Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 32 × 125.2 × 102 mm
Net weight 510.0 g
Safety & compliance
Safety standards Ul508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1 approved;(meet BS EN/EN60204-1)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number EDR-75-48
Brand MEAN WELL
Category AC/DC DIN Rail
Series EDR-75

Approvals and compliance

From the manufacturer's datasheet for this series

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class A
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

Standards certified against

  • CNS15598-1
  • EN60204-1
  • EN62368-1
Read the datasheet's exact wording

Ul508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1 approved;(meet BS EN/EN60204-1)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number EDR-75-48
Minimum order quantity 1
Country of origin China
Warranty 2-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 696 g
Unit weight 510 g

Downloads

EDR-75 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
EDR-75-48 48 V1.6 A76.8 W$34.11
Ships in 3–5 business days
EDR-75-1212 V6.3 A75.6 W$34.11
Ships in 3–5 business days
EDR-75-2424 V3.2 A76.8 W$31.58
Ships in 3–5 business days

Output rating — EDR-75-48: 48V at 1.6A (76.8W rated power); EDR-75-24: 24V at 3.2A; EDR-75-12: 12V at 6.3A (75.6W rated power).

Typical efficiency — EDR-75-48: 88.5%; EDR-75-24: 87.5%; EDR-75-12: 85.5%.

Output adjustment range — EDR-75-48: 48 ~ 55V; EDR-75-24: 24 ~ 28V; EDR-75-12: 12 ~ 14V.

Ripple noise — EDR-75-48: 150mVp-p; EDR-75-24: 120mVp-p; EDR-75-12: 80mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for EDR-75-48

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting EDR-75-48 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-03-31
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
