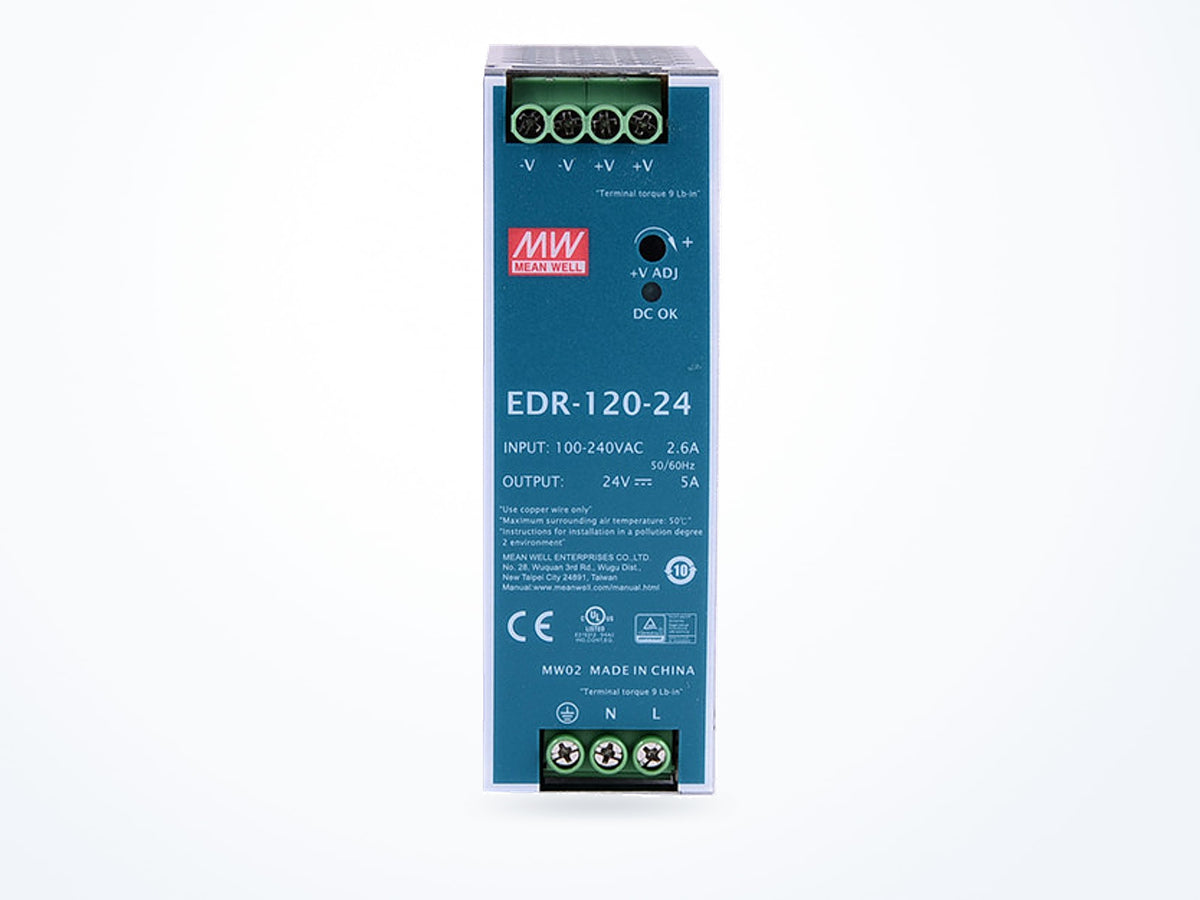

MEAN WELL EDR-120-24 120W 24V 5A DIN Rail

Part numberEDR-120-24
Output voltage 24 V
Rated current 5 A
Rated power 120 W
$36.32Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
EDR-120 model selection table EDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 5 A
Rated power 120 W
AC input range 90–264 VAC
Typical efficiency 87.5 %
Mechanical
Operating temperature -20 to 60 °C
Dimensions (L × W × H) 40 × 125.2 × 113.5 mm

Is this model right for you?

Within the EDR-120 series, the EDR-120-24 differs from the EDR-120-12 and EDR-120-48 by output voltage, output current, output adjustment range, typical efficiency, and ripple and noise. EDR-120-24: 24 V, 5 A, 24 ~ 28 V, 87.5%, 120 mVp-p. EDR-120-12: 12 V, 10 A, 12 ~ 14 V, 85%, 100 mVp-p. EDR-120-48: 48 V, 2.5 A, 48 ~ 55 V, 88.5%, 150 mVp-p.

Product overview

The EDR-120-24 provides a 24 V output with a 5 A output current and 120 W rated power. Its output adjustment range is 24 ~ 28 V, and typical efficiency is 87.5%. Ripple and noise are 120 mVp-p. The product measures 40 × 125.2 × 113.5 mm and has a net weight of 600 g.

Where this model fits

The EDR-120-24 is used in Industrial Automation, Motor Drives, and Building & Home Automation. The product measures 40 × 125.2 × 113.5 mm and has a net weight of 600 g.

Complete technical specifications

Rev. 2026-03-31
Output
Output voltage 24 V
Rated current 5 A
Rated power 120 W
Voltage adjustment range 24–28 V
Ripple & noise 120 mVp-p
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Typical efficiency 87.5 %
Environmental
Operating temperature -20 to 60 °C
Storage temperature -40 to 85 °C
Operating humidity 20–95 % RH
Vibration Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 40 × 125.2 × 113.5 mm
Net weight 600.0 g
Safety & compliance
Safety standards UL508,TUV BS EN/EN62368-1,EAC TP TC 004,BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved; (meet BS EN/EN60204-1) (datasheet note applies)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number EDR-120-24
Brand MEAN WELL
Category AC/DC DIN Rail
Series EDR-120

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class A
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020

Standards certified against

  • CNS15598-1
  • EN60204-1
  • EN62368-1
  • IEC 60950-1
  • IS13252
Read the datasheet's exact wording

UL508,TUV BS EN/EN62368-1,EAC TP TC 004,BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved; (meet BS EN/EN60204-1) (datasheet note applies)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number EDR-120-24
Minimum order quantity 1
Country of origin China
Warranty 2-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 800 g
Unit weight 600 g

Downloads

EDR-120 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
EDR-120-1212 V10 A120 W$39.16
Ships in 3–5 business days
EDR-120-24 24 V5 A120 W$36.32
Ships in 3–5 business days
EDR-120-4848 V2.5 A120 W$39.16
Ships in 3–5 business days

EDR-120-24 provides 24 V output and 5 A output current; EDR-120-12 provides 12 V output and 10 A output current.

EDR-120-24 has an output adjustment range of 24 ~ 28 V; EDR-120-48 has an output adjustment range of 48 ~ 55 V.

EDR-120-24 has typical efficiency of 87.5%; EDR-120-12 has typical efficiency of 85% and EDR-120-48 has typical efficiency of 88.5%.

EDR-120-24 has ripple and noise of 120 mVp-p; EDR-120-12 has 100 mVp-p and EDR-120-48 has 150 mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for EDR-120-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting EDR-120-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-03-31
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
