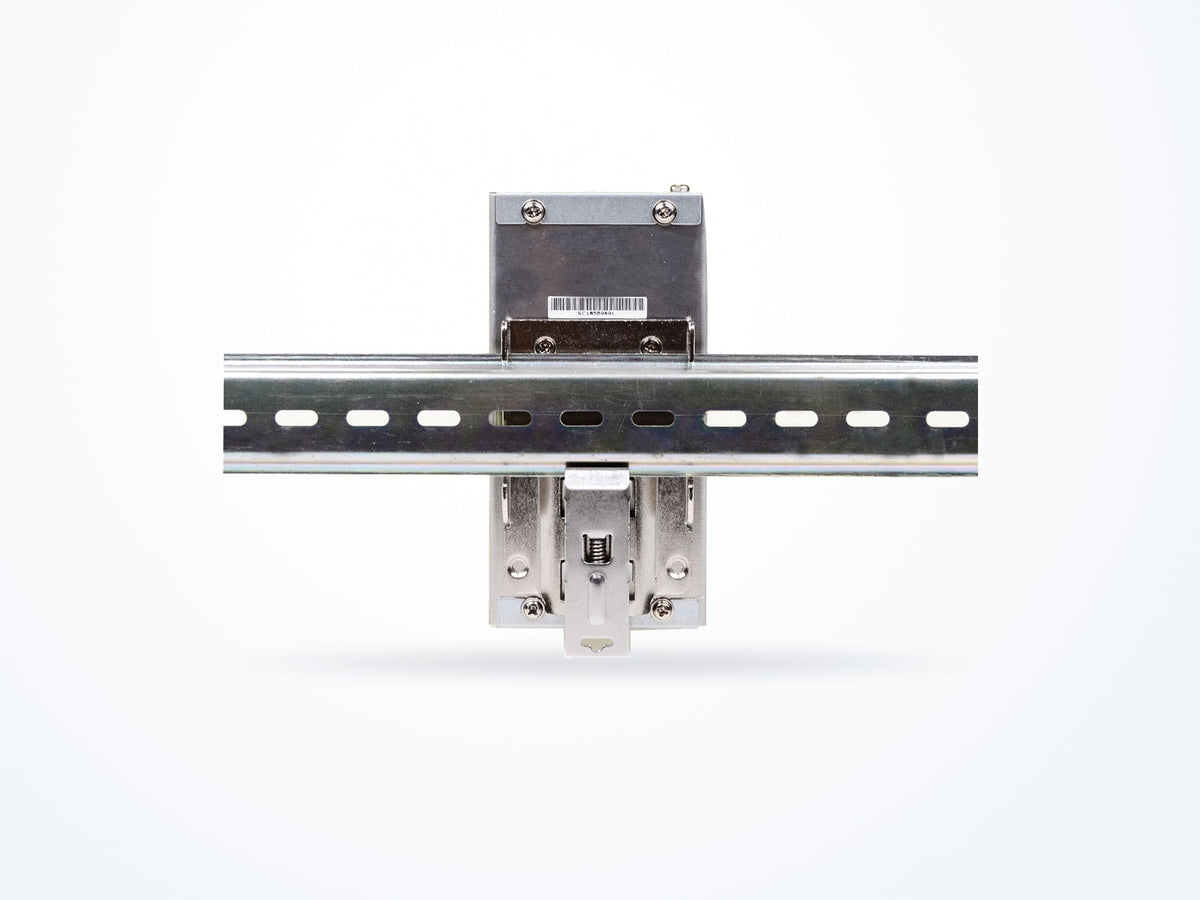

MEAN WELL DUPS20 580W 20A DIN Rail

Part numberDUPS20
Rated current 20 A
Rated power 580 W
$45.79Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
DUPS20 model selection table Peripheral
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Rated current 20 A
Rated power 580 W
Mechanical
Cooling Free-air convection
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 40 × 125.2 × 113.5 mm

Is this model right for you?

The DUPS20 is the only model in the DUPS20 series. It lists 21 ~ 29Vdc input.

Product overview

The DUPS20 from MEAN WELL belongs to the AC/DC DIN Rail product class and the Peripheral family. Its input voltage range is 21 ~ 29Vdc. Cooling is by free air convection, with no fan. The unit measures 40 × 125.2 × 113.5 mm and weighs 310 g. Operating temperature spans -30 to 70 °C, storage temperature spans -40 to 85 °C, and humidity spans 5 to 95%.

Where this model fits

The DUPS20 is used in Industrial Automation, Motor Drives, and Building & Home Automation. Its operating temperature range is -30 to 70 °C, storage temperature range is -40 to 85 °C, and humidity range is 5 to 95%. The unit measures 40 × 125.2 × 113.5 mm, weighs 310 g, and uses free air convection cooling.

Complete technical specifications

Rev. 2026-06-15
Output
Rated current 20 A
Rated power 580 W
Input
AC input range 21 ~ 29Vdc
DC input range 21–29 VDC
Protection
Short circuit Protected
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 5–95 % RH
Vibration Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 40 × 125.2 × 113.5 mm
Net weight 310.0 g
Cooling Free-air convection
Fan Not supported
Safety & compliance
Safety standards UL62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number DUPS20
Brand MEAN WELL
Category AC/DC DIN Rail
Series DUPS20

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage IP/OP - Chassis : 0.5KVac ; IP/OP- Relay : 0.5KVac ; Relay - Chassis : 0.5KVac
Isolation resistance IP/OP - Chassis, IP/OP- Relay, Relay - Chassis:>100M Ohms / 500Vdc / 25℃/ 70% RH
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • UL62368-1
Read the datasheet's exact wording

UL62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number DUPS20
Minimum order quantity 1
Country of origin China
Typical packed weight 510 g
Unit weight 310 g
