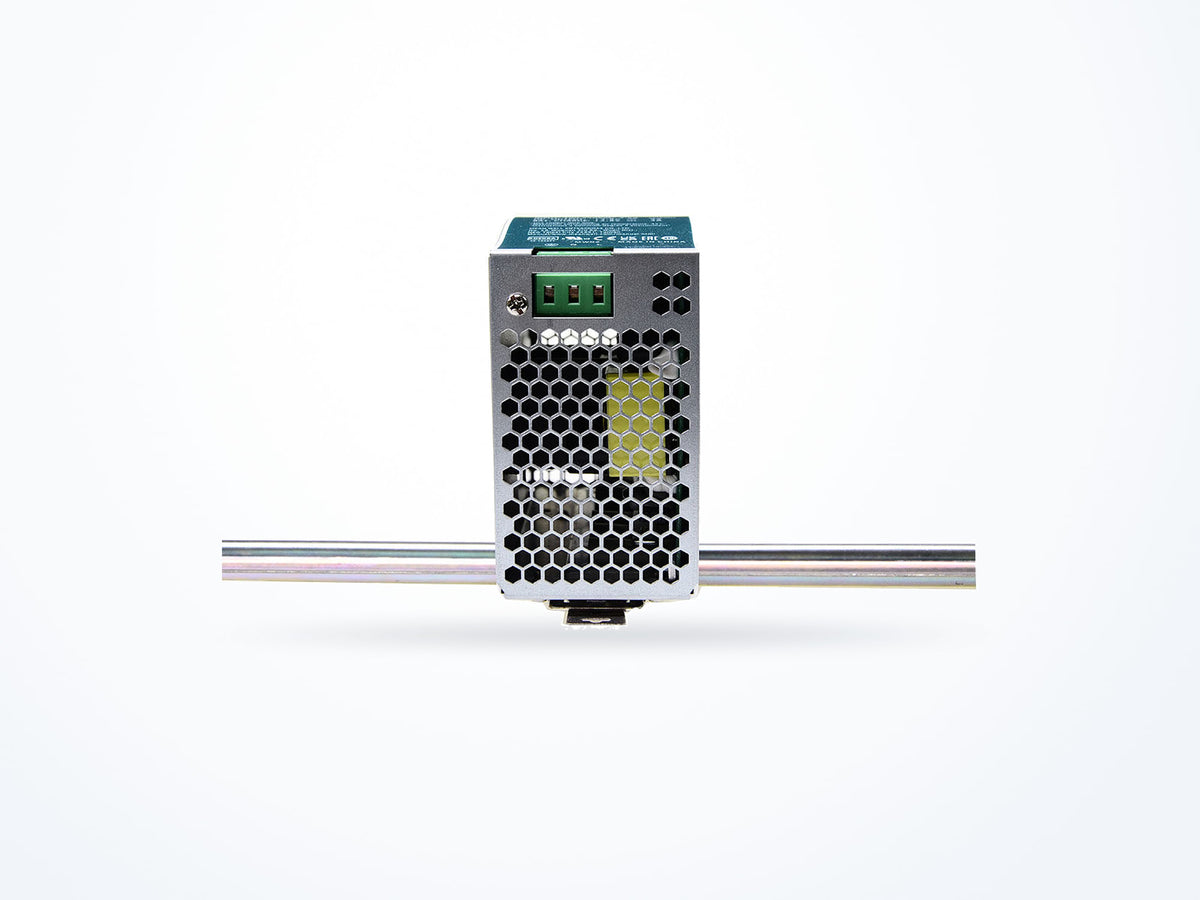

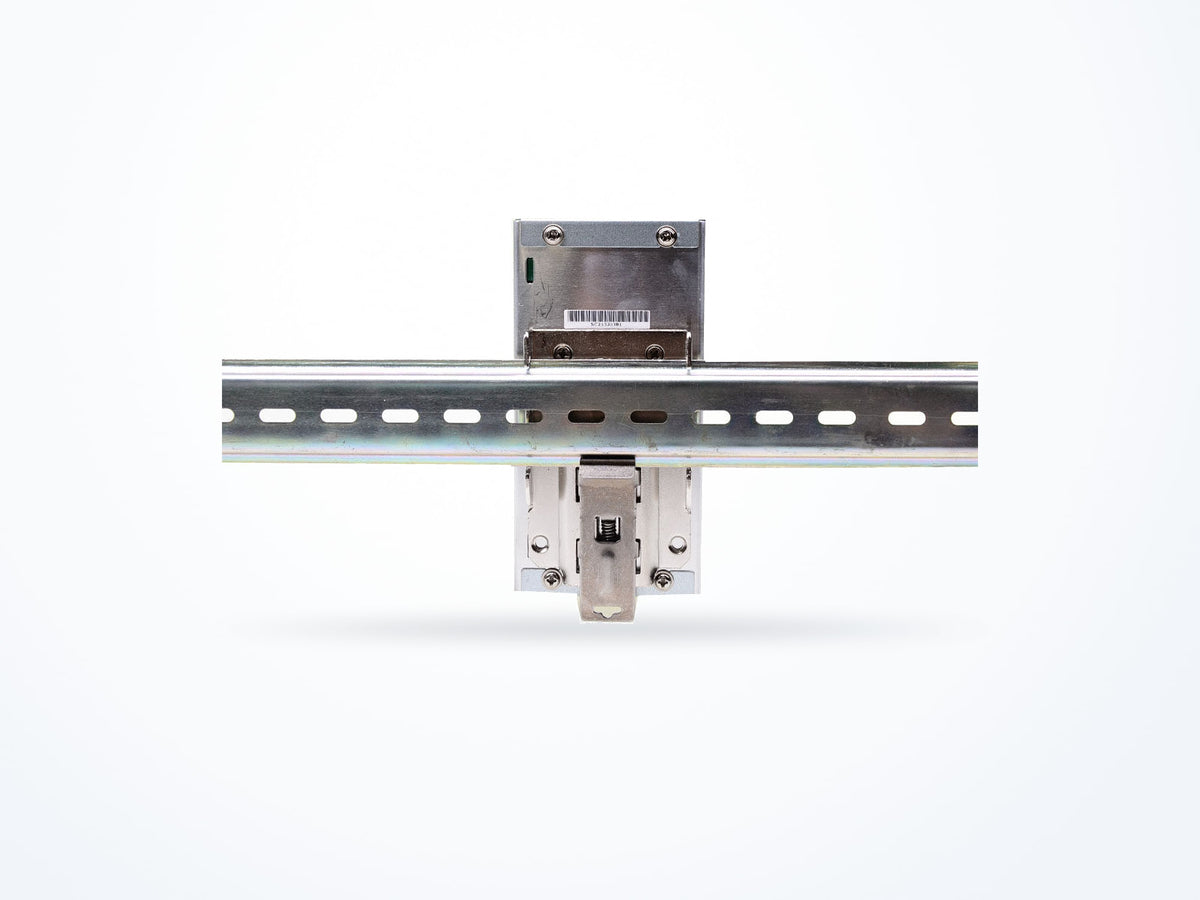

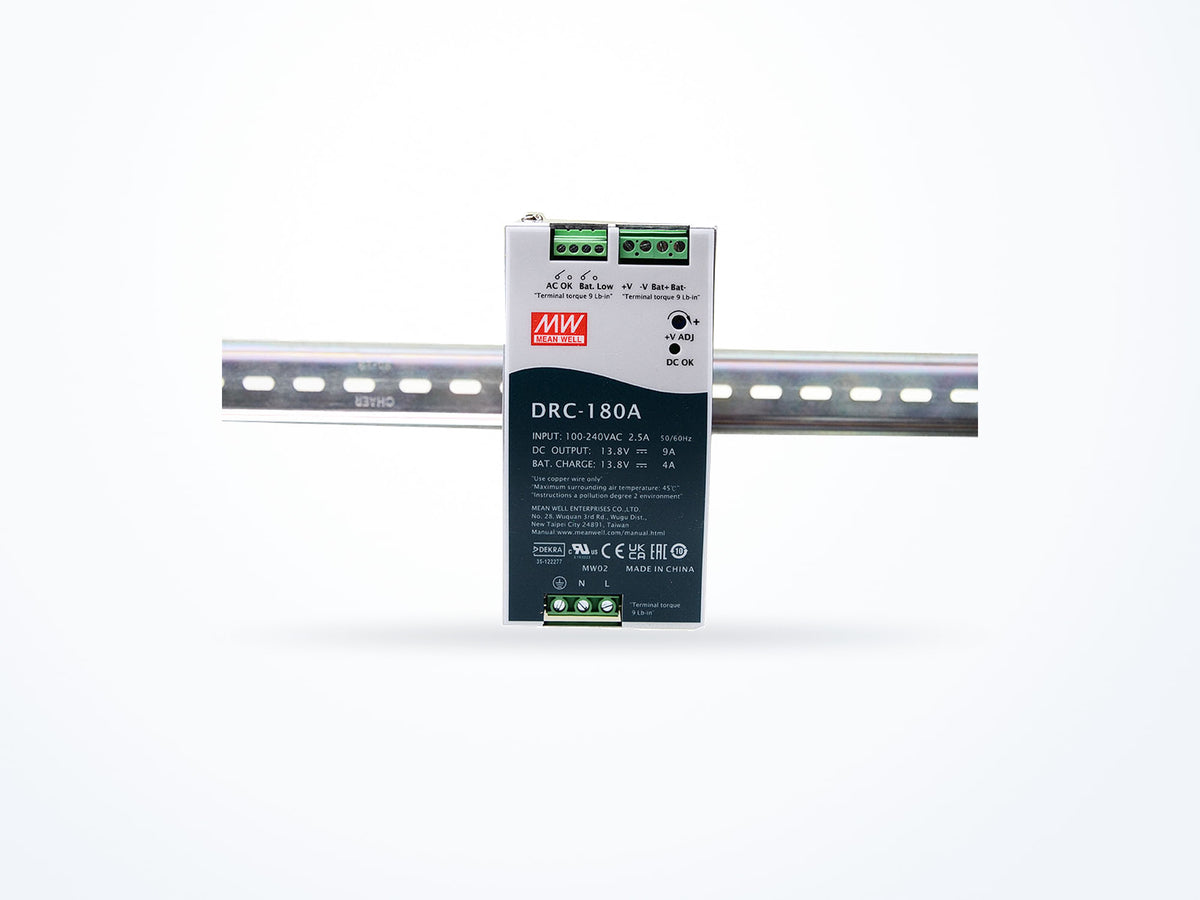

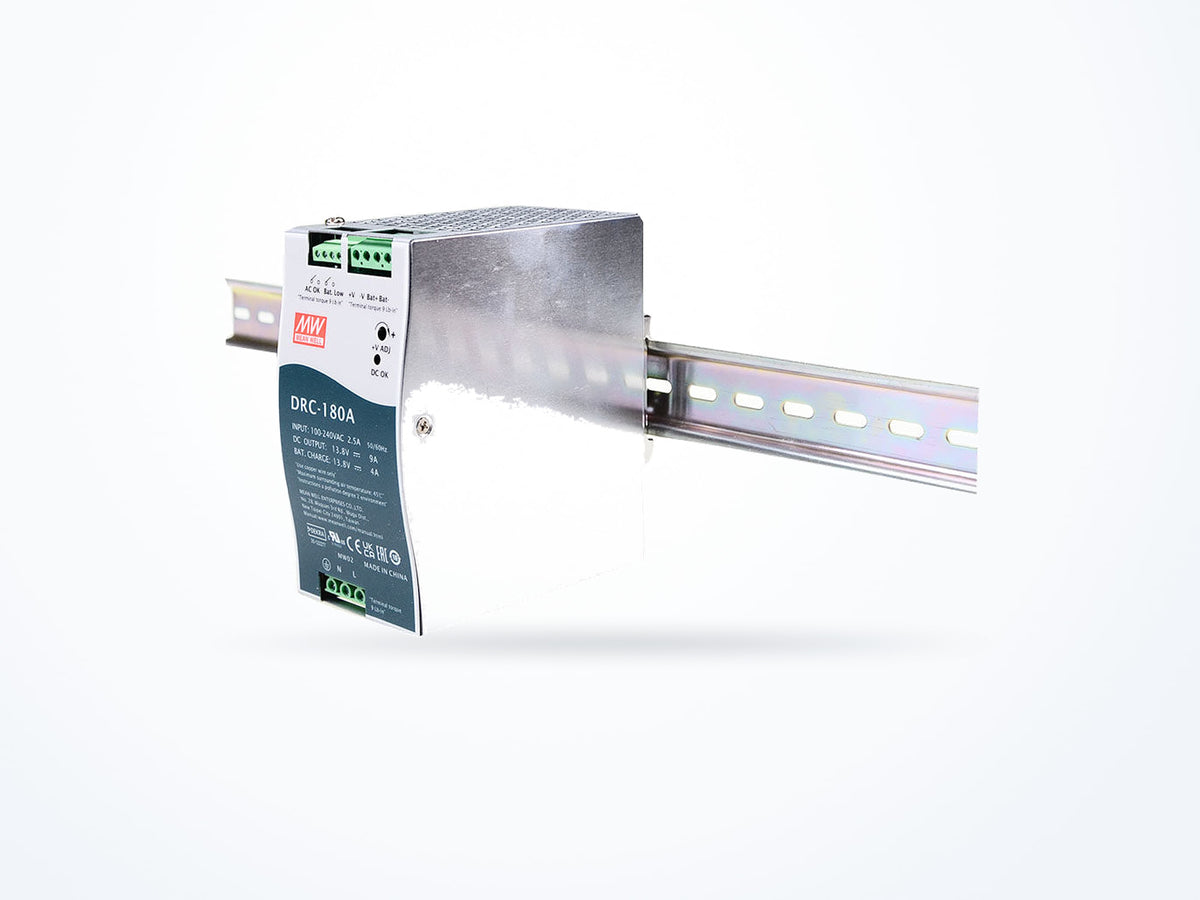

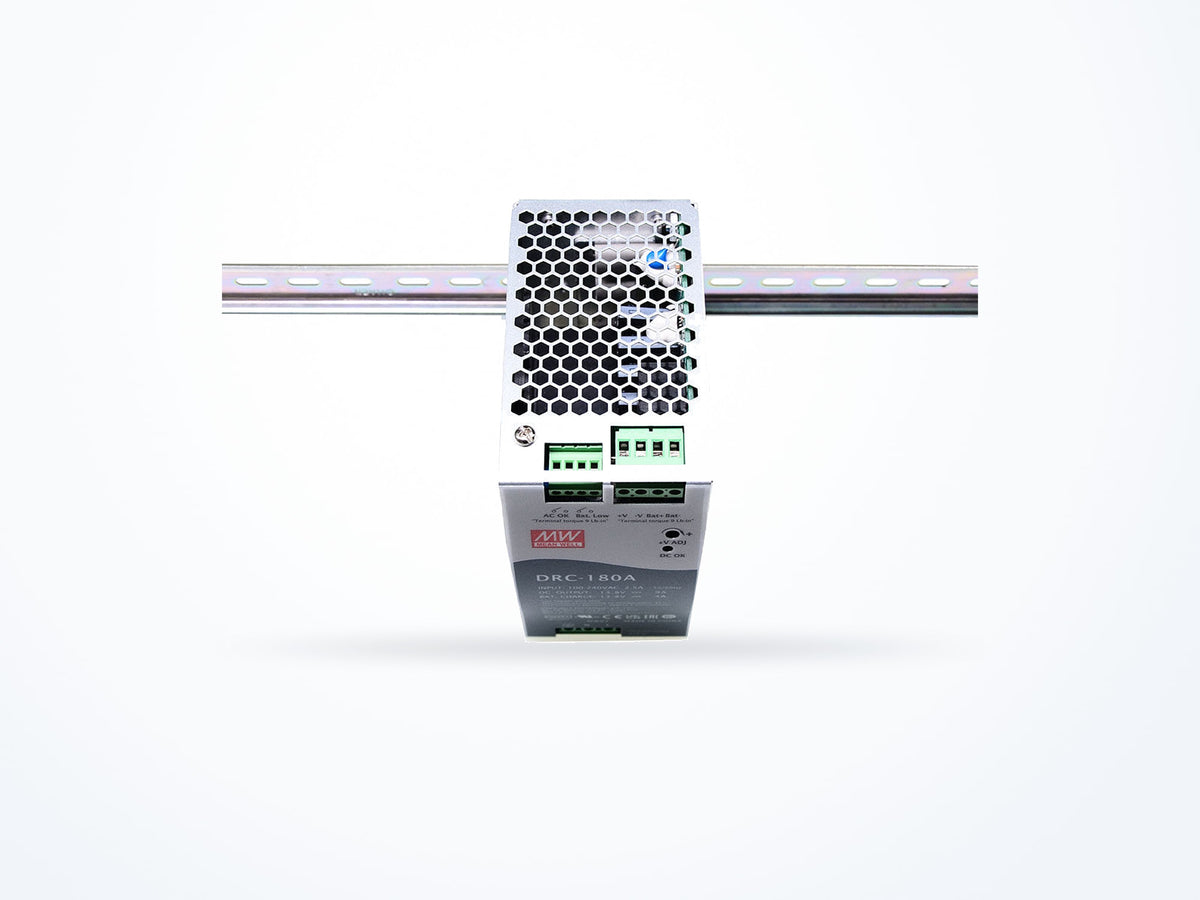

MEAN WELL DRC-180A 179.4W 13.8V 9A Security & Specific

Part numberDRC-180A
Output voltage 13.8 V
Rated current 9 A
Rated power 179.4 W
$134.54Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
DRC-180 model selection table Security—DRC
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 13.8 V
Rated current 9 A
Rated power 179.4 W
AC input range 90–264 VAC
Mechanical
Operating temperature -20 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 63 × 125.2 × 115 mm

Is this model right for you?

The DRC-180A lists 90 ~ 264VAC 127 ~ 370VDC input, the same as the other models in the DRC-180 series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The DRC-180A belongs to the MEAN WELL DRC-180 series within the Security—DRC family. Its input range covers 90 ~ 264VAC and 127 ~ 370VDC at 47 ~ 63Hz. The unit measures 63 × 125.2 × 115 mm and has a net weight of 710 g. Operating temperature spans -20 to 70 °C with 20 to 90% humidity.

Where this model fits

The DRC-180A is used in Security & Surveillance applications. Its operating temperature range is -20 to 70 °C and humidity range is 20 to 90%. The unit measures 63 × 125.2 × 115 mm and weighs 710 g.

Complete technical specifications

Rev. 2026-03-31
Output
Output voltage 13.8 V
Rated current 9 A
Rated power 179.4 W
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -20 to 70 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 63 × 125.2 × 115 mm
Net weight 710.0 g
Safety & compliance
Safety standards UL62368-1, Dekra BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number DRC-180A
Brand MEAN WELL
Category AC/DC Security & Specific
Series DRC-180

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • DEKRA

    DEKRA is a European notified body; a DEKRA certificate on a datasheet is third-party testing against the cited EN standard, equivalent in standing to a TÜV one.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • AS/NZS 62368.1
  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, Dekra BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number DRC-180A
Minimum order quantity 1
Country of origin China
Typical packed weight 1025 g
Unit weight 710 g

Downloads

DRC-180 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
DRC-180A 13.8 V9 A179.4 W$134.54
Ships in 3–5 business days
DRC-180B27.6 V4.5 A179.4 W$134.54
Ships in 3–5 business days

DRC-180A: 9 A output current; DRC-180B: 4.5 A.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for DRC-180A

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting DRC-180A View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-03-31
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
