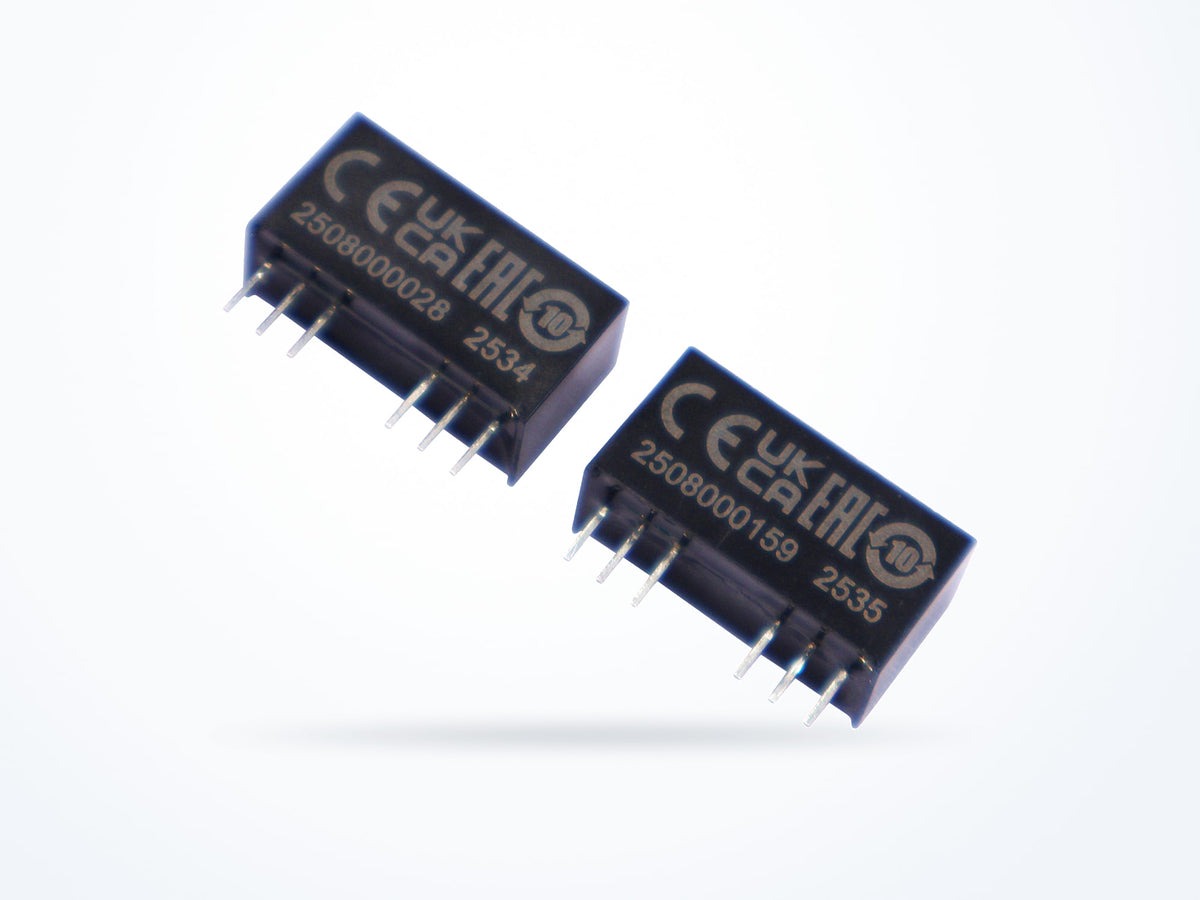

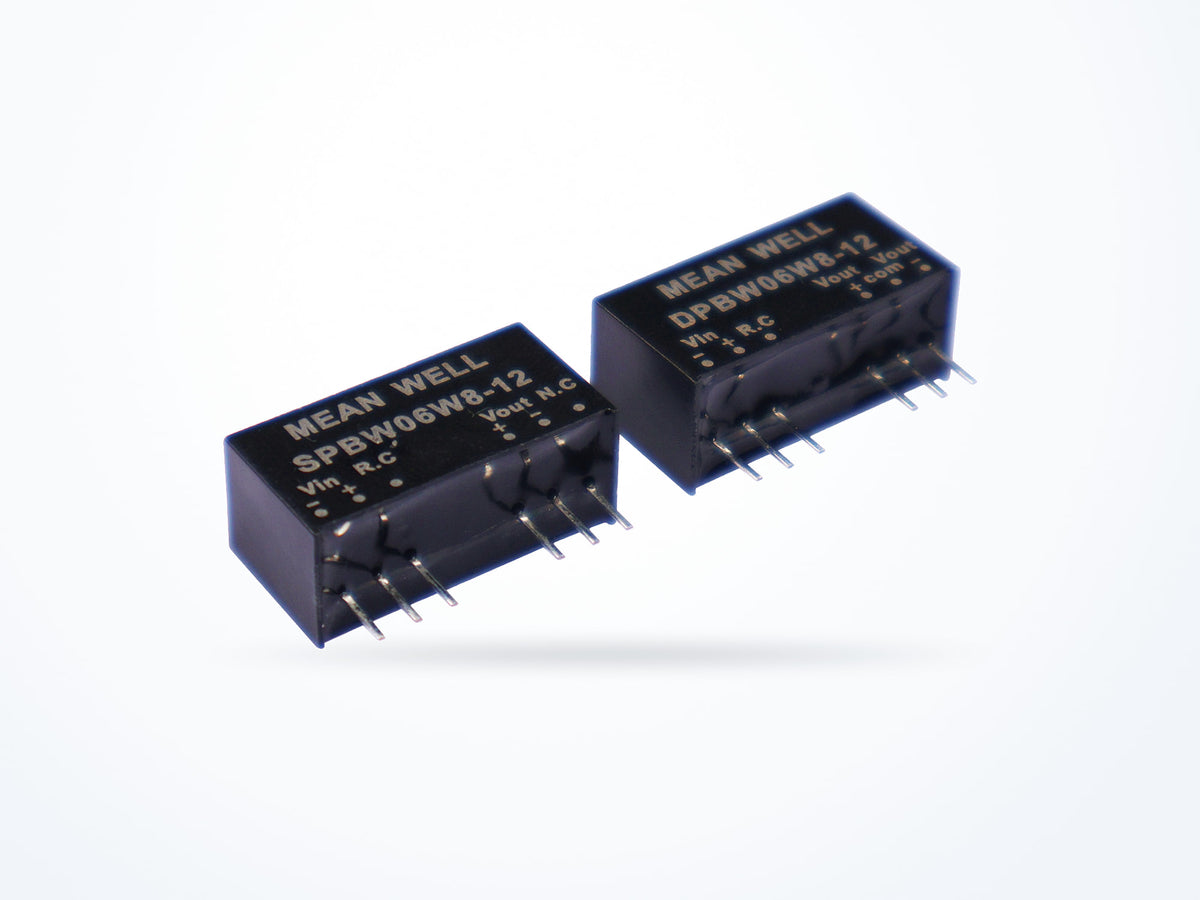

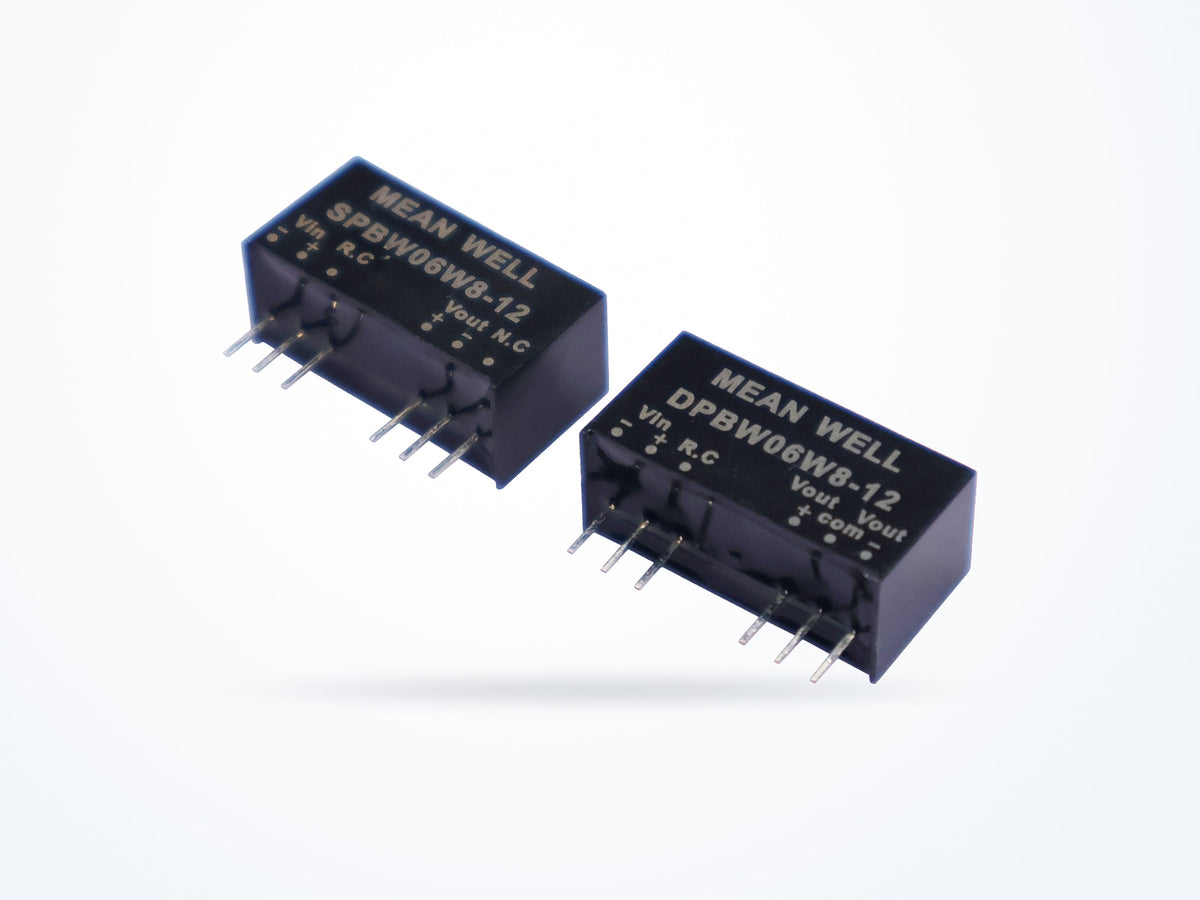

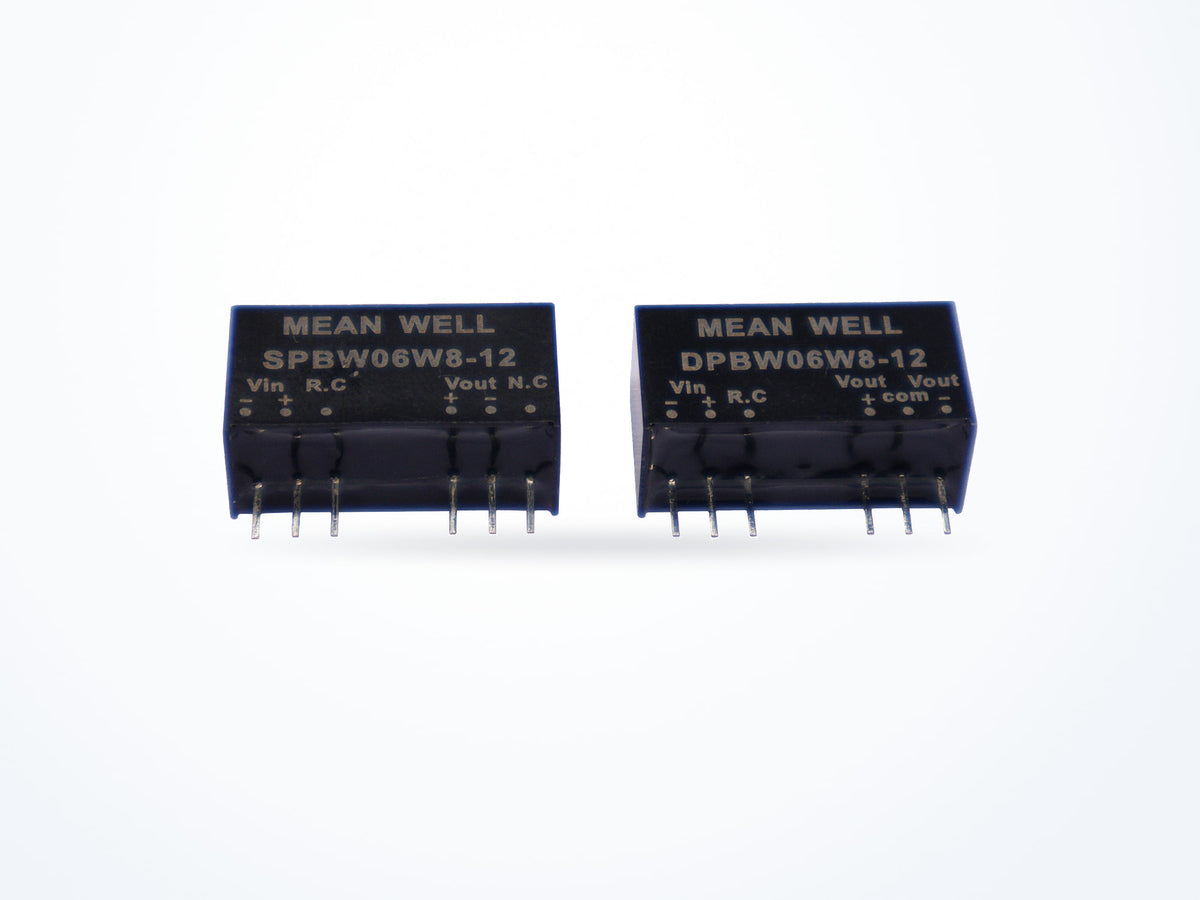

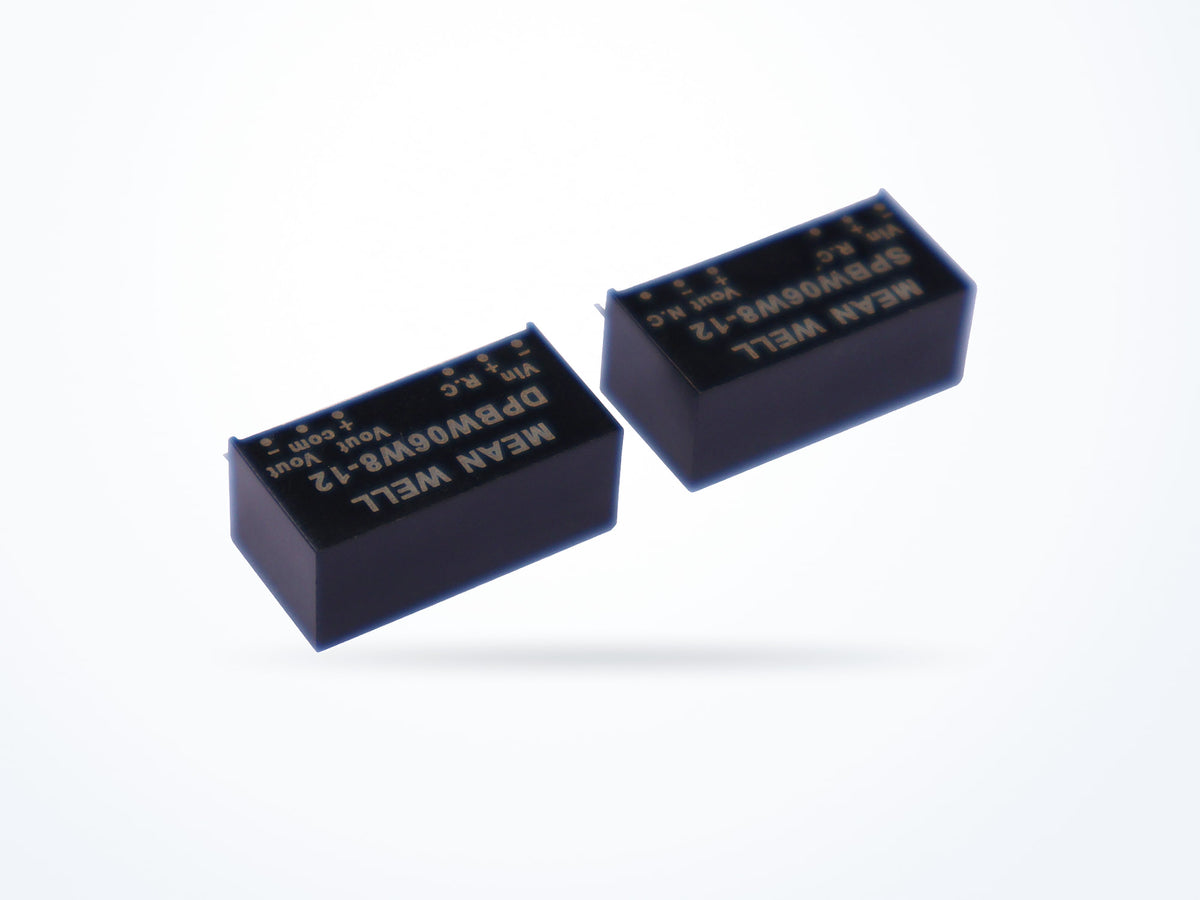

MEAN WELL DPBW06W8-12 6W 12V 0.25A On Board Type (Module Potted)

Part numberDPBW06W8-12
Output voltage 12 V
Rated current 0.25 A
Rated power 6 W
$16.11Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SPBW06W8,DPBW06W8 model selection table SIP Package
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 0.25 A
Rated power 6 W
Typical efficiency 86 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 85 °C
Dimensions (L × W × H) 21.8 × 9.2 × 11.1 mm

Is this model right for you?

Within the SPBW06W8,DPBW06W8 series, the DPBW06W8-12 lists 12 V, 0.25 A, 86%. By comparison DPBW06W8-05 lists 5 V, 0.6 A, 83%; DPBW06W8-15 lists 15 V, 0.2 A, 85%; SPBW06W8-05 lists 5 V, 1.2 A, 82%; SPBW06W8-12 lists 12 V, 0.5 A, 87%, and 1 further model. Select the model whose output voltage and output current match the installation.

Product overview

The DPBW06W8-12 is a DC/DC On Board Type (Module Potted) product from MEAN WELL, part of the SPBW06W8,DPBW06W8 series in the SIP Package family. It has a 9~75Vdc input voltage range and uses free-air convection cooling. The case is non-conductive black plastic (UL 94V-0 rated). Dimensions are 21.8 × 9.2 × 11.1 mm and net weight is 4.8 g.

Where this model fits

The DPBW06W8-12 is used in Embedded & Board-level Design. Its case is non-conductive black plastic (UL 94V-0 rated), cooling is by free-air convection, and dimensions are 21.8 × 9.2 × 11.1 mm with a net weight of 4.8 g.

Complete technical specifications

Rev. 2025-05-09
Output
Output voltage 12 V
Rated current 0.25 A
Rated power 6 W
Input
AC input range 9~75Vdc
DC input range 9–75 VDC
Typical efficiency 86 %
Protection
Short circuit Protected
Overload Protected
Continuous, automatic recovery
Environmental
Operating temperature -40 to 85 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 21.8 × 9.2 × 11.1 mm
Net weight 4.8 g
Cooling Free-air convection
Fan Not supported
Case material Non-Conductive black plastic (UL 94V-0 rated)
Safety & compliance
Safety standards EAC TP TC 020/2011 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number DPBW06W8-12
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series SPBW06W8,DPBW06W8

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVdc
Isolation resistance I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Parameter Standard Test Level / Note
Read the datasheet's exact wording

EAC TP TC 020/2011 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number DPBW06W8-12
Minimum order quantity 1
Country of origin China
Typical packed weight 155 g
Unit weight 4.8 g

Downloads

SPBW06W8,DPBW06W8 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
DPBW06W8-12 12 V0.25 A6 W$16.11
Ships in 3–5 business days

DPBW06W8-12: 12 V output; the rest of the series runs 3.3 V to 15 V.

DPBW06W8-12: 0.25 A output current; the rest of the series runs 0.2 A to 1.5 A.

DPBW06W8-12: 6 W rated power; SPBW06W8-03: 4.95 W.

DPBW06W8-12: 86% typical efficiency; the rest of the series runs 82% to 87%.
