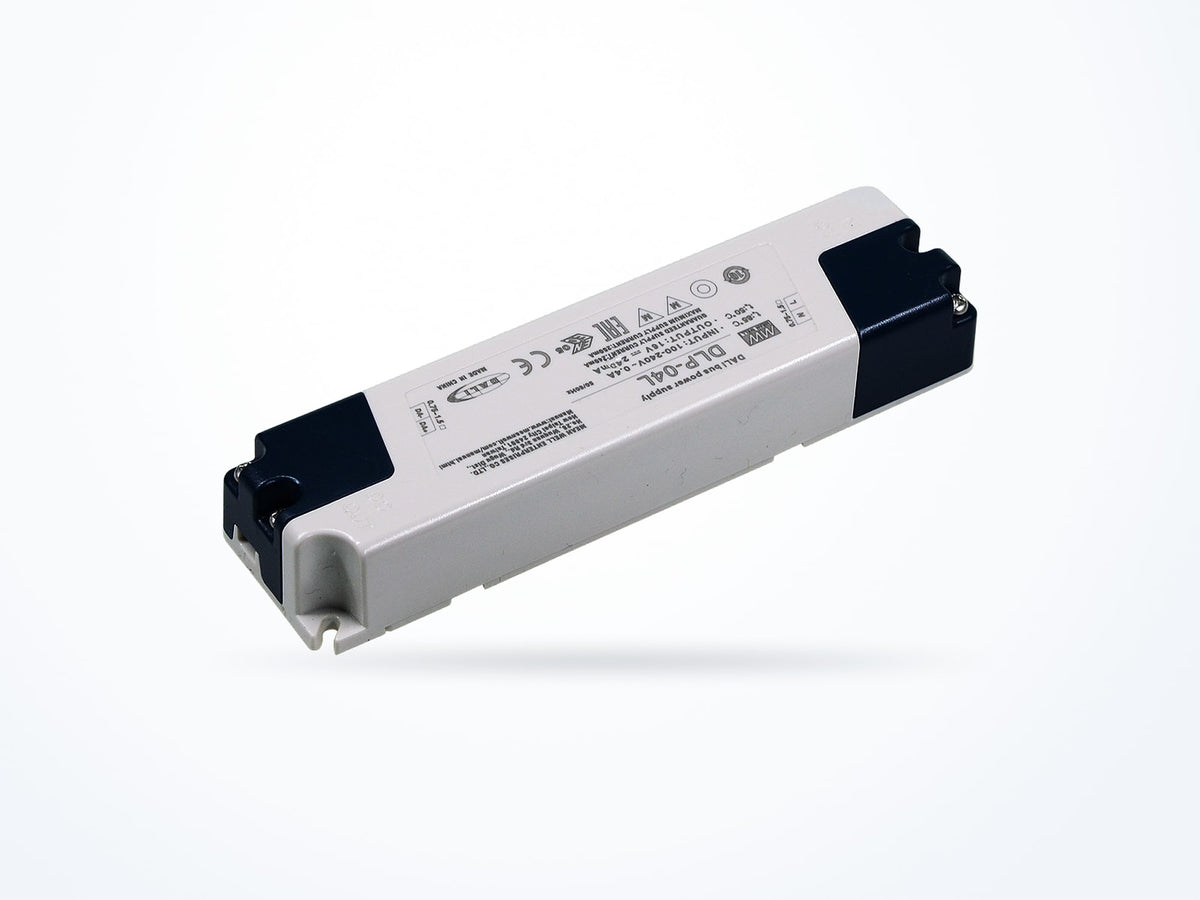

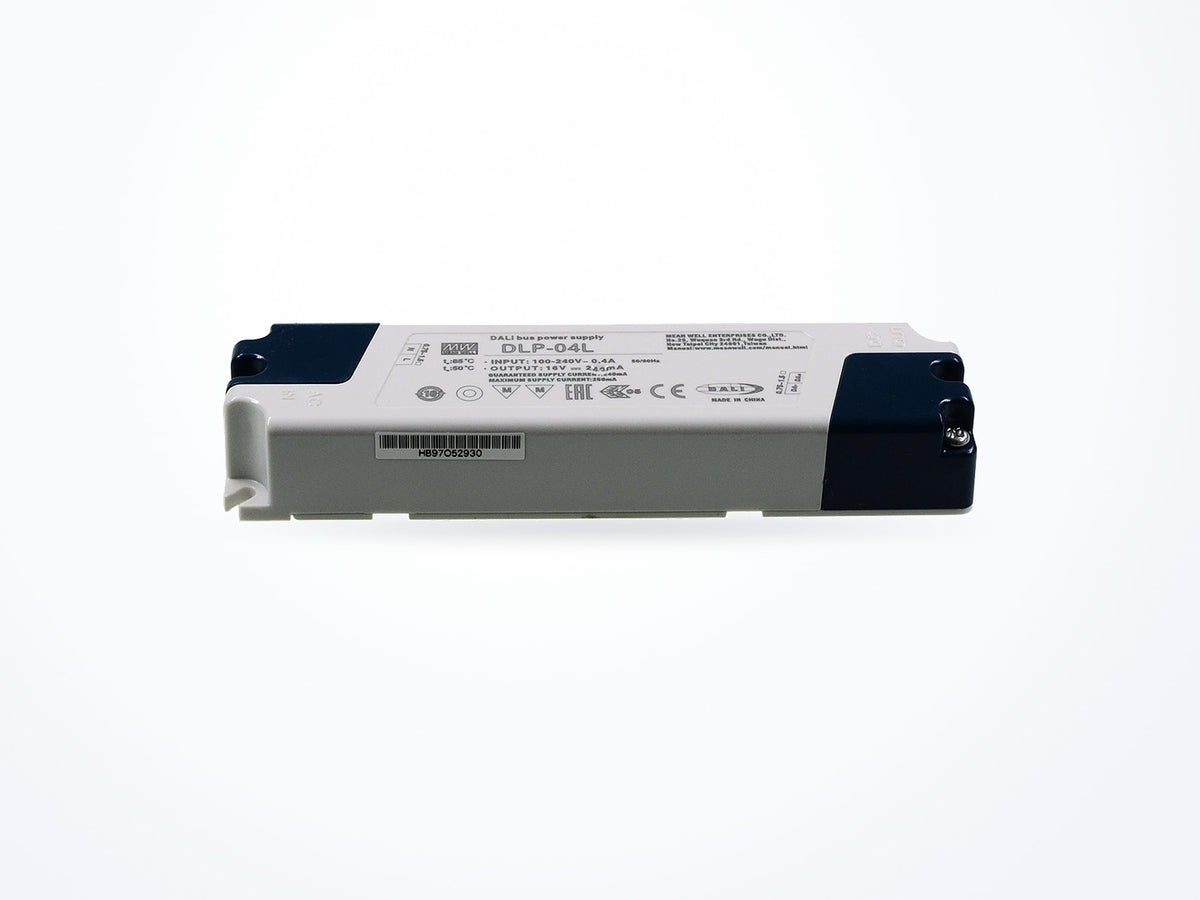

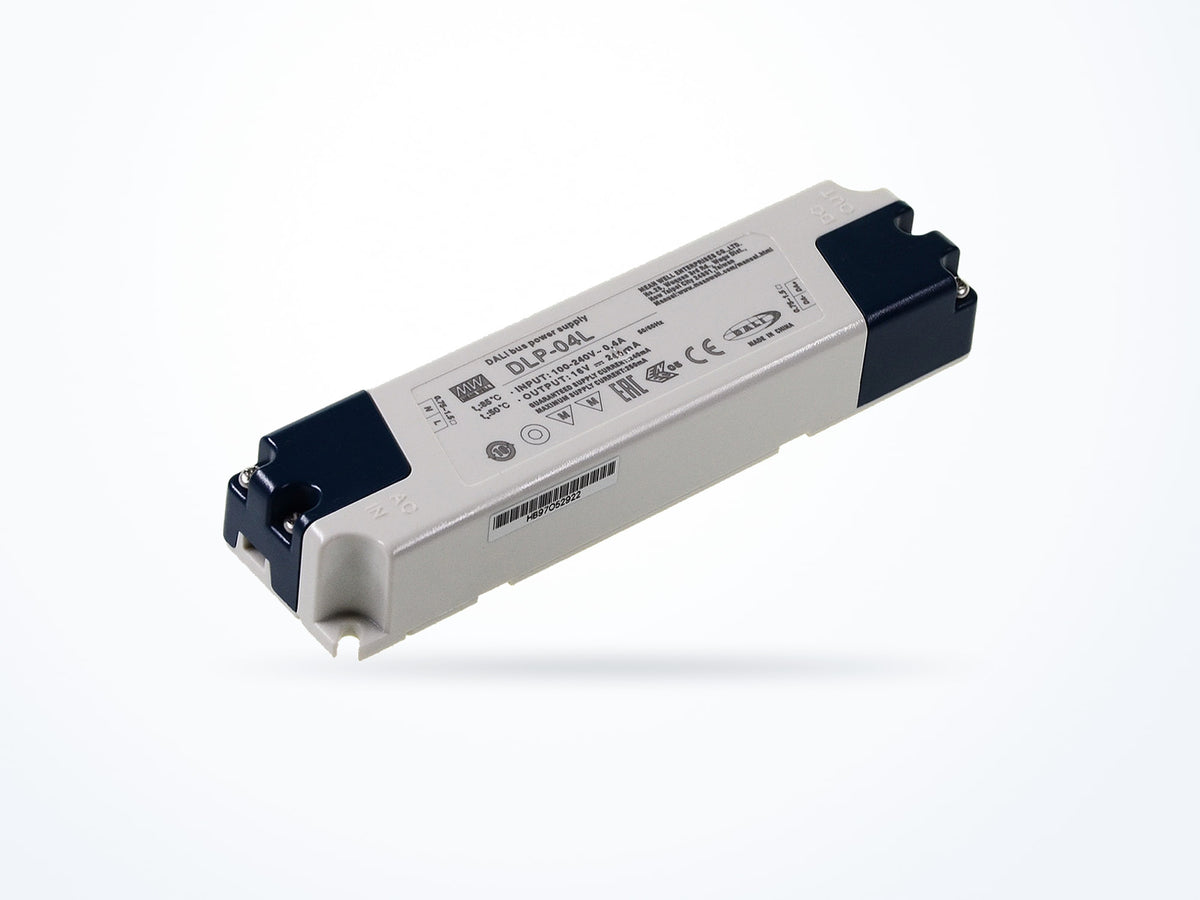

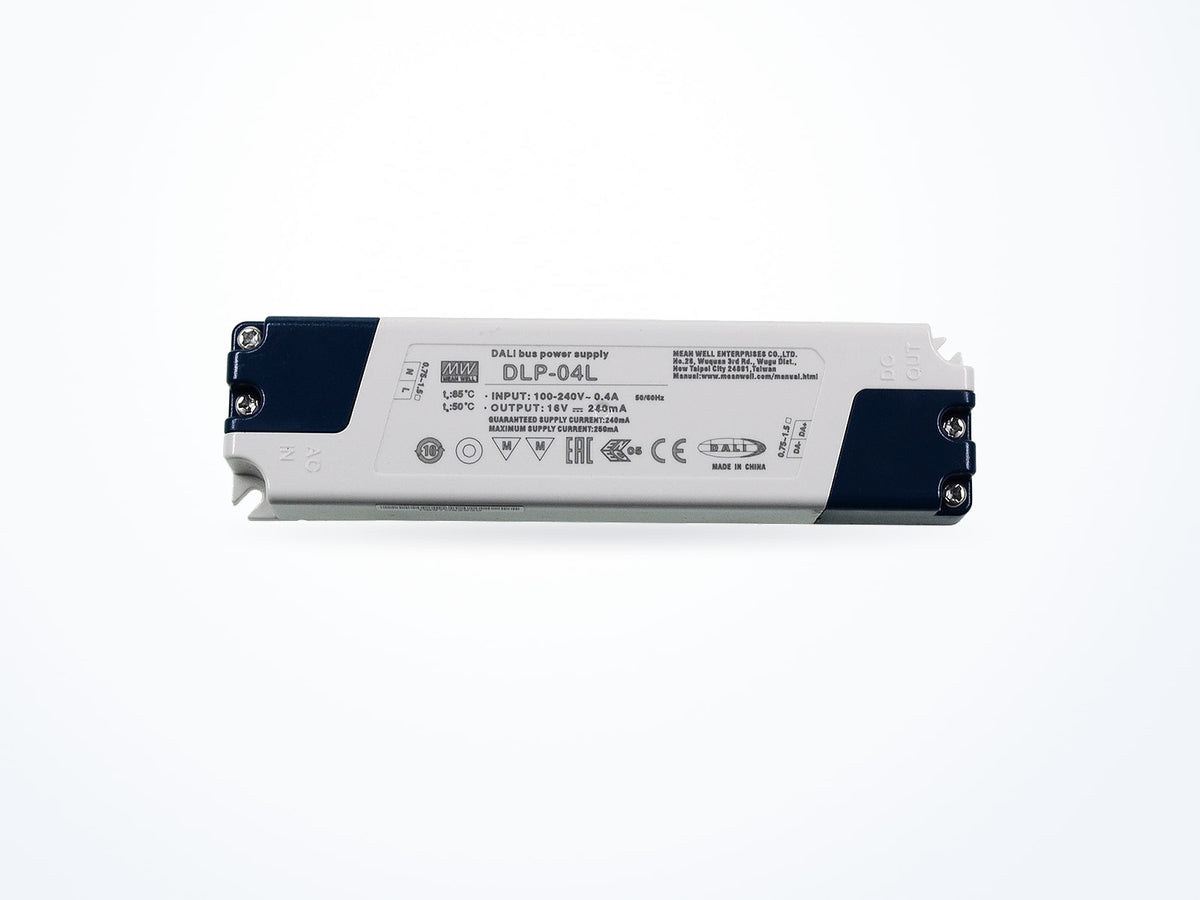

MEAN WELL DLP-04L 4.488W 18.7V 0.24A LED Driver

Part numberDLP-04L
Output voltage 18.7 V
Rated current 0.24 A
Rated power 4.488 W
$37.90Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
DLP-04 model selection table DLP-04 Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 18.7 V
Rated current 0.24 A
Rated power 4.488 W
AC input range 90–264 VAC
Mechanical
Operating temperature -20 to 60 °C
Dimensions (L × W × H) 35 × 90 × 54.5 mm

Is this model right for you?

The DLP-04L lists 18.7 V, 0.24 A, 90 ~ 264VAC 120 ~ 370VDC input, the same as the other models in the DLP-04 series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The DLP-04L is an AC/DC LED Driver from MEAN WELL's DLP-04 Series. It operates from a 90 ~ 264VAC or 120 ~ 370VDC input with a frequency range of 47 ~ 63Hz. The unit measures 35 × 90 × 54.5 mm and has a net weight of 87 g.

Where this model fits

The DLP-04L is used in Building & Home Automation and LED Lighting applications. Its operating temperature range is -20 to 60 °C and its humidity range is 20 to 90%. The unit measures 35 × 90 × 54.5 mm and weighs 87 g.

Complete technical specifications

Rev. 2026-04-27
Output
Output voltage 18.7 V
Rated current 0.24 A
Rated power 4.488 W
Input
AC input range 90–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
No-load consumption 0.5 W
Protection
Over voltage Protected
Shut off o/p voltage, clamping by zener diode
Environmental
Operating temperature -20 to 60 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 35 × 90 × 54.5 mm
Net weight 87.0 g
Safety & compliance
Safety standards BS EN/EN61347-1, BS EN/EN61347-2-11, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number DLP-04L
Brand MEAN WELL
Category AC/DC LED Driver
Series DLP-04

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55015, BS EN/EN61547, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3, light industry level, EAC TP TC 020

Standards certified against

  • EN61347-1
  • EN61347-2-11
Read the datasheet's exact wording

BS EN/EN61347-1, BS EN/EN61347-2-11, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number DLP-04L
Minimum order quantity 1
Country of origin China
Warranty 3-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 249 g
Unit weight 87 g

Downloads

DLP-04 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
DLP-04R16 V0.24 A3.84 W$36.32
Ships in 3–5 business days
DLP-04L 18.7 V0.24 A4.488 W$37.90
Ships in 3–5 business days

DLP-04L: 18.7 V output; DLP-04R: 16 V.

DLP-04L: 4.49 W rated power; DLP-04R: 3.84 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for DLP-04L

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting DLP-04L View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-27
Last verified

How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
