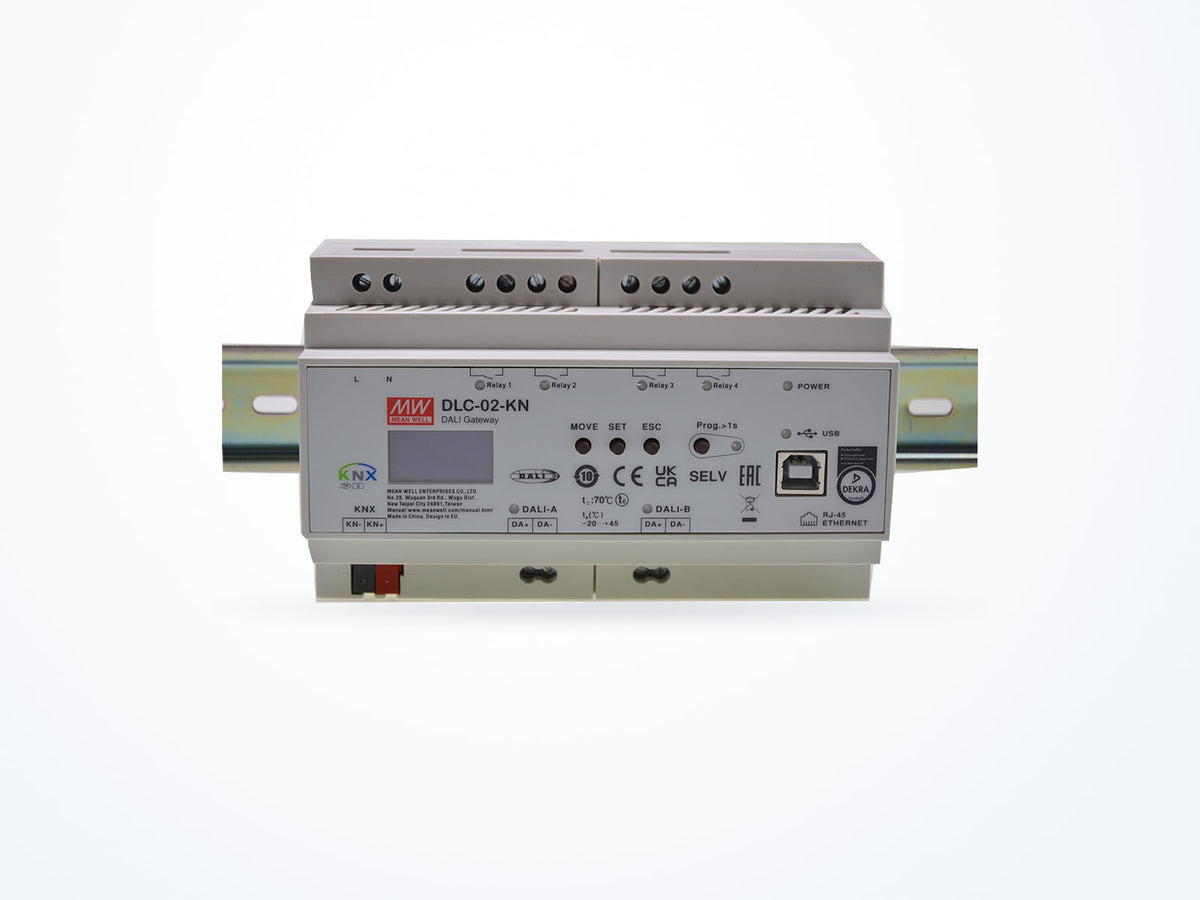

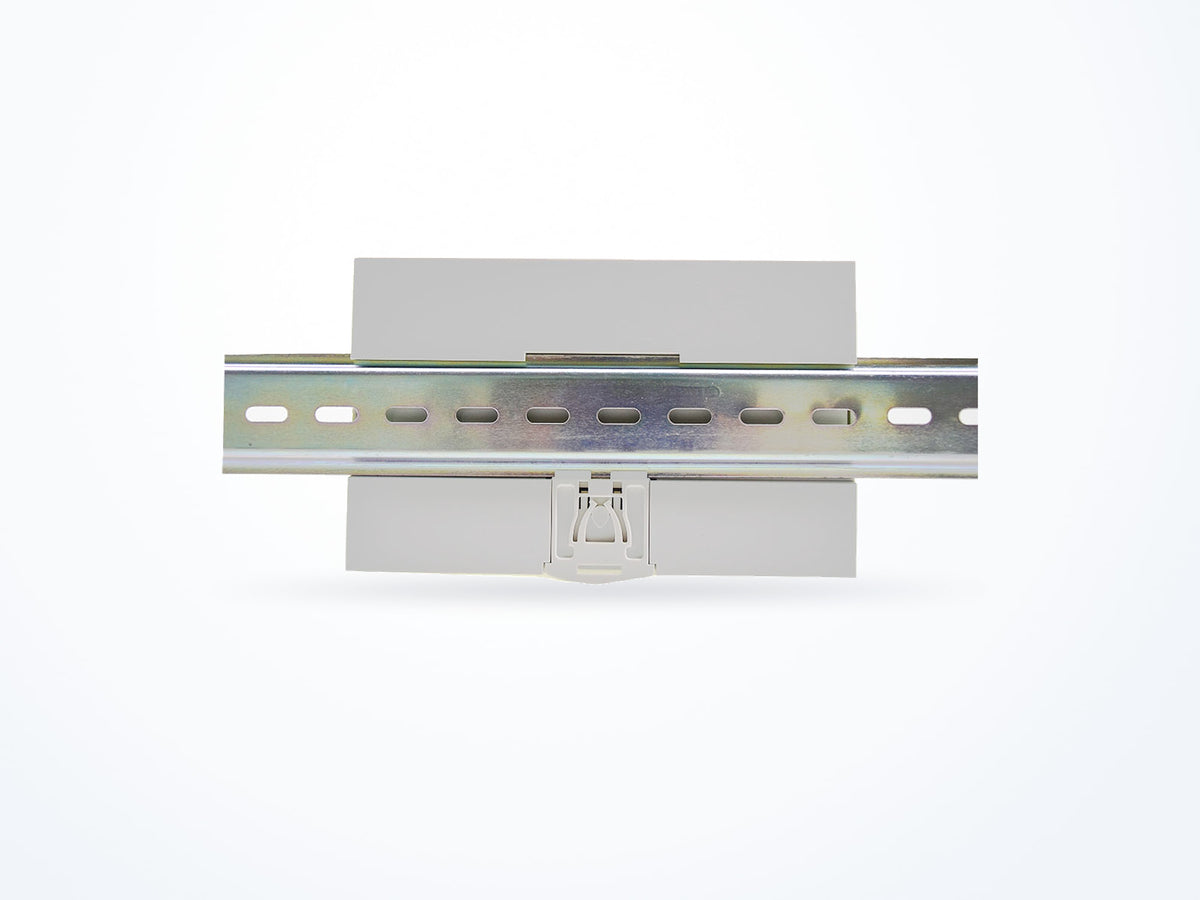

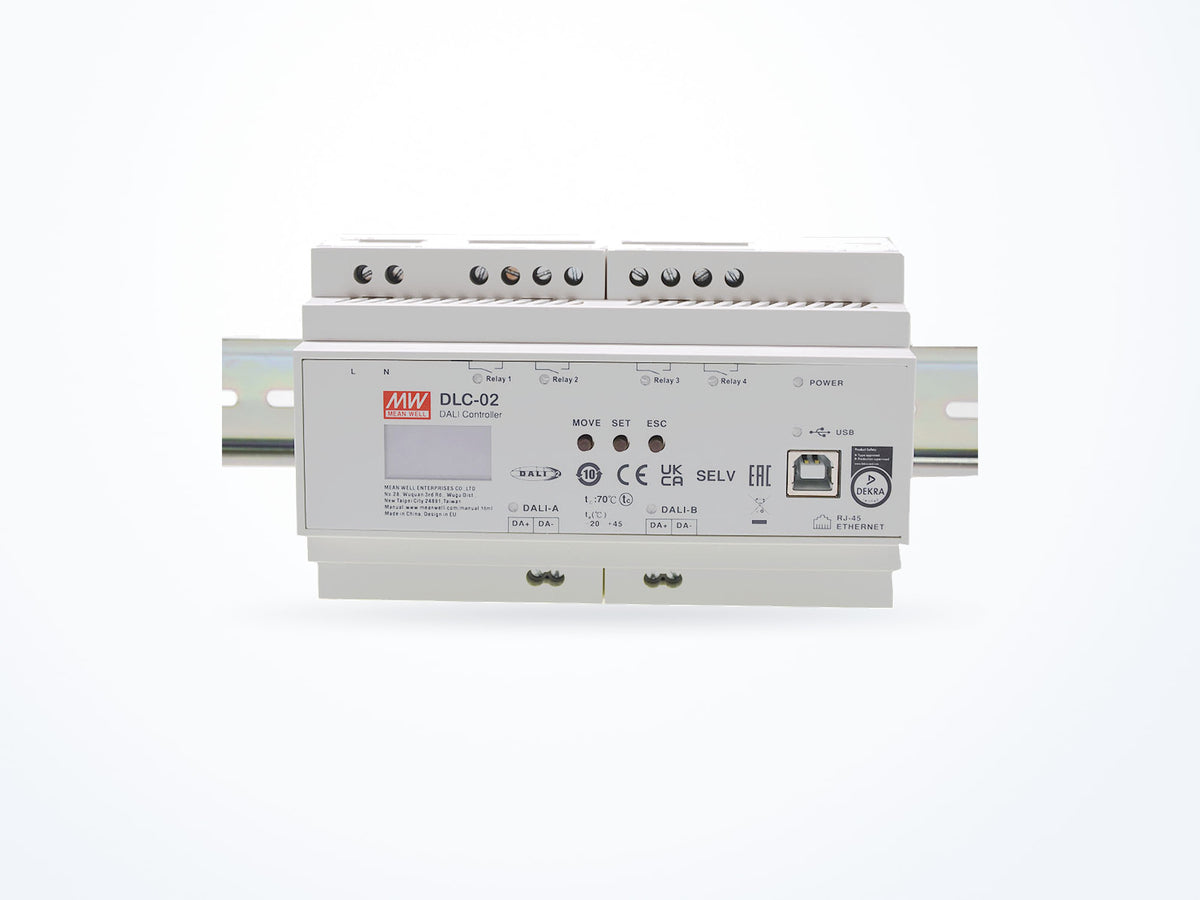

MEAN WELL DLC-02 0.24A LED Driver
Procurement confidence
- Genuine product Sourced through our documented supply chain.
- Worldwide shipping Export documentation handled for you.
- Commercial invoice Available for every order.
- Specification support Talk to someone who reads datasheets.
Key specifications
Complete technical specifications| Rated current | 0.24 A |
|---|---|
| AC input range | 100–305 VAC |
| Operating temperature | -25 to 45 °C |
|---|---|
| Dimensions (L × W × H) | 144 × 90 × 58.3 mm |
Is this model right for you?
Product overview
Where this model fits
Complete technical specifications
Rev. 2024-10-16| Rated current | 0.24 A |
|---|
| AC input range | 100–305 VAC |
|---|---|
| DC input range | 140–430 VDC |
| Frequency range | 47–63 Hz |
| Operating temperature | -25 to 45 °C |
|---|---|
| Storage temperature | -25 to 70 °C |
| Operating humidity | 5–93 % RH |
| Vibration | 5 ~ 150Hz, 2G 12min./1cycle, each along X, Y, Z axes according to EN50090-2-2 |
| Dimensions (L × W × H) | 144 × 90 × 58.3 mm |
|---|---|
| Net weight | 430.0 g |
| Safety standards | Compliance to BS EN/EN61347-1, BS EN/EN61347-2-11 |
|---|
These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.
| Part number | DLC-02 |
|---|---|
| Brand | MEAN WELL |
| Category | AC/DC LED Driver |
| Series | DLC-02 controller |
Approvals and compliance
From the manufacturer's datasheet for this series| EMC emission | Compliance to BS EN/EN55015,Harmonic current class A |
|---|---|
| EMC immunity | Compliance to BS EN/EN61547 618.9K hrs min. Telcordia SR-332 (Bellcore) ; 190.1K hrs min. MIL-HDBK-217F (25℃) |
Designed to reference
The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.
BS EN/EN61347-1, BS EN/EN61347-2-11
Read the datasheet's exact wording
Compliance to BS EN/EN61347-1, BS EN/EN61347-2-11
Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.
Certificates
Certificate copy supplied with this model.
Enlarge
CE · Certificate number R50453592
Ordering & shipping information
| Part number | DLC-02 |
|---|---|
| Minimum order quantity | 1 |
| Country of origin | China |
| Typical packed weight | 613 g |
| Unit weight | 430 g |
DLC-02 controller model comparison
View all models| Model | Output voltage | Rated current | Rated power | Price | Availability |
|---|---|---|---|---|---|
| DLC-02 Currently viewing | 0.24 A | $467.43 |
Ships in 3–5 business days
|
Request a bulk quote
Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.
- 1 We confirm the part number and quantity against current stock.
- 2 You receive pricing, lead time and freight options by email.
- 3 Approve the quotation and we issue the invoice and shipping documents.
Request a quote for DLC-02
Confirm quantity and destination and we will come back with pricing and lead time.
Technical data source
- Primary source
- MEAN WELL
- Datasheet revision
- 2024-10-16
- Last verified
How we source and verify product data
Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
