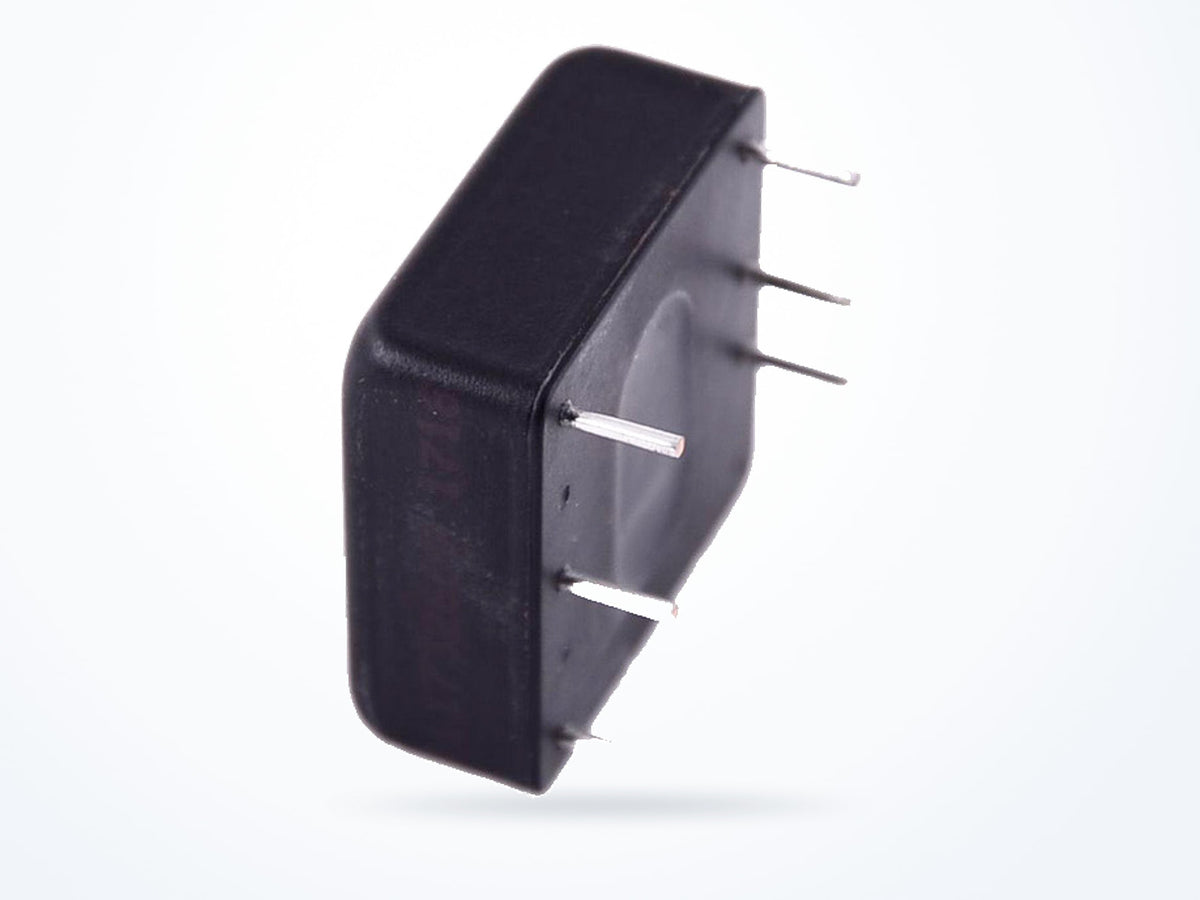

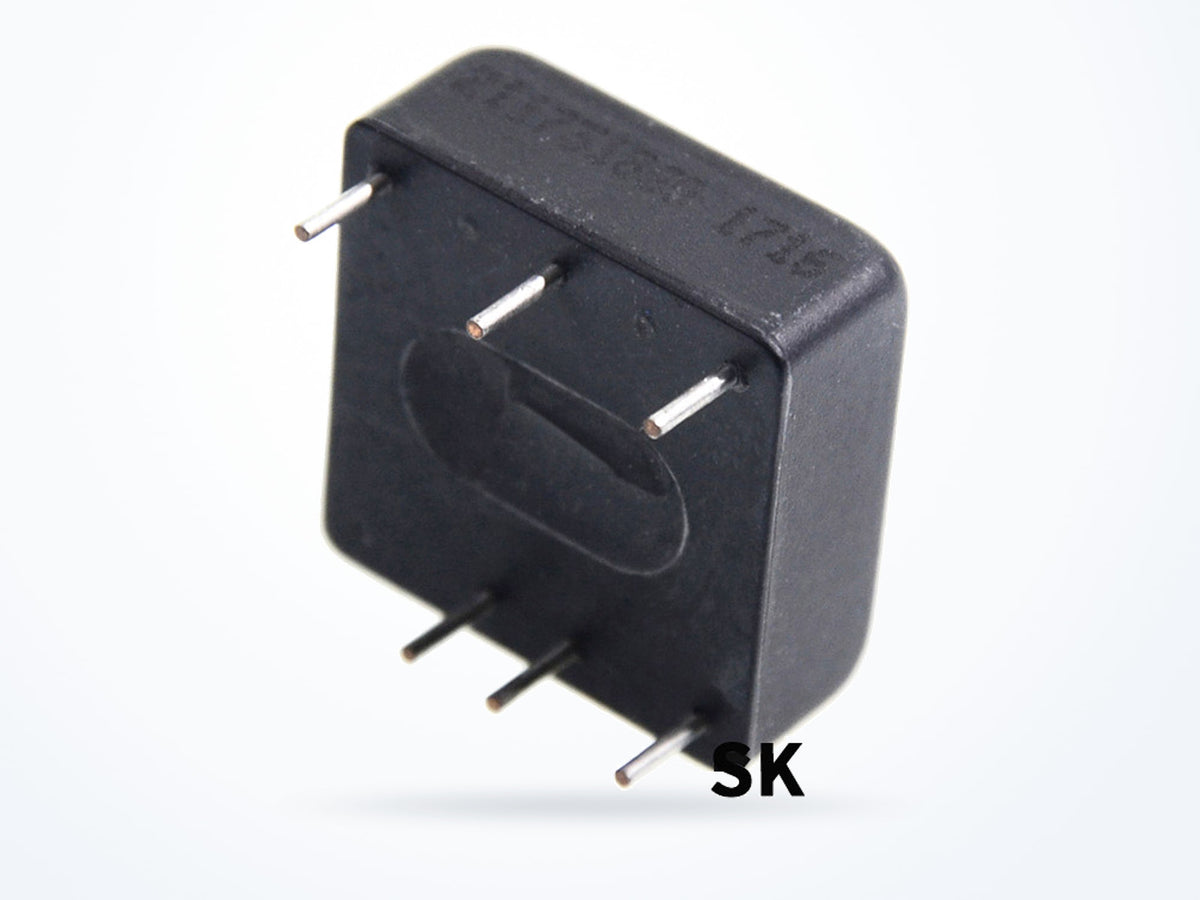

MEAN WELL DKMW30G-15 30W 15V 1A On Board Type (Module Potted)
Procurement confidence
- Genuine product Sourced through our documented supply chain.
- Worldwide shipping Export documentation handled for you.
- Commercial invoice Available for every order.
- Specification support Talk to someone who reads datasheets.
Key specifications
Complete technical specifications| Output voltage | 15 V |
|---|---|
| Rated current | 1 A |
| Rated power | 30 W |
| Typical efficiency | 89 % |
| Cooling | Free-air convection |
|---|---|
| Operating temperature | -40 to 85 °C |
| Dimensions (L × W × H) | 25.4 × 25.4 × 10.2 mm |
Is this model right for you?
Product overview
Where this model fits
Complete technical specifications
Rev. 2024-04-30| Output voltage | 15 V |
|---|---|
| Rated current | 1 A |
| Rated power | 30 W |
| AC input range | 18~75Vdc |
|---|---|
| DC input range | 18–75 VDC |
| Typical efficiency | 89 % |
| Overload | Protected |
|---|---|
| Over voltage | Protected |
| Over temperature | Protected |
| Operating temperature | -40 to 85 °C |
|---|---|
| Storage temperature | -55 to 125 °C |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Dimensions (L × W × H) | 25.4 × 25.4 × 10.2 mm |
|---|---|
| Net weight | 19.2 g |
| Cooling | Free-air convection |
| Fan | Not supported |
| Case material | Black coated copper with non-conductive base |
| Safety standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved |
|---|
These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.
| Part number | DKMW30G-15 |
|---|---|
| Brand | MEAN WELL |
| Category | DC/DC On Board Type (Module Potted) |
| Series | SKMW30,DKMW30 |
Approvals and compliance
From the manufacturer's datasheet for this seriesEurasian Economic Union
- EAC
Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.
| Withstand voltage | I/P-O/P:1.5KVDC |
|---|---|
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC emission | Parameter Standard Test Level / Note |
Read the datasheet's exact wording
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.
Certificates
Certificate copy supplied with this model.
Enlarge
CE · Certificate number R50453592
Ordering & shipping information
| Part number | DKMW30G-15 |
|---|---|
| Minimum order quantity | 1 |
| Country of origin | China |
| Typical packed weight | 171 g |
| Unit weight | 19.2 g |
