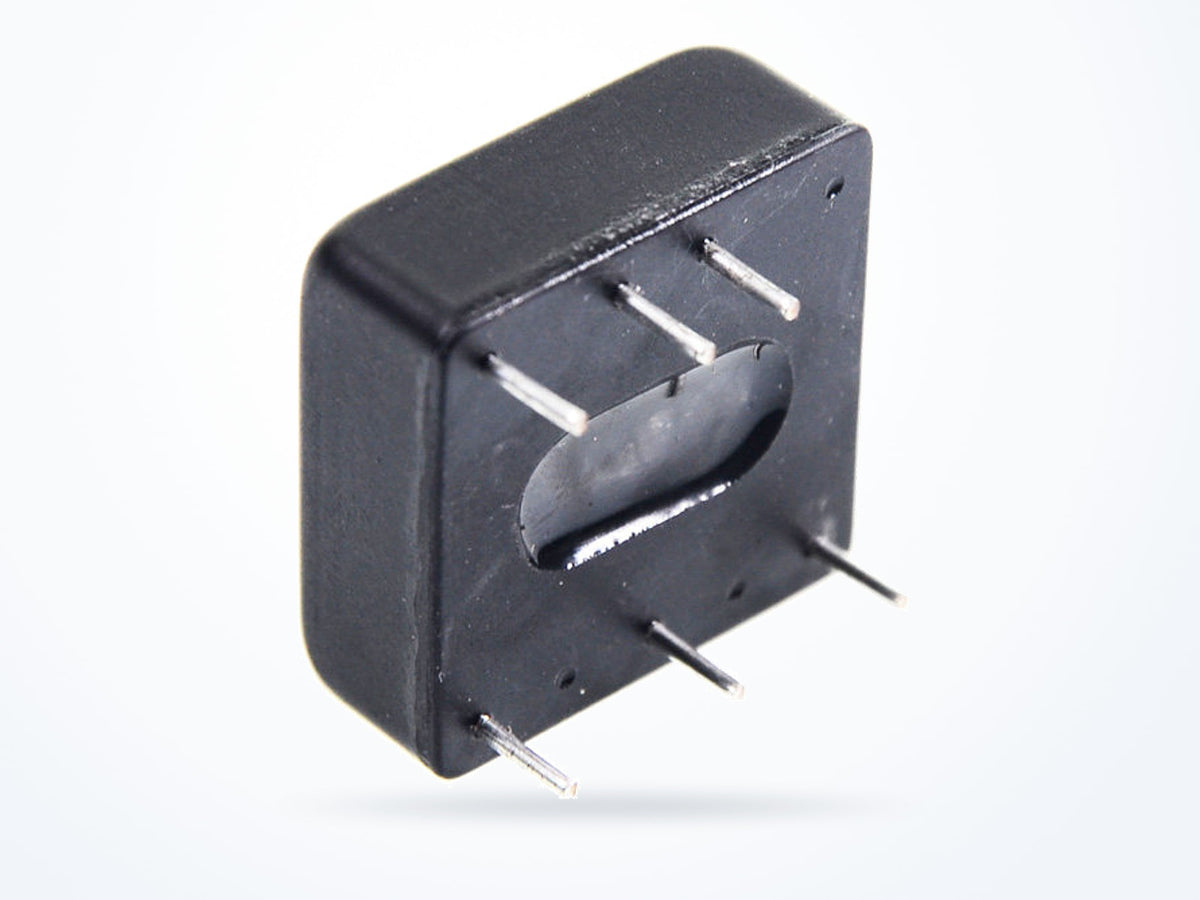

MEAN WELL DKMW20G-12 19.92W 12V 0.83A On Board Type (Module Potted)

Part numberDKMW20G-12
Output voltage 12 V
Rated current 0.83 A
Rated power 19.92 W
$59.06Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SKMW20,DKMW20 model selection table DIP - 1" x 1" Footprint
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 0.83 A
Rated power 19.92 W
Typical efficiency 87 %
Mechanical
Cooling Free-air convection

Is this model right for you?

Within the SKMW20,DKMW20 series, the DKMW20G-12 lists 12 V, 0.83 A, 19.92 W, 87%. By comparison DKMW20F-12 lists 12 V, 0.83 A, 19.92 W, 87%; DKMW20F-15 lists 15 V, 0.66 A, 19.8 W, 87%; DKMW20G-15 lists 15 V, 0.66 A, 19.8 W, 88%; SKMW20F-05 lists 5 V, 4 A, 20 W, 89%, and 4 further models. Select the model whose output voltage, output current, and rated power match the installation.

Product overview

The DKMW20G-12 belongs to the SKMW20,DKMW20 series and is classified as a DC/DC On Board Type (Module Potted) product within the DIP - 1" x 1" Footprint family. The case is black coated copper with a non-conductive base, and cooling is by free-air convection. Net weight is 19 g.

Where this model fits

The DKMW20G-12 is a DC/DC On Board Type (Module Potted) product for Embedded & Board-level Design. Its case is black coated copper with a non-conductive base, cooling is by free-air convection, and net weight is 19 g.

Complete technical specifications

Rev. 2024-04-30
Output
Output voltage 12 V
Rated current 0.83 A
Rated power 19.92 W
Input
Typical efficiency 87 %
Protection
Overload Protected
Over voltage Protected
Recovers automatically after fault condition is removed
Environmental
Storage temperature -55 to 125 °C
Mechanical
Net weight 19.0 g
Cooling Free-air convection
Fan Not supported
Case material Black coated copper with non-conductive base
Safety & compliance
Safety standards EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number DKMW20G-12
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series SKMW20,DKMW20

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
Read the datasheet's exact wording

EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number DKMW20G-12
Minimum order quantity 1
Country of origin China
Typical packed weight 170 g
Unit weight 19 g

Downloads

SKMW20,DKMW20 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
DKMW20G-12 12 V0.83 A19.92 W$59.06
Ships in 3–5 business days

DKMW20G-12: 12 V output; the rest of the series runs 3.3 V to 15 V.

DKMW20G-12: 0.83 A output current; the rest of the series runs 0.66 A to 4.5 A.

DKMW20G-12: 19.9 W rated power; the rest of the series runs 14.8 W to 20 W.

DKMW20G-12: 87% typical efficiency; 4 other models: 88%; SKMW20F-05 and SKMW20G-12: 89%.
