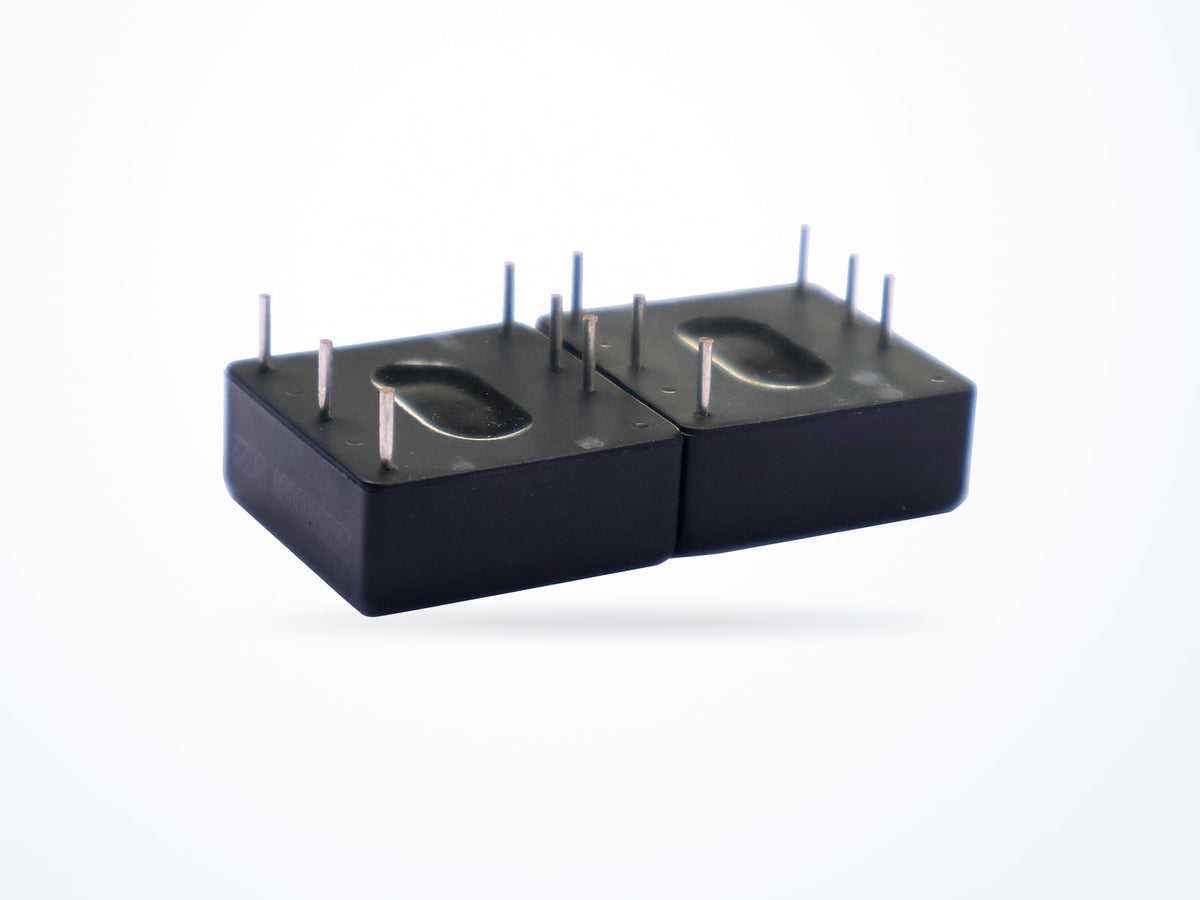

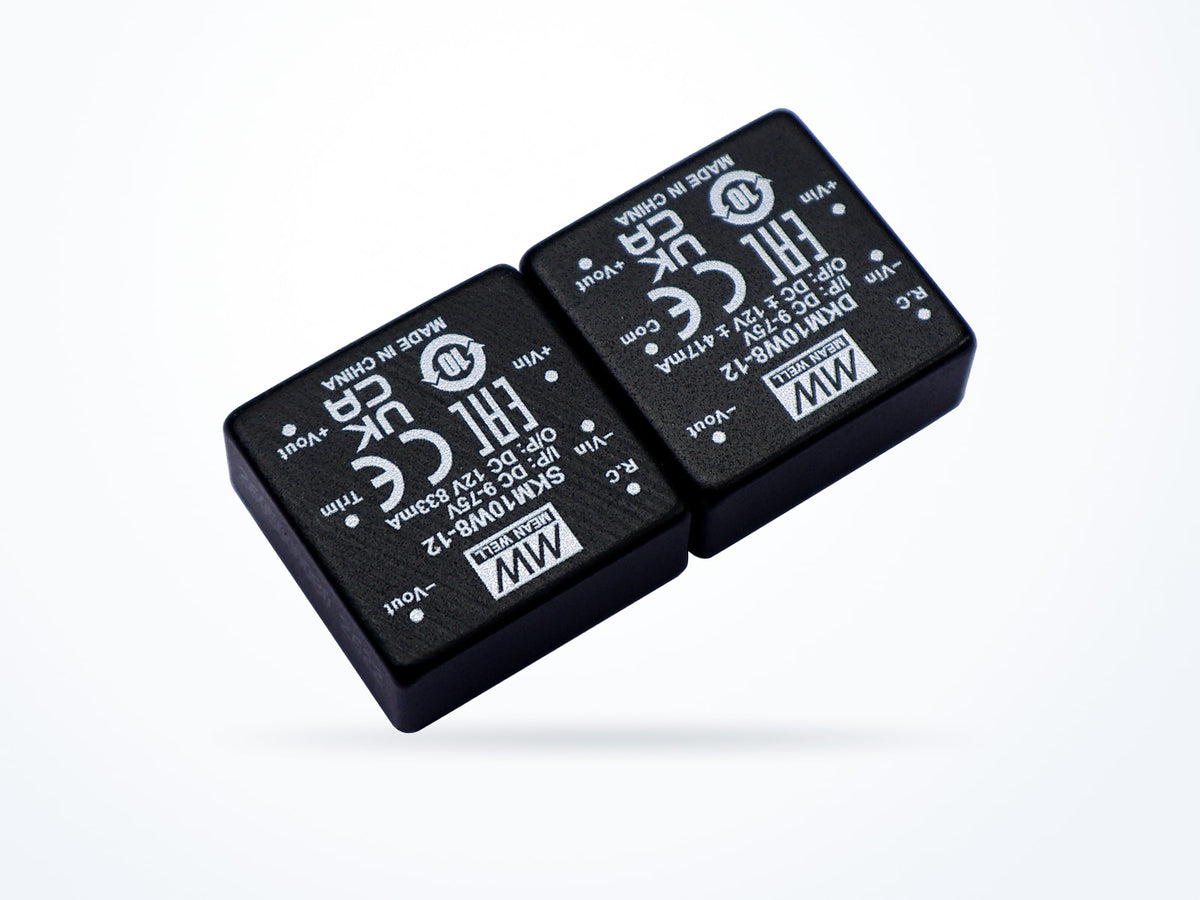

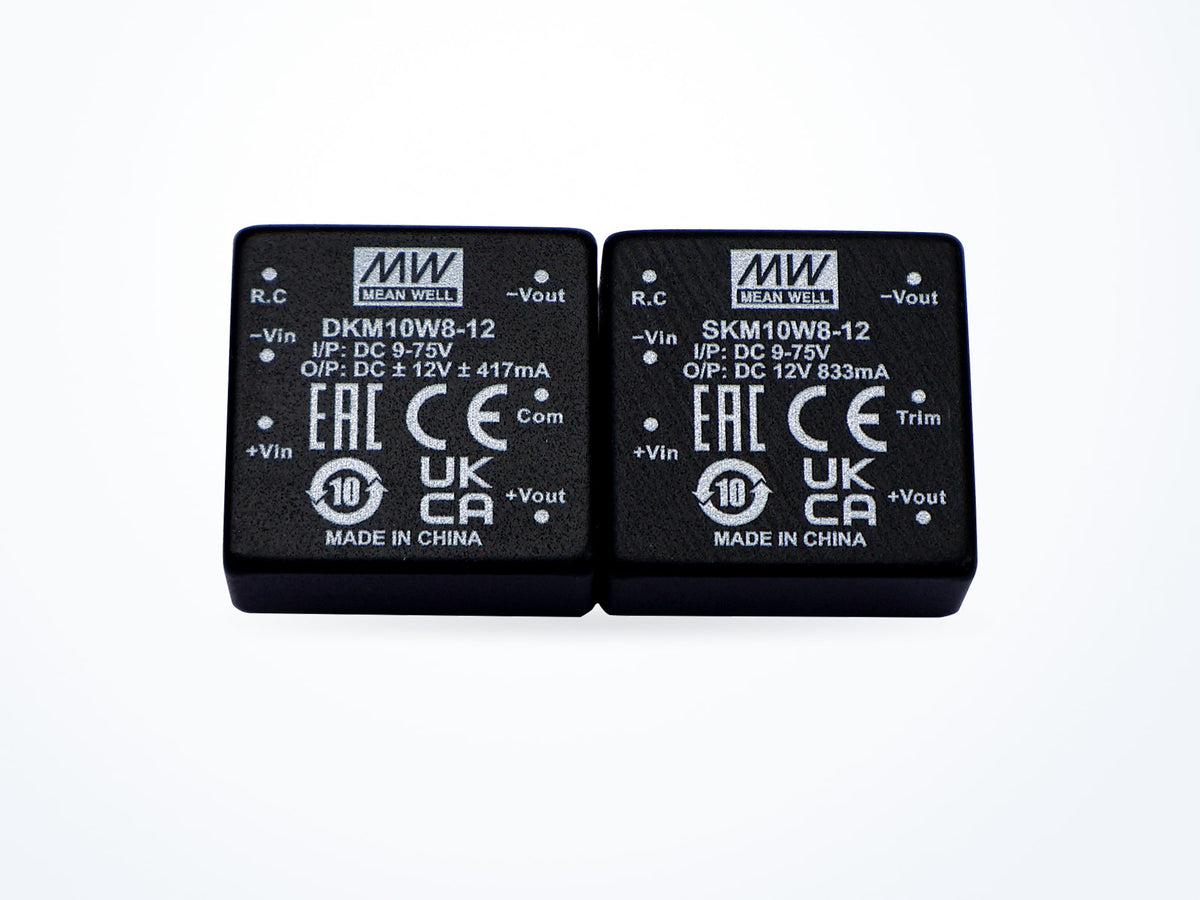

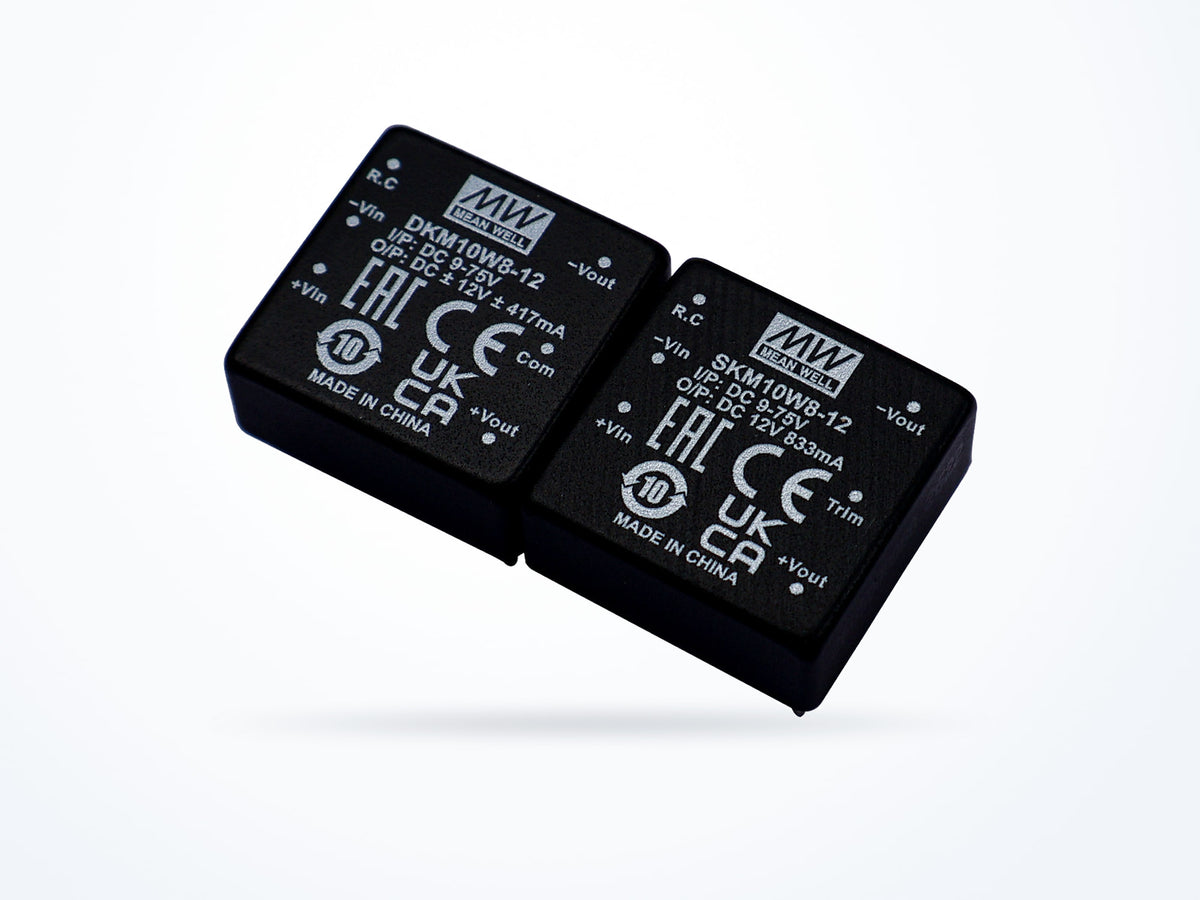

MEAN WELL DKM10W8-12 10.008W 12V 0.417A On Board Type (Module Potted)

Part numberDKM10W8-12
Output voltage 12 V
Rated current 0.417 A
Rated power 10.008 W
$35.37Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SKM10W8,DKM10W8 model selection table DIP - 1" x 1" Footprint
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 0.417 A
Rated power 10.008 W
Typical efficiency 85 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 90 °C
Dimensions (L × W × H) 25.4 × 25.4 × 10.2 mm

Is this model right for you?

Within the SKM10W8,DKM10W8 series, the DKM10W8-12 lists 12 V, 0.417 A, 10.008 W, 85%. By comparison DKM10W8-05 lists 5 V, 1 A, 10 W; SKM10W8-05 lists 5 V, 2 A, 10 W, 84%; SKM10W8-12 lists 12 V, 0.833 A, 9.996 W. Select the model whose output voltage, output current, and rated power match the installation.

Product overview

The DKM10W8-12 from MEAN WELL belongs to the SKM10W8,DKM10W8 series and the DIP - 1" x 1" Footprint family. It is classified as a DC/DC On Board Type (Module Potted) product. The input voltage range is 9~75Vdc, and the case is a five-side metal shielded design. Cooling is by free-air convection, and the unit measures 25.4 × 25.4 × 10.2 mm with a net weight of 18 g.

Where this model fits

The DKM10W8-12 is used in Embedded & Board-level Design. Its five-side metal shielded case and free-air convection cooling are relevant to board-mounted placement. The input voltage range is 9~75Vdc, and the dimensions are 25.4 × 25.4 × 10.2 mm with a net weight of 18 g.

Complete technical specifications

Rev. 2026-04-13
Output
Output voltage 12 V
Rated current 0.417 A
Rated power 10.008 W
Input
AC input range 9~75Vdc
DC input range 9–75 VDC
Typical efficiency 85 %
Protection
Short circuit Protected
Overload Protected
Over voltage Protected
Recovers automatically after fault condition is removed
Environmental
Operating temperature -40 to 90 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 25.4 × 25.4 × 10.2 mm
Net weight 18.0 g
Cooling Free-air convection
Fan Not supported
Case material Five-side Metal shielded case
Safety & compliance
Safety standards EAC TP TC 020/2011 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number DKM10W8-12
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series SKM10W8,DKM10W8

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVdc
Isolation resistance I/P-O/P:1000M Ohms / 500Vdc / 25℃/ 70% RH
EMC emission Parameter Standard Test Level / Note
Read the datasheet's exact wording

EAC TP TC 020/2011 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number DKM10W8-12
Minimum order quantity 1
Country of origin China
Typical packed weight 169 g
Unit weight 18 g

Downloads

SKM10W8,DKM10W8 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
DKM10W8-12 12 V0.417 A10.008 W$35.37
Ships in 3–5 business days

DKM10W8-12: 12 V output; SKM10W8-03: 3.3 V; DKM10W8-05 and SKM10W8-05: 5 V.

DKM10W8-12: 0.417 A output current; the rest of the series runs 0.833 A to 2.5 A.

DKM10W8-12: 10 W rated power; SKM10W8-03: 8.25 W.

DKM10W8-12: 85% typical efficiency; SKM10W8-05: 84%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for DKM10W8-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting DKM10W8-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-13
Last verified

How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
