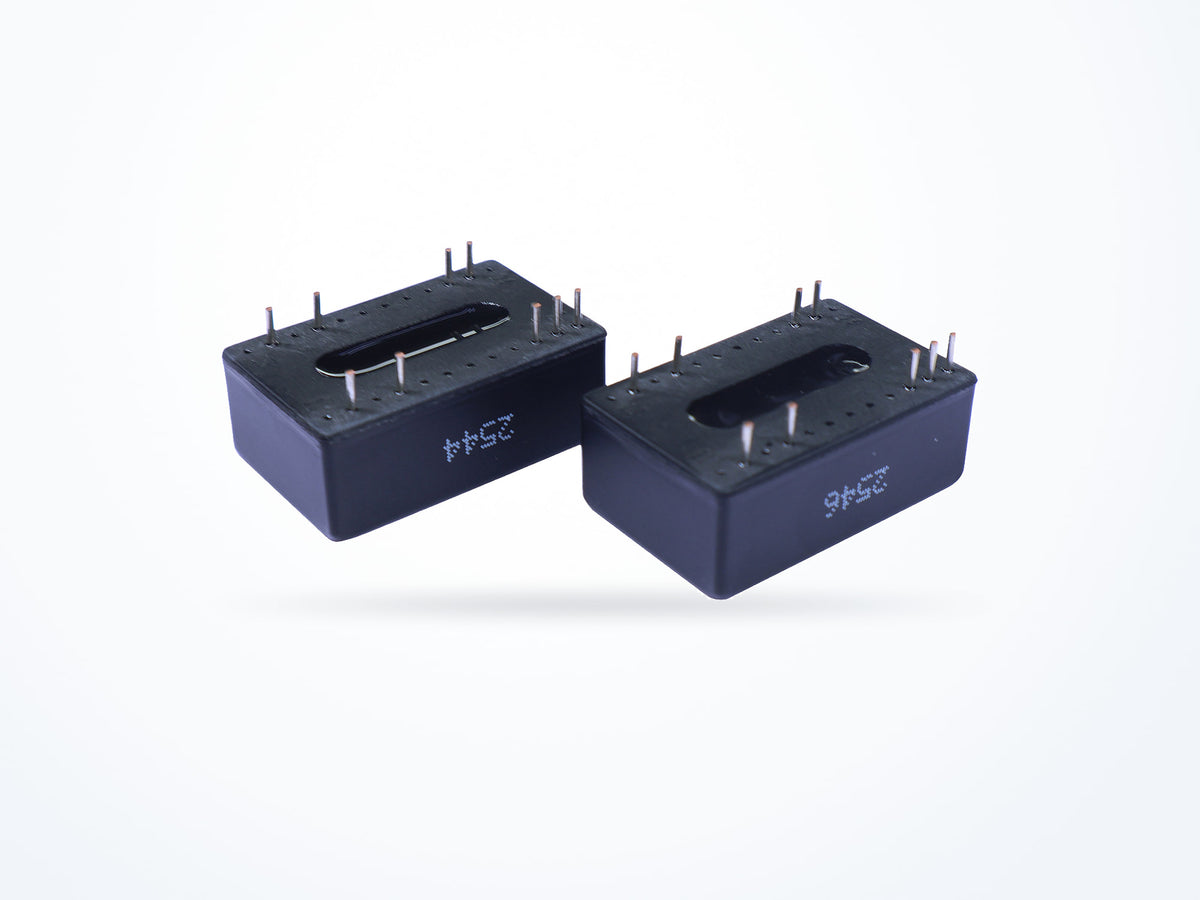

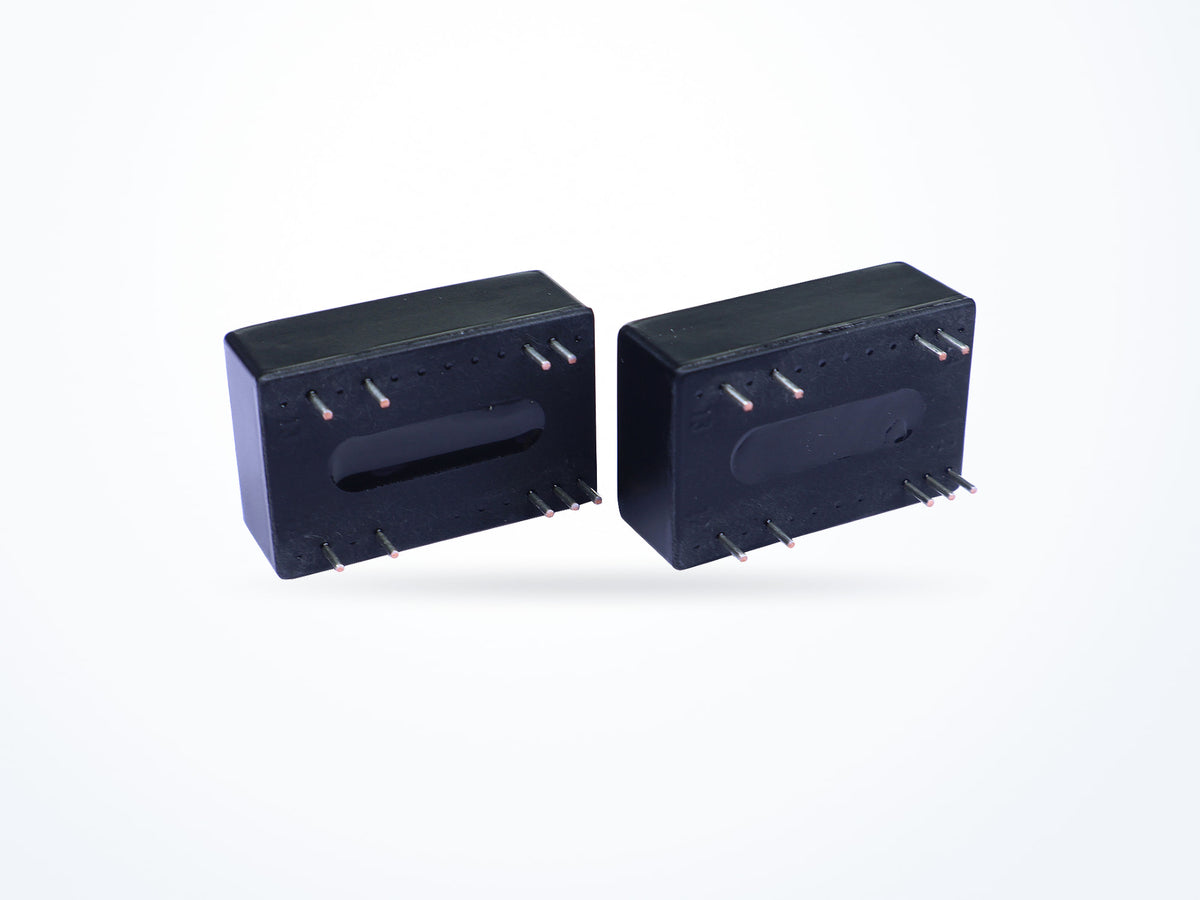

MEAN WELL DCW20W8-15 19.98W 15V 0.666A On Board Type (Module Potted)

Part numberDCW20W8-15
Output voltage 15 V
Rated current 0.666 A
Rated power 19.98 W
$36.32Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SCW20W8,DCW20W8 model selection table DIP - 1.25" x 0.8" Footprint
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 0.666 A
Rated power 19.98 W
Typical efficiency 87 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 95 °C
Dimensions (L × W × H) 31.8 × 20.3 × 12.2 mm

Is this model right for you?

Within the SCW20W8,DCW20W8 series, the DCW20W8-15 lists 15 V, 0.666 A, 19.98 W, 87%. By comparison DCW20W8-12 lists 12 V, 0.833 A, 19.992 W, 87%; SCW20W8-05 lists 5 V, 4 A, 20 W, 85%; SCW20W8-12 lists 12 V, 1.666 A, 19.992 W, 86%; SCW20W8-24 lists 24 V, 0.833 A, 19.992 W, 88%. Select the model whose output voltage, output current, and rated power match the installation.

Product overview

The DCW20W8-15 from MEAN WELL belongs to the SCW20W8,DCW20W8 series and the DIP - 1.25" x 0.8" Footprint family. It accepts a 9~75Vdc input voltage range. The product uses a five-side metal shielded case and free-air convection cooling. Its dimensions are 31.8 × 20.3 × 12.2 mm, and its net weight is 20 g.

Where this model fits

The DCW20W8-15 is used in Embedded & Board-level Design. Its five-side metal shielded case and free-air convection cooling suit board-mounted placement. The operating temperature range is -40 to 95 °C, and the product measures 31.8 × 20.3 × 12.2 mm with a net weight of 20 g.

Complete technical specifications

Rev. 2025-08-21
Output
Output voltage 15 V
Rated current 0.666 A
Rated power 19.98 W
Input
AC input range 9~75Vdc
DC input range 9–75 VDC
Typical efficiency 87 %
Protection
Short circuit Protected
Overload Protected
Over voltage Protected
Continuous, automatic recovery
Environmental
Operating temperature -40 to 95 °C
Storage temperature -40 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 31.8 × 20.3 × 12.2 mm
Net weight 20.0 g
Cooling Free-air convection
Fan Not supported
Case material Five-side Metal shielded case
Safety & compliance
Safety standards EAC TP TC 020/2011 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number DCW20W8-15
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series SCW20W8,DCW20W8

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVdc
Isolation resistance I/P-O/P:1000M Ohms / 500Vdc / 25℃/ 70% RH
EMC emission Parameter Standard Test Level / Note
Read the datasheet's exact wording

EAC TP TC 020/2011 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number DCW20W8-15
Minimum order quantity 1
Country of origin China
Typical packed weight 172 g
Unit weight 20 g

Downloads

SCW20W8,DCW20W8 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
DCW20W8-15 15 V0.666 A19.98 W$36.32
Ships in 3–5 business days

DCW20W8-15: 15 V output; the rest of the series runs 3.3 V to 24 V.

DCW20W8-15: 0.666 A output current; the rest of the series runs 0.833 A to 4 A.

DCW20W8-15: 20 W rated power; SCW20W8-03: 13.2 W.

DCW20W8-15: 87% typical efficiency; the rest of the series runs 85% to 88%.
