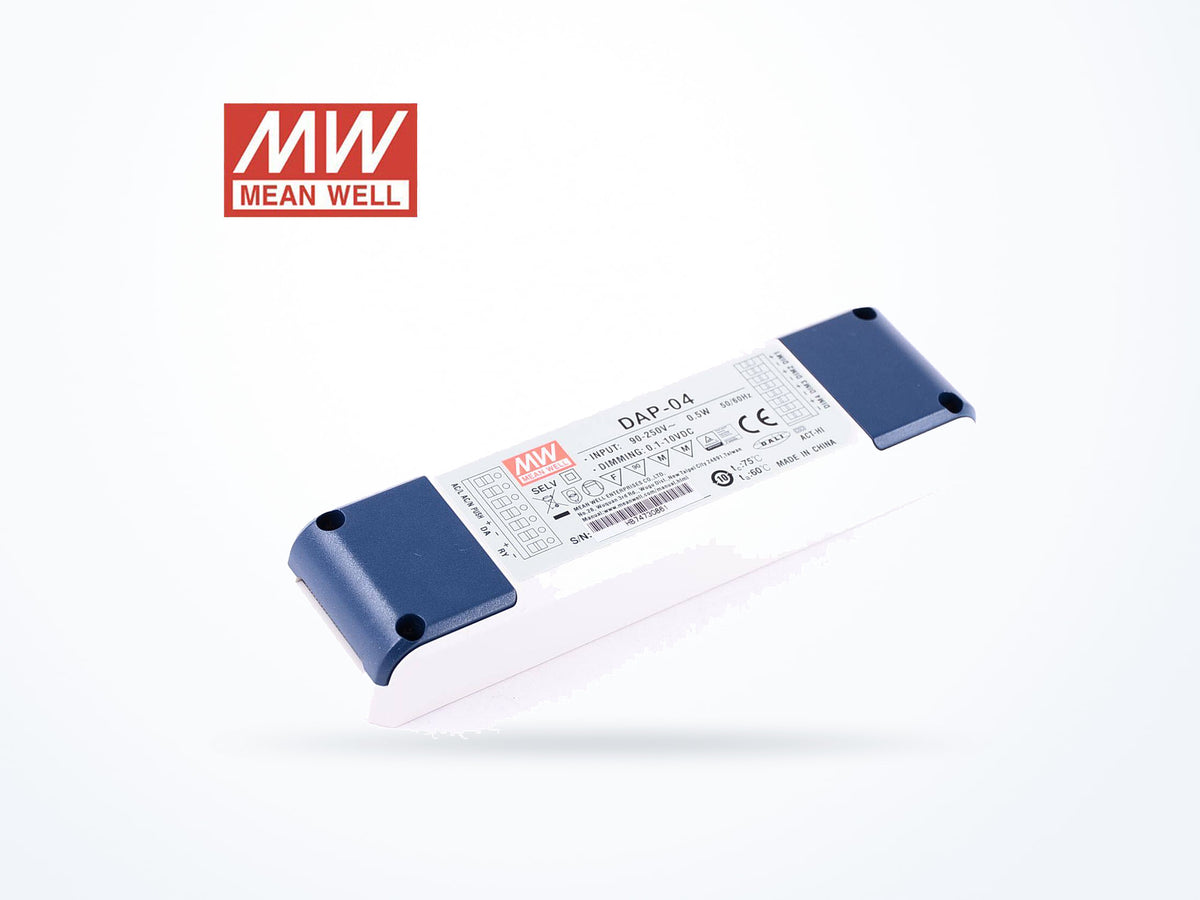

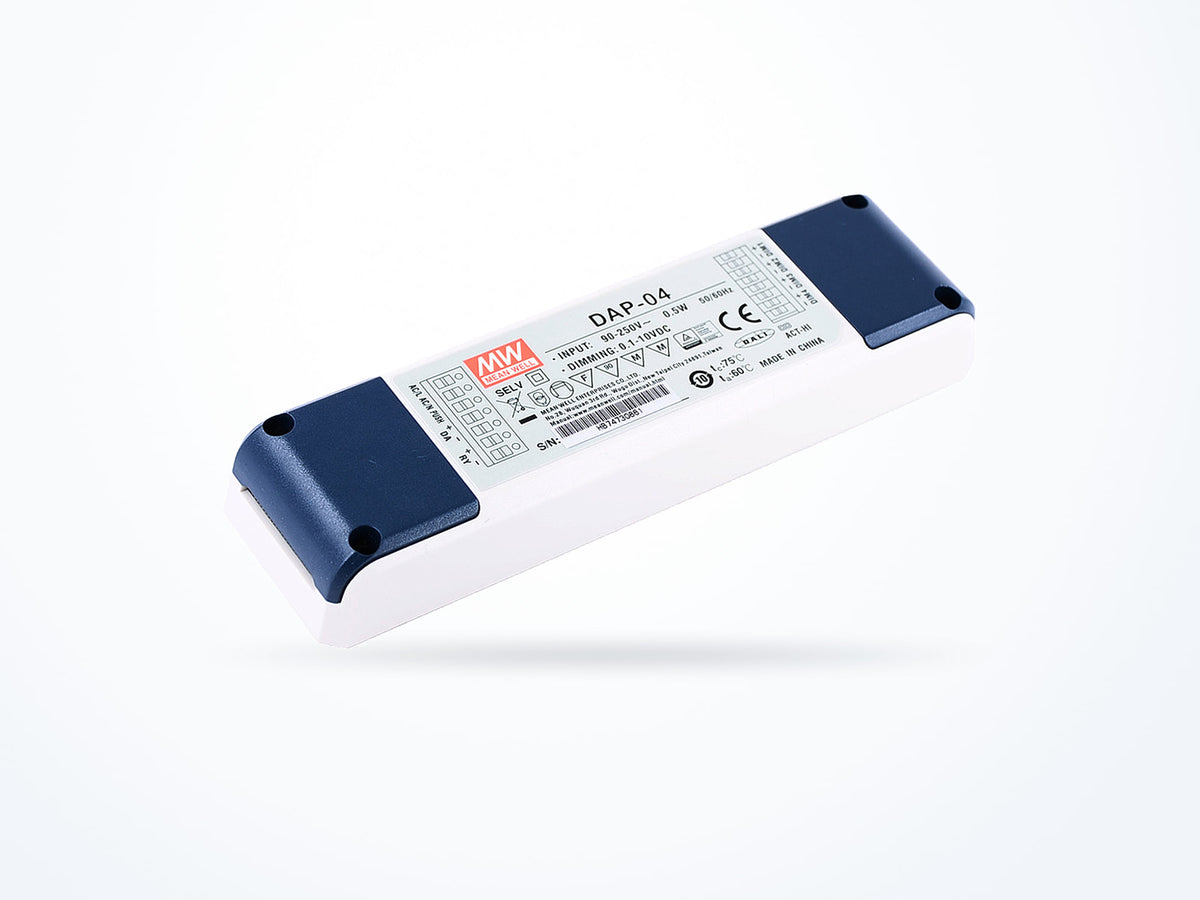

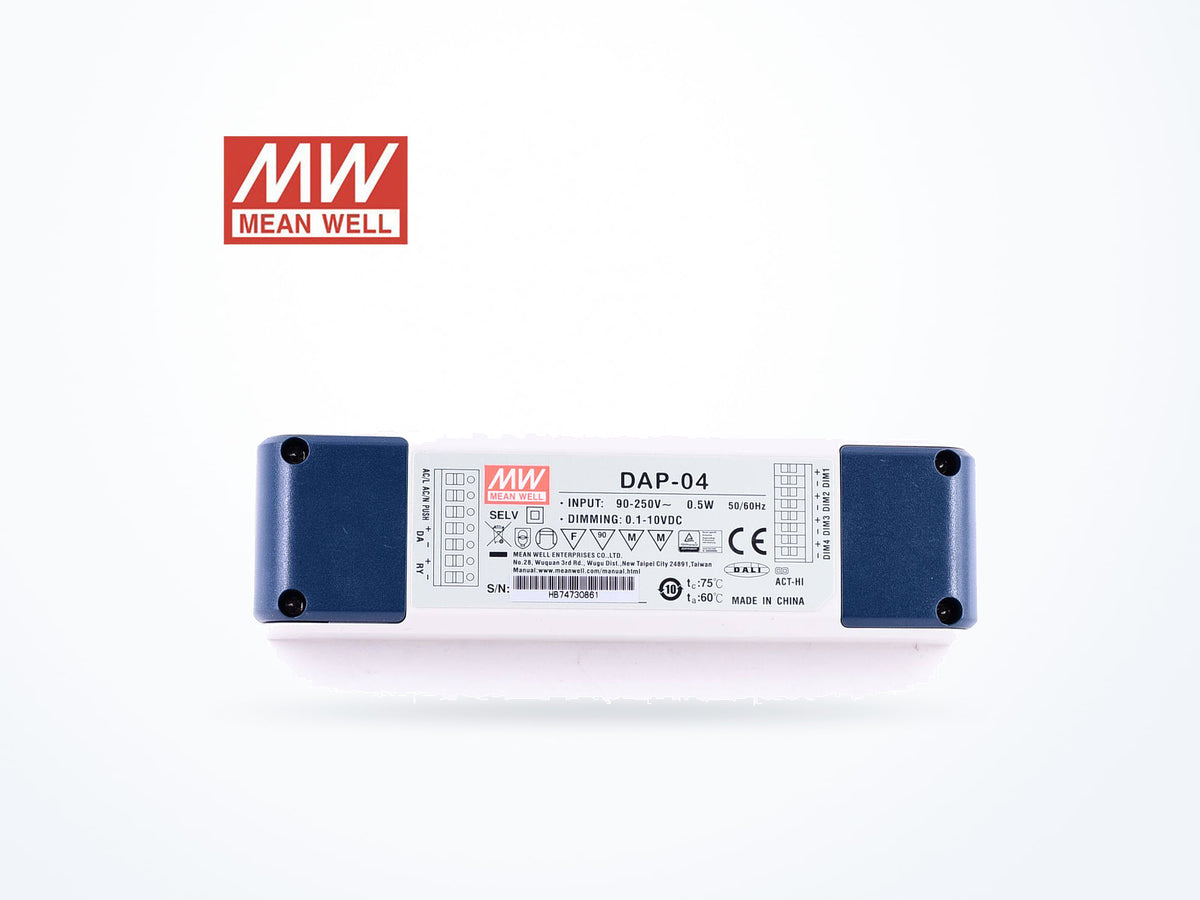

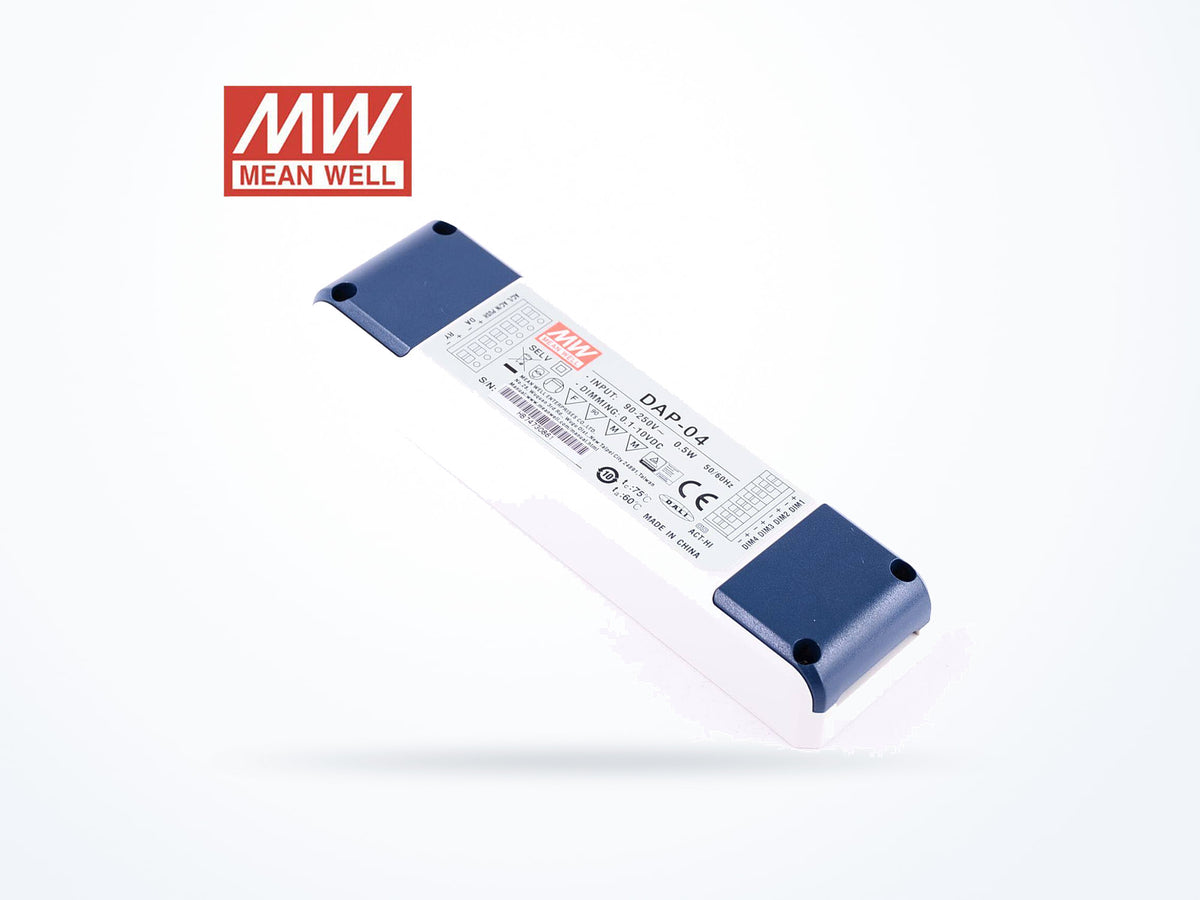

MEAN WELL DAP-04 0.1A LED Accessory

Part numberDAP-04
Rated current 0.1 A
$42.95Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
DAP-04 model selection table DAP-04 Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Rated current 0.1 A
AC input range 90–305 VAC
Mechanical
Operating temperature -30 to 60 °C
Dimensions (L × W × H) 165 × 46 × 23 mm

Is this model right for you?

The DAP-04 is the only model in the DAP-04 series. It lists 90 ~ 305VAC 127 ~ 431VDC [DC input operation possible by connecting AC/L , AC/N ] (datasheet note applies) input.

Product overview

The DAP-04 is an AC/DC LED Accessory from MEAN WELL in the DAP-04 Series. It measures 165 × 46 × 23 mm and has a net weight of 160 g. The operating temperature range is -30 to 60 °C, and the humidity range is 20 to 90%. The input frequency range is 47 ~ 63Hz.

Where this model fits

The DAP-04 is used in LED Lighting. Its operating temperature range is -30 to 60 °C, and the humidity range is 20 to 90%. The product measures 165 × 46 × 23 mm and has a net weight of 160 g.

Complete technical specifications

Rev. 2024-10-16
Output
Rated current 0.1 A
Input
AC input range 90–305 VAC
DC input range 127–431 VDC
Frequency range 47–63 Hz
Environmental
Operating temperature -30 to 60 °C
Storage temperature -40 to 80 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 165 × 46 × 23 mm
Net weight 160.0 g
Safety & compliance
Safety standards BS EN/EN61347-1, BS EN/EN61347-2-11, BS EN/EN61058-1 Clause 8/17/20/25,EAC TP TC 004,AS/NZS62368.1 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number DAP-04
Brand MEAN WELL
Category AC/DC LED Accessory
Series DAP-04

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3.75KVAC
Isolation resistance I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55015, BS EN/EN61000-3-2,3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547 light industry level (surge 2KV), EAC TP TC 020

Standards certified against

  • AS/NZS62368.1
  • EN61058-1
  • EN61347-1
  • EN61347-2-11
Read the datasheet's exact wording

BS EN/EN61347-1, BS EN/EN61347-2-11, BS EN/EN61058-1 Clause 8/17/20/25,EAC TP TC 004,AS/NZS62368.1 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number DAP-04
Minimum order quantity 1
Country of origin China
Typical packed weight 322 g
Unit weight 160 g

Downloads

DAP-04 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
DAP-04 0.1 A$42.95
Ships in 3–5 business days

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for DAP-04

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting DAP-04 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-16
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
