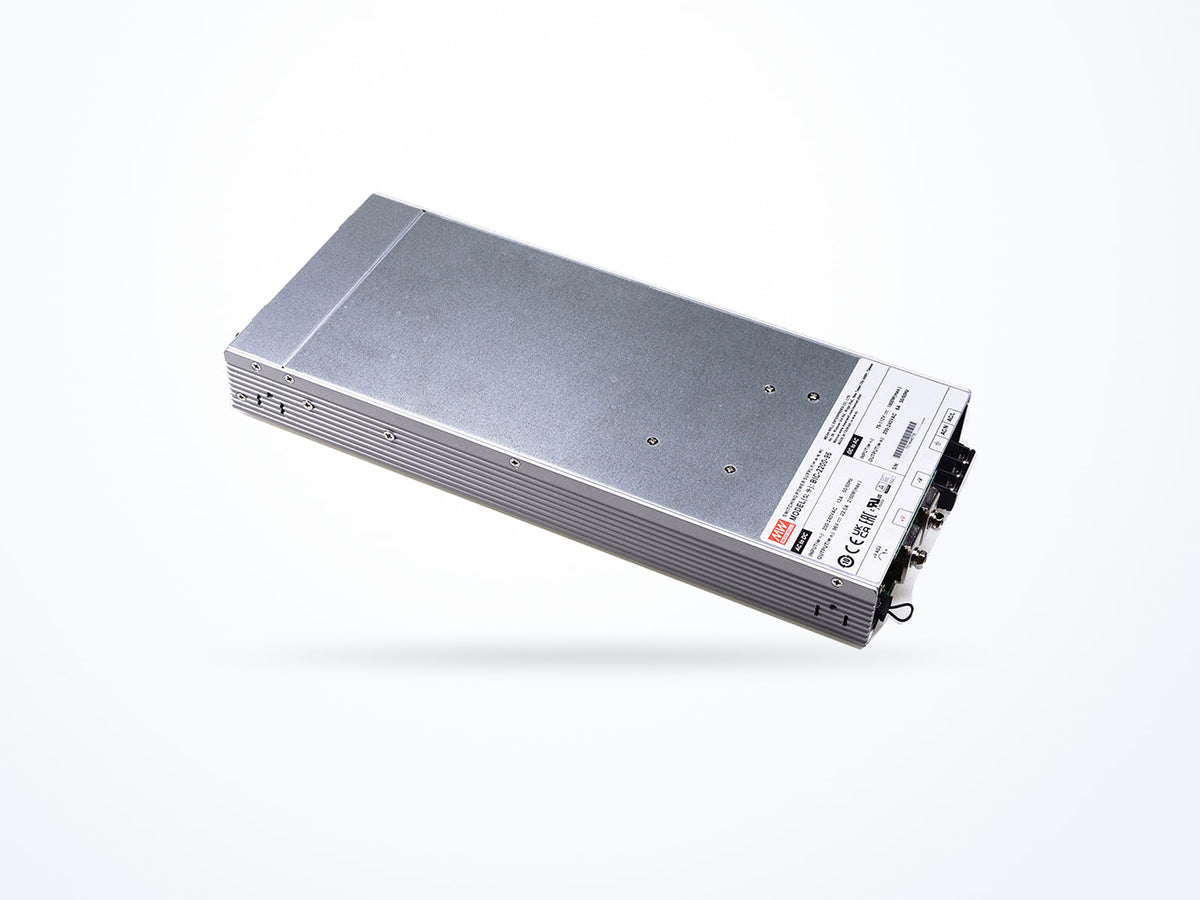

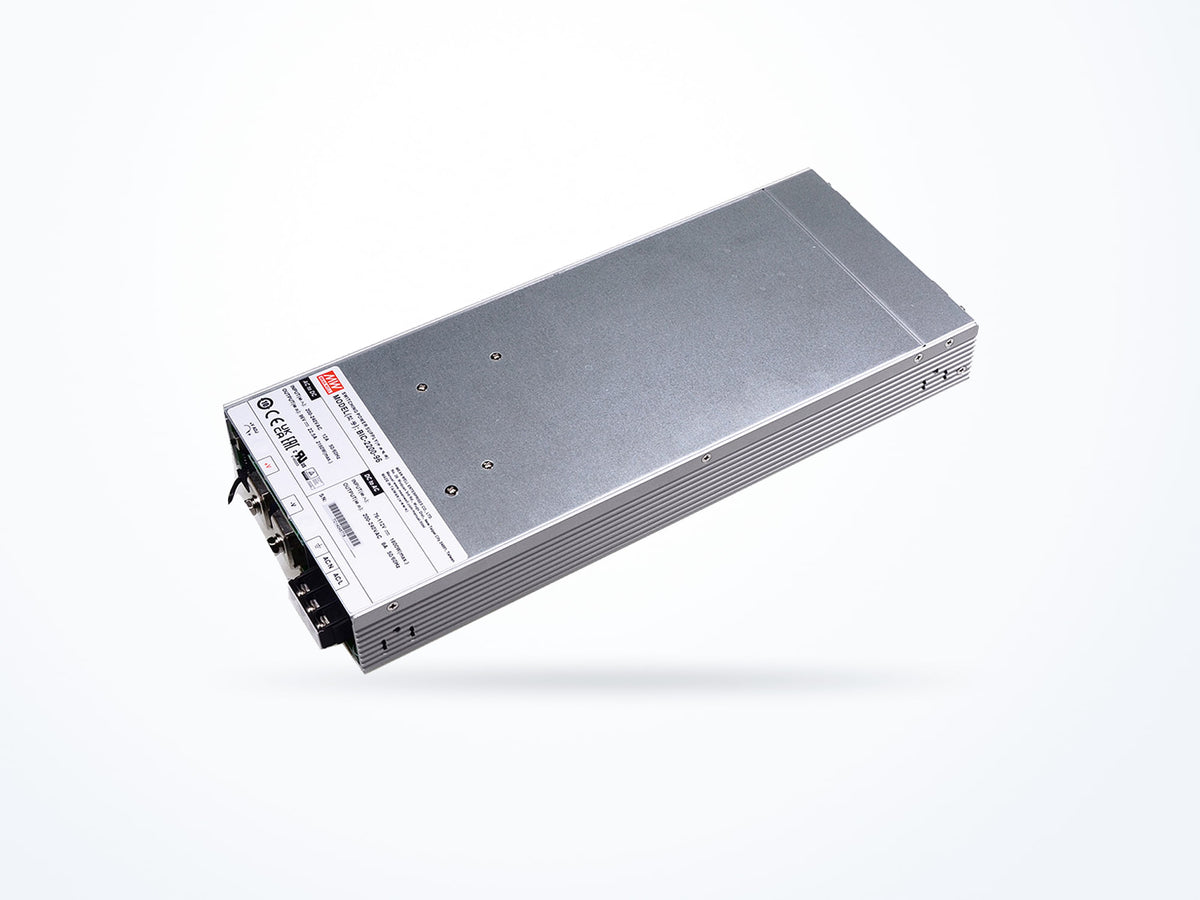

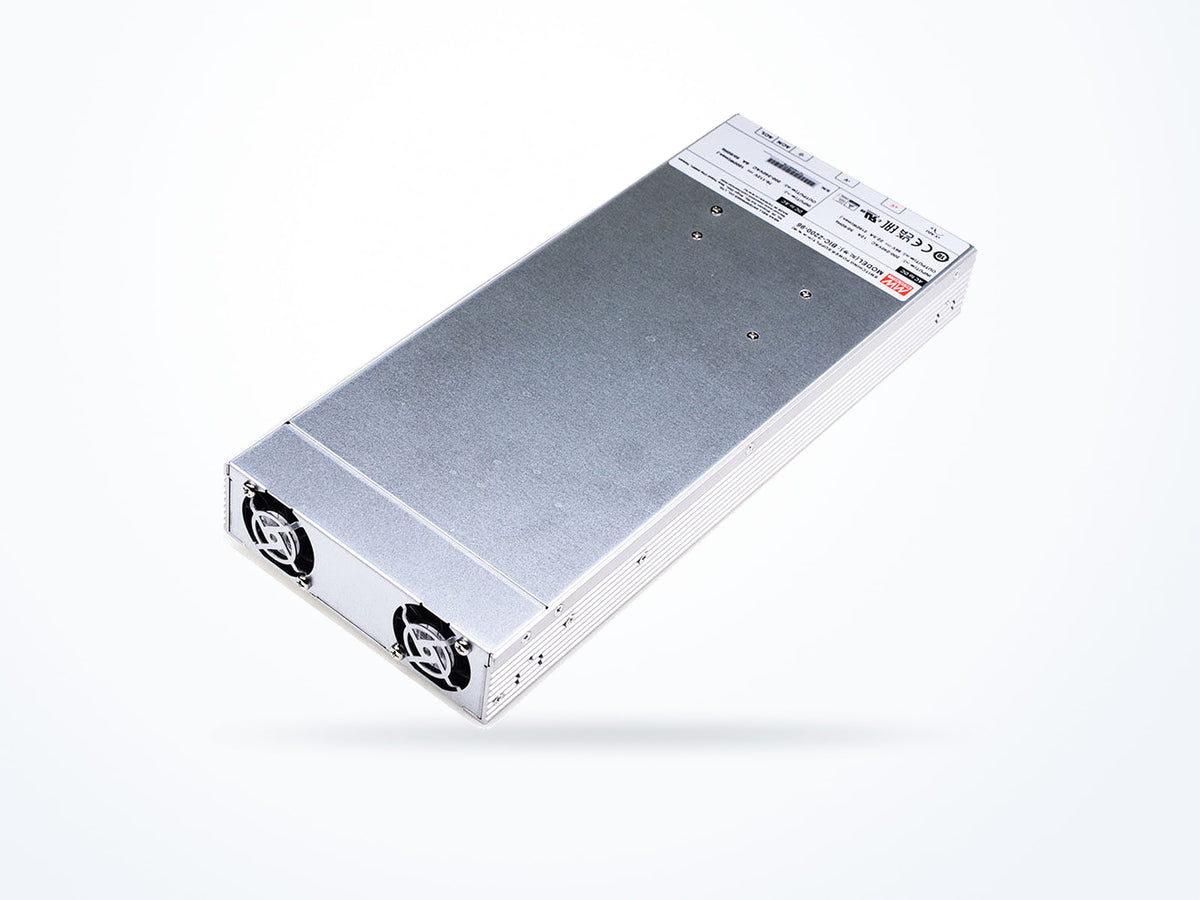

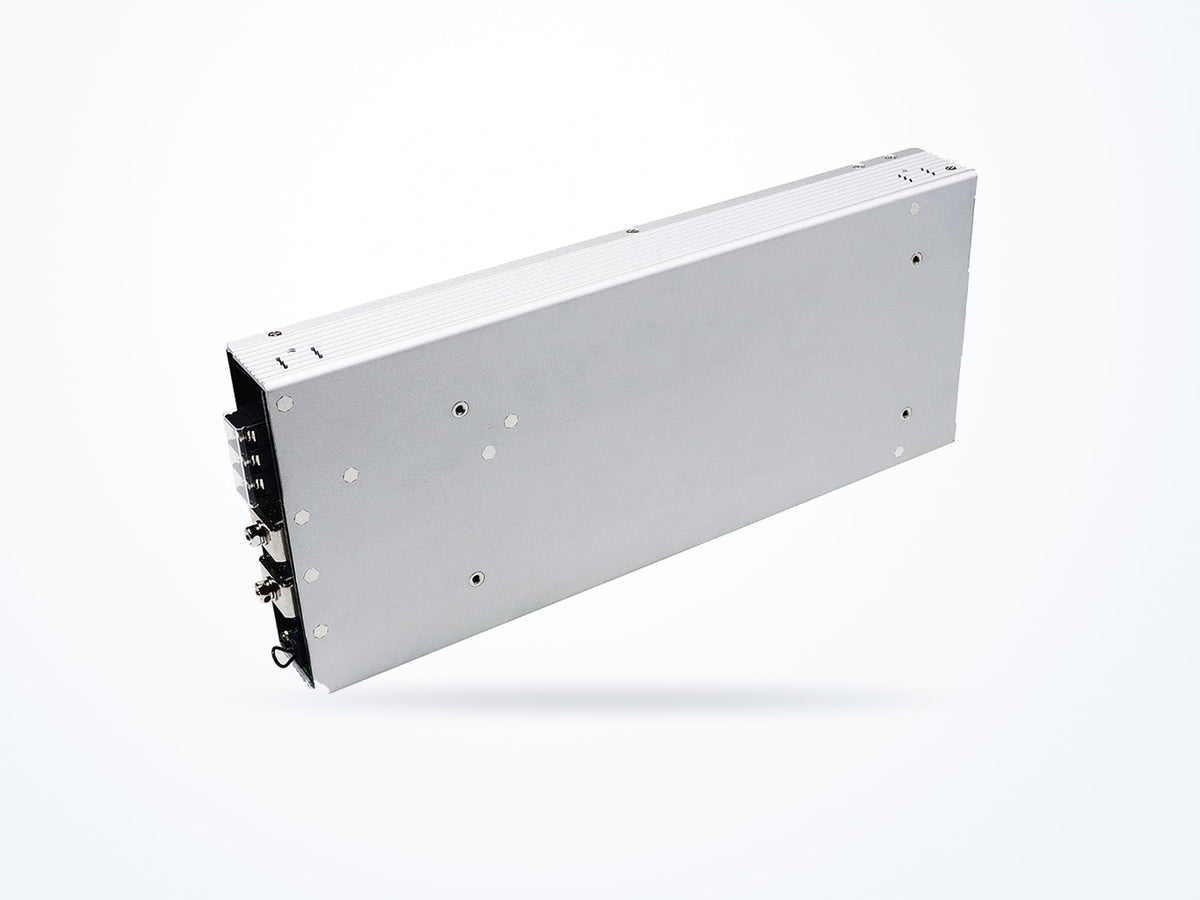

MEAN WELL BIC-2200-12 2160W 12V 180A AC⇄DC Green Bidirectional Power

Part numberBIC-2200-12
Output voltage 12 V
Rated current 180 A
Rated power 2160 W
$1,035.30Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
BIC-2200 model selection table BIC-2200 Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 180 A
Rated power 2160 W
AC input range 180–264 VAC
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 330 × 140 × 41 mm

Is this model right for you?

Within the BIC-2200 Series, the BIC-2200-12 provides 12 V output and 180 A output current. The BIC-2200-24 provides 24 V and 90 A, the BIC-2200-48 provides 48 V and 45 A, and the BIC-2200-96 provides 96 V and 22.5 A. Output adjustment ranges also differ: 10 ~ 15 V for BIC-2200-12, 19 ~ 28 V for BIC-2200-24, 38 ~ 65 V for BIC-2200-48, and 76 ~ 112 V for BIC-2200-96.

Product overview

The BIC-2200-12 is part of the BIC-2200 Series. It lists a 12 V output voltage and 180 A output current. The output adjustment range is 10 ~ 15 V, and ripple noise is 160 mVp-p. The input voltage range is 180 ~ 264 VAC determined by AC main. Net weight is 2900 g and dimensions are 330 × 140 × 41 mm.

Where this model fits

The BIC-2200-12 is used in Battery Charging & Energy Storage. Its output adjustment range is 10 ~ 15 V, and its output current is 180 A. The operating temperature range is -30 to 70 °C, and the humidity range is 20 to 90 %.

Complete technical specifications

Rev. 2024-10-21
Output
Output voltage 12 V
Rated current 180 A
Rated power 2160 W
Voltage adjustment range 10–15 V
Ripple & noise 160 mVp-p
Input
AC input range 180–264 VAC
Frequency range 47–63 Hz
Power factor 0.98
Power factor correction Supported
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 330 × 140 × 41 mm
Net weight 2900.0 g
Safety & compliance
Safety standards UL62368-1, IEC62368-1, CAN/CSA C22.2 No.62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, IEC62477-1, TUV BS EN/EN62477-1 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number BIC-2200-12
Brand MEAN WELL
Category AC⇄DC Green Bidirectional Power
Series BIC-2200

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:500VAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

Standards certified against

  • EN62368-1
  • EN62477-1
  • IEC62368-1
  • IEC62477-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, IEC62368-1, CAN/CSA C22.2 No.62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, IEC62477-1, TUV BS EN/EN62477-1 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number BIC-2200-12
Minimum order quantity 1
Country of origin China
Typical packed weight 3429 g
Unit weight 2900 g

Downloads

BIC-2200 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
BIC-2200-12 12 V180 A2160 W$1,035.30
Ships in 3–5 business days
BIC-2200-4848 V45 A2160 W$1,035.30
Ships in 3–5 business days
BIC-2200-9696 V22.5 A2160 W$1,035.30
Ships in 3–5 business days

BIC-2200-12: 12 V output, 180 A output current; BIC-2200-24: 24 V output, 90 A output current.

BIC-2200-12: 10 ~ 15 V output adjustment range; BIC-2200-48: 38 ~ 65 V output adjustment range.

BIC-2200-12: 160 mVp-p ripple noise; BIC-2200-96: 480 mVp-p ripple noise.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for BIC-2200-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting BIC-2200-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-21
Last verified

How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
