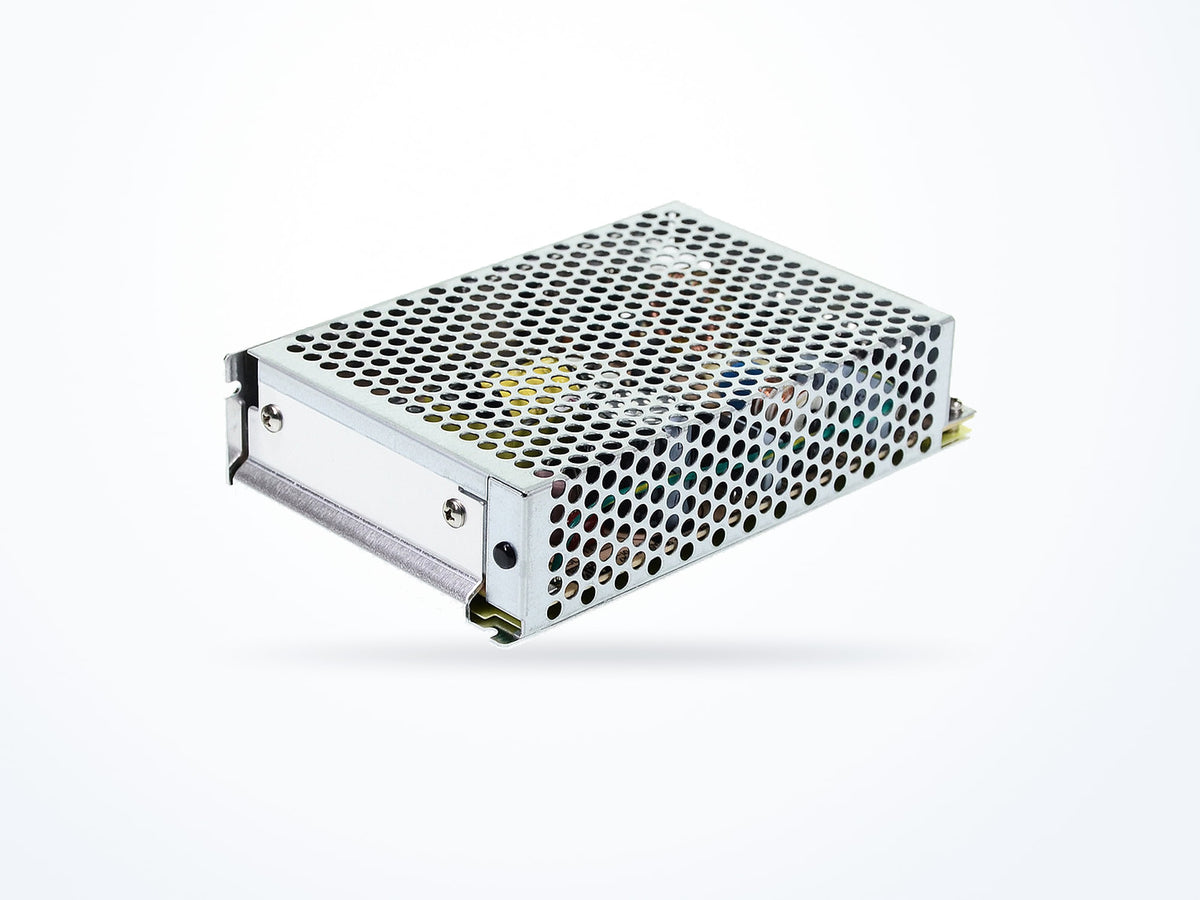

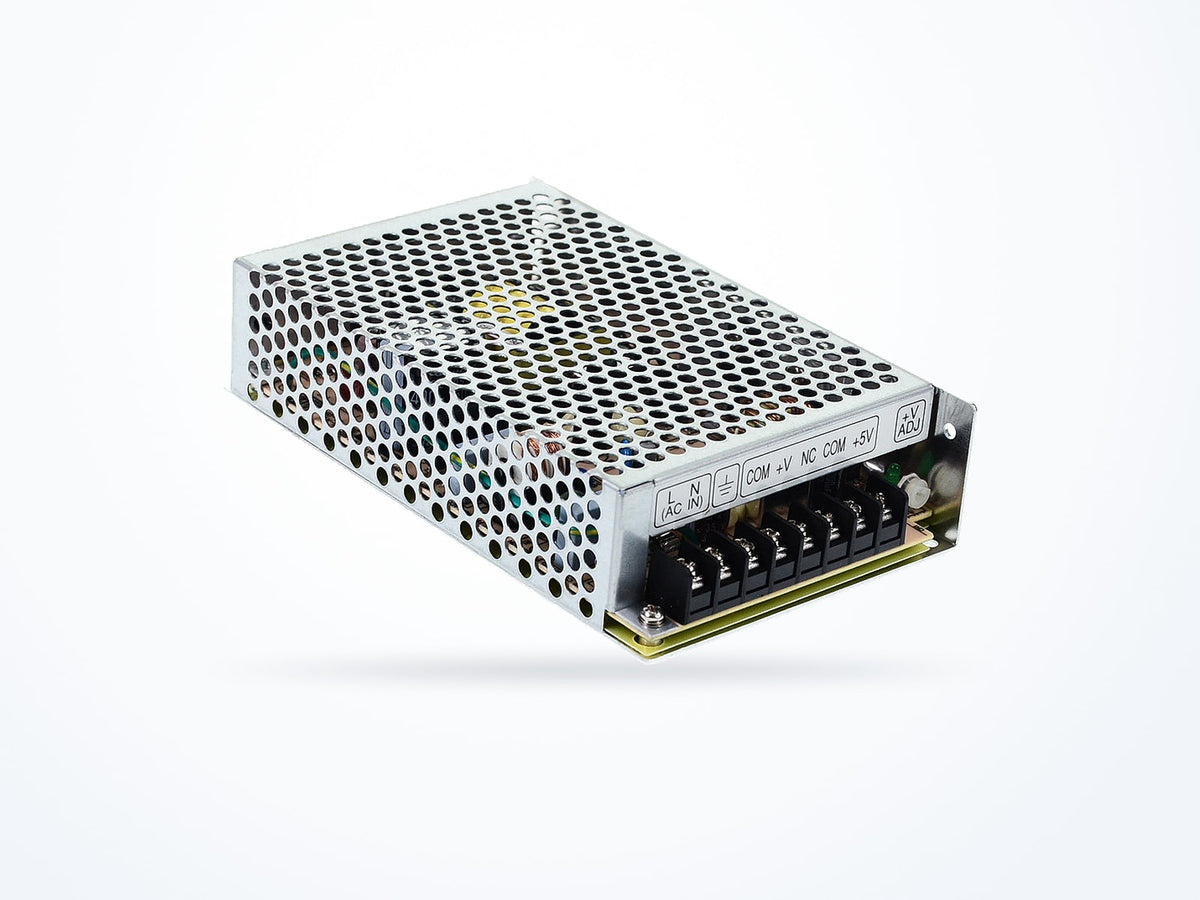

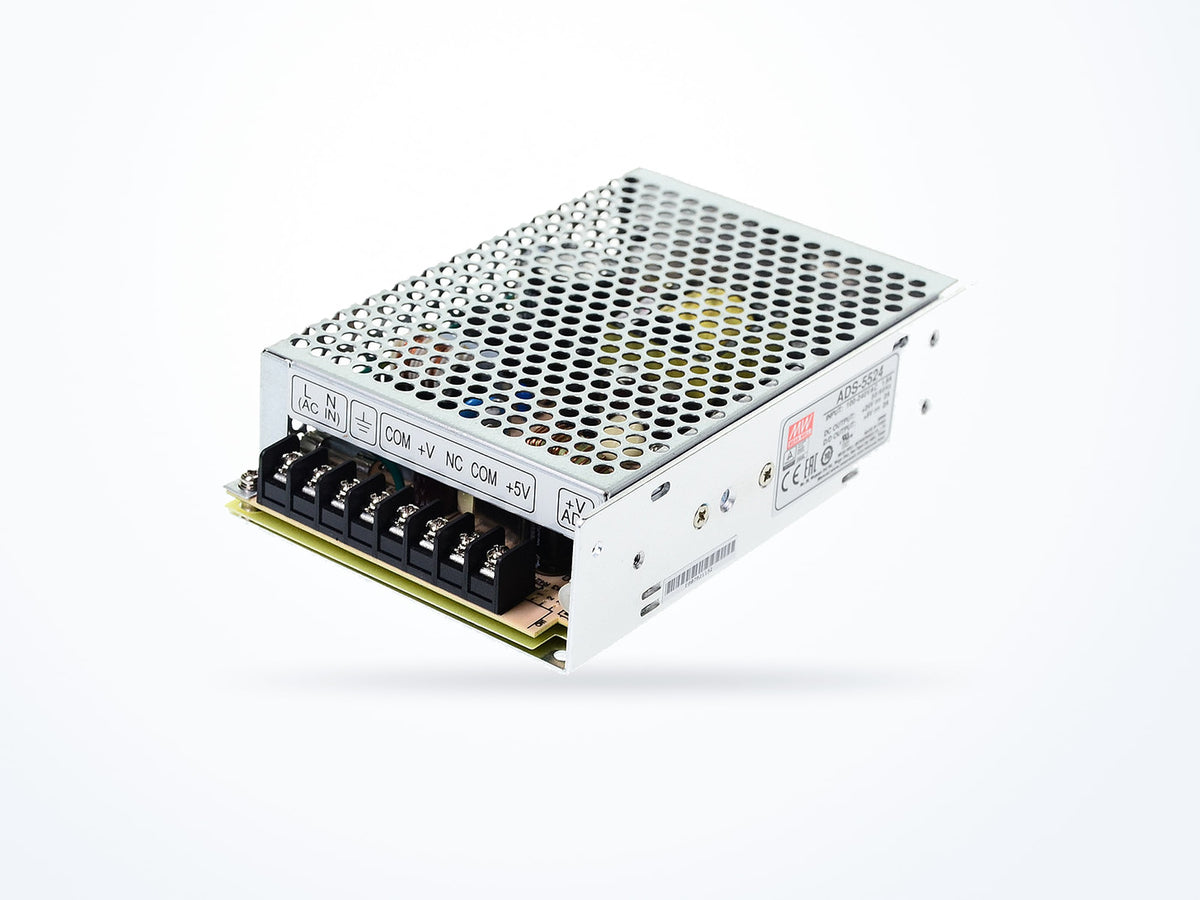

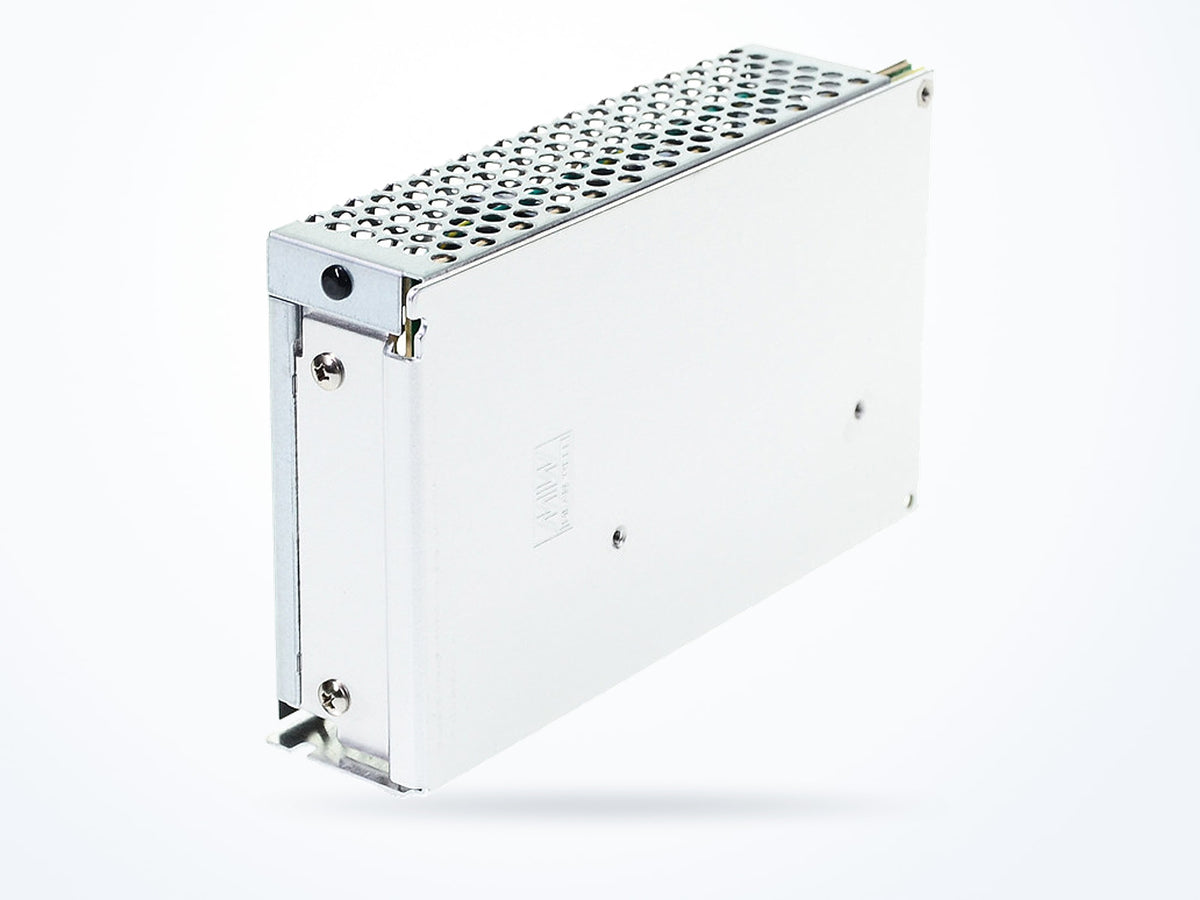

MEAN WELL ADS-5512 51W 12V 3A Security & Specific

Part numberADS-5512
Output voltage 12 V
Rated current 3 A
Rated power 51 W
$56.85Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
ADS-55 model selection table Security—SCP & AD/ ADS/ ADD/ LAD
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 3 A
Rated power 51 W
AC input range 88–264 VAC
Typical efficiency 76 %
Mechanical
Operating temperature -10 to 60 °C
Dimensions (L × W × H) 159 × 97 × 38 mm

Is this model right for you?

Within the ADS-55 series, the ADS-5512 lists a 12 V output, 3 A output current, 51 W rated power, and 76% typical efficiency. The ADS-5524 lists a 24 V output, 2 A output current, 58 W rated power, and 79% typical efficiency.

Product overview

The ADS-5512 provides a 12 V output at 3 A with a rated power of 51 W. The input voltage range is 88 ~ 264VAC 124 ~ 370VDC at 47 ~ 63Hz. Typical efficiency is 76%, and ripple and noise are 100mVp-p. The output adjustment range is CH1:10.8 ~ 13.2V. Dimensions are 159 × 97 × 38 mm and net weight is 570 g.

Where this model fits

The ADS-5512 is used in Security & Surveillance. Its operating temperature range is -10 to 60 °C, and its net weight is 570 g. Dimensions are 159 × 97 × 38 mm.

Complete technical specifications

Rev. 2024-09-30
Output
Output voltage 12 V
Rated current 3 A
Rated power 51 W
Voltage adjustment range 10.8–13.2 V
Ripple & noise 100 mVp-p
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Typical efficiency 76 %
Environmental
Operating temperature -10 to 60 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 159 × 97 × 38 mm
Net weight 570.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number ADS-5512
Brand MEAN WELL
Category AC/DC Security & Specific
Series ADS-55

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number ADS-5512
Minimum order quantity 1
Country of origin China
Typical packed weight 721 g
Unit weight 570 g

Downloads

ADS-55 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
ADS-5512 12 V3 A51 W$56.85
Ships in 3–5 business days
ADS-552424 V2 A58 W$56.85
Ships in 3–5 business days

ADS-5512: 12 V output, 3 A, 51 W, 76% typical efficiency; ADS-5524: 24 V output, 2 A, 58 W, 79% typical efficiency.
