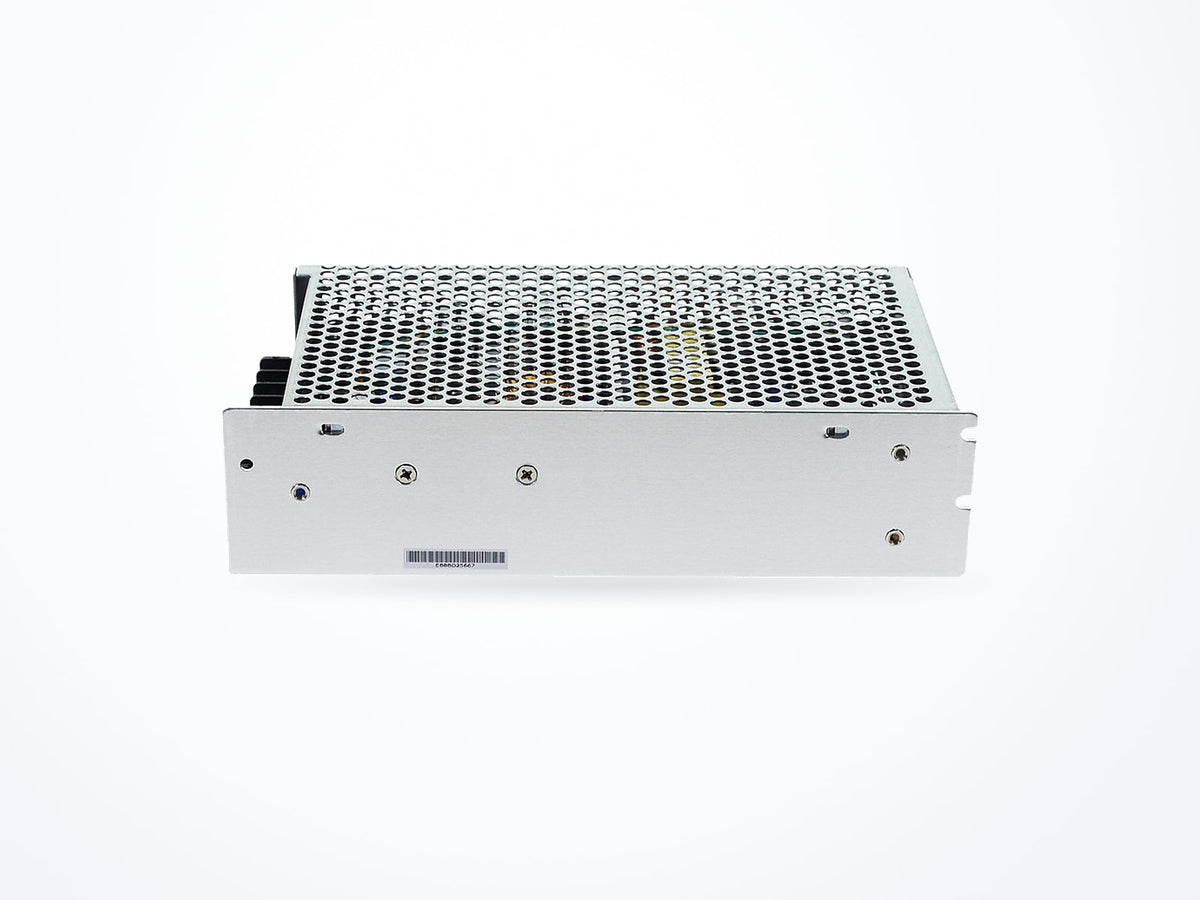

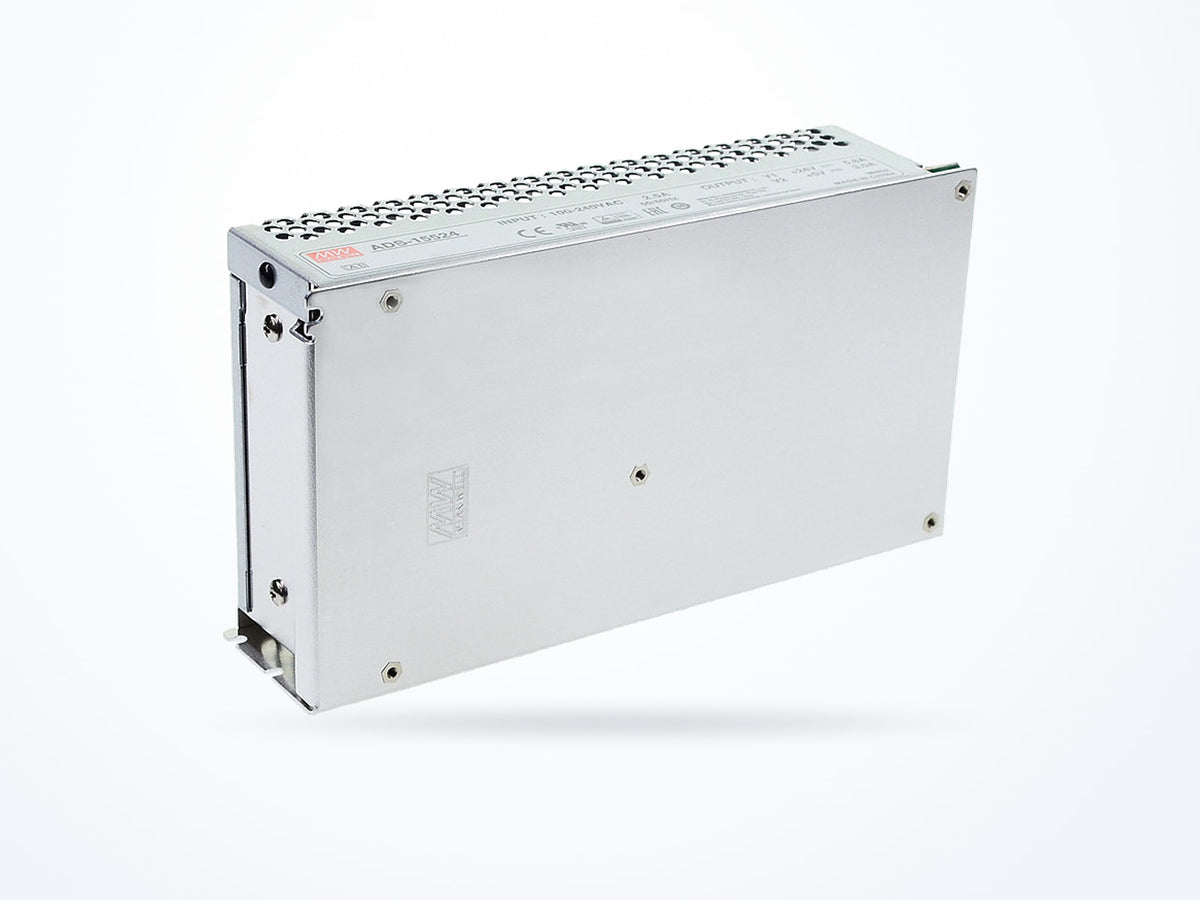

MEAN WELL ADS-15512 153W 12V 11.5A Security & Specific

Part numberADS-15512
Output voltage 12 V
Rated current 11.5 A
Rated power 153 W
$112.12Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
ADS-155 model selection table Security—SCP & AD/ ADS/ ADD/ LAD
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 11.5 A
Rated power 153 W
AC input range 88–264 VAC
Typical efficiency 77 %
Mechanical
Operating temperature -10 to 60 °C
Power factor correction Supported
Dimensions (L × W × H) 199 × 110 × 50 mm

Is this model right for you?

Within the ADS-155 series, the ADS-15512 lists 12 V output, 11.5 A output current, and 153 W rated power. The ADS-15524 lists 24 V, 5.8 A, and 154.2 W; the ADS-15548 lists 48 V, 2.9 A, and 154.2 W. Output voltage and current differ across the three models.

Product overview

The ADS-15512 provides a 12 V output at 11.5 A with a rated power of 153 W. Its input range is 88 ~ 264VAC 124 ~ 370VDC at 47 ~ 63Hz. The output adjustment range is CH1:10.8 ~ 13.2V, typical efficiency is 77%, and ripple and noise is 150mVp-p. Dimensions are 199 × 110 × 50 mm and net weight is 1000 g.

Where this model fits

The ADS-15512 is used in Security & Surveillance. Its operating temperature range is -10 to 60 °C, humidity range is 20 to 90%, and net weight is 1000 g. Dimensions are 199 × 110 × 50 mm.

Complete technical specifications

Rev. 2024-09-30
Output
Output voltage 12 V
Rated current 11.5 A
Rated power 153 W
Voltage adjustment range 10.8–13.2 V
Ripple & noise 150 mVp-p
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Typical efficiency 77 %
Power factor 0.92
Power factor correction Supported
Environmental
Operating temperature -10 to 60 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 199 × 110 × 50 mm
Net weight 1000.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number ADS-15512
Brand MEAN WELL
Category AC/DC Security & Specific
Series ADS-155

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number ADS-15512
Minimum order quantity 1
Country of origin China
Typical packed weight 1150 g
Unit weight 1000 g

Downloads

ADS-155 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
ADS-1554848 V2.9 A154.2 W$112.12
Ships in 3–5 business days
ADS-15512 12 V11.5 A153 W$112.12
Ships in 3–5 business days

ADS-15512: 12 V output, 11.5 A, 153 W; ADS-15524: 24 V output, 5.8 A, 154.2 W.

ADS-15512: 12 V output, 11.5 A, 153 W; ADS-15548: 48 V output, 2.9 A, 154.2 W.

ADS-15512: output adjustment CH1:10.8 ~ 13.2V; ADS-15524: CH1:21.6 ~ 26.4V; ADS-15548: CH1:43.2 ~ 52.8V.
