MEAN WELL ADD-155C 149.9W 54V 2.3A Security & Specific

Part numberADD-155C
Output voltage 54 V
Rated current 2.3 A
Rated power 149.9 W
$72.53Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
ADD-155 model selection table Security—SCP & AD/ ADS/ ADD/ LAD
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 54 V
Rated current 2.3 A
Rated power 149.9 W
AC input range 88–264 VAC
Mechanical
Operating temperature -10 to 60 °C
Power factor correction Supported
Dimensions (L × W × H) 199 × 110 × 50 mm

Is this model right for you?

Within the ADD-155 series, the ADD-155C lists 149.9 W. By comparison ADD-155A lists 152.75 W; ADD-155B lists 152.75 W. Select the model whose rated power matches the installation.

Product overview

The ADD-155C is part of the MEAN WELL ADD-155 series within the AC/DC Security & Specific product class. Its input range is 88 ~ 264VAC or 124 ~ 370VDC, with a frequency range of 47 ~ 63Hz. The product measures 199 × 110 × 50 mm and has a net weight of 1000 g. Operating temperature is -10 to 60 °C and humidity is 20 to 90%.

Where this model fits

The ADD-155C is used in Security & Surveillance. Its operating temperature range is -10 to 60 °C and humidity range is 20 to 90%. The product measures 199 × 110 × 50 mm and has a net weight of 1000 g.

Complete technical specifications

Rev. 2024-01-26
Output
Output voltage 54 V
Rated current 2.3 A
Rated power 149.9 W
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Power factor 0.92
Power factor correction Supported
Protection
Over voltage Protected
Shut down o/p voltage, re-power on to recover
Environmental
Operating temperature -10 to 60 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 199 × 110 × 50 mm
Net weight 1000.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number ADD-155C
Brand MEAN WELL
Category AC/DC Security & Specific
Series ADD-155

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

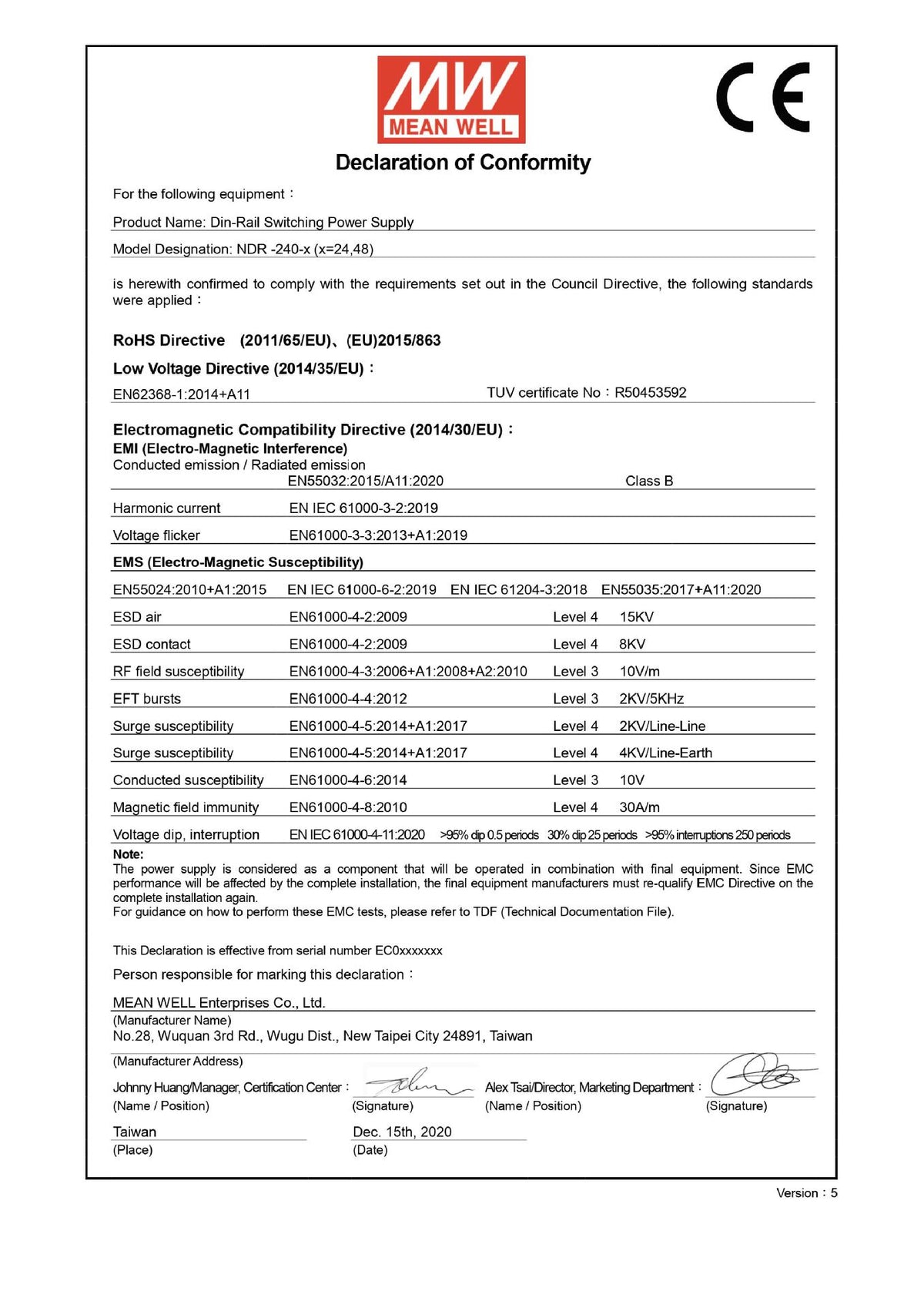

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number ADD-155C
Minimum order quantity 1
Country of origin China
Typical packed weight 1150 g
Unit weight 1000 g

Downloads

ADD-155 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
ADD-155B27.6 V4.5 A152.75 W$72.53
Ships in 3–5 business days
ADD-155C 54 V2.3 A149.9 W$72.53
Ships in 3–5 business days
ADD-155A13.8 V9.5 A152.75 W$72.53
Ships in 3–5 business days

ADD-155C: 2.3 A output current; ADD-155B: 4.5 A; ADD-155A: 9.5 A.

ADD-155C: 150 W rated power; ADD-155A and ADD-155B: 153 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for ADD-155C

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting ADD-155C View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-01-26
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
