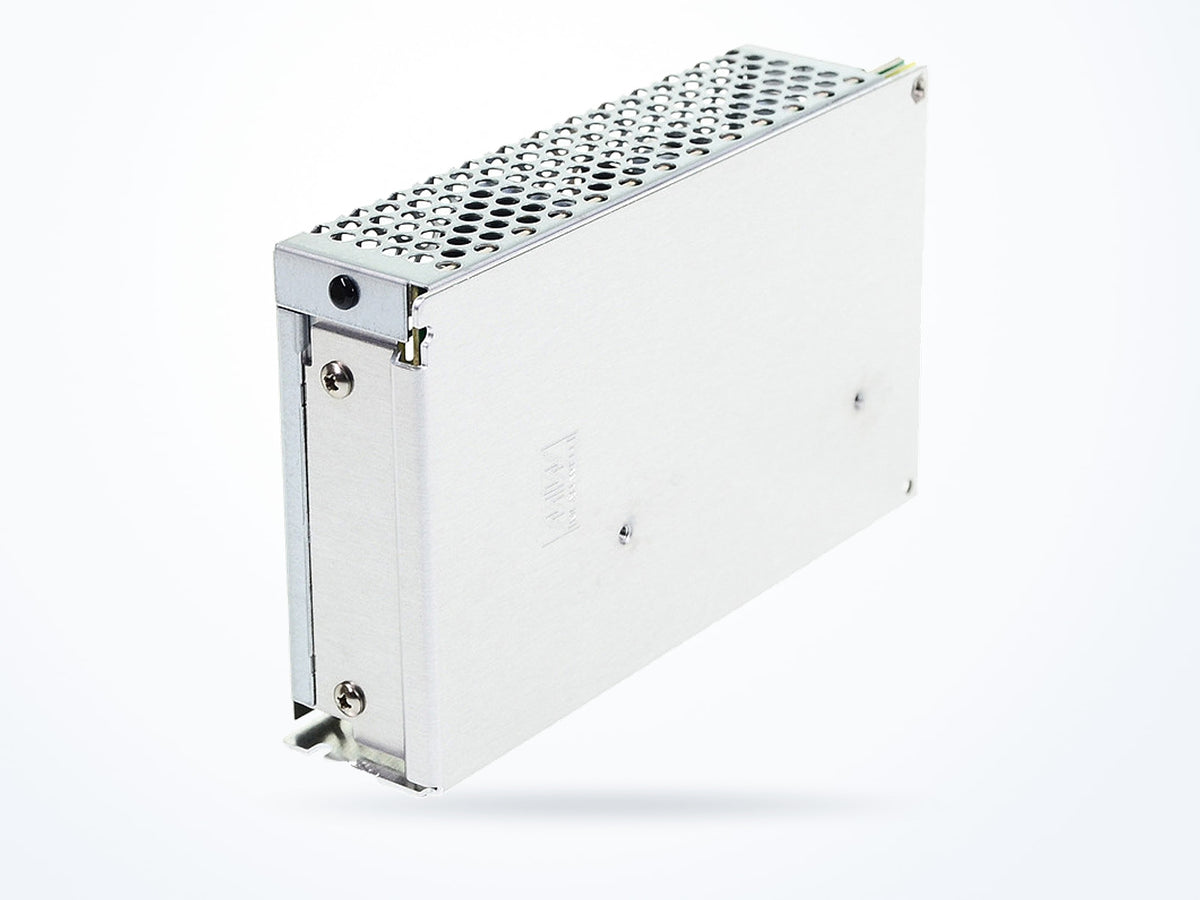

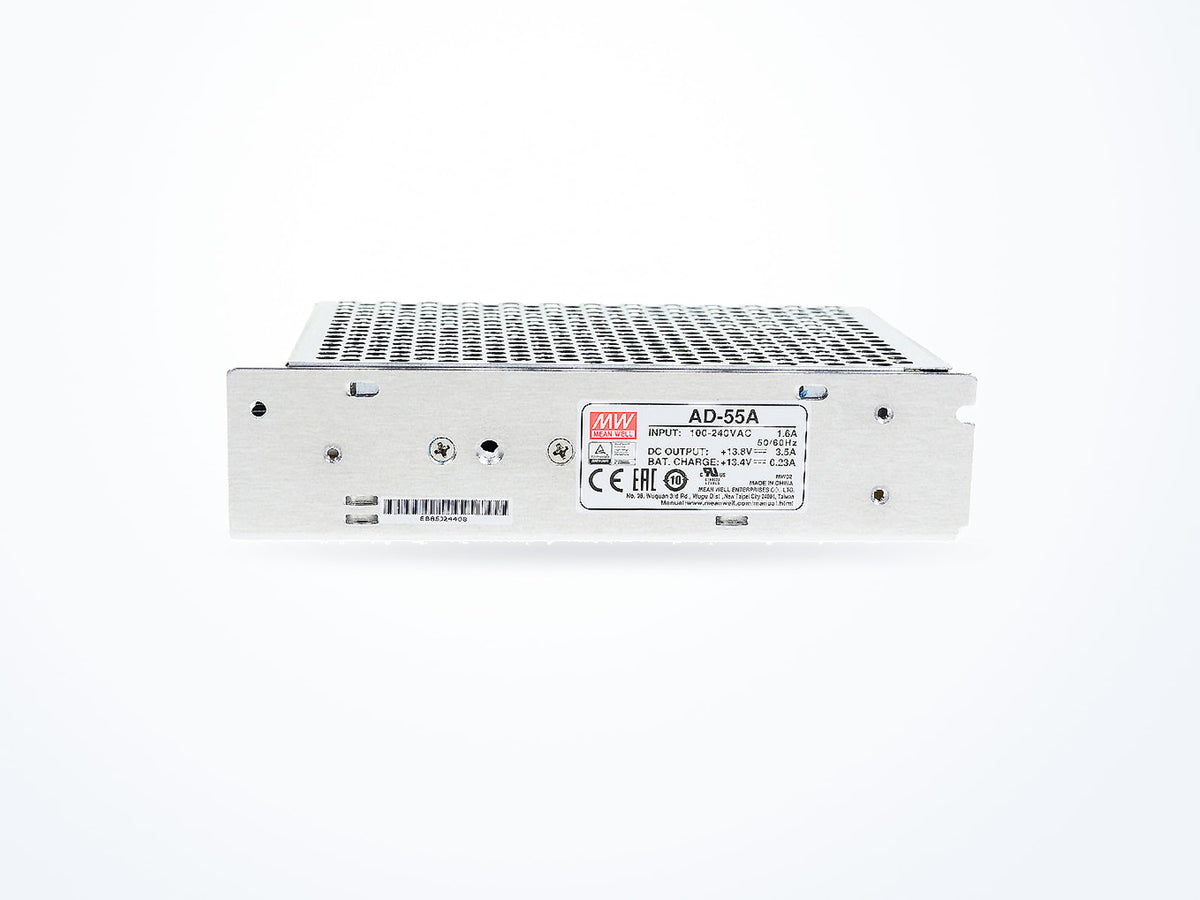

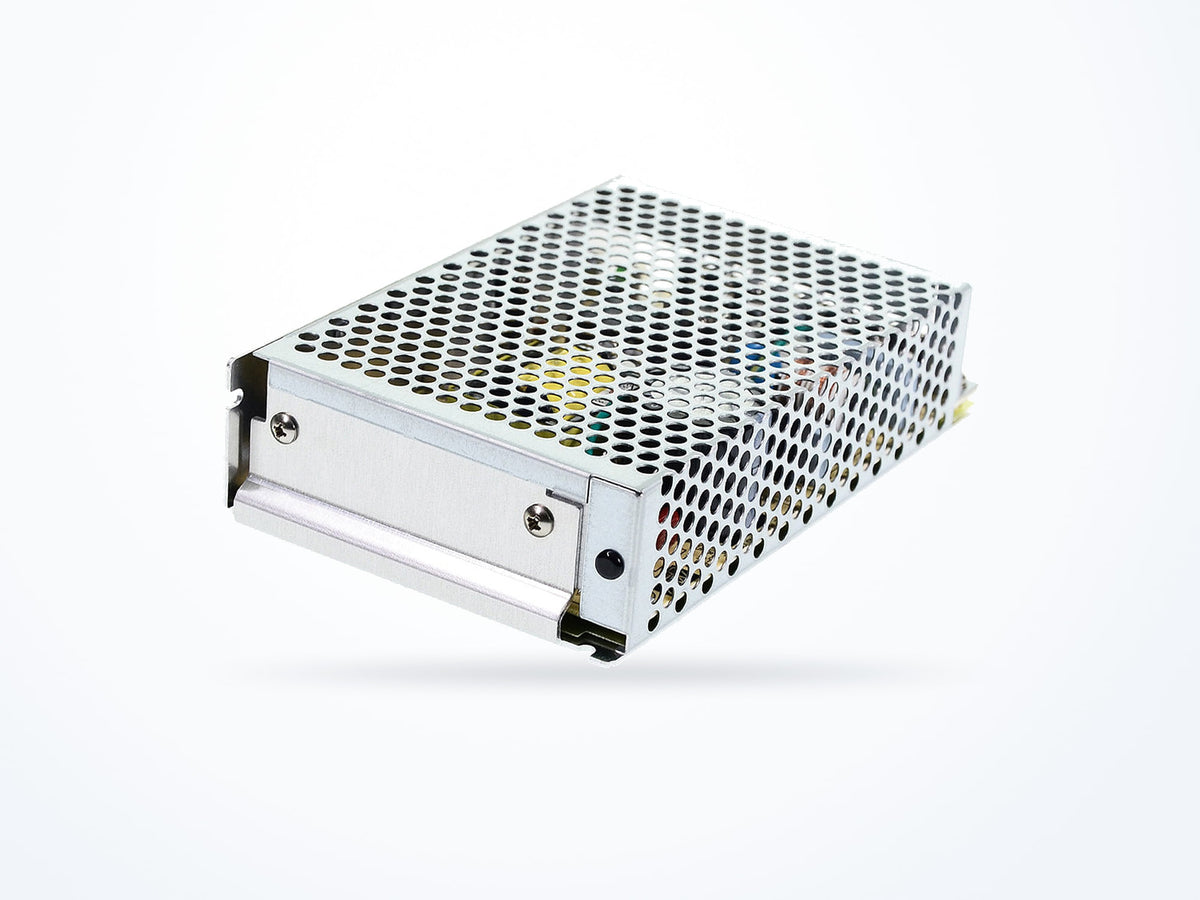

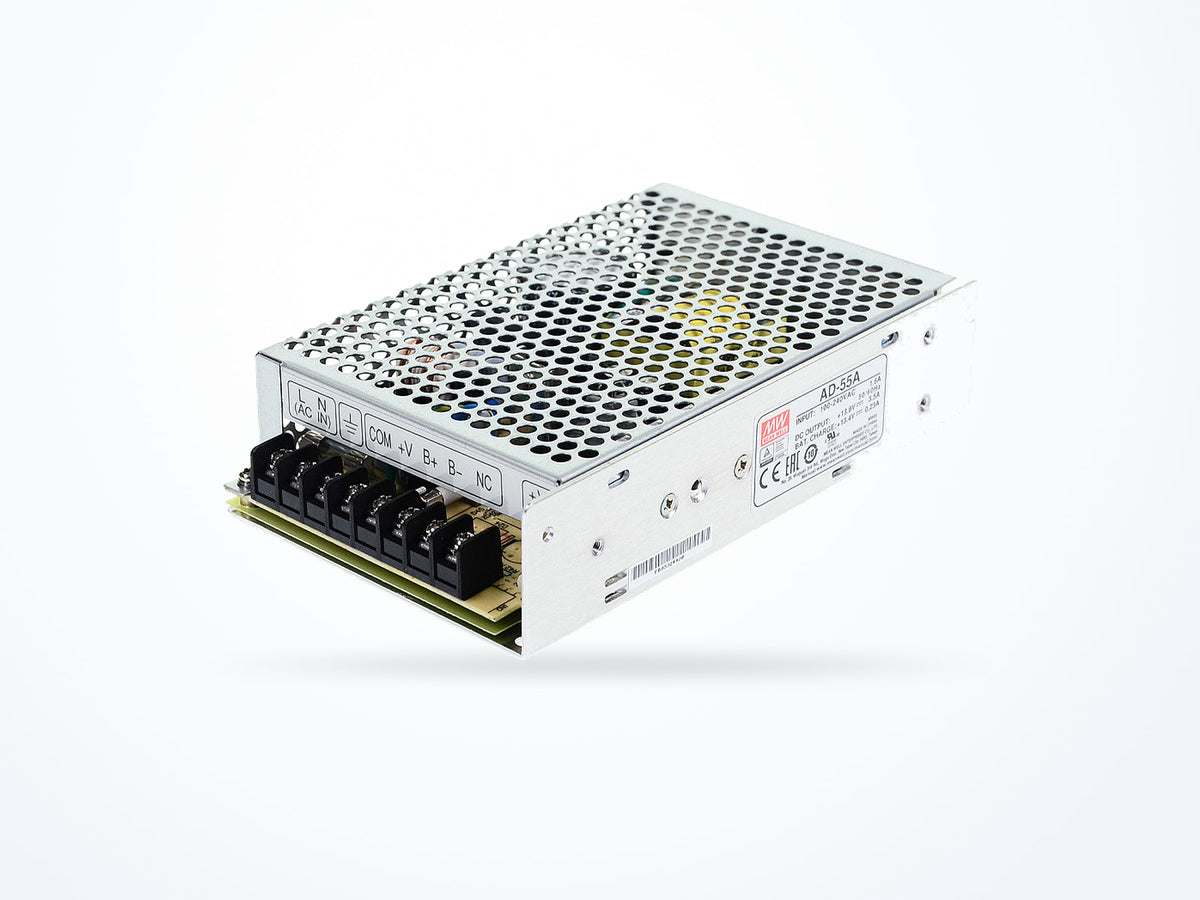

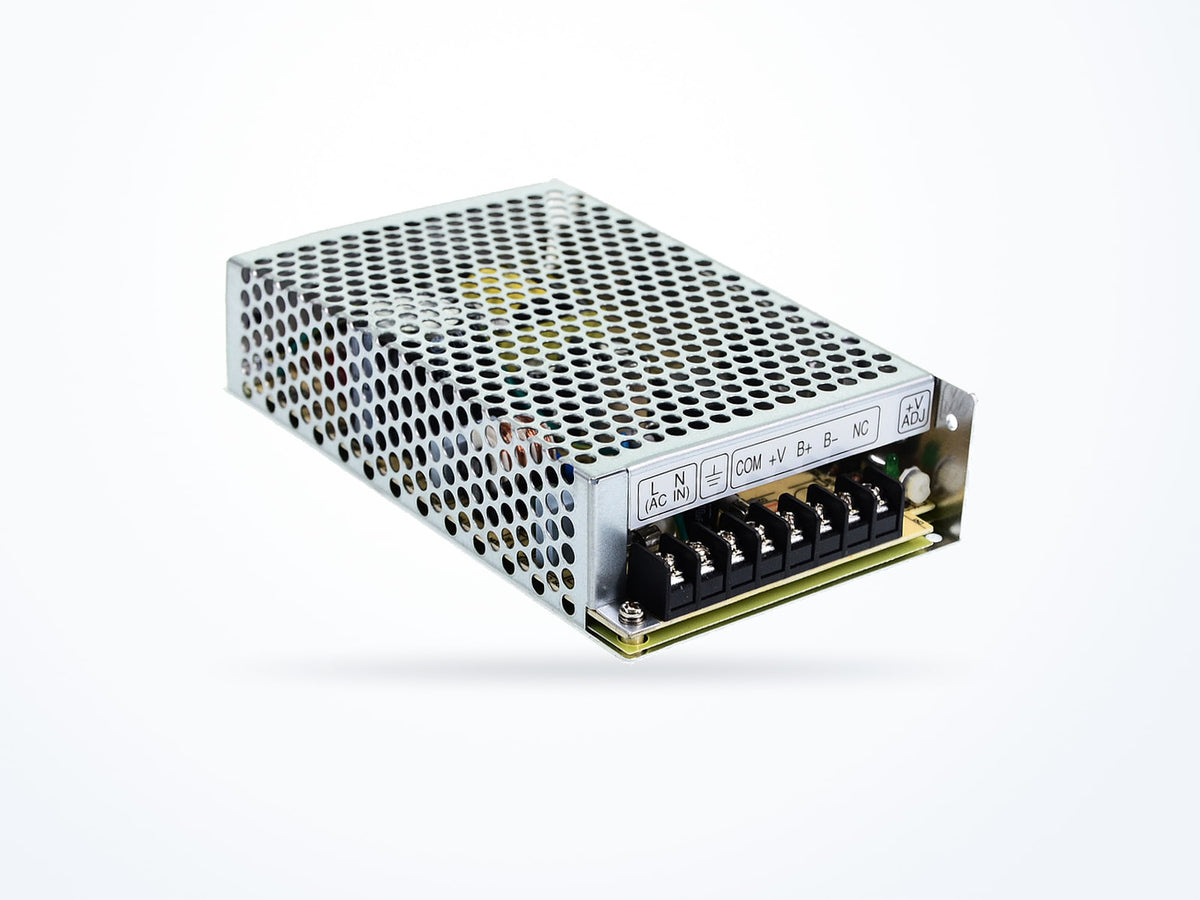

MEAN WELL AD-55A 51.38W 13.8V 3.5A Security & Specific

Part numberAD-55A
Output voltage 13.8 V
Rated current 3.5 A
Rated power 51.38 W
$55.90Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
AD-55 model selection table Security—SCP & AD/ ADS/ ADD/ LAD
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 13.8 V
Rated current 3.5 A
Rated power 51.38 W
AC input range 88–264 VAC
Typical efficiency 71 %
Mechanical
Operating temperature -10 to 60 °C
Dimensions (L × W × H) 159 × 97 × 38 mm

Is this model right for you?

Within the AD-55 series, the AD-55A lists 51.38 W, 71%. By comparison AD-55B lists 53.92 W, 74%. Select the model whose rated power matches the installation.

Product overview

The AD-55A belongs to the MEAN WELL AD-55 series within the Security—SCP & AD/ ADS/ ADD/ LAD family. Its input range is 88 ~ 264VAC or 124 ~ 370VDC with a frequency range of 47 ~ 63Hz. The product measures 159 × 97 × 38 mm and has a net weight of 500 g. Operating temperature range is -10 to 60 °C and humidity range is 20 to 90%.

Where this model fits

The AD-55A is used in Security & Surveillance applications. Its operating temperature range is -10 to 60 °C and humidity range is 20 to 90%. The product measures 159 × 97 × 38 mm and has a net weight of 500 g.

Complete technical specifications

Rev. 2024-09-30
Output
Output voltage 13.8 V
Rated current 3.5 A
Rated power 51.38 W
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Typical efficiency 71 %
Protection
Over voltage Protected
Hiccup mode, recovers automatically after fault condition is removed
Environmental
Operating temperature -10 to 60 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 159 × 97 × 38 mm
Net weight 500.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number AD-55A
Brand MEAN WELL
Category AC/DC Security & Specific
Series AD-55

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • AS/NZS 62368.1
  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number AD-55A
Minimum order quantity 1
Country of origin China
Typical packed weight 675 g
Unit weight 500 g

Downloads

AD-55 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
AD-55B27.6 V1.8 A53.92 W$55.90
Ships in 3–5 business days
AD-55A 13.8 V3.5 A51.38 W$55.90
Ships in 3–5 business days

AD-55A: 3.5 A output current; AD-55B: 1.8 A.

AD-55A: 51.4 W rated power; AD-55B: 53.9 W.

AD-55A: 71% typical efficiency; AD-55B: 74%.
