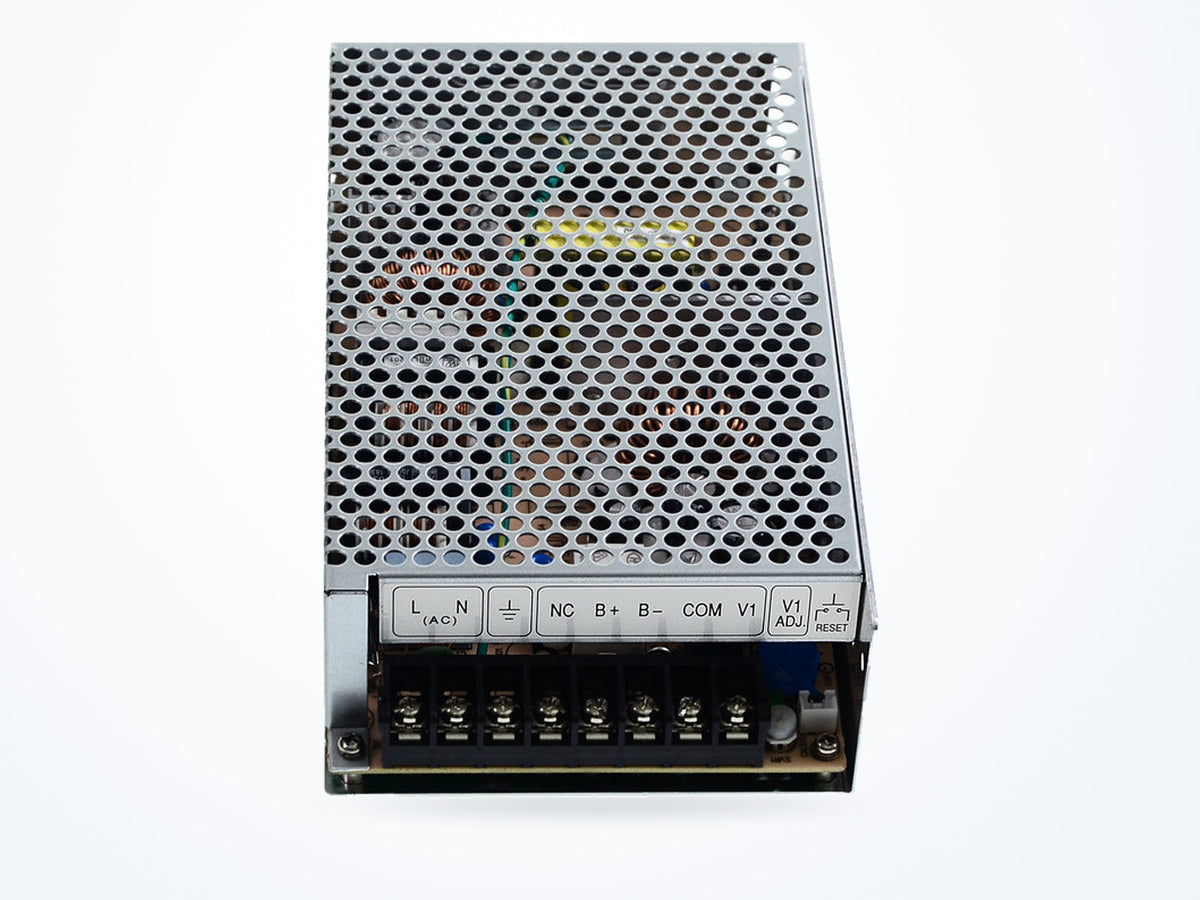

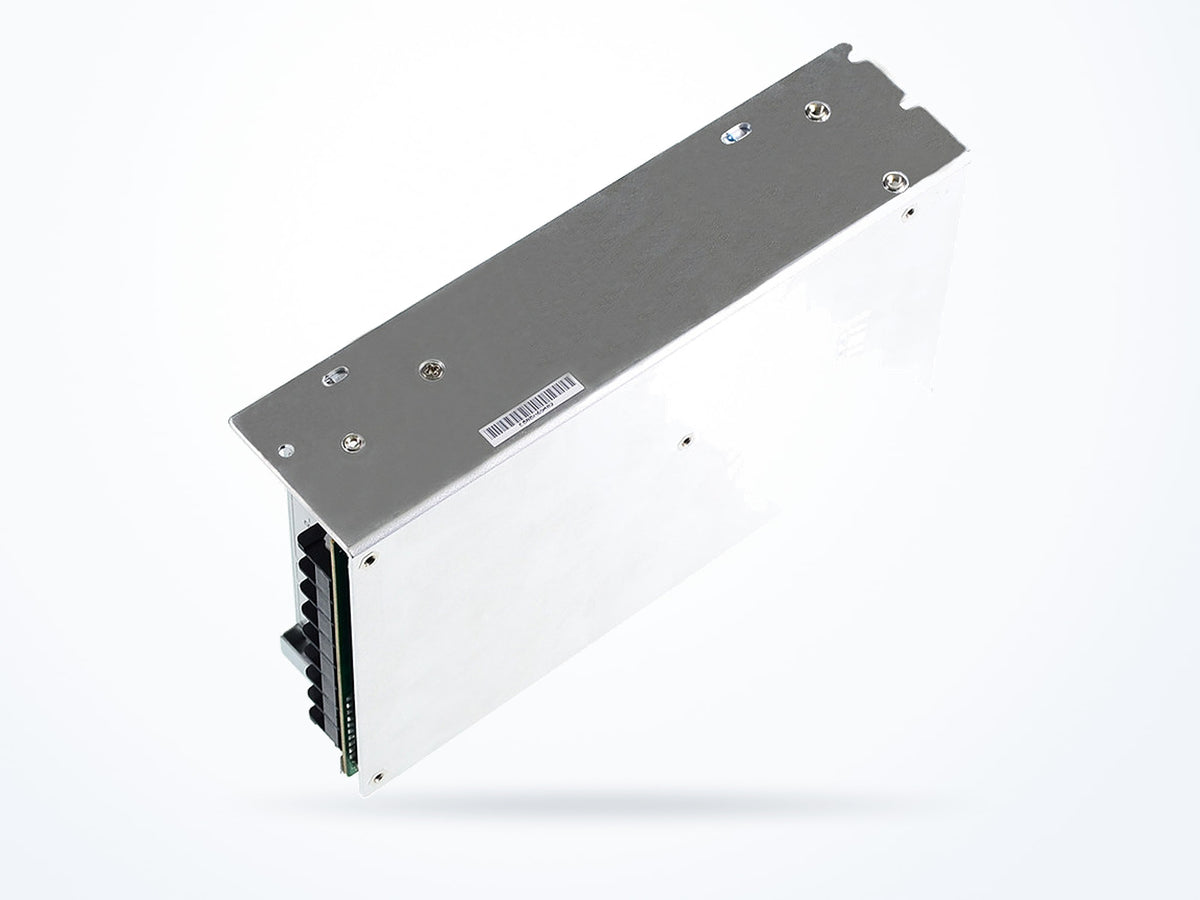

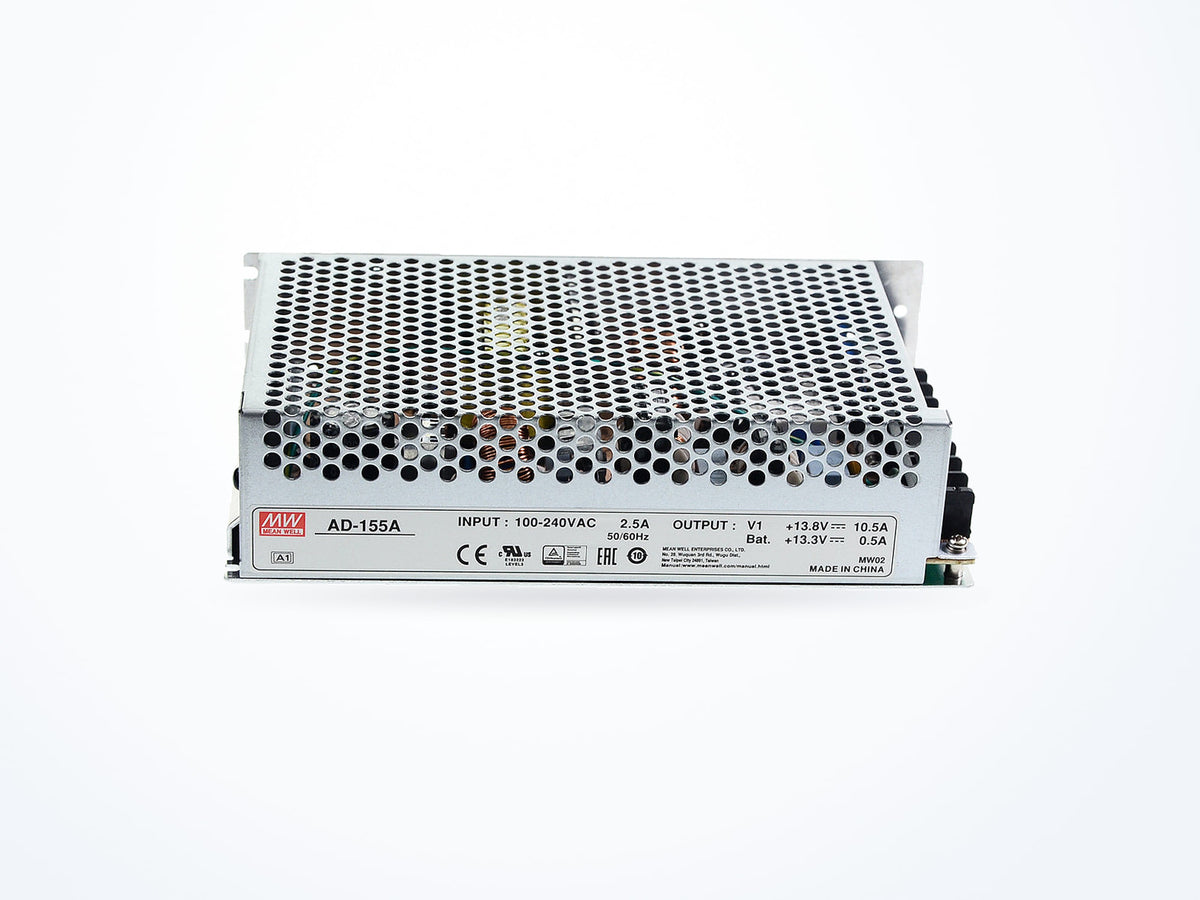

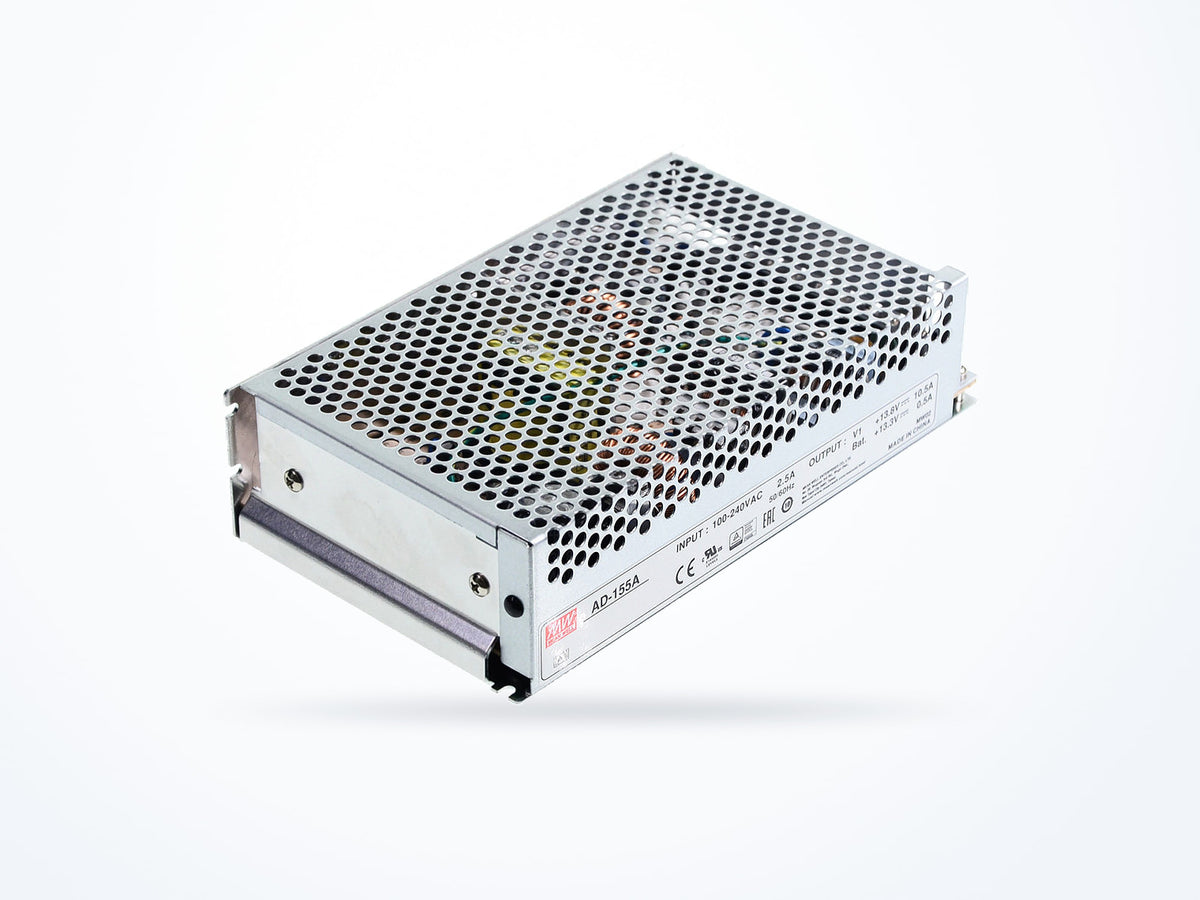

MEAN WELL AD-155A 151.55W 13.8V 10.5A Security & Specific

Part numberAD-155A
Output voltage 13.8 V
Rated current 10.5 A
Rated power 151.55 W
$108.01Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
AD-155 model selection table Security—SCP & AD/ ADS/ ADD/ LAD
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 13.8 V
Rated current 10.5 A
Rated power 151.55 W
AC input range 88–264 VAC
Mechanical
Operating temperature -10 to 60 °C
Power factor correction Supported
Dimensions (L × W × H) 199 × 110 × 50 mm

Is this model right for you?

Within the AD-155 series, the AD-155A lists 151.55 W. By comparison AD-155B lists 151.55 W; AD-155C lists 156.5 W. Select the model whose rated power matches the installation.

Product overview

The AD-155A from MEAN WELL belongs to the AD-155 series and the AC/DC Security & Specific product class. Its input range is 88 ~ 264VAC or 124 ~ 370VDC with a frequency range of 47 ~ 63Hz. The product measures 199 × 110 × 50 mm and has a net weight of 880 g. Operating temperature spans -10 to 60 °C and humidity spans 20 to 90%.

Where this model fits

The AD-155A is used in Security & Surveillance. Its operating temperature range is -10 to 60 °C and humidity range is 20 to 90%. The product measures 199 × 110 × 50 mm and has a net weight of 880 g.

Complete technical specifications

Rev. 2024-09-30
Output
Output voltage 13.8 V
Rated current 10.5 A
Rated power 151.55 W
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Power factor 0.92
Power factor correction Supported
Protection
Over voltage Protected
Shut down o/p voltage, re-power on to recover
Environmental
Operating temperature -10 to 60 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 199 × 110 × 50 mm
Net weight 880.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number AD-155A
Brand MEAN WELL
Category AC/DC Security & Specific
Series AD-155

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • AS/NZS 62368.1
  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number AD-155A
Minimum order quantity 1
Country of origin China
Typical packed weight 1088 g
Unit weight 880 g

Downloads

AD-155 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
AD-155A 13.8 V10.5 A151.55 W$108.01
Ships in 3–5 business days
AD-155B27.6 V5 A151.55 W$108.01
Ships in 3–5 business days
AD-155C54 V2.7 A156.5 W$108.01
Ships in 3–5 business days

AD-155A: 10.5 A output current; AD-155C: 2.7 A; AD-155B: 5 A.

AD-155A: 152 W rated power; AD-155C: 156 W.
